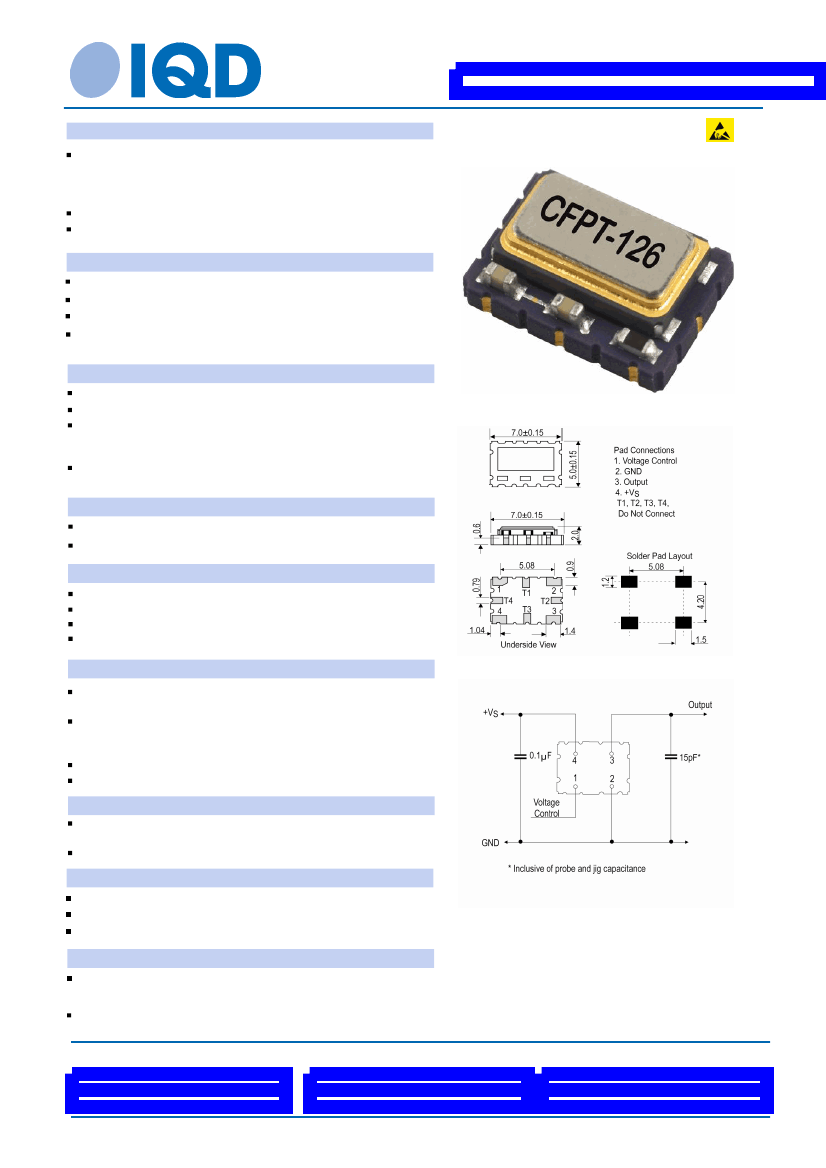

TCVCXO Specification
Part No. + Packaging:
LFTVXO009917Bulk
Description
Surface mount temperature compensated voltage controlled
oscillator (TCVCXO) providing a high degree of frequency
stability over a wide temperature range in a hermeticaly sealed
ceramic package
Model
CFPT-126
Model Issue number
5
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
20.0MHz
±0.50ppm
-40.00 to 85.00°C
±1ppm typical in 1st year @
25°C
3.3V ±5%
Supply Voltage
Current Draw (Typical): 3mA @ 20MHz
Supply Voltage Variation:
<30MHz ±0.3ppm
30MHz to 40MHz ±0.4ppm
Load Variation: ±0.2ppm (@15pF ±10%)
After Reflow: ±1.0ppm
Frequency Adjustment
Outline (mm)
Pulling
Control Voltage
Output Details
±5ppm min
1.65V ±1.0V
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Environmental Parameters
HCMOS
15pF nom
8.0ns max
45/55%
Test Circuit
Shock: IEC 60068-2-27, Test Ea: 980m/s2 acceleration for
6ms, 3 shocks in each of 3 mutually perpendicular planes
Vibration: IEC 60068-2-6, Test Fc, Procedure B4: 10Hz-60Hz
1.5mm displacement, 60-2000Hz at 98.1m/s2, 30mins in 3
mutually perpendicular planes at 1 oct/min
Solderability: MIL-STD-202, Method 208, Category 3
Storage Temperature Range: –55 to 125°C
Manufacturing Details
Soldering: Suitable for Convection Reflow soldering. Peak
temperature 260°C, 60sec max above 220°C
Washing: Able to withstand aqueous washing
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
1
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
TCVCXO Specification
Part No. + Packaging:
LFTVXO009917Bulk
Test Circuit
Wave Form
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 2 of 2
Printed on 4 May 16 13:27 using Part Data Sheet V1.00014
