Data Sheet
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
General Description
The AZ4580 is a monolithic dual low noise operational
amplifier. It is specifically designed for audio systems
to improve tone control; it can also be used in pre-
amplifier, industrial measurement tools and applica-
tions where gain and phase matched channels are man-
datory.
The IC features internal frequency compensation, low
noise, low distortion, high gain and high bandwidth.
The AZ4580 can operate under dual power supply
voltage up to
±18V
or single power supply up to 36V.
The AZ4580 is available in DIP-8, SOIC-8, SIP-8 and
TSSOP-8 packages.
AZ4580
Features
·
·
·
·
·
Large Signal Voltage Gain: 110dB Typical
Low Input Noise Voltage: 0.7
µV
RMS
(RIAA)
Typical
Wide Gain Bandwidth Product: 15 MHz at
10KHz Typical
Low Distortion: 0.0005% Typical
Slew Rate: 7V/µs Typical
Applications
·
·
Audio AC-3 Decoder System
Audio Amplifier
SOIC-8
DIP-8
SIP-8
TSSOP-8

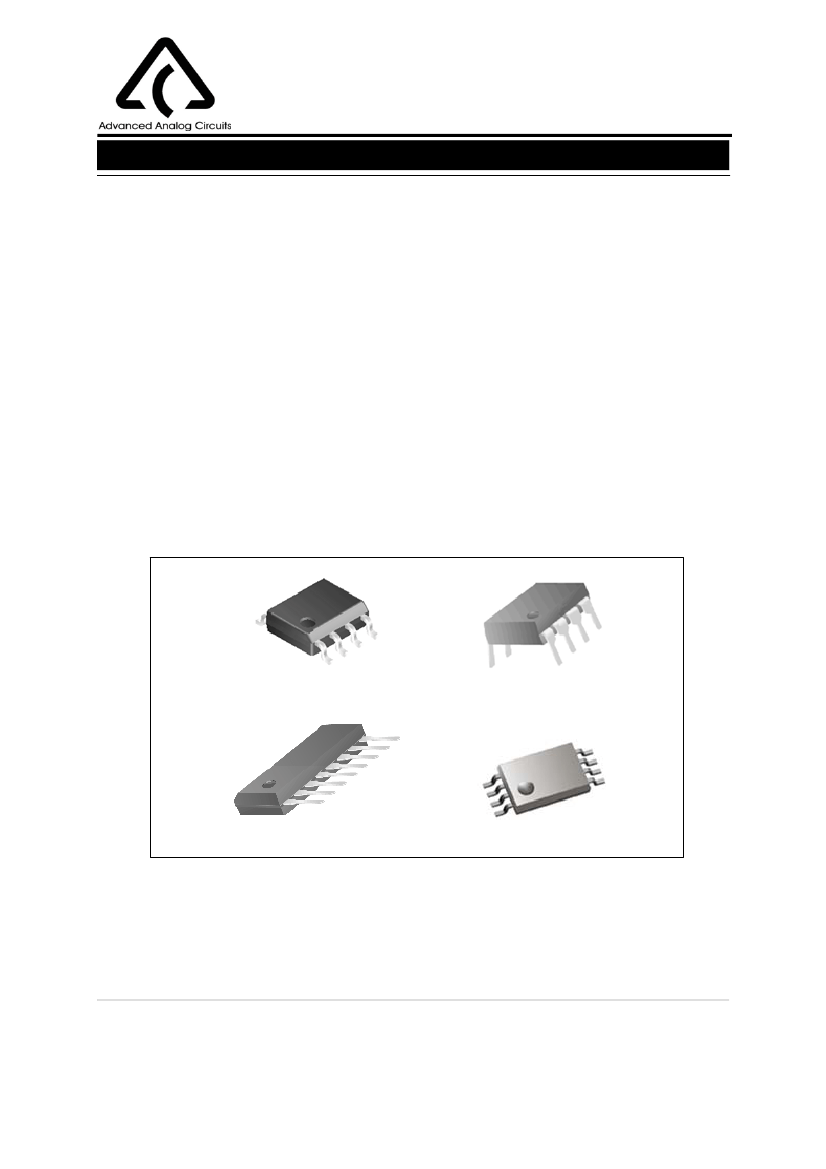

Figure 1. Package Types of AZ4580
Jul. 2006 Rev. 1. 6
1
BCD Semiconductor Manufacturing Limited
Data Sheet
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Pin Configuration
AZ4580
P/M/G Package
(DIP-8/SOIC-8/TSSOP-8)
Q Package
(SIP-8)
8
7
V
CC
OUTPUT 2
INPUT 2-
INPUT 2+
V
EE
INPUT 1+
INPUT 1-
OUTPUT 1
OUTPUT 1
INPUT 1-
INPUT 1+
V
EE
1
2
3
4
8
7
6
5
V
CC
OUTPUT 2
INPUT 2-
INPUT 2+
6
5
4
3
2
1
Figure 2. Pin Configuration of AZ4580 (Top View)
Pin Description
Pin No.
1
5
Function
OUTPUT 1
INPUT 2+
Pin No.
2
6
Function
INPUT 1-
INPUT 2-
Pin No.
3
7
Function
INPUT 1+
OUTPUT 2
Pin No.
4
8
Function
V
EE
V
CC
Jul. 2006 Rev. 1. 6
2
BCD Semiconductor Manufacturing Limited
Data Sheet
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Functional Block Diagram
AZ4580
V
CC
-INPUT
+INPUT
OUTPUT
V
EE
Figure 3. Representative Schematic Diagram of AZ4580 (Each Amplifier)
Jul. 2006 Rev. 1. 6
3
BCD Semiconductor Manufacturing Limited
Data Sheet
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Ordering Information
AZ4580
-
E1: Lead Free
AZ4580
Circuit Type
Package
Blank: Tin Lead
TR: Tape and Reel
M: SOIC-8
P: DIP-8
Q: SIP-8
G: TSSOP-8
Temperature
Range
-40 to 85
o
C
-40 to 85
o
C
-40 to 85
o
C
-40 to 85
o
C
Part Number
Tin Lead
AZ4580M
AZ4580MTR
AZ4580P
AZ4580Q
AZ4580G
AZ4580GTR
Lead Free
AZ4580M-E1
AZ4580MTR-E1
AZ4580P-E1
AZ4580Q-E1
AZ4580G-E1
AZ4580GTR-E1
Blank: Tube
Package
Marking ID
Tin Lead
4580M
4580M
AZ4580P
AZ4580Q
G80
G80
Lead Free
4580M-E1
4580M-E1
AZ4580P-E1
AZ4580Q-E1
EG80
EG80
Packing Type
Tube
Tape & Reel
Tube
Tube
Tube
Tape & Reel
SOIC-8
DIP-8
SIP-8
TSSOP-8
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant.
Jul. 2006 Rev. 1. 6
4
BCD Semiconductor Manufacturing Limited
Data Sheet
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Absolute Maximum Ratings (Note 1)
Parameter
Power Supply Voltage
Input Voltage
Differential Input Voltage
Operating Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering 10s)
Smbol
V
CC
V
EE
AZ4580
Value
+ 20
- 20
Unit
V
V
V
o
o
o
V
I
V
ID
T
J
T
STG
T
L
TSSOP-8
±15
±30
150
-65 to 150
260
400
500
750
800
C
C
C
Power Dissipation (T
A
=25
o
C)
P
D
SOIC-8
SIP-8
DIP-8
mW
Note 1:
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indi-
cated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended
periods may affect device reliability.
Recommended Operating Conditions
Parameter
Supply Voltage
Operating Temperature Range
Min
±2
-40
Max
± 18
85
Unit
V
o
C
Jul. 2006 Rev. 1. 6
5
BCD Semiconductor Manufacturing Limited
