AZ2940D-2.5E1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AZ2940D-2.5E1

AZ2940D-2.5E1: Description5 V FIXED POSITIVE LDO REGULATOR, 0.55 V DROPOUT, SFM3; CategoryPower/power management The power supply circuit; File Size203KB，18 Pages; ManufacturerBCD Semi（Diodes）; Environmental Compliance

Download Datasheet Parametric View All

AZ2940D-2.5E1 Overview

5 V FIXED POSITIVE LDO REGULATOR, 0.55 V DROPOUT, SFM3

AZ2940D-2.5E1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BCD Semi（Diodes）
Parts packaging code	TO-252
package instruction	TO-252, SMSIP3H,.38,90TB
Contacts	4
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	0.55 V
Nominal dropback voltage 1	0.28 V
Maximum absolute input voltage	16 V
Maximum input voltage	13.2 V
Minimum input voltage	2.5 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
length	6.525 mm
Maximum grid adjustment rate	0.025%
Maximum load regulation	0.0375%
Humidity sensitivity level	3
Number of functions	1
Output times	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	1 A
Maximum output voltage 1	2.55 V
Minimum output voltage 1	2.45 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Encapsulate equivalent code	SMSIP3H,.38,90TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TUBE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.527 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	2%
width	5.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

1A ULTRA LOW DROPOUT LINEAR REGULATOR

General Description

The AZ2940 is a low dropout three-terminal regulator

with a typical dropout of 280mV at 1A output current.

The AZ2940 provides current limit and thermal shut-

down. On-chip thermal shutdown provides protection

against any combination of high current and ambient

temperature that would create excessive junction tem-

peratures.

The AZ2940 has 2.5V, 3.3V and 5.0V versions.

The AZ2940 is available in the industry standard TO-

220-3, TO-263-3 and TO-252-2 (1) power packages.

AZ2940

Features

Minimum Guaranteed Output Current: 1A

Dropout Voltage at I

OUT

=1A: 280mV

Output Accuracy:

Low Ground Current

Internal Current Limit and Thermal Protection

Reversed-battery and Reversed-lead Insertion

Protection

Fast Transient Response

Applications

LCD TV

Set Top Box

LCD Monitor

SMPS Post Regulator

Laptop, Palmtop and Notebook

Portable Instrumentation

USB Power Supply

TO-220-3

TO-263-3

TO-252-2 (1)

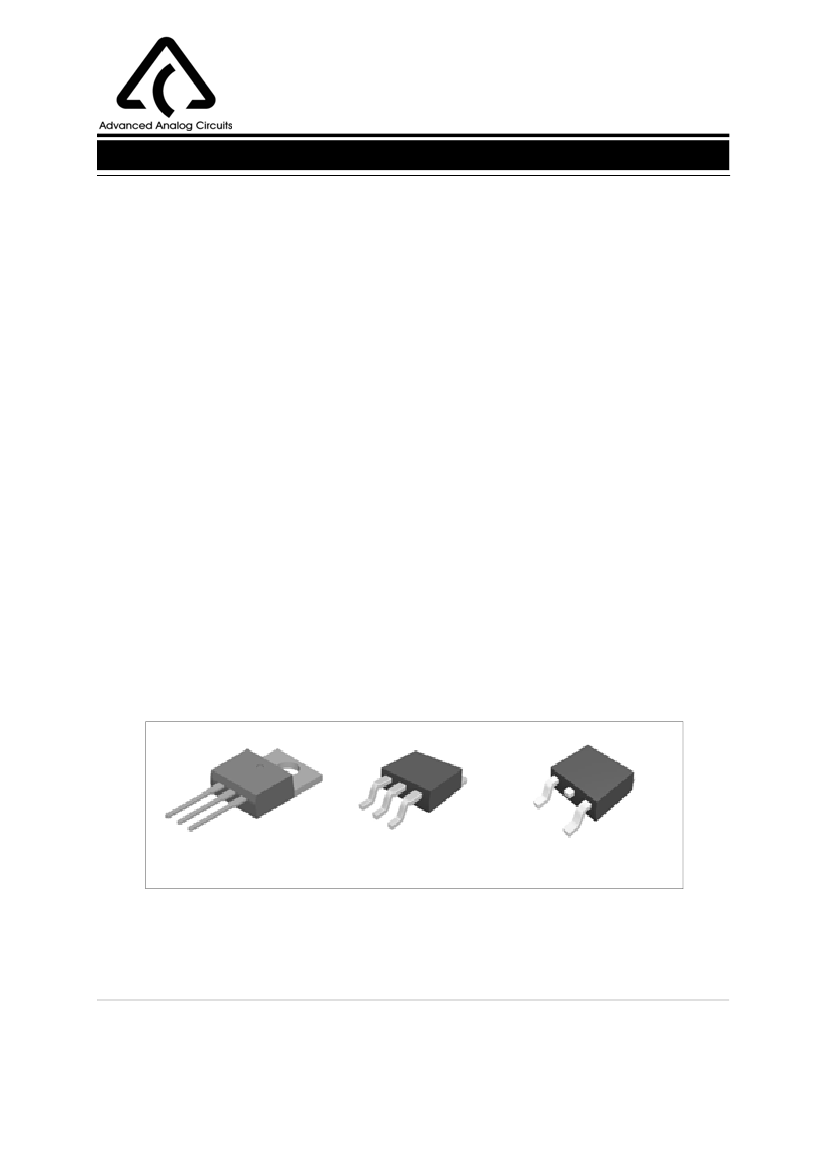

Figure 1. Package Types of AZ2940

Mar. 2007 Rev. 1. 6

BCD Semiconductor Manufacturing Limited
