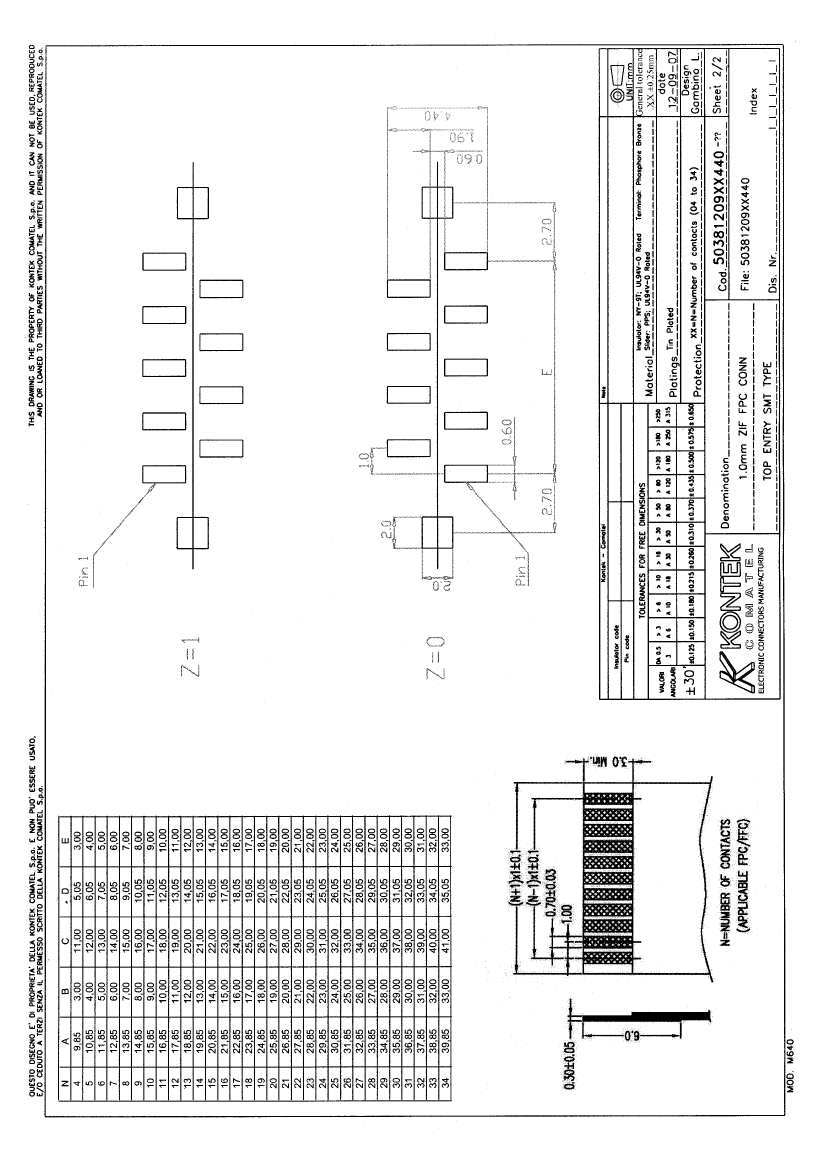

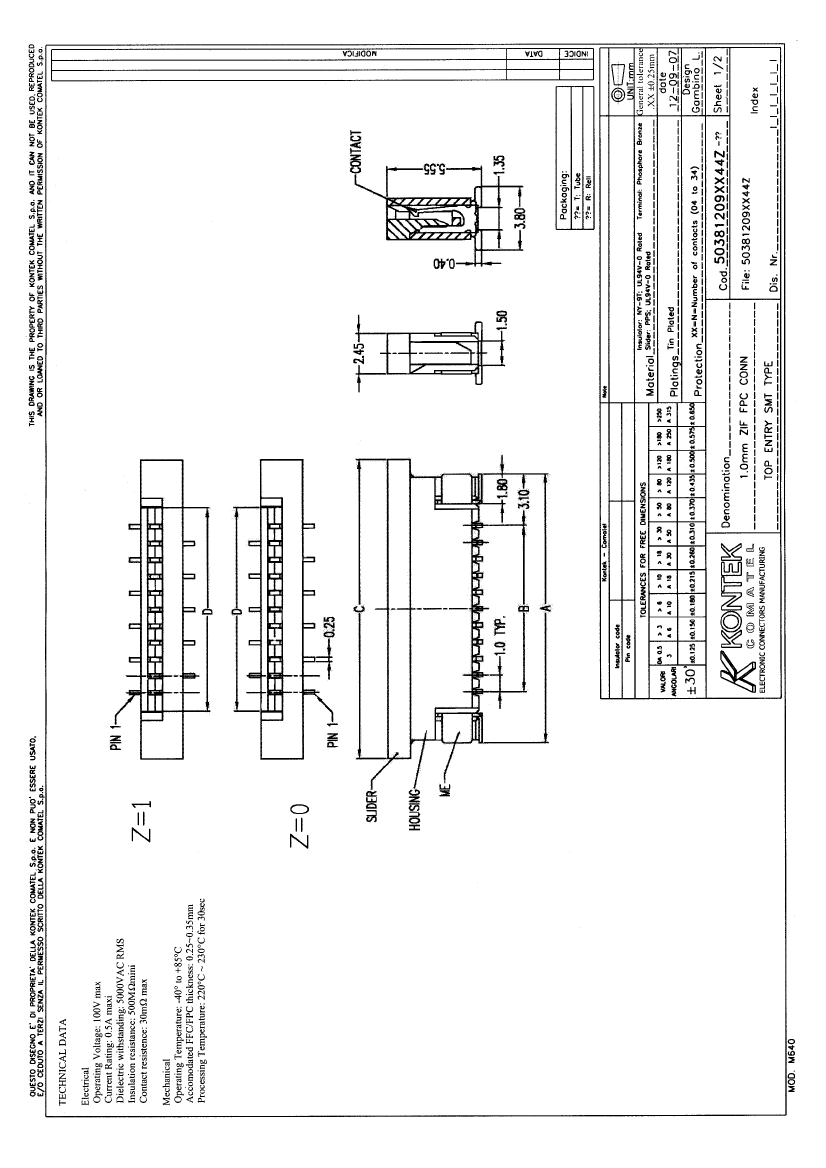

Card Edge Connector, 14 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking,
| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| body width | 0.096 inch |
| subject depth | 0.219 inch |
| body length | 0.827 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | TIN |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 5000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | ZIF N |
| Insulation resistance | 500000000 Ω |
| insulator material | NYLON |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.4892 mm |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | ZIF N |
| Base Number Matches | 1 |
