AZ1117R-2.85 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> AZ1117R-2.85

AZ1117R-2.85: Description1.25 V-12 V ADJUSTABLE POSITIVE LDO REGULATOR, 1.25 V DROPOUT, SFM3; Categorysemiconductor Power management; File Size224KB，24 Pages; ManufacturerBCD Semi（Diodes）

Download Datasheet Parametric View All

AZ1117R-2.85 Overview

1.25 V-12 V ADJUSTABLE POSITIVE LDO REGULATOR, 1.25 V DROPOUT, SFM3

AZ1117R-2.85 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	3
Maximum output current	1 A
Maximum output voltage	12 V
Minimum output voltage	1.25 V
Processing package description	ROHS COMPLIANT, TO-220, 3 PIN
state	TRANSFERRED
Craftsmanship	BIPOLAR
packaging shape	Rectangle
Package Size	Flange mounting
Terminal form	THROUGH-hole
Terminal location	single
Packaging Materials	UNSPECIFIED
Maximum voltage difference	1.25 V
Adjustment type	Adjustable Positive Voltage Low Dropout Linear Regulator Regulator

Preview

Download Datasheet

View All

Data Sheet

1A LOW DROPOUT LINEAR REGULATOR

CURRENT MODE PWM CONTROLLER

General Description

The AZ1117 is a series of low dropout three-terminal

regulators with a dropout of 1.15V at 1A output cur-

rent.

The AZ1117 series provides current limiting and ther-

mal shutdown. Its circuit includes a trimmed bandgap

reference to assure output voltage accuracy to be

within 1% for 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V and

adjustable versions or 2% for 1.2V version. Current

limit is trimmed to ensure specified output current and

controlled short-circuit current. On-chip thermal shut-

down provides protection against any combination of

overload and ambient temperature that would create

excessive junction temperature.

The AZ1117 has an adjustable version, that can pro-

vide the output voltage from 1.25V to 12V with only 2

external resistors.

The AZ1117 series is available in the industry standard

SOT-223, SOT-89-3, TO-220-3, TO-252-2 and TO-

263-3 power packages.

AZ1117

AZ2842/3/4/5

Features

Low Dropout Voltage: 1.15V at 1A Output Cur-

rent

Trimmed Current Limit

On-chip Thermal Shutdown

Three-terminal Adjustable or Fixed 1.2V, 1.5V,

1.8V, 2.5V, 2.85V, 3.3V, 5.0V

Operation Junction Temperature: -40 to 125

Applications

PC Motherboard

LCD Monitor

Graphic Card

DVD-video Player

NIC/Switch

Telecom Equipment

ADSL Modem

Printer and other Peripheral Equipment

SOT-223

SOT-89-3

TO-220-3

TO-252-2

TO-263-3

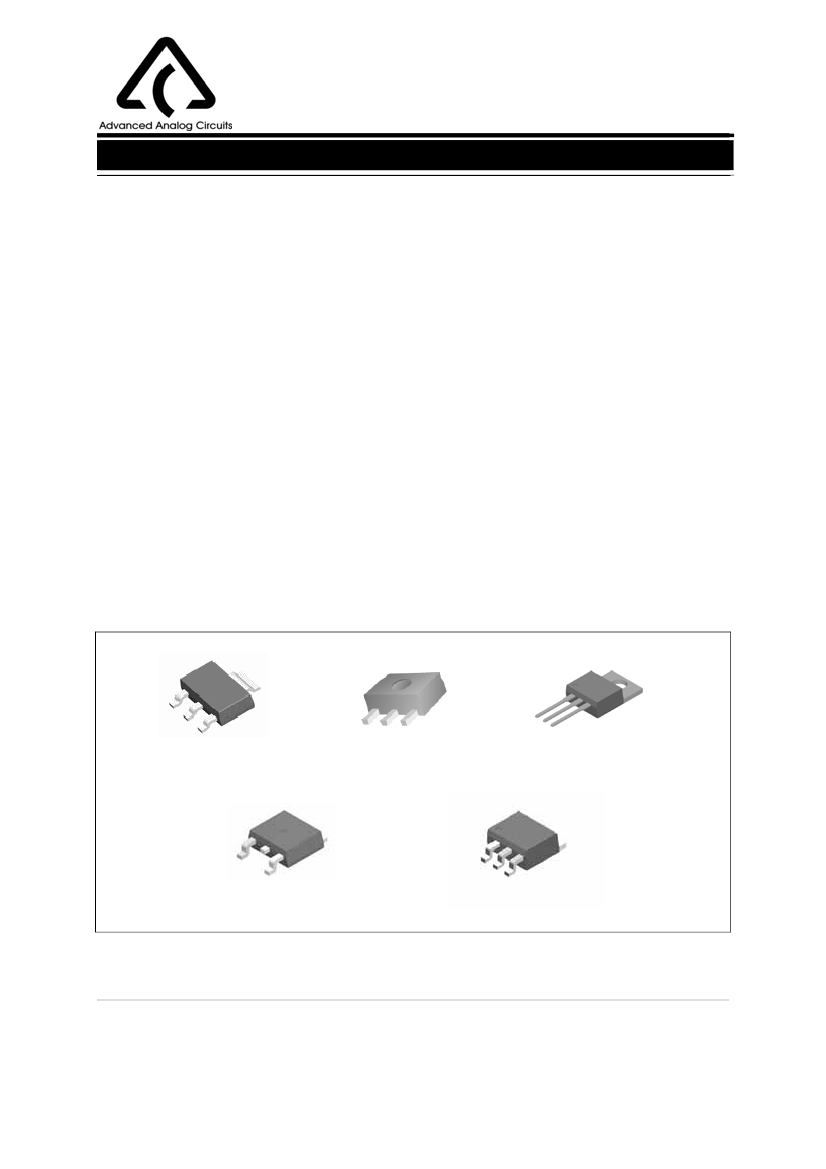

Figure 1. Package Types of AZ1117

Oct. 2005 Rev. 1. 7
