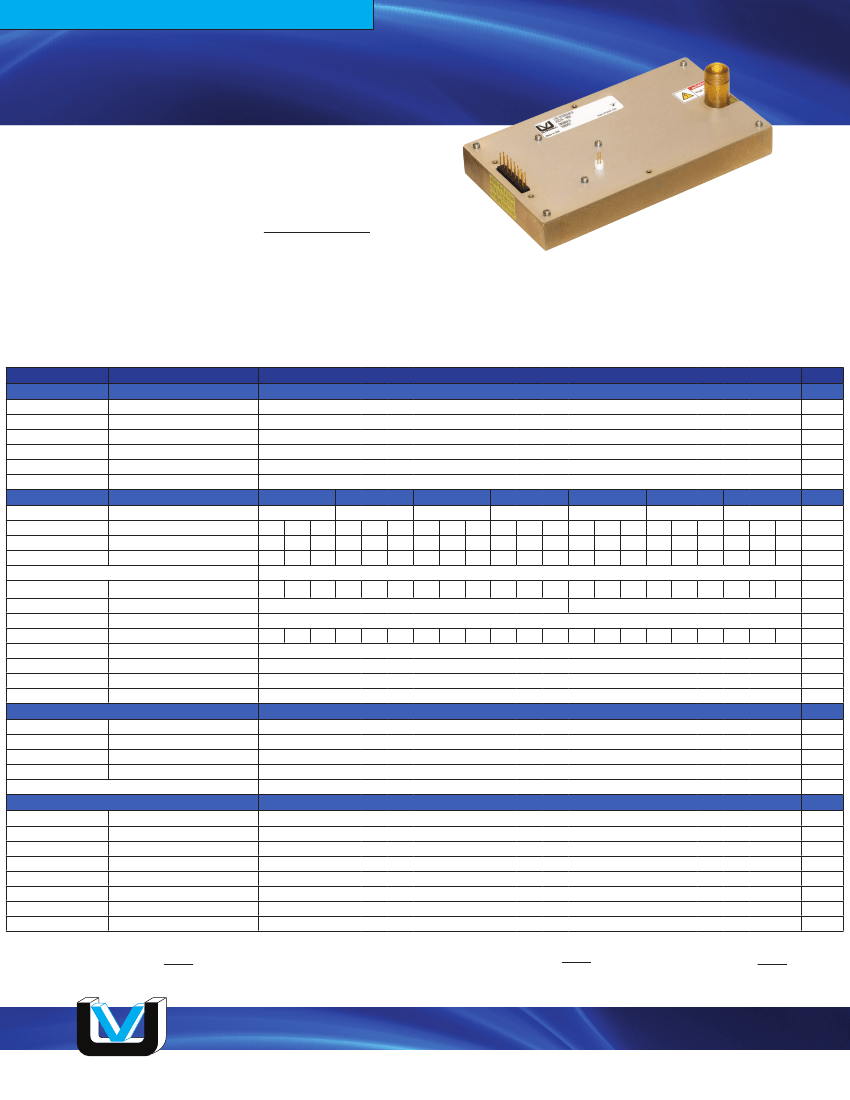

SINGLE OUTPUT HIGH VOLTAGE MODULES
HIGH POWER 8C-30C SERIES
8kV to 30kV High Voltage Cap-Charging Supplies
This High Power line of high-voltage regulated DC to DC converters
is an extension of the C Series, directly addressing the high power
density needs of >30 watt applications. High Power 8C - 30C units
provide up to 60/125/250 watts. This high power density is especially
suited to high-energy systems with large capacitances, fast repetition
rates, or high continuous-DC-power requirements. See Application
Note 10 for more changing information. Typical applications for the
High Power 8C-30C Series include the following: laser, cap-charger,
pulse generators, Q-switch, and TDR test equipment.
12
•
7 models from 0 to 8kV through 0 to 30kV
•
60, 125, or 250 watts of output power
•
Maximum Iout capability down to 0 Volts
•
Maximum Iout during charge/rise time
•
Output short-circuit protection
•
Very fast rise with very low overshoot
PARAMETER
CONDITIONS
INPUT
Voltage Range
Voltage Range
Current
Current
Current
AC Ripple Current
Full Power
Derated Power Range
Standby / Disable
No Load, Max Eout
Max Load, Max Eout
Nominal Input, Full Load
•
•
•
•
•
•
•
High efficiency
High power to voltage density
Very low profile
Output current & voltage monitors
>200,000 hour MTBF @65°C
Fixed-frequency, low-stored-energy design
UL/cUL Recognized Component; CE Mark (LVD & RoHS)
ALL TYPES
+ 23 to 30
60W, 125W: + 11 to 30, 250W: 15-30
< 40
8C to 15C < 500, 20C to 25C < 600
60W: 3.25, 125W: 6.5, 250W: 13
< 50
UNITS
VDC
VDC
mA
mA
A
mA p-p
OUTPUT
Voltage Range
Power
Current
Current Scale Factor
Voltage Monitor Scaling
Internal Capacitance
Ripple
Rise Time
Storage Capacitance
Overshoot
Line Regulation
Static Load Regulation
Stability
Input Impedance
Adjust Resistance
Adjust Logic
Output Voltage & Impedance
8C
Nominal Input
Nominal Input, Max Eout
Iout, Entire Output Voltage Range
Full Load
Capacitance / 95% Decay (50Meg Load)
Full Load, Max Eout
Max Iout, Various C Loads & Eout
Internal
C Load, 0 Eout to Full Eout
Nom. Input, Max Eout, Full Power
No Load to Full Load, Max Eout
30 Min. warmup, per 8 hr/ per day
Nominal Input
Typical Potentiometer Values
0 to +5 for +Out, +5 to 0 for - Out
T=+25°C
60
7.5
4.7
0 to 8,000
125
15.5
14.2
250
31.2
6.25
60
6
4.1
10C
0 to 10,000
125
12.5
10.9
250
25
5
60
5
4.0
12C
0 to 12,000
125
10.5
7.4
250
20.8
4.17
60
4
4.0
15C
0 to 15,000
125
8.3
7.5
250
16.7
3.33
60
3
.65
20C
0 to 20,000
125
6.25
.653
250
12.5
2.5
60
2.4
.65
25C
0 to 25,000
125
5
.650
250
10
2
60
2
.65
825/
125
30C
0 to 30,000
125
4.17
.642
550/
85
250
8.33
1.67
500/
75
VDC
Watts
mA
mA/V
-
pF/mS
V p-p
-
825
550
500
pF
V pk
VDC
VDC
VDC
MΩ
Ω
-
-
VDC
°C
PPM/°C
°C
°C
-
ft
G’s
G’s
60W & 125W Models - 1000:1 ± 2% into 10MΩ; 250W Models - 10,000:1 ± 2%
4400/ 2200/ 1500/ 2933/ 1467/ 1500/ 2933/ 1467/ 750/ 2200/ 1100/ 750/ 1320/ 880/ 750/ 1100/ 733/ 500/
659 330 225 439 220 225 439 220 112 330 165 112 200 132 112 165 110
75
< 1%
< 1%
Figure A
4400 2200 1500 2933 1467 1500 2933 1467
750
2200 1100
< 1%
< 0.01%
< 0.01%
< 0.01% / < 0.02%
750
1320
880
750
1100
733
500
PROGRAMMING & CONTROLS
ALL TYPES
+ Output Models 1.1MΩ to GND, - Output Models 1.1MΩ to +5 Vref
10K to 100K (Pot across Vref. & Signal GND, Wiper to Adjust)
+4.64 VDC for +Output or +0.36 for -Output = Nominal Eout
+ 5.00VDC ± 1%, Zout = 464Ω ± 1%
0 to +0.8V Disable, +2.0 to 32 Enable (Default = Enable)
Enable/Disable
ENVIRONMENTAL
Operating
Coefficient
Thermal Shock
Storage
Humidity
Altitude
Shock
Vibration
C = uF
V = Volts
I = mA
T = mS
ALL TYPES
-40 to +65
±50 (±25 Optional)
-40 to +65
-55 to +105
0 to 95% non-condensing
Sea Level through 70,000
20
10
C = uF
V = kV
I = mA
F = Hz
C = uF
V = kV
I = mA
F = Hz
Full Load, Max E out, Case Temperature
Over the Specified Temperature
Mil-Std-810, Method 503-4, Proc. II
Non-Operating, Case Temp.
All Conditions, Standard Package
Standard Package, All Conditions
Mil-Std-810, Method 516.5, Proc. IV
Mil-Std-810, Method 514.5, Fig.514.5C-3
Specifications subject to change without notice.
T= C x V
I
I=CxVxF
F=
I
CxV
C = uF
E² = kV
J = Ws
J= C x E²
2
NOTES: Capacitance must include HVPS internal Capacitance.
Figure A - Rise Time Formulas
Making High Voltage Easier!
®
ULTRAVOLT
®
Higher Service, Higher Performance, Higher Reliability
©2011, UltraVolt Inc. All rights reserved.
SINGLE OUTPUT HIGH VOLTAGE MODULES
HIGH POWER
High Voltage Biasing Supply
8C TO 30C - 250W (PRELIMINARY)
8kV to 30kV High Voltage Cap-Charging Supplies
8C-30C SERIES
14

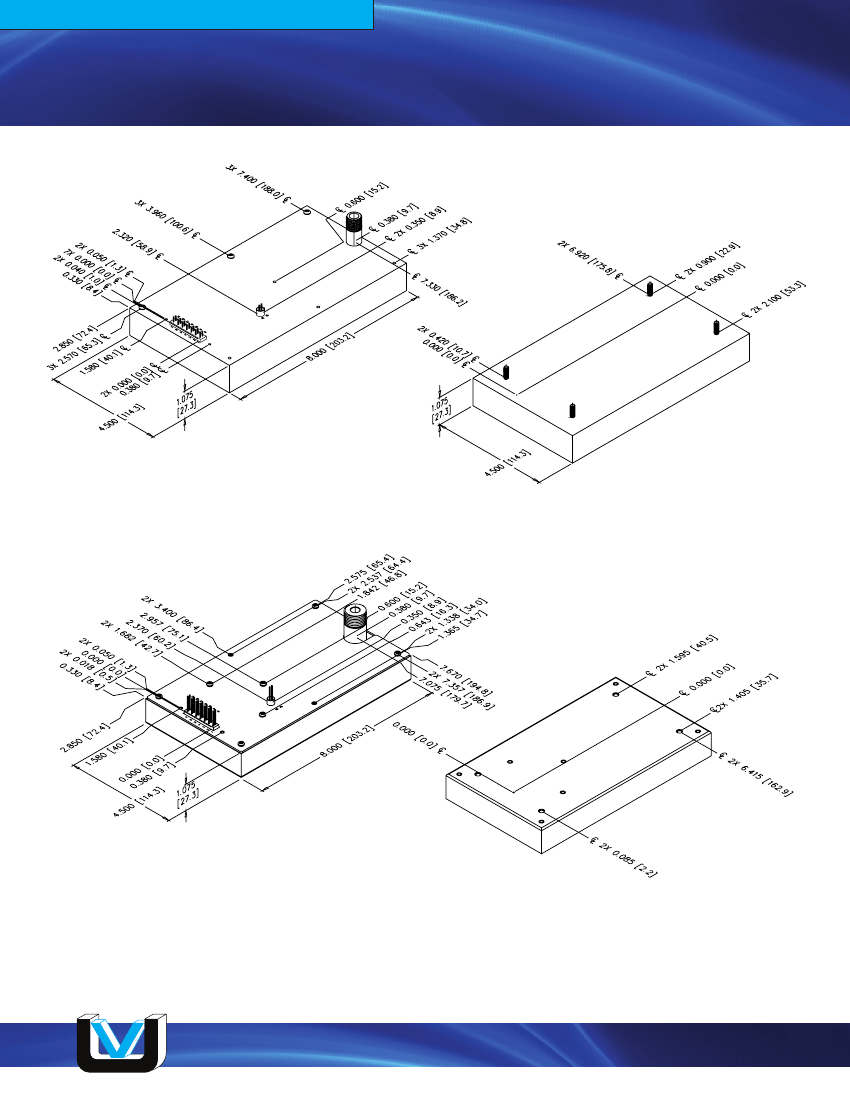

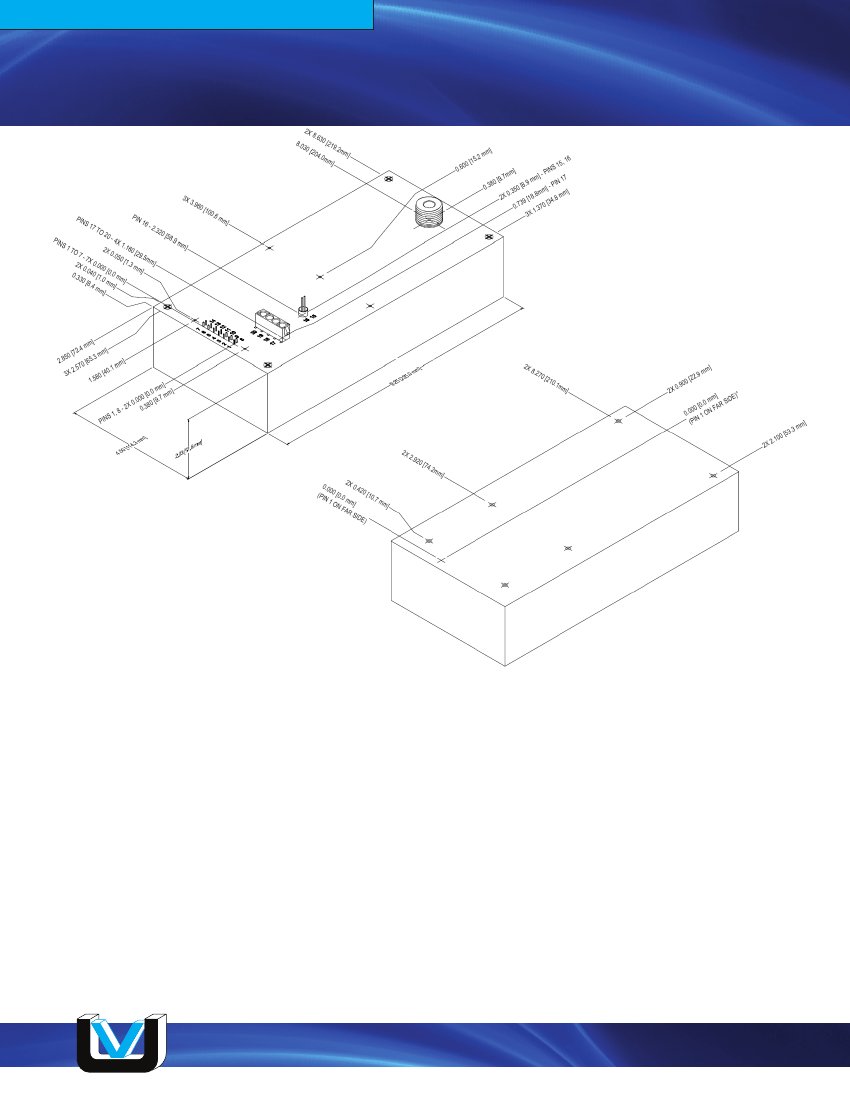

CONSTRUCTION
Epoxy-filled Aluminum Box
Chem film per MIL-A-8625 Type II (Anodizing)
PINS
Gold-plated 0.025 (0.64) sq.
The center of the pins and mounting holes are located from the center of
pin 1
Pins 1 thru 14 spacing 0.100 (2.54) x 0.200 (5.08) on center,
height from cover 0.280 (7.11) min
Pins 15 and 16 spacing 0.100 (2.54) on center,
height from cover 0.450 (11.43) min
SIZE - 60 & 125W MODELS
Volume 38.7 in³ (634cc)
Weight 2.6 lbs. (1.18kg)
SIZE - 250W MODELS
Volume 84.5 in³ (1386cc)
Weight 5.6 lbs. (1.18kg)
HV OUTPUT CONNECTION
Unit requires an LGH flying lead connector for proper operation:
8C to 15C (60W & 125W Models) = CA-20KV-1000
20C to 30C (60W & 125W Models) = CA-40KV-1000
8C to 30C (250W Models) = CA-40KV-1000
TOLERANCE
Overall ±0.025” (0.64)
Pin to Pin ±0.015” (0.38)
Hole to hole location ±0.025” (0.64)
Making High Voltage Easier!
®
ULTRAVOLT
®
1800 Ocean Avenue, Ronkonkoma, NY 11779
Phone: 1-631-471-4444 Fax: 1-631-471-4696 www.ultravolt.com
SINGLE OUTPUT HIGH VOLTAGE MODULES
HIGH POWER
High Voltage Biasing Supply
8kV to 30kV High Voltage Cap-Charging Supplies
8C-30C SERIES
15
ORDERING INFORMATION
CONNECTIONS
FUNCTION
Input-Power Ground Return
Positive Power Input
Iout Monitor
Enable/Disable
Signal Ground Return
Remote Adjust Input
+5VDC Reference Output
N/C (or Arc Detect option)
N/C
Eout Monitor
HV Ground Return
0 to 8,000 VDC Output
0 to 10,000 VDC Output
0 to 12,000 VDC Output
0 to 15,000 VDC Output
0 to 20,000 VDC Output
0 to 25,000 VDC Output
0 to 30,000 VDC Output
24VDC Nominal
Positive Output
Negative Output
60 Watts Output
125 Watts Output
250 Watts Output
.400” High (sized to fit case)
(5) 0.187" standoffs on top cover
5V Controls and Monitors
10V Control and Monitors
Arc Detect
Arc Quench
25PPM Temperature Coefficient
8C
10C
12C
15C
20C
25C
30C
24
-P
-N
60
125
250
-H
-Z11
-I5
-I10
-AD
-AQ
-25PPM
PIN
1&8
2&9
3
4
5
6
7
10
11, 12, & 13
14
15 & 16
Type
Input
Polarity
Power
Heat Sink
PCB Support
Enhanced Interface
Options
All grounds joined internally. Power-supply
mounting points isolated from internal grounds
by >100kΩ, .01uF / 500V (Max).
Note: For more information on the enhanced interface options, download the
I5/I10 Option datasheet.
Example:
Type
8C24-P125
Power
Polarity
Voltage
Model
Input
IEC-60950-1
Non-RoHS compliant units are
available. Please contact the
factory for more information.
Popular accessories ordered with this product include
CONN-KIT-HP, BR-7 and BR-8 mounting bracket kits
and our full range of high voltage output connectors
(see Accessories & Connectors datasheet).
Manufactured in USA
Rev. AB 12/14
