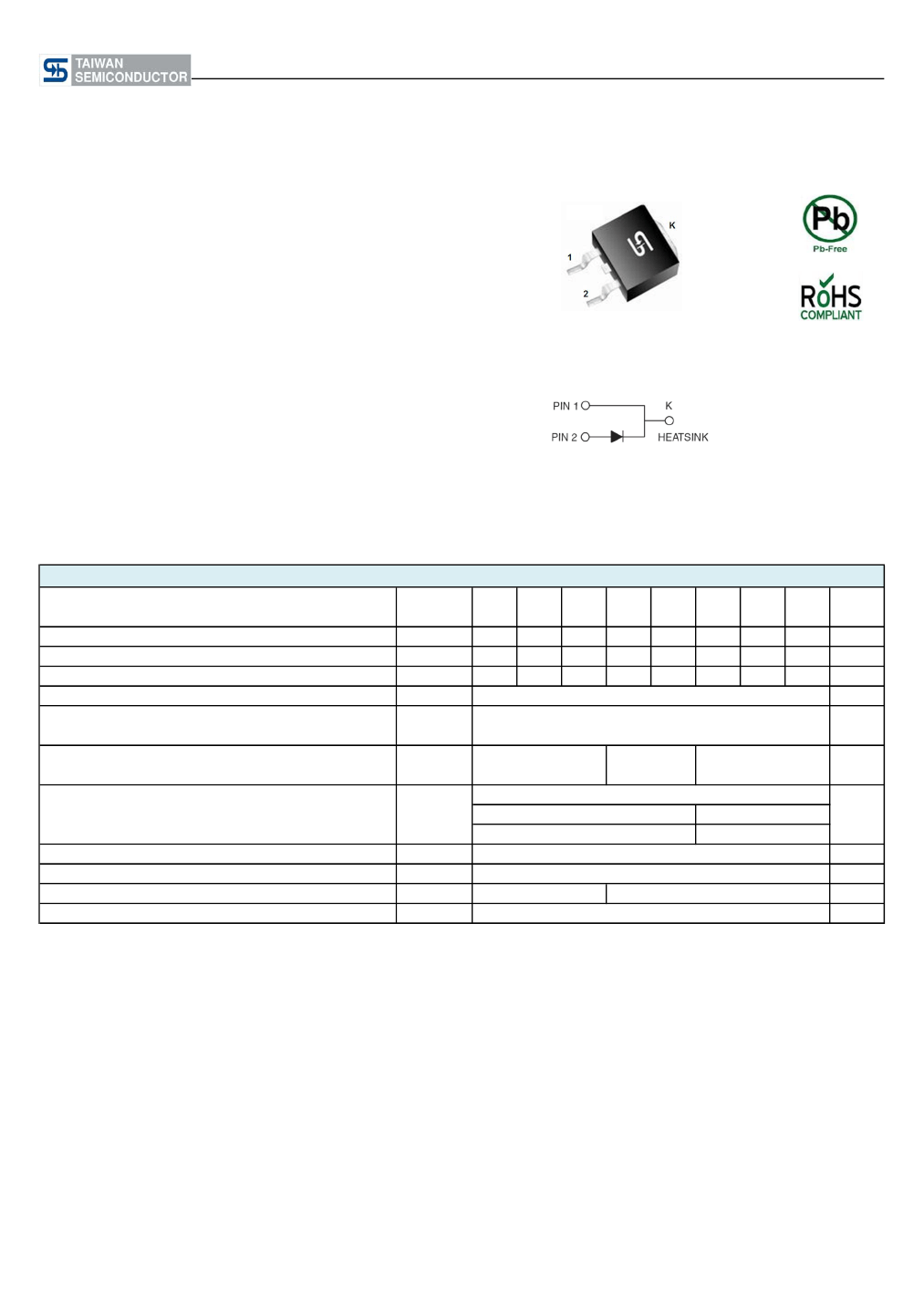

SRAS820 - SRAS8150
Taiwan Semiconductor
CREAT BY ART
8A, 20V - 150V Surface Mount Schottky Barrier Rectifiers
FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
TO-263AB (D
2
PAK)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Weight:
1.37 g (approximately)
TO-263AB (D PAK)
2
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 8 A
T
J
=25°C
Maximum reverse current @ rated V
R
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=100°C
T
J
=125°C
dV/dt
R
θJC
T
J
T
STG
- 55 to +125
I
R
5
-
10000
3
- 55 to +150
- 55 to +150
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
SRAS SRAS SRAS SRAS SRAS SRAS SRAS SRAS
820
20
14
20
830
30
21
30
840
40
28
40
850
50
35
50
8
150
0.70
0.1
-
5
V/μs
°C/W
°C
°C
mA
0.95
860
60
42
60
890
90
63
90
8100 8150
100
70
100
150
105
150
UNIT
V
V
V
A
A
V
Document Number: DS_D1309054
Version: J15
SRAS820 - SRAS8150
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SRAS8xx
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
RN
MN
PACKING CODE
PACKING CODE
SUFFIX
G
(*)
PACKAGE
PACKING
800 / 13" Paper reel
800 / 13" Plastic reel
D
2
PAK
Note 1: "xx" defines voltage from 20V (SRAS820) to 150V (SRAS8150)
EXAMPLE
PREFERRED P/N
SRAS860HRNG
PART NO.
SRAS860
PART NO.
SUFFIX
H
PACKING CODE
RN
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

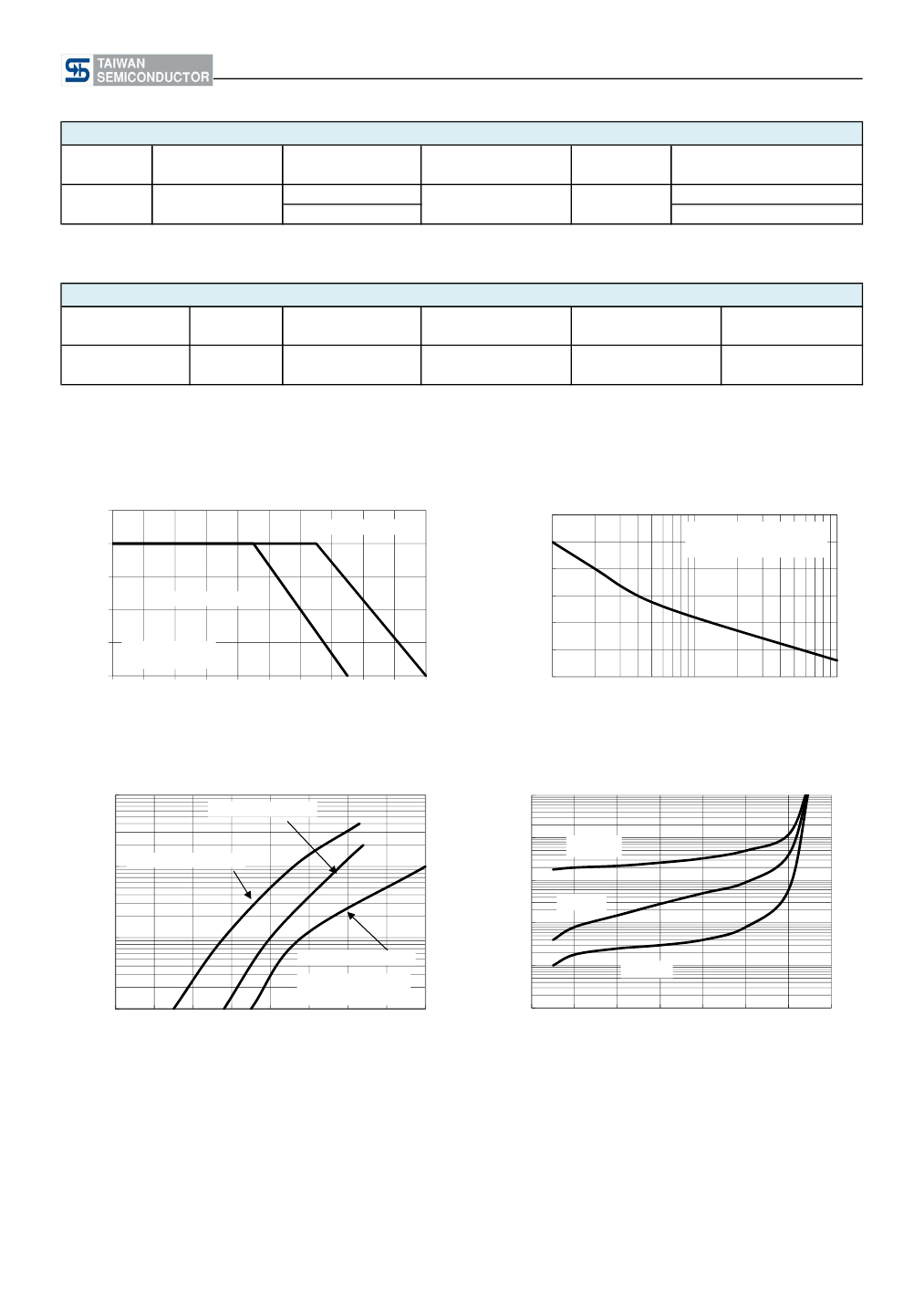

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
175
SRAS850-SRAS8150
AVERAGE FORWARD
A
CURRENT (A)
FIG.1 FORWARD CURRENT DERATING CURVE
10
8
6
4
2
0
50
60
70
80
90
100
110
120
130
140
150
CASE TEMPERATURE (
o
C)
SRAS820-SRAS840
PEAK FORWARD SURGE
CURRENT (A)
150
125
100
75
50
25
1
8.3ms Single Half Sine Wave
RESISTIVE OR
INDUCTIVELOAD
10
100
NUMBER OF CYCLES AT 60 Hz
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
SRAS850-SRAS860
INSTANTANEOUS FORWARD
A
CURRENT (A)
INSTANTANEOUS REVERSE
A
CURRENT (mA)
10
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
T
J
=125°C
10
SRAS820-SRAS840
1
T
J
=75°C
0.1
1
SRAS890-SRAS8150
Pluse Width=300μs
1% Duty Cycle
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0.01
T
J
=25°C
0.1
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1309054
Version: J15
SRAS820 - SRAS8150
Taiwan Semiconductor

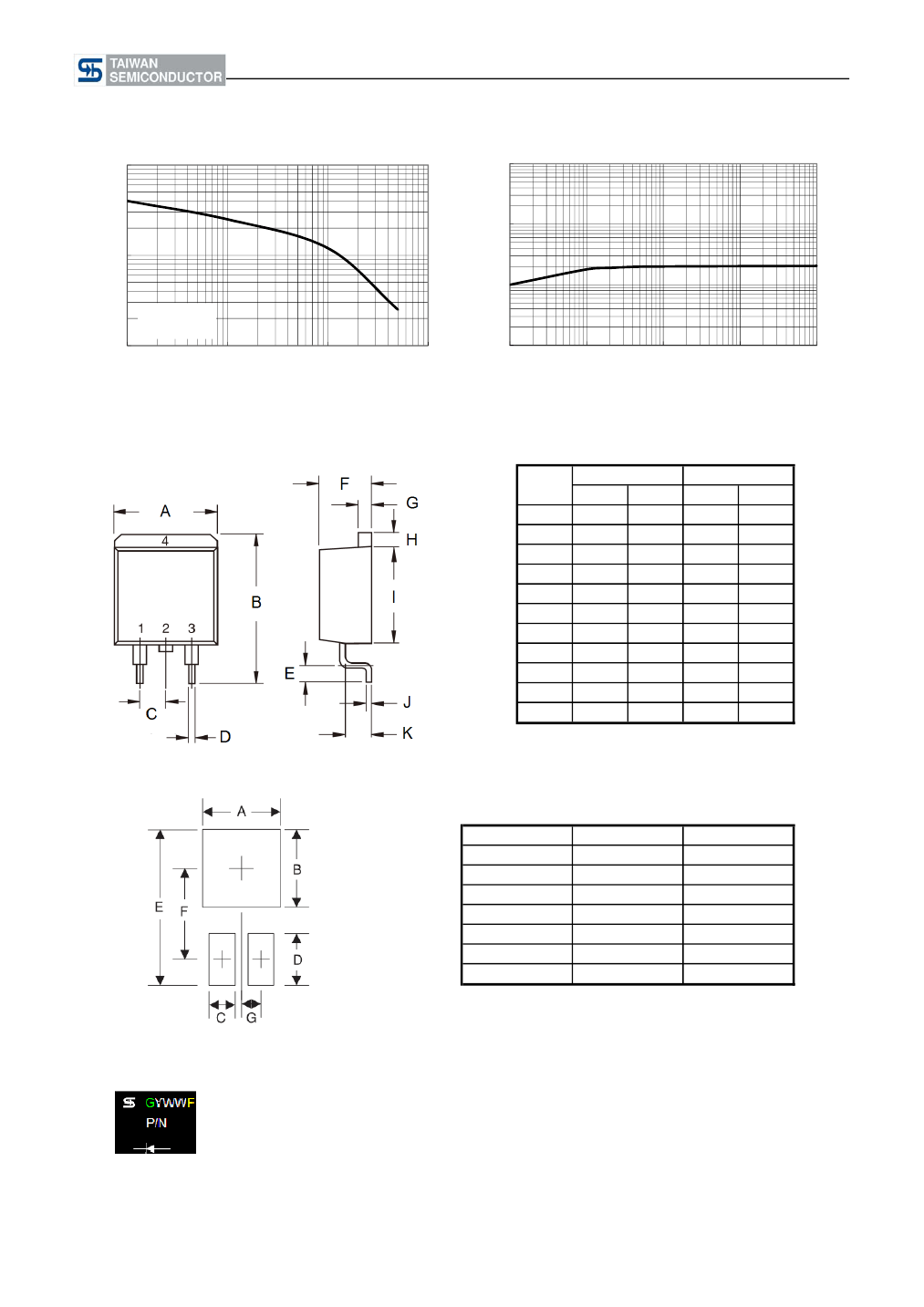

FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
100
TRANSIENT THERMAL IMPEDANCE
A
(°C/W)
CAPACITANCE (pF)
A
10
100
1
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
PACKAGE OUTLINE DIMENSIONS
TO-263AB (D
2
PAK)
DIM.
A
B
C
D
E
F
G
H
I
J
K
Unit (mm)
Min
-
14.60
2.41
0.68
2.29
4.44
1.14
1.14
8.25
0.36
2.03
Max
10.5
15.88
2.67
0.94
2.79
4.70
1.40
1.40
9.25
0.53
2.79
Unit (inch)
Min
-
0.575
0.095
0.027
0.090
0.175
0.045
0.045
0.325
0.014
0.080
Max
0.413
0.625
0.105
0.037
0.110
0.185
0.055
0.055
0.364
0.021
0.110
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
F
G
Unit (mm)
10.8
8.3
1.1
3.5
16.9
9.5
2.5
Unit (inch)
0.425
0.327
0.043
0.138
0.665
0.374
0.098
MARKING DIAGRAM
P/N
G
YWW
F
Document Number: DS_D1309054
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: J15
SRAS820 - SRAS8150
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1309054
Version: J15
