SS14LW - SS115LW
Taiwan Semiconductor
CREAT BY ART

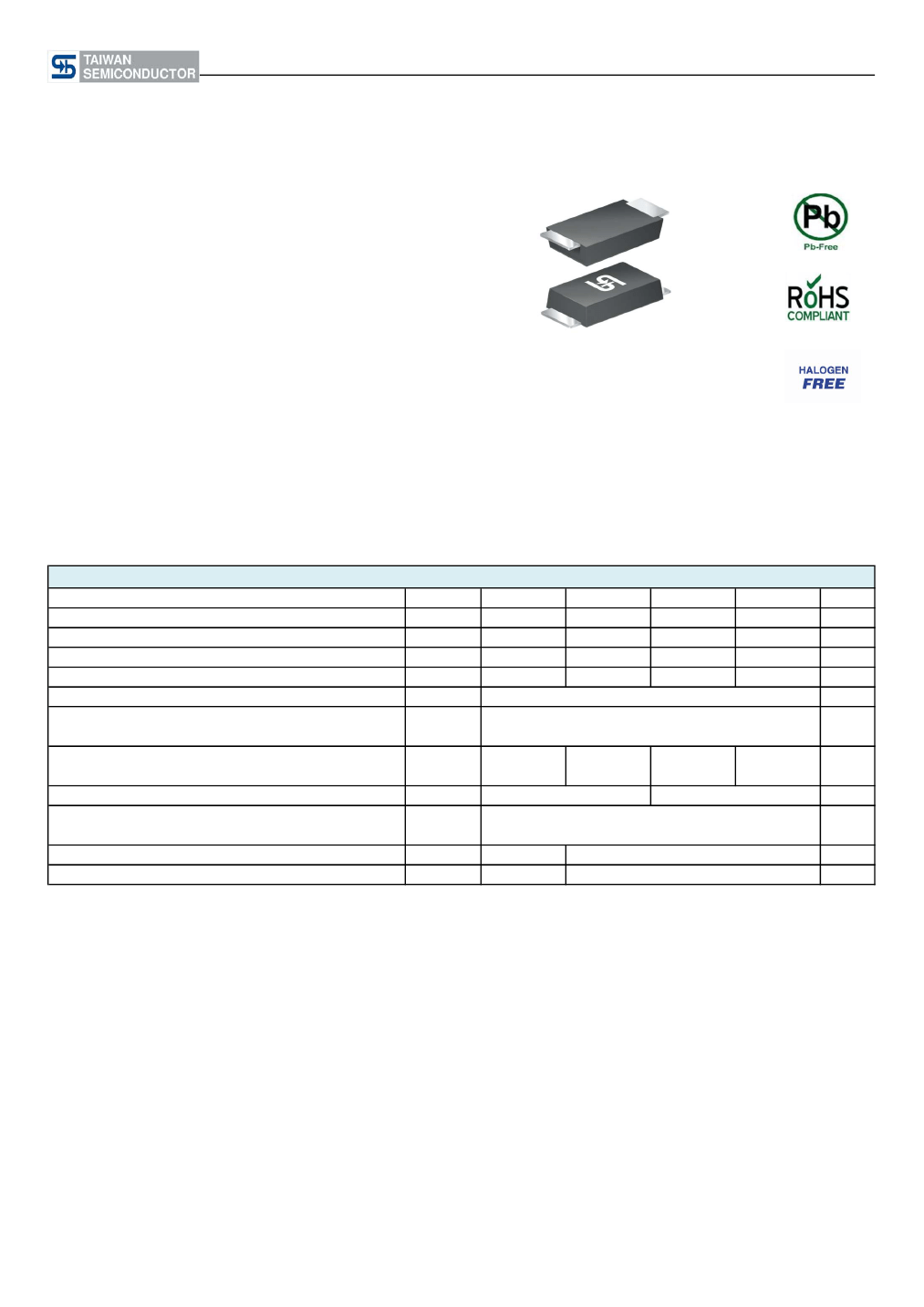

1A, 40V - 150V Surface Mount Schottky Barrier Rectifiers
FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- Guard ring for over-voltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case: SOD-123W
Molding compound: UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal: Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity: Indicated by cathode band
Weight: 16 mg (approximately)
SOD-123W
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
- 55 to +125
- 55 to +125
0.55
100
25
80
- 55 to +150
- 55 to +150
0.70
SYMBOL
SS14LW
14LW
40
28
40
SS16LW
16LW
60
42
60
1
30
0.80
10
0.95
SS110LW
10LW
100
70
100
SS115LW
A5LW
150
105
150
V
V
V
A
A
V
μA
°C/W
°C
°C
UNIT
Version: A1511
SS14LW - SS115LW
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SS1xLW
(Note 1, 2)
PART NO.
SUFFIX
H
PACKING CODE
RV
RQ
PACKING CODE
SUFFIX
G
SOD-123W
3,000 / 7" Plastic reel
10,000 / 13" Paper reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 40V (SS14LW) to 150V (SS115LW)
Note 2: Whole series with green compound ( halogen-free)
EXAMPLE
EXAMPLE P/N
SS14LWHRVG
PART NO.
SS14LW
PART NO.
SUFFIX
H
PACKING CODE
RV
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

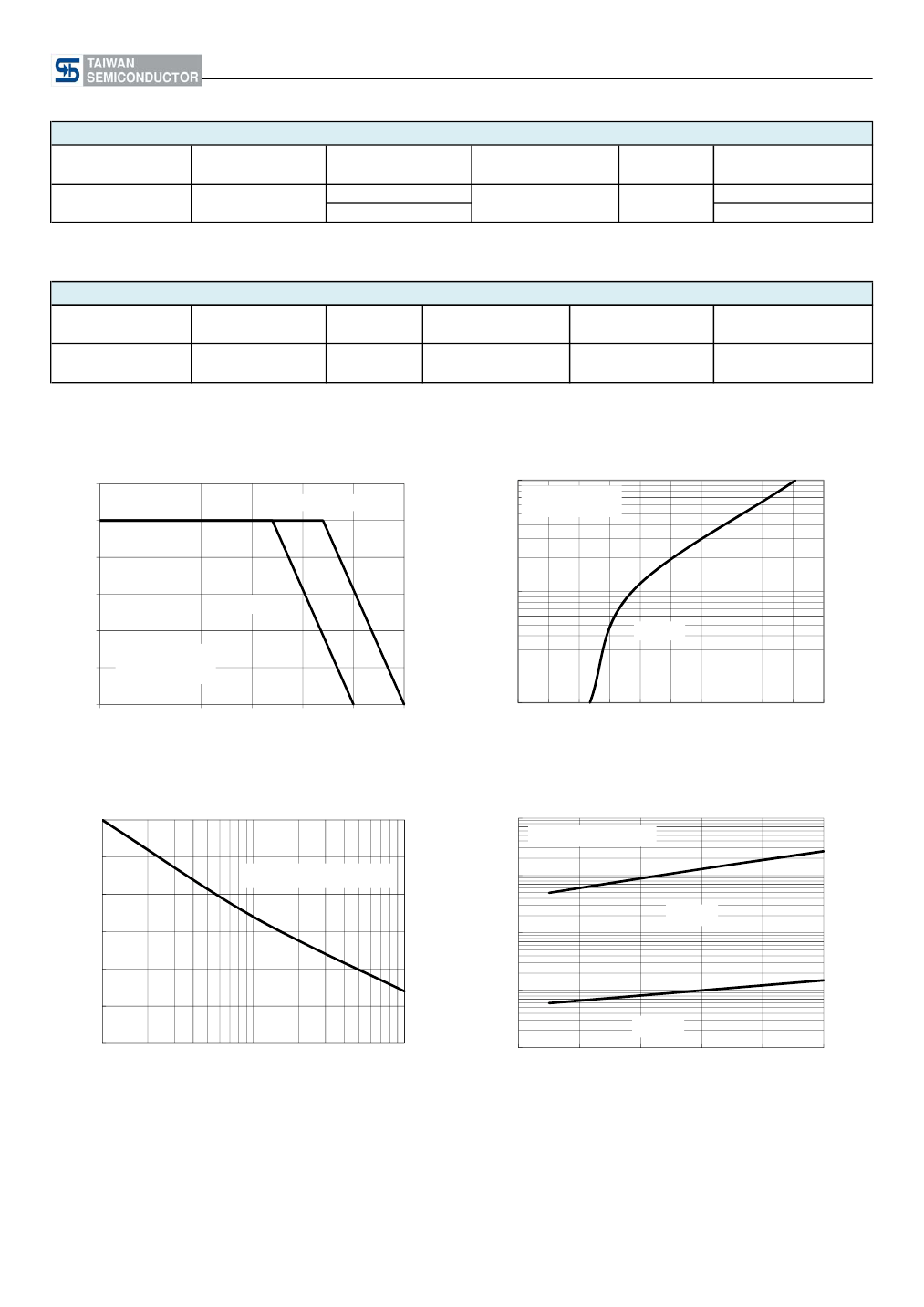

FIG.1 FORWARD CURRENT DERATING CURVE
1.2
SS16LW~SS115LW
AVERAGE FORWARD CURRENT (A)
10
INSTANTANEOUS FORWARD CURRENT (A)
Pulse width=300μs
1% duty cycle
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
Resistive or
inductive load
1
SS14LW
SS110L
W
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
LEAD TEMPERATURE (
°
C)
FORWARD VOLTAGE (V)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
30
25
8.3ms single half sine wave
20
15
10
5
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
1000
SS110LW~SS115LW
PEAK FORWARD SURGE CURRENT (A)
100
T
J
=125°C
10
1
T
J
=25°C
0.1
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version: A1511
SS14LW - SS115LW
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
80
CAPACITANCE (pF)
60
40
20
0
0.1
1
10
100
f=1.0MHz
Vsig=50mVp-p
REVERSE VOLTAGE (V)

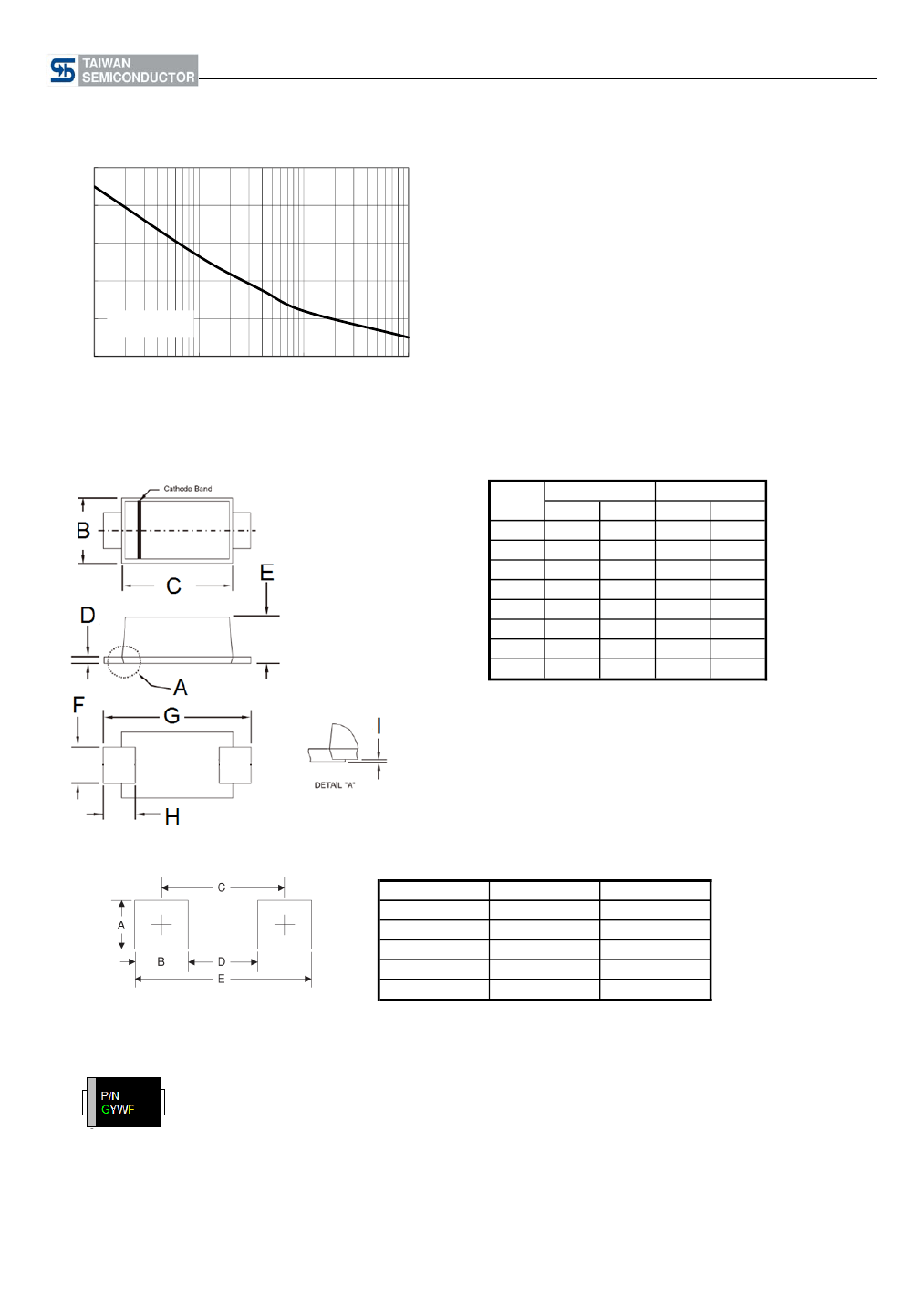

PACKAGE OUTLINE DIMENSIONS
SOD-123W
DIM.
B
C
D
E
F
G
H
I
Unit (mm)
Min
1.70
2.60
0.10
0.90
0.90
3.60
0.50
0.00
Max
1.90
2.90
0.22
1.02
1.05
3.80
0.85
0.10
Unit (inch)
Min
0.067
0.102
0.004
0.035
0.035
0.142
0.020
0.000
Max
0.075
0.114
0.009
0.040
0.041
0.150
0.033
0.004
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.4
1.2
3.1
1.9
4.3
Unit (inch)
0.055
0.047
0.122
0.075
0.169
MARKING DIAGRAM
P/N
G
YW
F
= Marking Code
= Green compound Code
= Date Code
= Factory Code
Version: A1511
SS14LW - SS115LW
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: A1511
