Mill-Max Surface Mount Receptacles
Pin receptacles are individual component lead (discrete) sockets primarily used for plugging and
unplugging of components on pc boards. They are made by press-fitting a pre-tooled "multi-finger"
contact into a precision machined shell.

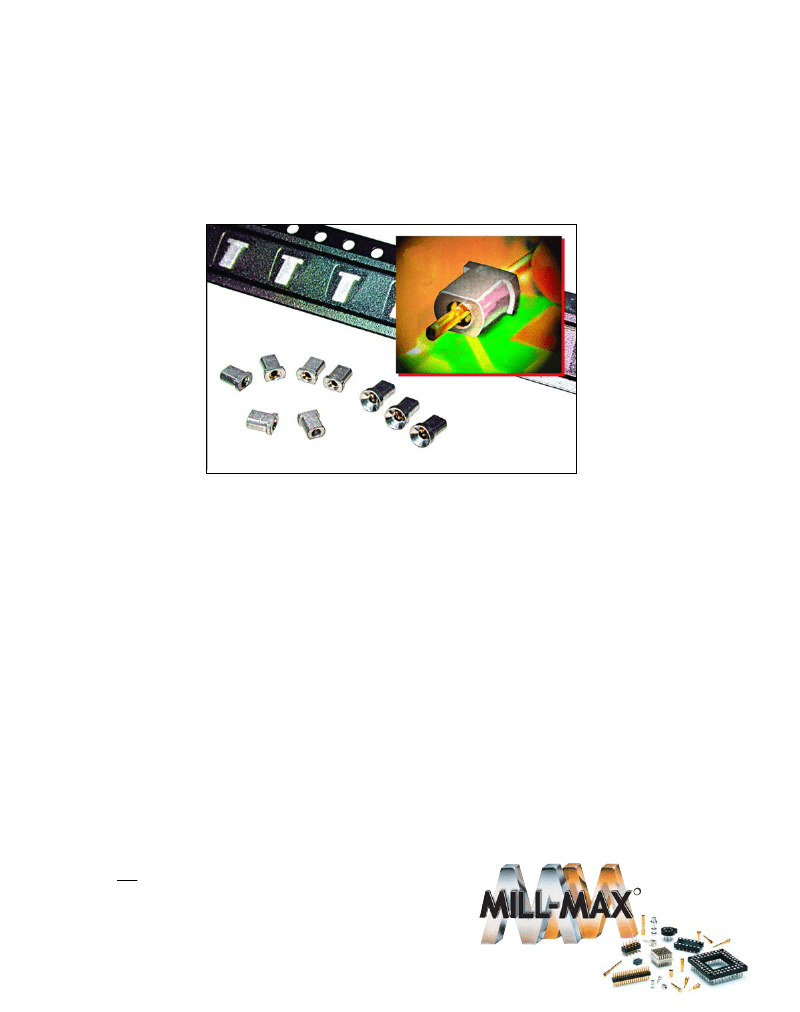

Surface mount receptacles can be supplied on tape per EIA-481 for automated assembly with
industry standard "pick and place" machines.
All receptacles utilize "multi-finger" beryllium copper inner contacts renowned for their greater
compliancy and proven reliability.
Receptacles are available with various plating combinations: gold or tin contact and shell, or the
economy of selective plating with a gold contact in a tin shell.
A sample of one of our surface mount receptacles is attached. Should you require additional infor-
mation or samples of our many other receptacles, pins and terminals, please visit our website at
www.mill-max.com/PR488.
Our application engineers are also always available to help you. Please
email them at techsupport@mill-max.com.
(7/09-451, 488, 491, 500)
R
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771-0300
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
Maximum Interconnect Solutions
PR
E
CI
M
SURFACE MOUNT PIN RECEPTACLES
ON
S
I
CHI
A
PINS
NE
D
3907
5739
8806
6628
.080
.059
.059
.080
.059
.078
.057

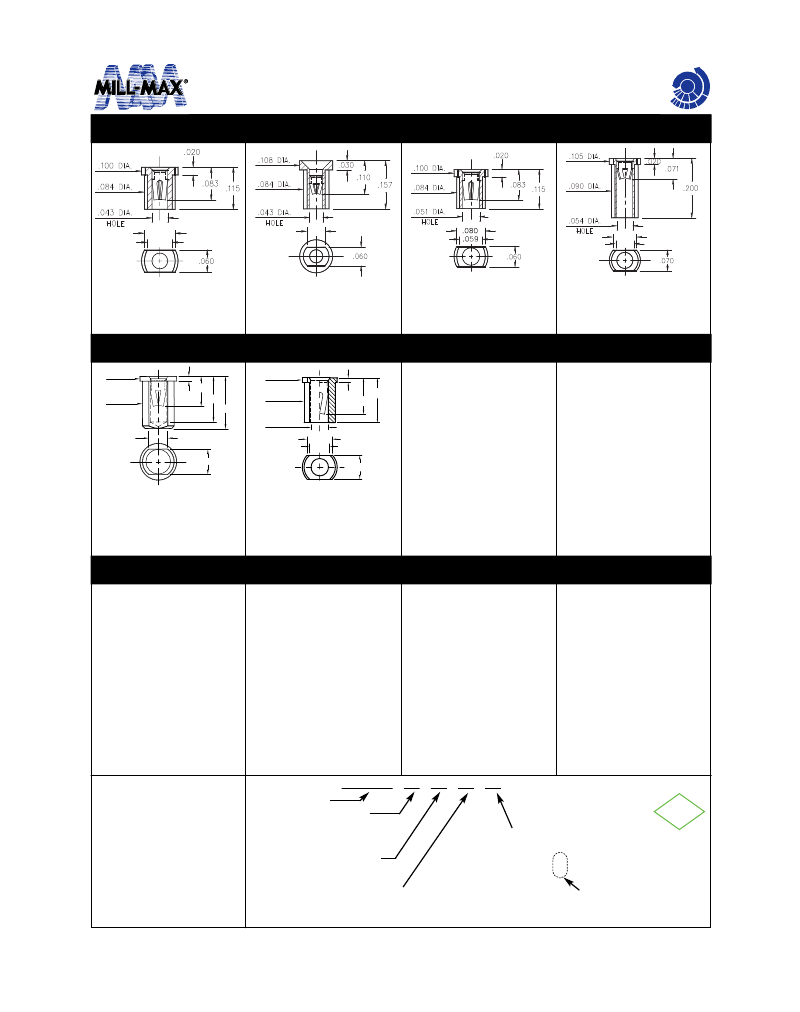

3907-0-XX-XX-30-XX-10-0
Surface Mount.
#30
Contact for Ø.015-.025 pins.
Supplied on 12mm wide carrier tape,
4,000 per 13” reel, 1,000 per 7” reel.
5739-0-XX-XX-12-XX-10-0
Surface Mount
#12
Contact for Ø.015-.022 pins.
Supplied on 16mm wide carrier tape,
3,000 per 13” reel only.
8806-0-XX-XX-47-XX-40-0
Surface Mount.
#47
Contact for Ø.025-.037 pins.
Supplied on 12mm wide carrier tape,
4,000 per 13” reel, 1,000 per 7” reel.
6628-0-XX-XX-18-XX-10-0
Surface Mount.
#18
Contact for Ø.037-.043 pins.
Supplied on 12mm wide carrier tape,
3,700 per 13” reel, 900 per 7” reel.
8206
.145 DIA.
.125 DIA.
.018
.127
.180
.206
4064
.156 DIA.
.140 DIA.
.078 DIA.
HOLE
.020
.162
.200
.075
.100
.114
.090
.107
8206-0-15-XX-34-XX-40-0
Surface Mount
#34
Contact for Ø.032-.046 pins.
Not available on tape & reel.
4064-0-XX-XX-03-XX-40-0
Surface Mount
#03
Contact for Ø.040-.060 pins.
Supplied on 16mm wide carrier tape,
2,400 per 13” reel only.
SPECIFICATIONS:
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE:
XXXX - X - XX - XX - XX - XX -XX - 0
BASIC PART #
SPECIFY PACKAGING:
18
= DISCRETE
55
= 7” REEL
57
= 13” REEL
%#
2O(3
SPECIFY CONTACT FINISH:
SPECIFY SHELL FINISH:
01
200μ" TIN/LEAD OVER NICKEL
80
200μ" TIN OVER NICKEL
#12, #30, #47, #18, #03 or #34
(DATA ON PAGES 206-214)
27
30μ" GOLD OVER NICKEL
01
200μ" TIN/LEAD or
02
100μ" TIN/LEAD OVER NICKEL
80
200μ" TIN
or
84
100μ" TIN OVER NICKEL
Use with
#12
&
#30
Contacts Only
CONTACT TYPE:
w w w. m i l l - m a x . c o m
516-922-6000
