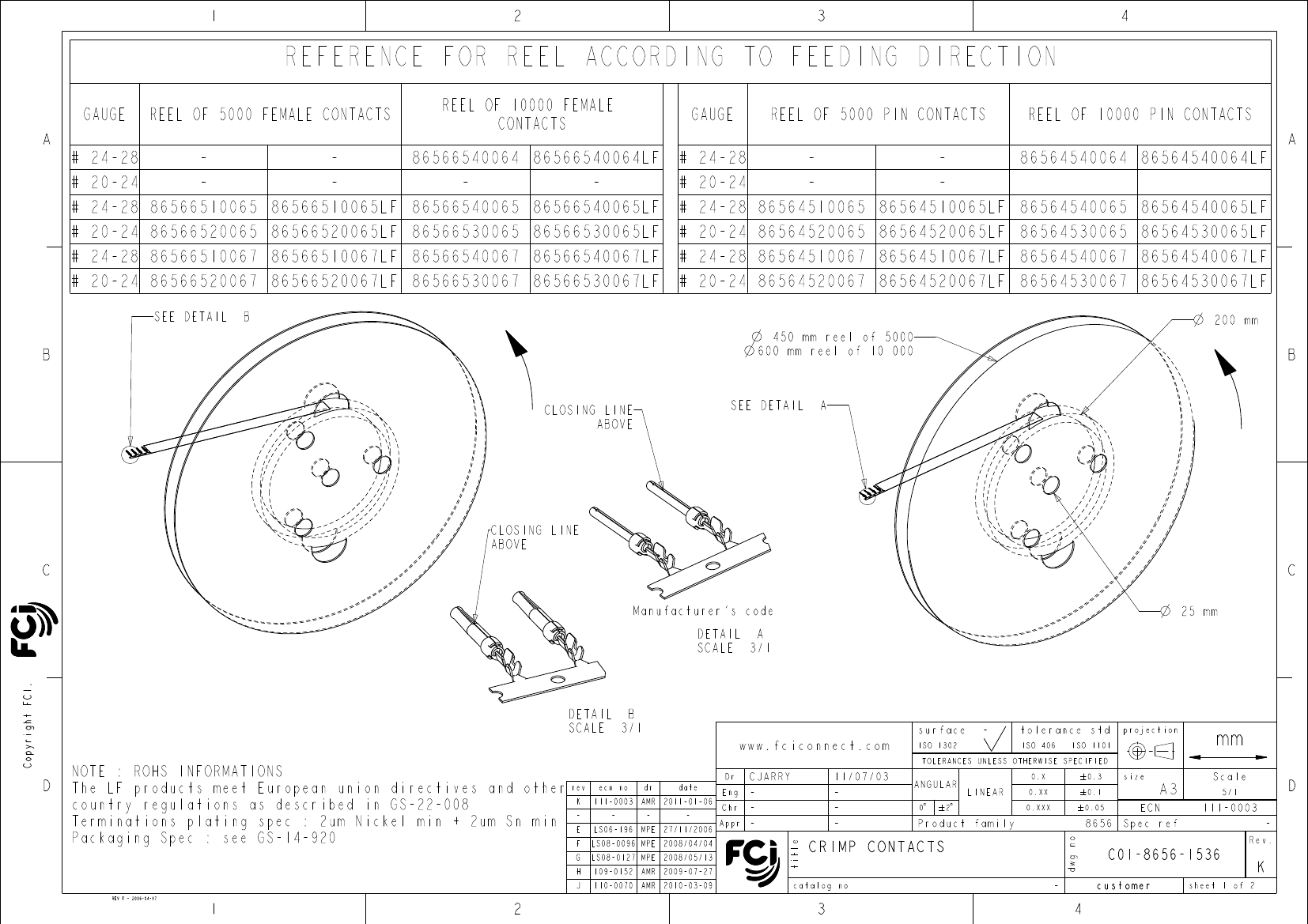

REFERENCE FOR REEL ACCORDING TO FEEDING DIRECTION
GAUGE
A
REEL OF 5000 FEMALE CONTACTS
-
-
-
-
REEL OF 10000 FEMALE
CONTACTS
GAUGE
# 24-28
# 20-24
REEL OF 5000 PIN CONTACTS
-
-
-
-
REEL OF 10000 PIN CONTACTS
A
# 24-28
# 20-24
86566540064 86566540064LF
-
-
86564540064 86564540064LF
# 24-28 86566510065 86566510065LF 86566540065 86566540065LF
# 20-24 86566520065 86566520065LF 86566530065 86566530065LF
# 24-28 86566510067 86566510067LF 86566540067 86566540067LF
# 20-24 86566520067 86566520067LF 86566530067 86566530067LF
SEE DETAIL
B
# 24-28 86564510065 86564510065LF 86564540065 86564540065LF
# 20-24 86564520065 86564520065LF 86564530065 86564530065LF
# 24-28 86564510067 86564510067LF 86564540067 86564540067LF
# 20-24 86564520067 86564520067LF 86564530067 86564530067LF
200 mm
450 mm reel of 5000
600 mm reel of 10 000
B
B
CLOSING LINE
ABOVE
SEE DETAIL
A
CLOSING LINE
ABOVE
C
Manufacturer's code
DETAIL A
SCALE 3/1
Copyright FCI.
C
25 mm
DETAIL B
SCALE 3/1
www.fciconnect.com
surface
ISO 1302
-
tolerance std
ISO 406
ISO 1101
projection
mm
Scale
5/1
D
dwg no
title
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
TOLERANCES UNLESS OTHERWISE SPECIFIED
Dr
rev
K
-
E
F
G
H
J
ecn no
I11-0003
-
LS06-196
dr
-
date
-
Eng
Chr
Appr
AMR 2011-01-06
MPE 27/11/2006
CJARRY
-
-
-
11/07/03
-
-
-
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
D
-
Rev.
I11-0003
Product family
8656 Spec ref
LS08-0096 MPE 2008/04/04
LS08-0127 MPE 2008/05/13
I09-0152
I10-0070
AMR 2009-07-27
AMR 2010-03-09
CRIMP CONTACTS
-
C01-8656-1536
customer
sheet
1 of 2
K
catalog no
REV F - 2006-04-17
1
2
3
PDM: Rev:K
STATUS:
Released
4
Printed: Mar 05, 2011
.
1
14.20 max
2
3
4
NOTES
1- Material : Phosphor bronze, thickness 0.20
2 -Finish on contact area : termination 064:gold flash
terminaion 065:076µ Au / GXT
termination 067:0,4µ Au / GXT
finish on termination : bright tin over nickel
3 -Wire range :20 to 28 AWG(see ref sheet 1/2)
4 -Max outer dia of wire insulator:
-1.73 mm for contact #20-24
-1.02 mm for contact #24-28
5 -Current carrying capacity per contact:
5 Amps max when crimped to #20 AWG
5 Amps max when crimped to #22 AWG
3 Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6 -After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7 -When contact is crimped to 20 AWG, the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing.
8-Reel should be continous without any contacts
missing in between
9 -Packaging : Reel

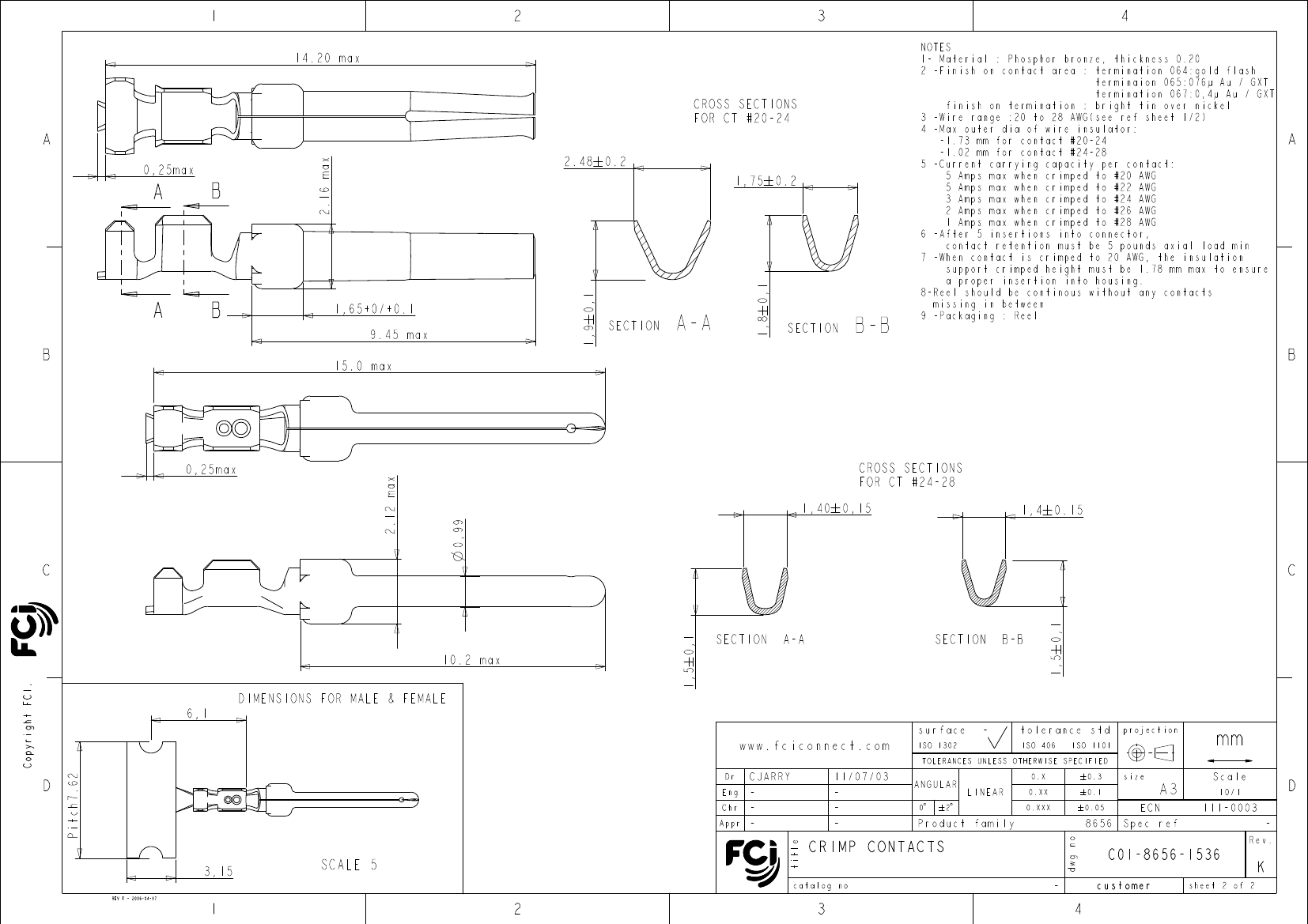

CROSS SECTIONS
FOR CT #20-24
A
0,25 max
2.16 max
2.48 0.2
1,75 0.2
A
A
B
A
B
B
1,65 +0/+0.1
9.45 max
15.0 max
1,9 0,1
SECTION
A-A
1,8 0,1
SECTION
B-B
B
2.12 max
0,25 max
CROSS SECTIONS
FOR CT #24-28
1,40 0,15
0,99
1,4 0.15
C
C
10.2 max
Copyright FCI.
DIMENSIONS FOR MALE & FEMALE
6,1
surface
-
tolerance std
ISO 406
ISO 1101
1,5 0,1
SECTION
A-A
SECTION
B-B
1,5 0,1
projection
www.fciconnect.com
Pitch7.62
ISO 1302
mm
Scale
10/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
Dr
Eng
Chr
Appr
CJARRY
-
-
-
title
11/07/03
-
-
-
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
D
-
Rev.
I11-0003
Product family
dwg no
8656 Spec ref
CRIMP CONTACTS
-
3,15
REV F - 2006-04-17
SCALE 5
C01-8656-1536
customer
sheet
2 of 2
K
catalog no
1
2
3
PDM: Rev:K
STATUS:
Released
4
Printed: Mar 05, 2011
.
