ASTC-12-221-0.81 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> ASTC-12-221-0.81

Preview

ASTC-12-221-0.81: DescriptionSMT TOROID CHOKE; CategoryPassive components inductor; File Size205KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTC-12-221-0.81 Overview

SMT TOROID CHOKE

ASTC-12-221-0.81 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.668 Ω
Nominal inductance(L)	220 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASTC-12
Number of functions	1
Number of terminals	4
Maximum rated current	0.81 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	ON CIRCLE
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

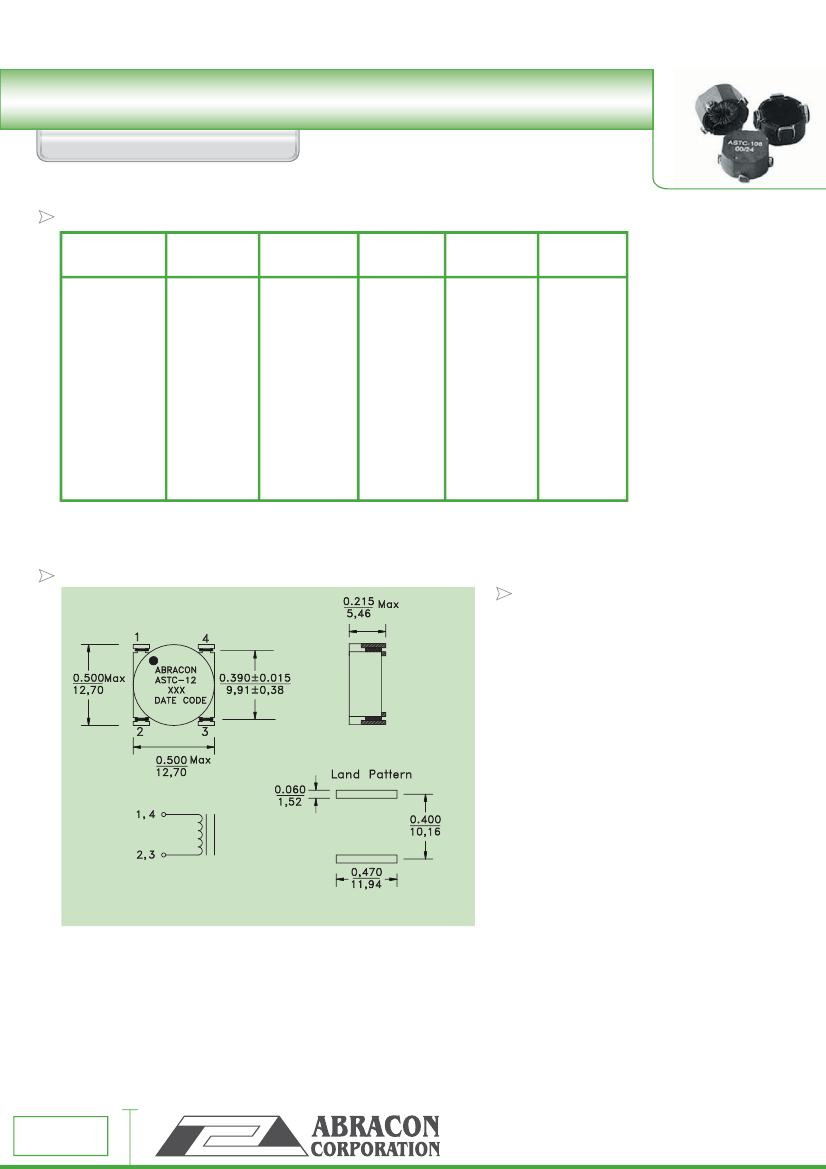

SMT TOROID CHOKE

ASTC-12 SERIES

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

P/N

ASTC-12-

10R4-3.8

14R6-3.13

250-2.43

560-1.65

830-1.35

101-1.23

151-0.99

221-0.81

331-0.65

471-0.53

Lp

µH±20%

10.4

14.6

25

56

83

100

152

220

331

472

DCR

m

Ω

Max

31

45

74

141

213

288

445

668

1026

1530

DC Bias

A

3.8

3.13

2.43

1.65

1.35

1.23

0.99

0.81

0.65

0.53

L w/ Bias

µH±20%

9.4

13.3

23

50

75

90

137

200

305

439

ET Min

V-µsec

15.2

18.8

24.3

37.0

44.3

49.2

59.4

71.3

85.8

99.6

PHYSICAL CHARACTERISTICS:

TECHNICAL INFORMATION:

• Testing frequency: 100KHz, 0.1VRMS

• Add -T for Tape and Reel

RoHS compliance effective 0527,

label on reel and box

Dimension: inch

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev1.1-9/06

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com
