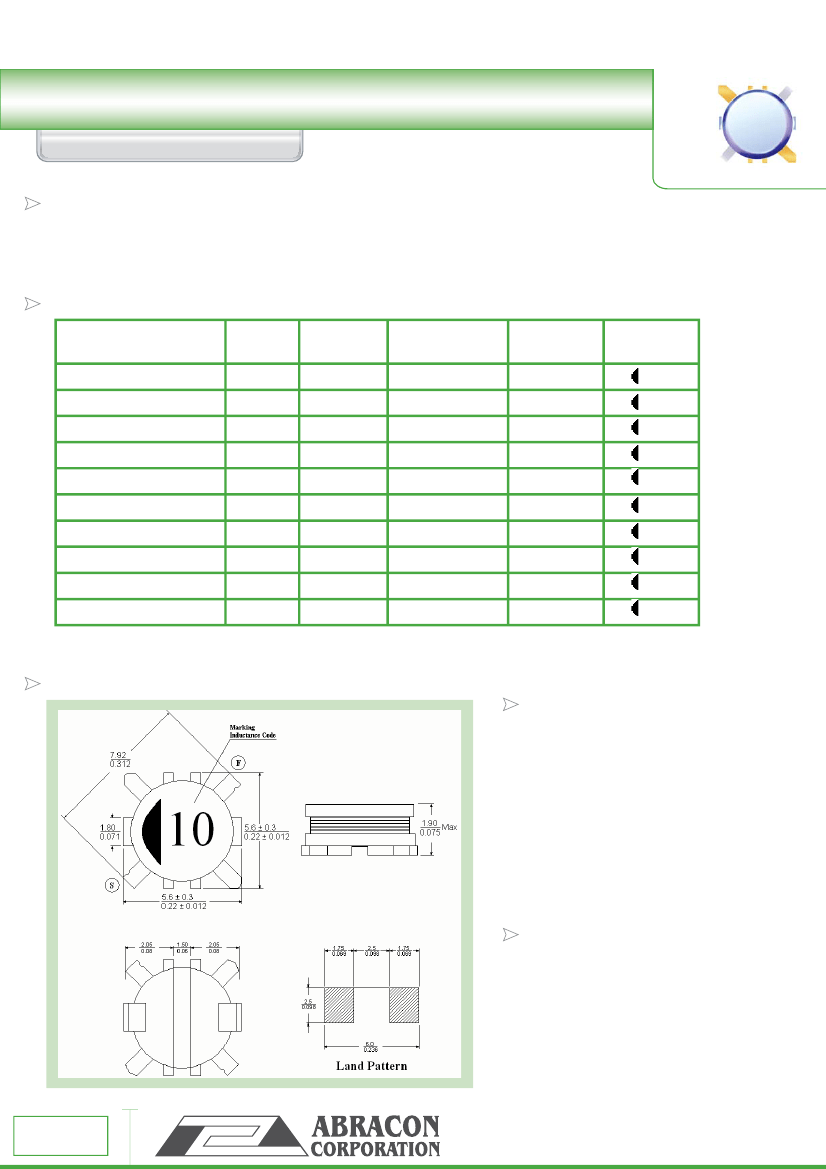

SMT
POWER INDUCTORS
ASPI-5619-XXX
FEATURES & APPLICATIONS:
•
•
•
•
Miniature size : Mount area 5.9×5.9mm, Height 1.9mm max.
Available on tape and reel for automatic insertion
Lead free part avaliable
Applications DC to DC converters for cellular phone, LCD driver circuit
*RoHS COMPLIANT
| | | | | | | | | | | | | | |
5.9 x 5.9 x 1.05mm
STANDARD SPECIFICATIONS:
Part Number
ASPI-5619- 2R2
ASPI-5619- 3R3
ASPI-5619- 4R7
ASPI-5619- 6R8
ASPI-5619- 8R2
ASPI-5619- 100
ASPI-5619- 150
ASPI-5619- 220
ASPI-5619- 330
ASPI-5619- 470
L (µH)
±20%
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
DCR (
Ω
)
±20%
0.043
0.057
0.076
0.113
0.132
0.153
0.231
0.312
0.478
0.703
Inductance
Decrease Current
Temperature
Rise Current
Marking
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
3.70
2.90
2.70
2.20
1.90
1.50
1.40
1.15
0.97
0.81
2.90
2.40
2.20
1.80
1.52
1.50
1.15
0.97
0.76
0.65
PHYSICAL CHARACTERISTICS:
TECHNICAL INFORMATION:
Marking: Value, in µH or equivalent
Add -M for L tolerance ±20%
Add -T for tape and reel
L test at 100KHz, 0.1V
RMS
I
DC
: L drop 10% typ. from the initial value
or
∆T=40°C
rise max
• Operating tepperature : -40°C ~ + 85°C
• Electrical specification @25°C
• Resistance to solder heat : 260°C . 10 SEC.
Note:
All specifications subject to change
without notice.
•
•
•
•
•
PACKAGING INFORMATION:
• Parts are packaged on 13” reels.
5000 parts per reel.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev1.1-10/06
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
