ASPI-5123U-3R2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> ASPI-5123U-3R2

ASPI-5123U-3R2: DescriptionHIGH CURRENT SHIELDED INDUCTOR; CategoryPassive components inductor; File Size70KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASPI-5123U-3R2 Overview

HIGH CURRENT SHIELDED INDUCTOR

ASPI-5123U-3R2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.008 Ω
Nominal inductance(L)	3.2 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-5123-3R2
Number of functions	1
Number of terminals	3
Maximum rated current	12.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

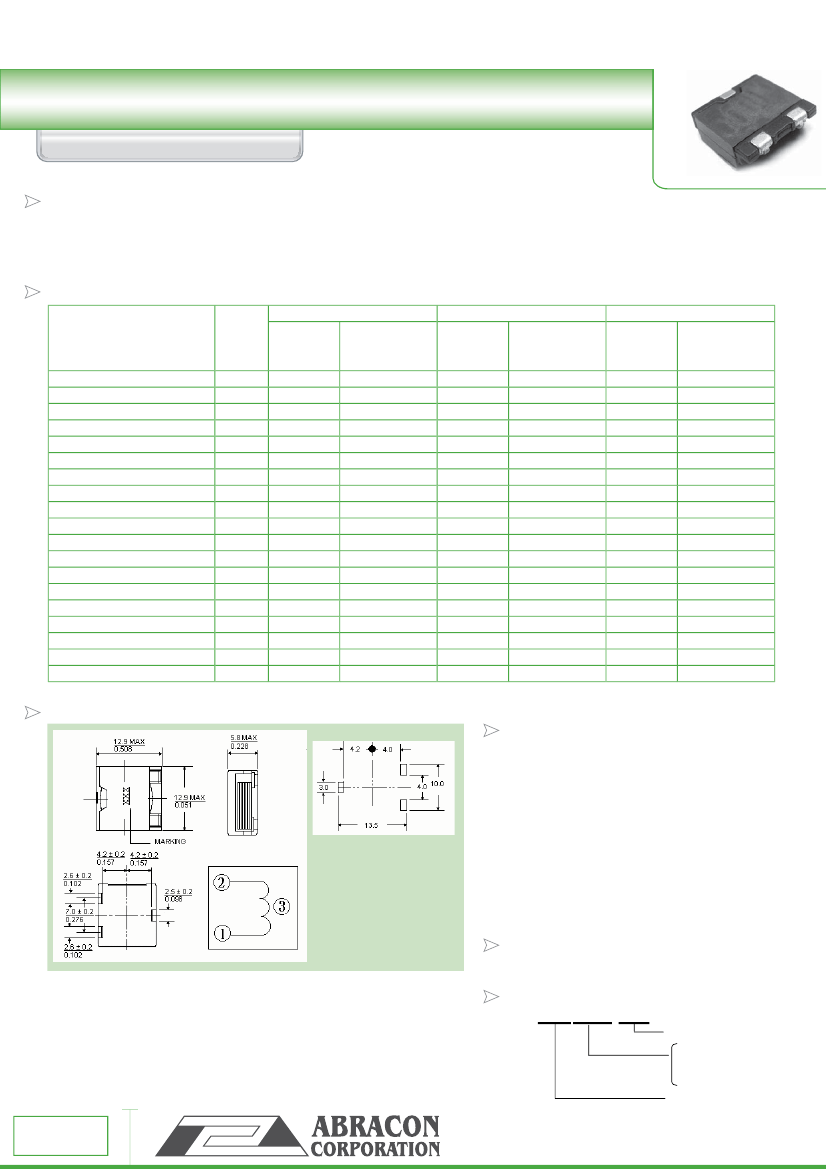

HIGH CURRENT SHIELDED INDUCTOR

ASPI-5123-XXX

FEATURES & APPLICATIONS:

• Suface Mountable High Saturation Power Inductors

• Applications: Power supply for VTR, OA equipment, LCD television set, notebook PC,

portable communication, equipments, DC/DC converters, etc.

*RoHS COMPLIANT

| | | | | | | | | | | | | | |

12.9 x 12.9 x 5.8m

STANDARD SPECIFICATIONS:

Part Number

ASPI-5123U-

ASPI-5123H-

ASPI-5123S-

ASPI-5123U-

ASPI-5123S-

ASPI-5123H-

ASPI-5123U-

ASPI-5123S-

ASPI-5123H-

ASPI-5123U-

ASPI-5123S(H)-

ASPI-5123U-

ASPI-5123H(U)-

ASPI-5123S(H)-

ASPI-5123H-

ASPI-5123S-

R30

R60

R80

1R0

1R2

1R4

1R5

1R8

2R2

2R5

2R8

3R2

4R0

4R3

5R6

6R0

7R2

8R2

100

(µH)

±20%

0.3

0.6

0.8

1.0

1.2

1.4

1.5

1.8

2.2

2.5

2.8

3.2

4.0

4.3

5.6

6.0

7.2

8.2

100

ASPI-5123 (Standard Type)

ASPI-5123 (High Power Type) ASPI-5123 (Ultra Power Type)

DCR

Ω

)

Max

Rated DC

Current (A)

DCR

(mΩ)

Max

Rated DC

Current (A)

DCR

(mΩ)

Max

2.5

Rated DC

Current (A)

35.0

30.0

27.2

2.5

17.0

20.0

3.4

20.8

14.0

3.4

15.3

5.4

14.8

3.4

10.0

5.4

12.3

8.0

12.8

11.0

9.5

10.3

8.8

7.8

11.4

13.5

5.4

8.3

0.8

11.4

13.5

8.0

11.4

13.5

6.7

5.8

5.0

PHYSICAL CHARACTERISTICS:

LAND PATTERN

TECHNICAL INFORMATION:

• Open Circuit Inductance

Test Parameters: 100KHZ 0.25V

• DCR limits 25°C

• Tolerance of inductance ±20%(M)

• The rated current indicates the current when

the inductance decreases to 75% over it’s

nominal value or D.C. current when the

temperature rising

∆T=40°C

lower,

whichever is lower.

Note:

All specifications subject to change

without notice.

(Unit in mm)

PACKAGING INFORMATION:

ORDERING CODE:

ASPI-5123S(H,U)- R80

Inductor

S (Standard Type)

H (High Power Type)

U (Ultra Power Type)

Size

• Parts are packaged on 13” reels. 500 parts per ree

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev1.1-10/06

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
