1-786864-5 datasheet, PDF - EEWORLD Datasheet

1-786864-5: DescriptionCONNECTOR,D-SHELL,CABLE MNT,PLUG,50 CONTACTS,SKT,0.05 PITCH,#2-56; CategoryThe connector The connector; File Size150KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

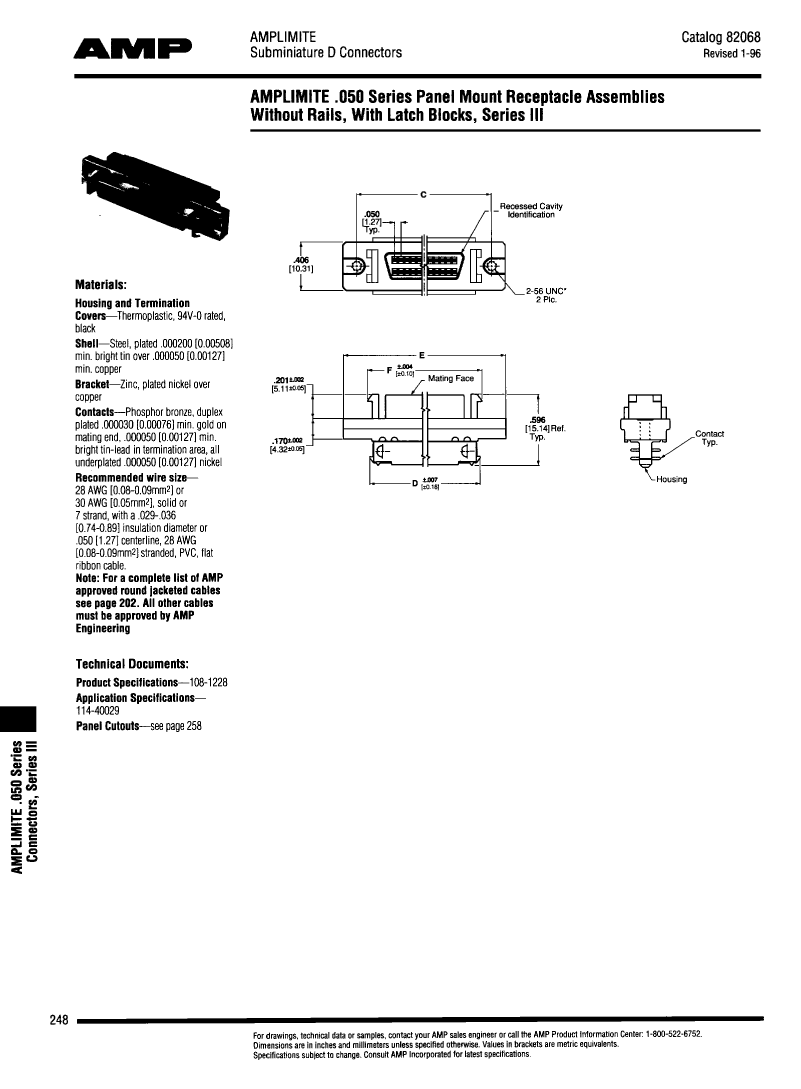

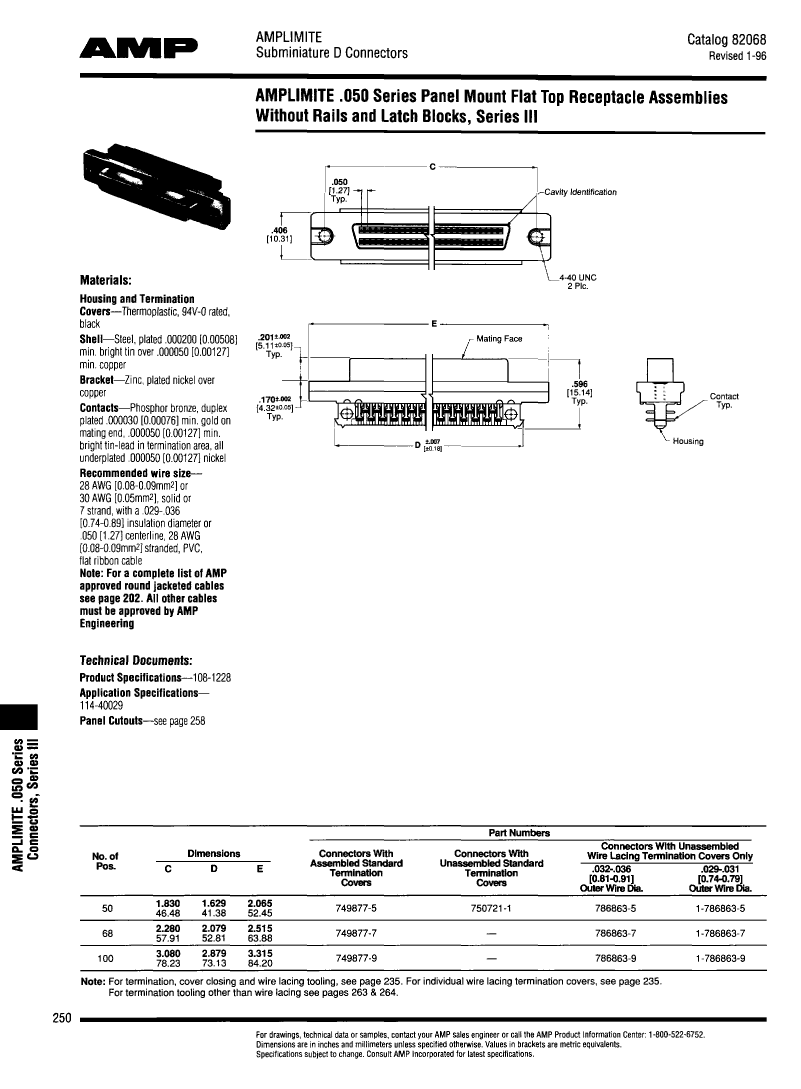

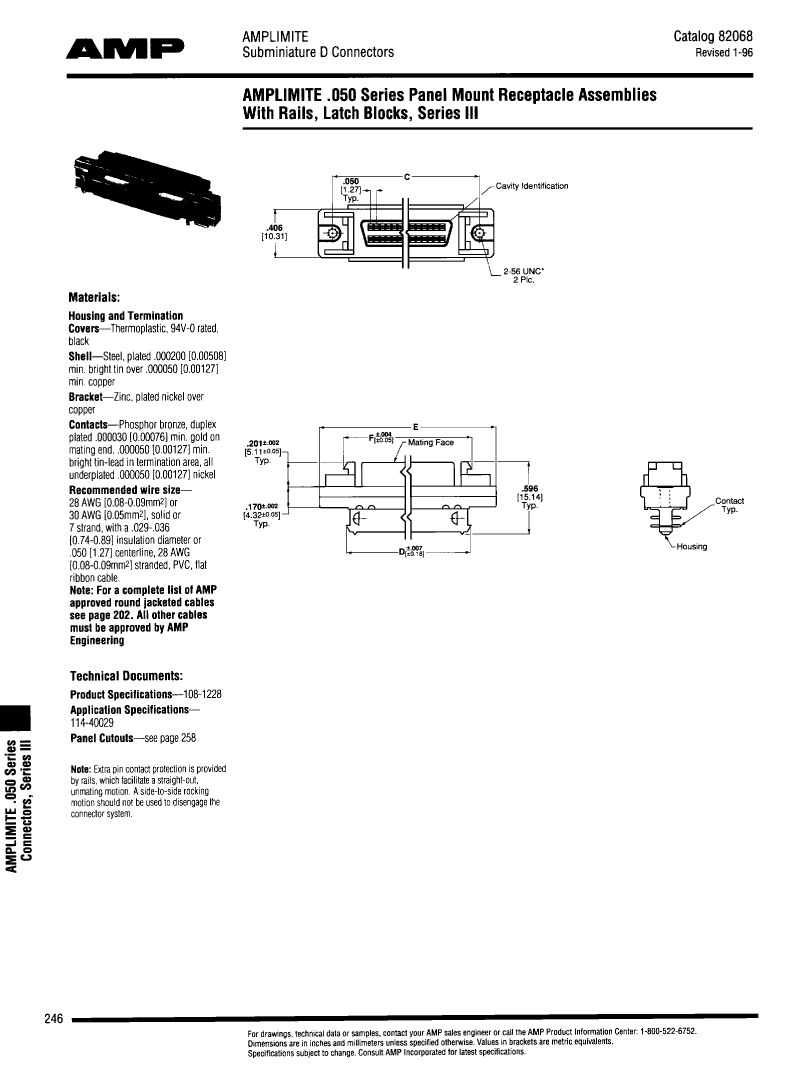

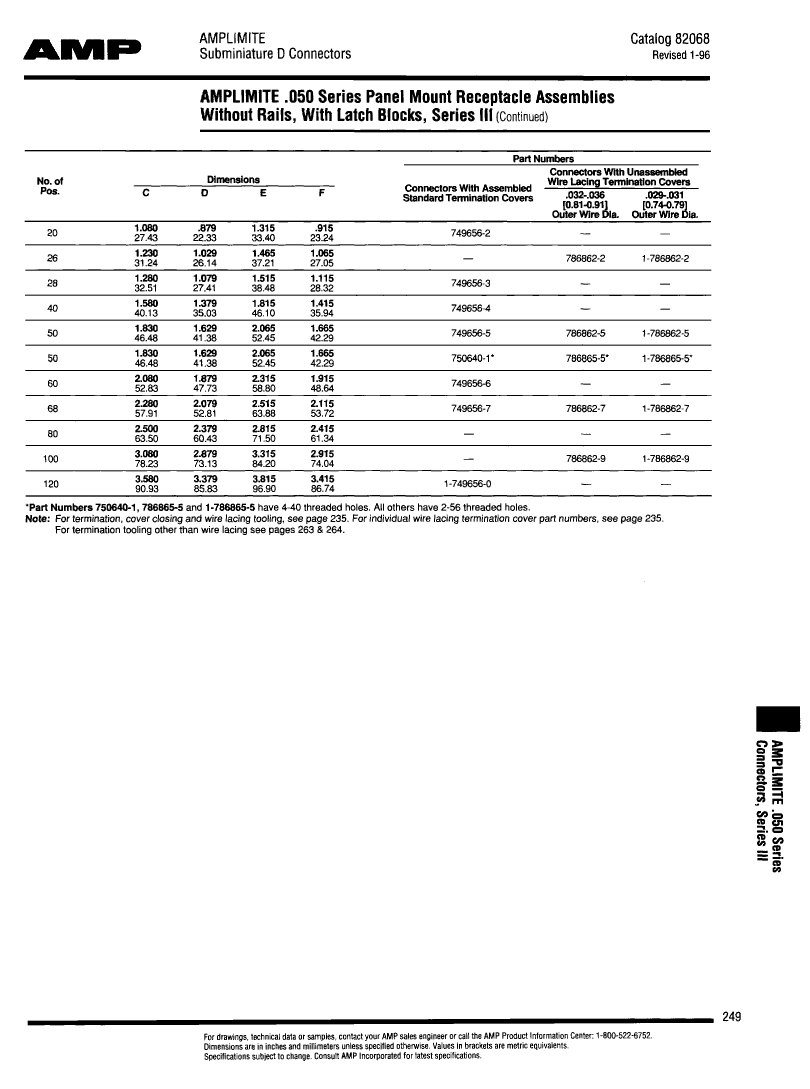

1-786864-5 Overview

CONNECTOR,D-SHELL,CABLE MNT,PLUG,50 CONTACTS,SKT,0.05 PITCH,#2-56

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	LATCH BLOCK & RAILS
body width	0.406 inch

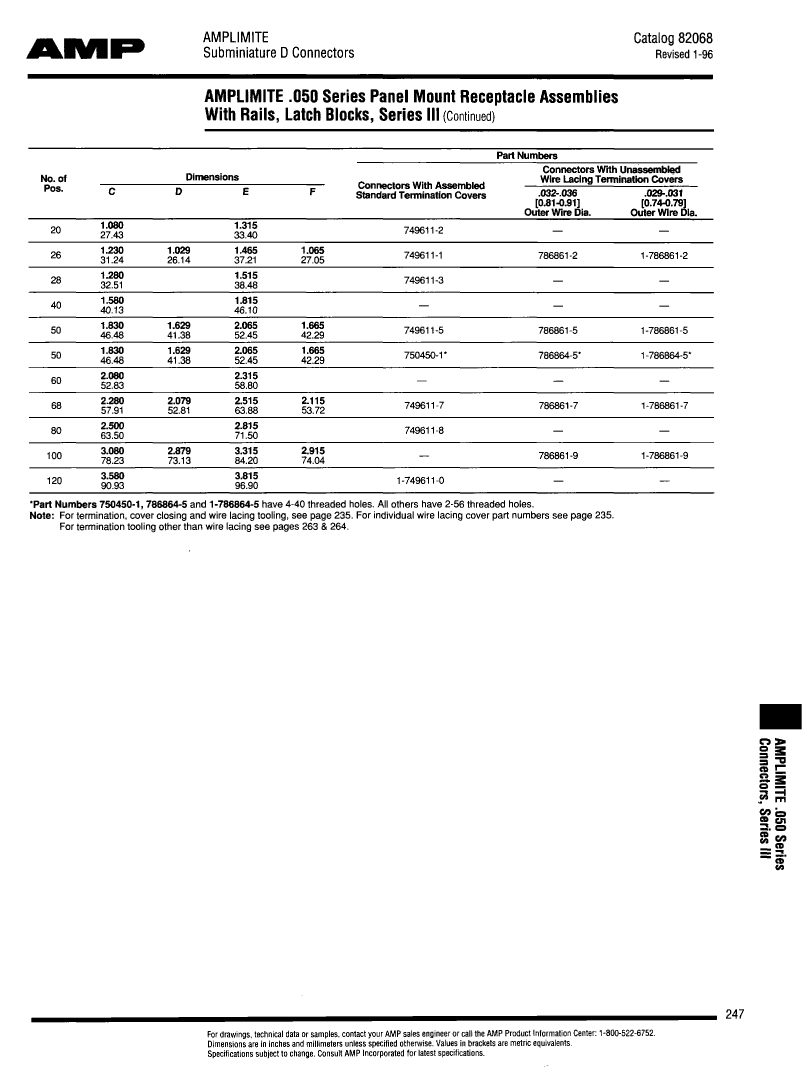

body length	2.065 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Minimum insulation diameter	0.029 inch
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Shell material	STEEL
Total number of contacts	50
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1
