0985 706 500/0.5M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> 0985 706 500/0.5M

Preview

0985 706 500/0.5M: DescriptionEthernet Cables / Networking Cables; CategoryWire/cable; File Size1MB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

0985 706 500/0.5M Overview

Ethernet Cables / Networking Cables

0985 706 500/0.5M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Ethernet Cables / Networking Cables
Type	Cat 5e
Connector End A	RJ45
Connector End A Pin Count	8 Position
Connector End B	RJ45
Connector End B Pin Count	8 Position
Length	500 mm
Color	Teal
Number of Conductors	4
Gender	Male / Male
Housing Material	Polyurethane (PUR)
Jacket Material	Thermoplastic Elastomer (TPE)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

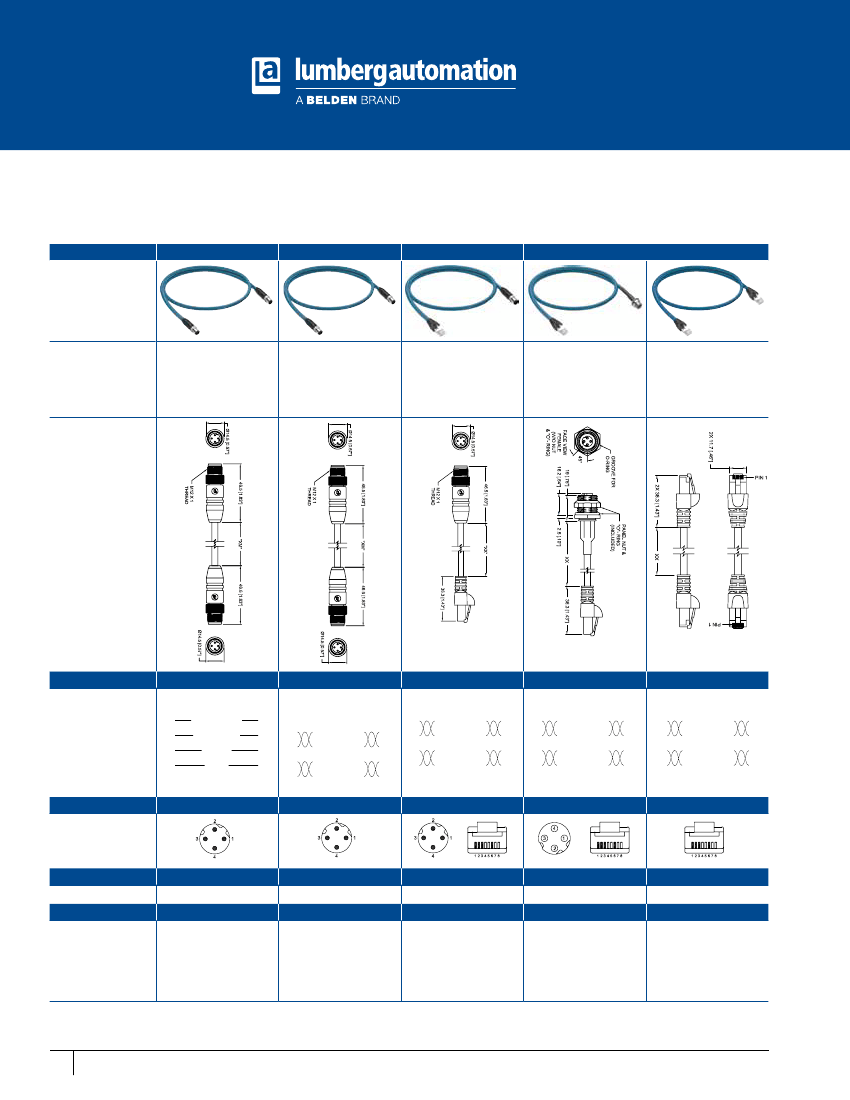

EtherNet/IP Double-Ended Cord Sets

CAT5e, High-Flex, Stranded/Unshielded, 24 AWG, TPE Jacket

Type

0985 706 100

0985 706 101

0985 706 103

0985 706 104

0985 706 500

Product Description

EtherNet/IP, high-flex, double-

ended cord set, M12 male to

male straight, 4-pin, D-coding,

24 AWG TPE cable, stranded/

unshielded, 2 twisted pair with

teal jacket.

Ethernet I/P, high-flex, double-

ended cord set, M12 male to

M12 male, teal TPE jacket,

4 pin, 24 AWG, stranded/un-

shielded cross-over cable with

2 twisted pairs.

Ethernet I/P, high-flex, double-

ended cord set, M12 male to

RJ45 male, 4 pin, D-coded,

24 AWG, teal TPE jacket,

stranded/unshielded cable

with 2 twisted pairs.

EtherNet/IP, high-flex, double-

ended cord set, M12 female

4 pin, D-coded receptacle to

male RJ45, 24 AWG, teal TPE

jacket, stranded/unshielded

with 2 twisted pairs.

Ethernet I/P, high-flex, double-

ended cord set, RJ45 male to

RJ45 male, 24 AWG, teal TPE

jacket, stranded/unshielded

cable with 2

twisted pairs.

Technical Illustration

Wiring diagram

M12

1

2

3

4

M12 to M12

Color

White/Orange

White/Green

Orange

Green

M12

1

2

3

4

1

3

2

4

White/Orange

Orange

White/Green

Green

M12 to M12

M12

Color

Crossover

Wiring

M12

2

4

1

3

M12

1

3

2

4

Color

White/Orange

Orange

White/Green

Green

RJ45

1

2

3

6

M12

1

3

2

4

Color

White/Orange

Orange

White/Green

Green

RJ45

1

2

3

6

RJ45

1

2

3

6

Color

White/Orange

Orange

White/Green

Green

RJ45

1

2

3

6

Face views

M12 to M12

M12 to RJ45

RJ45 to RJ45

Part number

0985 706 100/...M

Standard cable lengths

0.5 M / 1 M / 2 M / 5 M / 10 M

/ 15 M / 20 M / 25 M / 30 M /

35 M / 40 M / 45 M / 50 M /

60 M / 70 M / 80 M / 90 M

0.5 M / 1 M / 2 M / 5 M / 10 M

0.5 M / 1 M / 2 M / 5 M / 10

M / 15 M / 20 M / 25 M /

30 M / 35 M / 40 M / 45 M

/ 50 M / 60 M / 70 M / 80

M / 90 M

0.5 M / 1 M / 2 M / 5 M / 10

M / 15 M / 20 M / 25 M / 30

M / 35 M

0.5 M / 1 M / 2 M / 5 M / 10

M / 15 M / 20 M / 25 M /

30 M / 35 M / 40 M / 45 M

/ 50 M / 60 M / 70 M / 80

M / 90 M

0985 706 101/...M

0985 706 103/...M

0985 706 104/...M

0985 706 500/...M
