14-60-1189: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

14-60-1189 Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug

14-60-1189 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLARIZED
body width	0.149 inch
subject depth	0.6 inch
body length	1.799 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STAMPED, PREASSEM
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Minimum insulation diameter	0.051 inch
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70400
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	18
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

Dense

Packaging

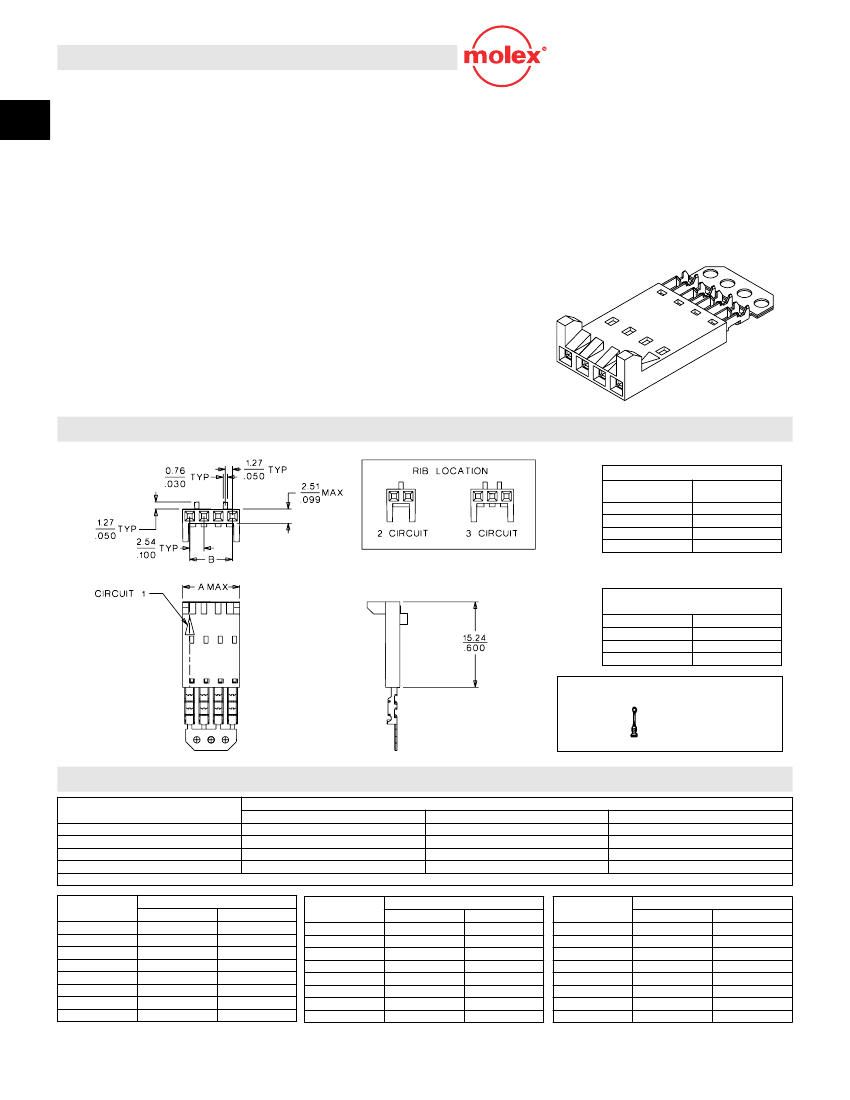

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 25 circuits

Preloaded, single-piece construction allows for fully

automated termination

Packaged in mylar ﬁlm on reels to allow for automated

manufacturing and to minimize product handling

Stackable end-to-end

Polarized latching ribs

Mates with Molex KK

series .100" pitch friction lock

headers

Reference Information

Product Speciﬁcation: PS-70400

Packaging: Tube

Tooling Information: AM 60570 or AM 60550

UL File No.: E29179

CSA File No.: LR19980

Mates With: 6373 and 7478

Use With Molex Cable: 7307, 7767, 8996, 8997, 24226,

24241, 24369 and 24389

Designed In: Inches

Electrical

Voltage: 250V

Current: 1.2A—28 AWG; 1.8A—26 AWG

3.0A—24 AWG; 3.0A—22 AWG

Contact Resistance: 15m

Ω

max.

Dielectric Withstanding Voltage:1500V

Resistance: 10,000 M

Ω

min.

Mechanical

Contact Retension to Housing: 17.79N (4 lb) min. for 15 sec

Mating Force: Gold—3.08N (.70 lb) per circuit;

Tin—4.15N (.93 lb) per circuit

Unmating Force: Gold—.65N (.15 lb) per circuit;

Tin—2.47N (.55 lb) per circuit

Durability: Gold—50 cycles; Tin—25 cycles

Physical

Housing: Black glass-ﬁlled polyester, UL 94V-0

Contact: Phosphor Bronze

Plating: See Table

Operating Temperature: -40 to +105˚C

Insulation and Wire Gauge Range: .053" max. with 22 to 28

AWG stranded discrete wire or ﬂat ribbon cable

Pin Height: .320" max. to .200" min. (measured from top of

housing or PCB to top of pin)

2.54mm (.100") Pitch

™

Insulation Displacement

Connector Assembly

70400

Female, Single Row

Version H

CATALOG DRAWING (FOR REFERENCE ONLY)

Not For Use With C-Grid III

™

Components

Wire Gauge Chart

Code Stamped

Wire Gauge

on Terminals

(AWG)

Note: 2 to 12 circuit assemblies are grouped within the

mylar pocket

Plating Code

(Stripe on Carrier Strip)

Plating

Tin/Lead

15µ" Gold

30µ" Gold

Color

None

Yellow

Red

Delivered on a carrier with 20 pieces per strip.

Actual

Size

Universal Polarizing Pin

40713-1

Order No. 15-04-0292

ORDERING INFORMATION AND DIMENSIONS

Wire Accommodation (AWG)

" Gold

14-60-1XX9

14-60-1XX8

• 14-56-6XX8

14-56-7XX8

Replace XX with no. of circuits, 02-25

Circuits

Dimension

5.05 (.199)

7.59 (.299)

10.13 (.399)

12.67 (.499)

15.21 (.599)

17.75 (.699)

20.29 (.799)

22.83 (.899)

2.54 (.100)

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

Circuits

Dimension

25.37 (.999)

22.86 (.900)

27.91 (1.099)

25.40 (1.000)

30.45 (1.199)

27.94 (1.100)

32.99 (1.299)

30.48 (1.200)

35.53 (1.399)

33.02 (1.300)

38.07 (1.499)

35.56 (1.400)

40.61 (1.599)

38.10 (1.500)

43.15 (1.699)

40.64 (1.600)

Circuits

Dimension

45.69 (1.799)

43.18 (1.700)

48.23 (1.899)

45.72 (1.800)

50.77 (1.999)

48.26 (1.900)

53.31 (2.099)

50.80 (2.000)

55.85 (2.199)

53.34 (2.100)

58.39 (2.299)

55.88 (2.200)

60.93 (2.399)

58.42 (2.300)

63.47 (2.499)

60.96 (2.400)

Order No.

" Gold

14-60-2XX2

14-60-2XX1

14-60-2XX0

14-56-8XX3

150

" Tin/Lead

14-60-1XX7

14-60-1XX6

14-60-1XX3

14-56-7XX3

• US Standard Product, available through Molex franchised distributors

A-46
