RAFIX 22 QR - Contact block with silver contacts, with
coupling, without lamp socket, screw terminals, 2 NO
1.20.124.020/0000

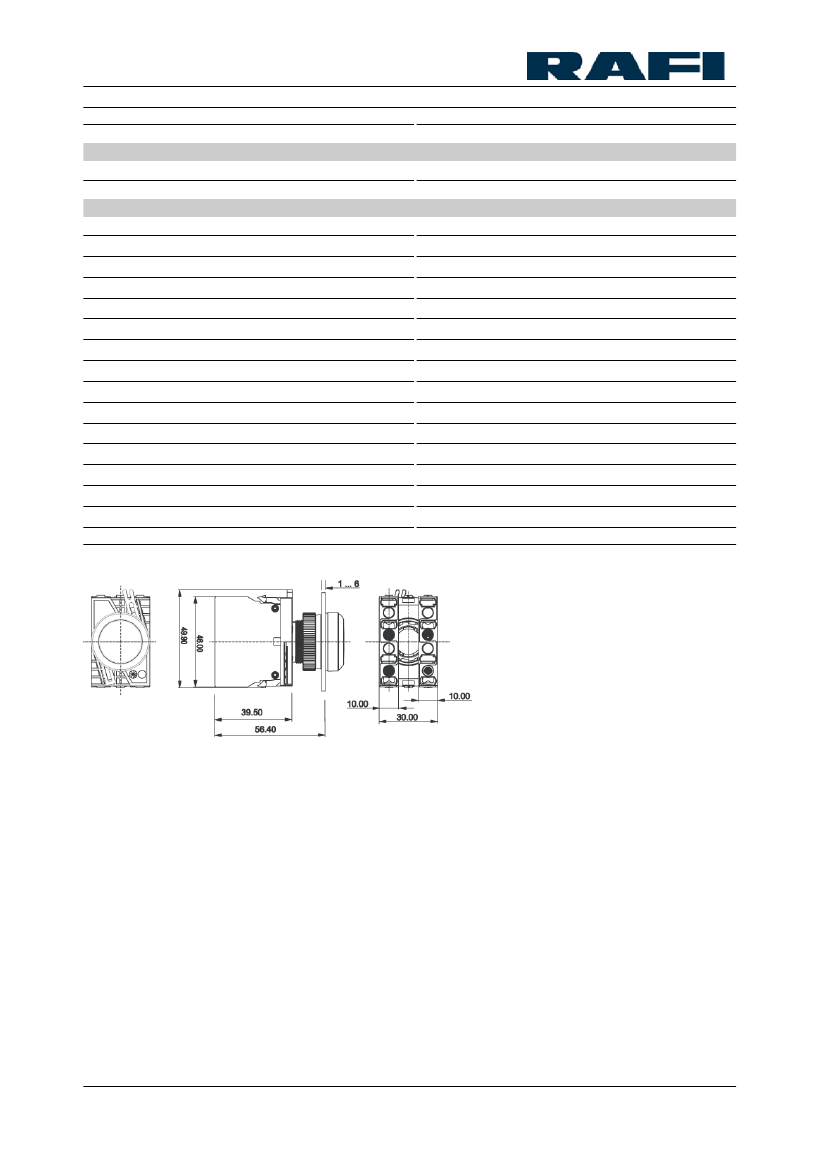

Dimensions
Dimensions with coupling
Mounting depth without cable
Mechanical design
Mounting
Contact system
Contact materials
Contact arrangement
Coupling position 1 (1/2)
Coupling position 3 (5/6), centre
Coupling position 2 (3/4)
NC contact forcibly actuated acc. to IEC
60947-5-1
Terminals
Terminal marking
Robustness
Wire range solid wires without wire end sleeves
Wire range stranded wires without end sleeves
Stripping length, solid or stranded
Wire range with wire end sleeves
Electrice characteristics acc. to IEC 60947
Rated insulation voltage AC/DC
Rated peak voltage
Rated operating current I
e
AC 12 / DC 12
Rated operating current I
e
AC-15
39.5 x 49.9 x 30 mm
56.4 mm
snap on coupling and actuator
bridge-contact self cleaning
Ag
2 NO
2 NO
-
-
yes
screw terminals
color encoded
100 N
2 x 0.75 ... 2.5 mm²
2 x 1.0...1.5 (2 x 0.08 ... 2.5) mm²
8 mm
2 x 0.75 ... 1.5 mm²
400 V
6,000 V
10 A
125 V/10 A, 250 V/6 A, 400 V/3.5 A
Rated operating current I
e
DC-13 Q300
24V/2.75A, 60V/1.1A, 125V/0.55A, 250V/0.275A
Degree of pollution
Positive opening travel
Operating speed
Electrice characteristics acc. to IEC 61058
Resistive load AC
Motor load AC
Peak input current filament lamp AC
Peak capacity input current AC
3
3 mm
5 ... 1000 mm/c
10 A /250 V; 7.5 A / 400 V
6 A / 250 V; 4 A / 400 V (5 A / 250 V)
36 A
100 A
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018
Protection class
Lamp characteristics
Lamp characteristics
Other specifications
Operating life at 10 A/250 V AC
Switching reliability at 24V/5mA DC
Robustness
Corresponding to CE
Shock resistance acc. to IEC 60068-2-27
Resistance to vibrations acc. to IEC 60068-2-6
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Flame class acc. to UL 94
Hot wire ignition acc. to IEC 60695-2-1
Environmental restistance
ROHS compliant
REACH compliant
with contact block
II
BA 9 s
70,000 (10A), 200,000 (5A)
10 x 10
-6
acc. to IEC 60947-5-5
acc. EU-guideline NSR 72/73
15 g at 11 ms, amplitude half sinusoidal
5 g at 10 ... 500 Hz
-25 °C
+70°C (+50°C)
-40 °C
+80 °C
V0
yes
acc. to IEC 60068-2-14, -30, -33 and -78
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
