3.14.100.001/0000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 3.14.100.001/0000

3.14.100.001/0000: DescriptionTactile Switches RF15 SWITCH, WHITE; CategoryMechanical and electronic products switch; File Size1MB，2 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

3.14.100.001/0000 Overview

Tactile Switches RF15 SWITCH, WHITE

3.14.100.001/0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator stroke	0.508 mm
Actuator type	KEYPAD
Other features	PANEL MOUNTABLE
body width	15 mm
body height	9 mm
Body length or diameter	15 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@35VDC
Contact resistance	0.1 mΩ
contact time	SNAP ACTION
Maximum contact voltage (DC)	35 V
Electrical life	1000000 Cycle(s)
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	3.5 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYBOARD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

21.05.2018

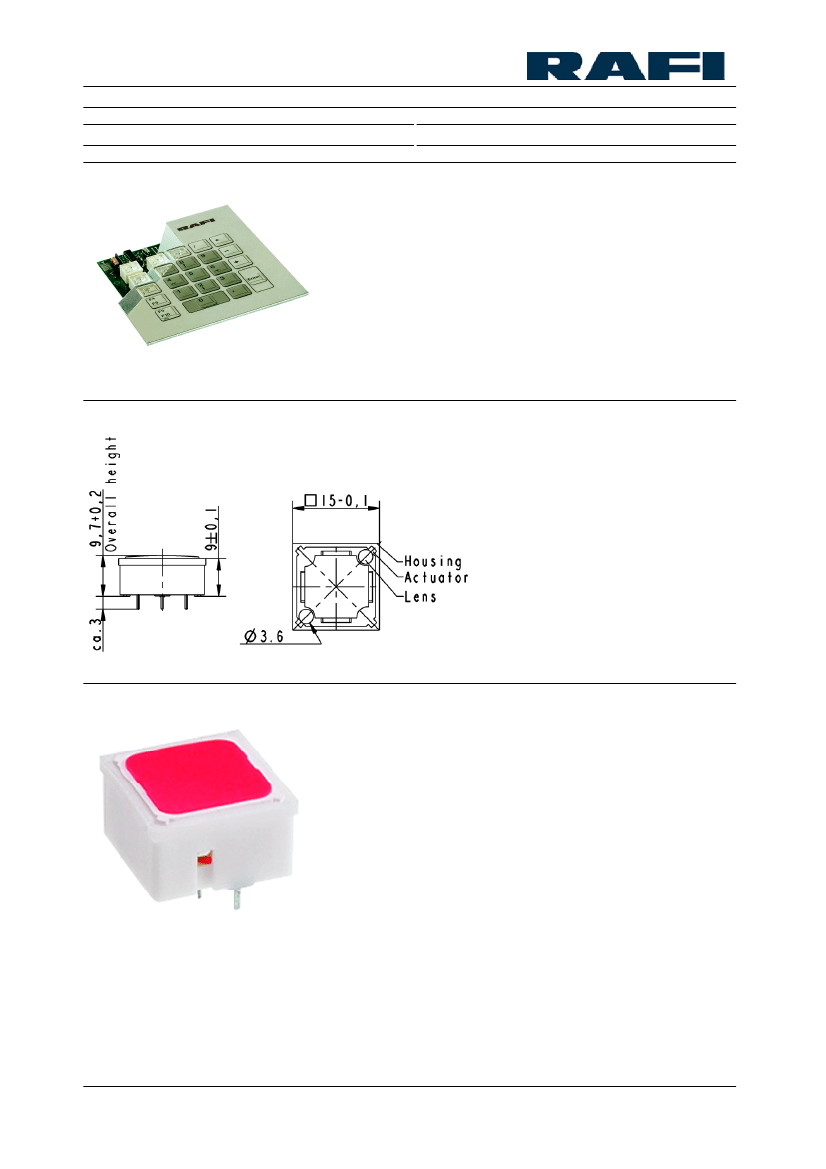

RF 15 - Tactile switch, non-illuminated, gold contacts

3.14.100.001/0000

Keycaps. Refer to RK 90 system design.

General information

Color of lens

Recommended key grid

Dimensions

Length

Width

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Illumination

Mechanical characteristics

Operating force max.

Switching travel

Robustness max.

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max. (ohmic load)

Contact resistance when new max.

Insulation resistance

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Environmental restistance

Operating life min. (operations)

Solderability / solder heat resistance

Wave soldering

Manual soldering

transparent

19.05 mm

15 mm

9.7 mm

soldering in PCB

THT

snap-action contact

1 NO

not illuminated

2.9

±0.6

0.5

+0.2

with through-plated PCB 100 N

Au: 0.02 V, Ag: 3 V

35 V

Au: 0.01 mA, Ag: 0.1 mA

Au: 100 mA, Ag: 250 mA

Au: 2 W, Ag: 12.5 W

100 mΩ

-25 °C

+70 °C

acc. to IEC 60068-2-14, -30, -33 and -78

1,000,000 cycle

according to DIN EN 60068-2-20

260 °C max.

350 °C / 5 sec. max.

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
