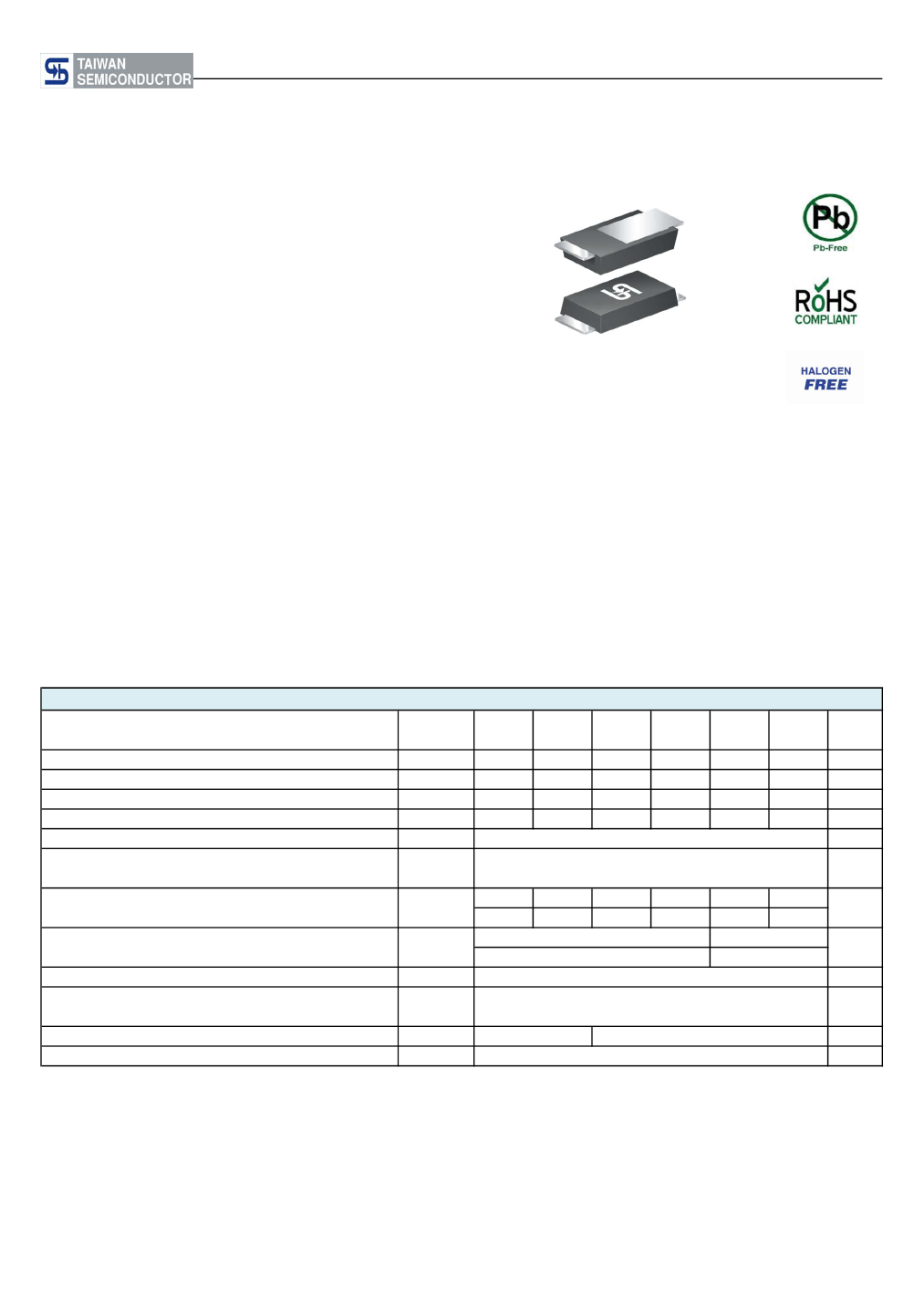

SS12LS - SS115LS
Taiwan Semiconductor
CREAT BY ART
Surface Mount Schottky Barrier Rectifier
FEATURES
- Ideal for automated placement
- Compact package size, profile <0.85mm
- High surge current capability
- Low power loss, high efficiency
- AEC-Q101 qualified and Halogen free only
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
SOD-123HE
TYPICAL APPLICATIONS
The devices are designed for high frequency miniature switched
mode power supplies such as adapters, lighting and on-board
DC/DC converters.
MECHANICAL DATA
Case:
SOD-123HE
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
21mg (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25
o
C unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage @ 0.5 A
(Note 1)
@ 1.0 A
Maximum reverse current @ rated VR T
J
=25
o
C
T
J
=125
o
C
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V DC
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
C
J
R
θJC
R
θJA
T
J
T
STG
- 55 to +125
-
0.45
-
0.50
0.4
-
80
25
70
- 55 to +150
- 55 to +150
O
SYMBOL
SS12
LS
12LS
20
14
20
SS13
LS
13LS
30
21
30
SS14
LS
14LS
40
28
40
1
30
0.51
0.55
SS16
LS
16LS
60
42
60
SS110
LS
10LS
100
70
100
SS115
LS
A5LS
150
105
150
UNIT
V
V
V
A
A
0.58
0.70
0.70
0.80
0.05
0.5
0.75
0.90
V
mA
pF
C/W
O
O
C
C
Document Number: DS_D1406025
Version: B14
SS12LS - SS115LS
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SS1xxLS
(Note 1, 2)
AEC-Q101
QUALIFIED
Prefix "H"
RV
RQ
PACKING CODE
GREEN COMPOUND
CODE
Suffix "G"
SOD-123HE
SOD-123HE
3,000 / 7" Reel
10,000 / 13" Reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 20V (SS12LS) to 150V (SS115LS)
Note 2: Whole series with AEC-Q101 qualified and green compound (halogen-free)
EXAMPLE
PREFERRED P/N
SS115LSHRVG
PART NO.
SS115LS
AEC-Q101
QUALIFIED
H
PACKING CODE
RV
GREEN COMPOUND
CODE
G
DESCRIPTION
AEC-Q101 qualified
Green compound

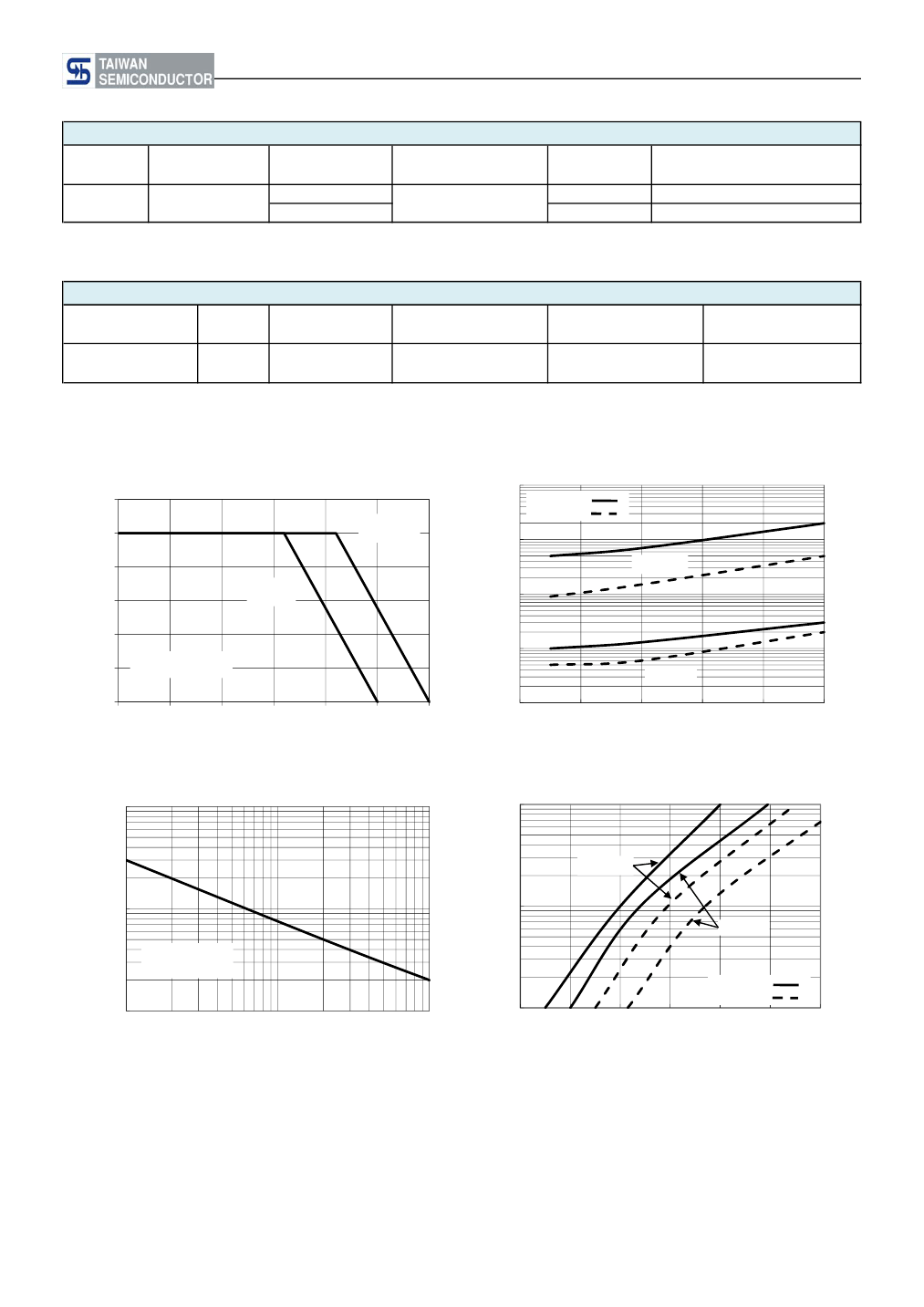

RATINGS AND CHARACTERISTICS CURVES
(TA=25
o
C unless otherwise noted)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
INSTANTANEOUS REVERSE CURRENT
(mA)
10
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
20V-60V
100V-150V
1.2
AVERAGE FORWARD CURRENT (A)
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUVTIVE LOAD
20V-30V
40V-150V
1
T
J
=125
o
C
0.1
0.01
T
J
=25
o
C
0.001
0
20
40
60
80
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
100
125
150

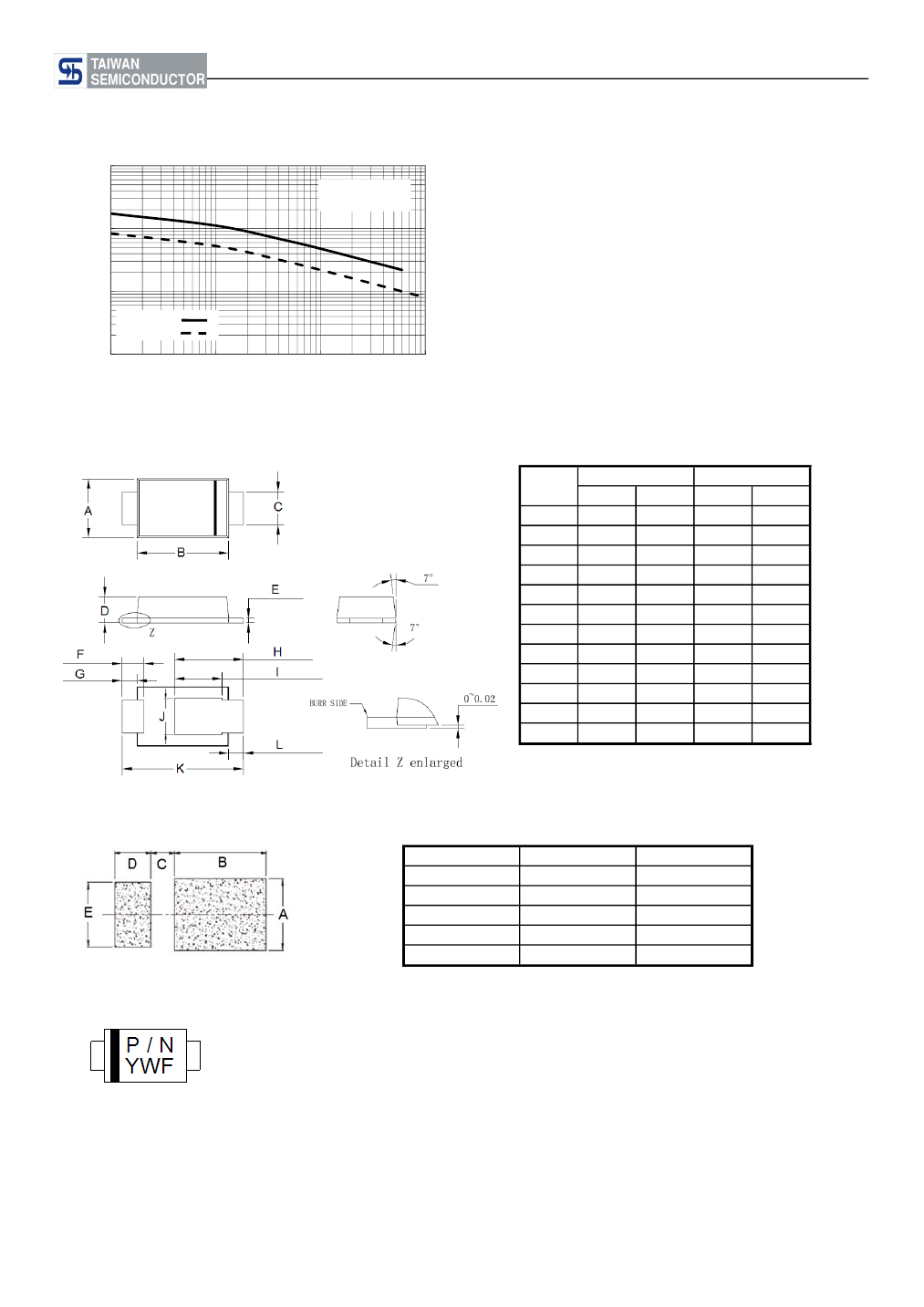

FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT
(A)
100
INSTANTANEOUS FORWARD CURRENT
(A)
10
FIG. 4- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
T
J
=125
o
C
1
T
J
=25
o
C
10
8.3ms Single
Half Sine Wave.
1
1
10
100
0.1
0
0.2
0.4
0.6
20V-60V
100V-150V
0.8
1
1.2
NUMBER OF CYCLES AT 60 Hz
FORWARD VOLTAGE (V)
Document Number: DS_D1406025
Version: B14
SS12LS - SS115LS
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1406025
Version: B14
