0906 UTP 302-Y

Description
Circular Metric Connectors
CategoryThe connector
File Size437KB,2 Pages
ManufacturerLumberg Automation
Websitehttp://www.lumberg-automation.com
Environmental Compliance
Download Datasheet Parametric View All

0906 UTP 302-Y Overview

Circular Metric Connectors

0906 UTP 302-Y Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerLumberg Automation
Product CategoryCircular Metric Connectors
RoHSDetails
Number of Contacts5 Contact
Thread SizeM12, 7/8 in
Termination StylePlug Connection
Current Rating8 A
Voltage Rating60 V
GenderFemale / Male
Height29 mm
Housing MaterialPolyurethane (PUR)
Length95.25 mm
Mounting TypeCable
Locking MechanismScrew Locking
Factory Pack Quantity1
DeviceNet T-Connectors / Taps

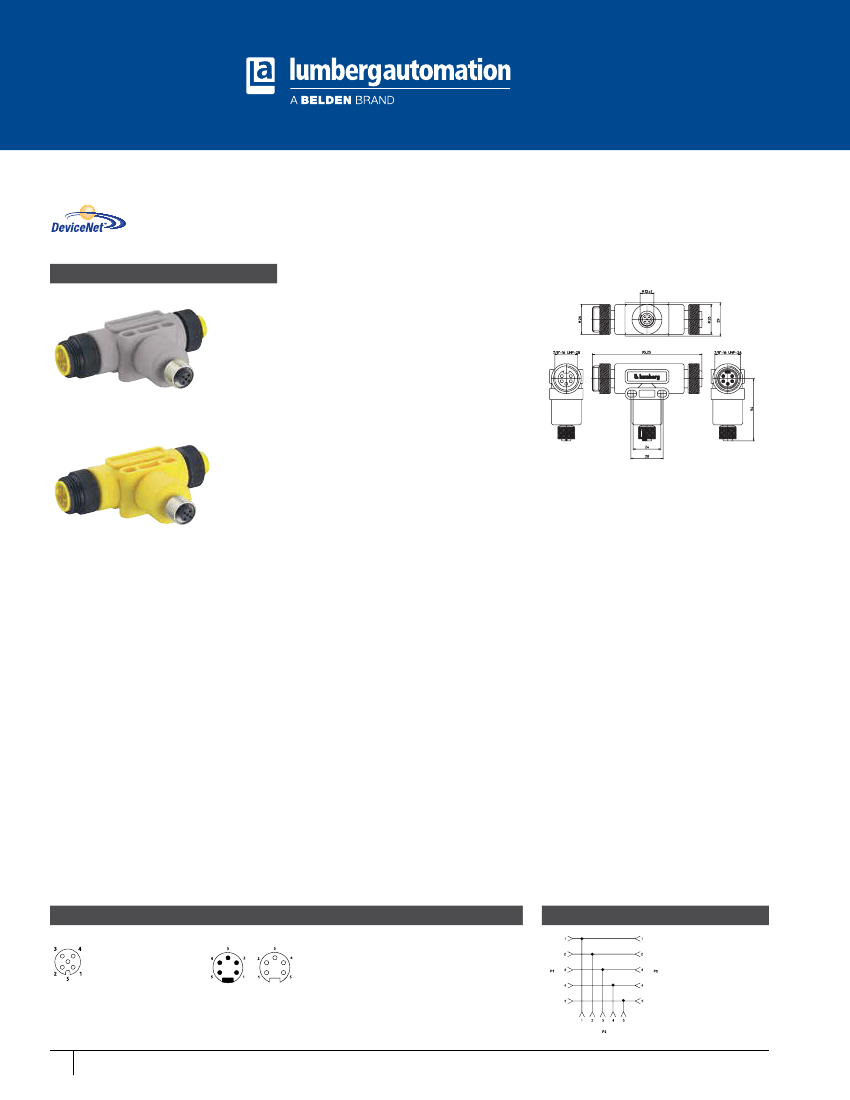

0906 UTP 302 | 0906 UTP 302-Y
M12 Female to 1 x 7/8” Male and
1 x 7/8” Female
Splitter/T-connector, with one M12 female,
one 7/8” male and one 7/8” female connectors,
5-poles.
— especially suitable for DeviceNet and
CANopen modules with M12 bus connection —
0906 UTP 302 | 0906 UTP 302-Y
Pin Assignments
Face Views
M12 - 5 poles
1=
2=
3=
4=
5=
drain
+ 24 V
GND (0 V)
CAN_H
CAN_L
Wiring Diagram
7/8” - 5 poles
1=
2=
3=
4=
5=
drain
+ 24 V
GND (0 V)
CAN_H
CAN_L
