LESHAN RADIO COMPANY, LTD.
Dual Serles Schottky
Barrler Dlodes
These Schottky barrier diodes are designed for high speed switching applications,
circuit protection, and voltage clamping. Extremely low forward voltage reduces
conduction loss. Miniature surface mount package is excellent for hand held and
portable applications where space is limited.
•
Extremely Fast Switching Speed
•
Low Forward Voltage — 0.35 Volts (Typ) @ IF = 10 mAdc
•
Pb-Free package is available.
LBAT54SLT1
3
1
2
SOT-23 (TO-236AB)
ANODE
1
CATHODE
2
ORDERING INFORMATION
Device
LBAT54SLT1
LBAT54SLT1G
Marking
LD3
LD3
(Pb-Free)
Shipping
3000/Tape&Reel
3000/Tape&Reel
3
CATHODE/ANODE
MAXIMUM RATINGS
(TJ = 125°C unless otherwise noted)
Rating
Reverse Voltage
Forward Power Dissipation
@ TA = 25°C
Derate above 25°C
Forward Current (DC)
Junction Temperature
Storage Temperature Range
Symbol
VR
PD
225
1.8
IF
TJ
Tstg
200 Max
125 Max
– 55 to +150
mW
mW/°C
mA
°C
°C
Value
30
Unit
Volts
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) (EACH DIODE)
Characteristic
Reverse Breakdown Voltage (IR = 10
µA)
Total Capacitance (VR = 1.0 V, f = 1.0 MHz)
Reverse Leakage (VR = 25 V)
Forward Voltage (IF = 0.1 mAdc)
Forward Voltage (IF = 30 mAdc)
Forward Voltage (IF = 100 mAdc)
Reverse Recovery Time
(IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc) Figure 1
Forward Voltage (IF = 1.0 mAdc)
Forward Voltage (IF = 10 mAdc)
Forward Current (DC)
Repetitive Peak Forward Current
Non–Repetitive Peak Forward Current (t < 1.0 s)
Symbol
V(BR)R
CT
IR
VF
VF
VF
trr
VF
VF
IF
IFRM
IFSM
Min
30
—
—
—
—
—
—
—
—
—
—
—
Typ
—
7.6
0.5
0.22
0.41
0.52
—
0.29
0.35
—
—
—
Max
—
10
2.0
0.24
0.5
1.0
5.0
0.32
0.40
200
300
600
Unit
Volts
pF
µAdc
Vdc
Vdc
Vdc
ns
Vdc
Vdc
mAdc
mAdc
mAdc
LBAT54SLT1–1/3
LESHAN RADIO COMPANY, LTD.
LBAT54SLT1
820
Ω
+10 V
2k
100
µH
0.1
µF
DUT
50
Ω
OUTPUT
PULSE
GENERATOR
50
Ω
INPUT
SAMPLING
OSCILLOSCOPE
90%
VR
INPUT SIGNAL
IR
iR(REC) = 1 mA
OUTPUT PULSE
(IF = IR = 10 mA; measured
at iR(REC) = 1 mA)
IF
0.1
µF
tr
10%
tp
t
IF
trr
t
Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (IF) of 10 mA.
Notes:
2. Input pulse is adjusted so IR(peak) is equal to 10 mA.
Notes:
3. tp » trr

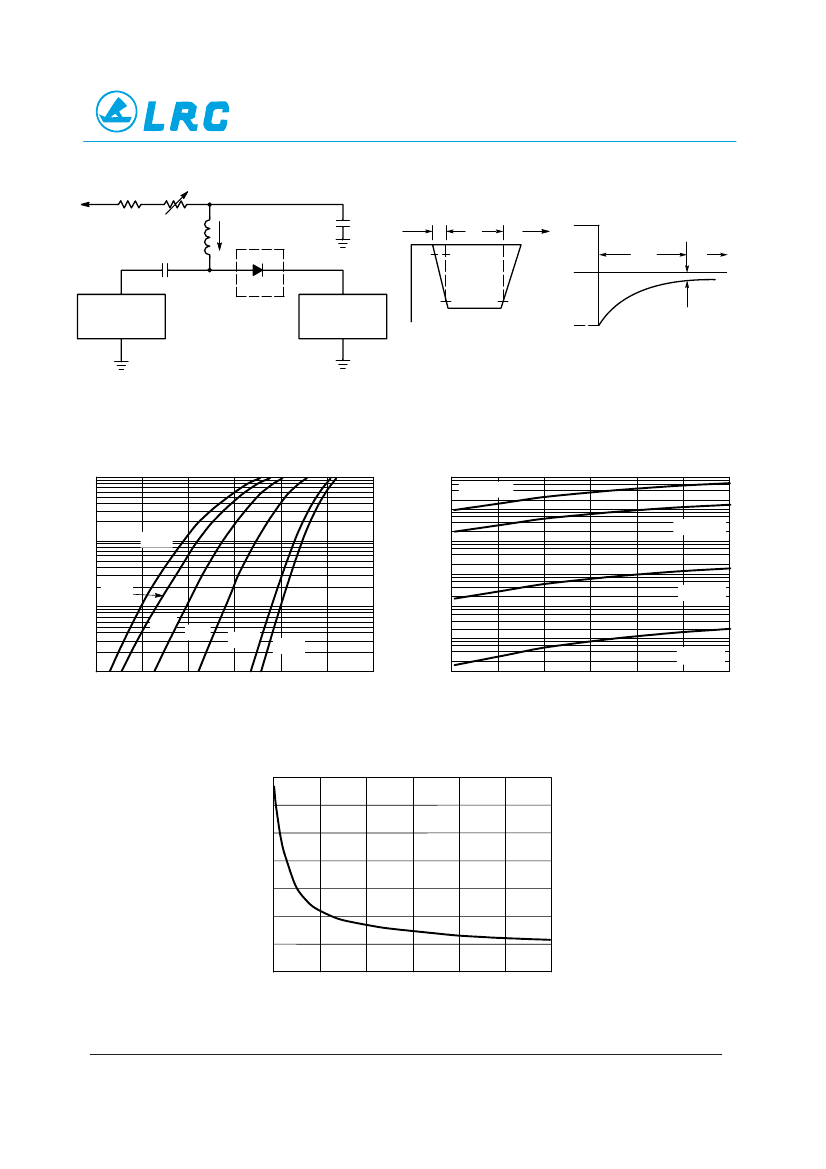

Figure 1. Recovery Time Equivalent Test Circuit
100
IR , REVERSE CURRENT (µA)
IF, FORWARD CURRENT (mA)
1000
TA = 150°C
100
TA = 125°C
10
1.0
TA = 85°C
0.1
0.01
TA = 25°C
0.001
0.1
0.2
0.3
0.4
0.5
0.6
0
5
VF, FORWARD VOLTAGE (VOLTS)
10
15
20
VR, REVERSE VOLTAGE (VOLTS)
25
30
10
1 50°C
1 25°C
1.0
85°C
25°C
– 40°C
– 55°C
0.1
0.0
Figure 2. Forward Voltage
Figure 3. Leakage Current
14
C T , TOTAL CAPACITANCE (pF)
12
10
8
6
4
2
0
0
5
10
15
20
25
30
VR, REVERSE VOLTAGE (VOLTS)
Figure 4. Total Capacitance
