5962-9214002MXA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> 5962-9214002MXA

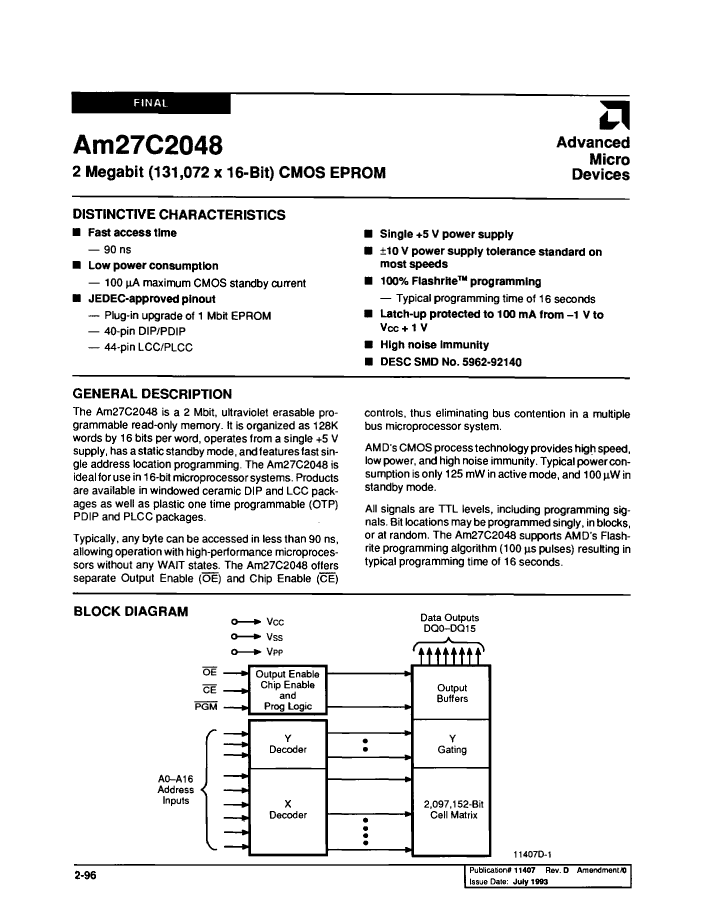

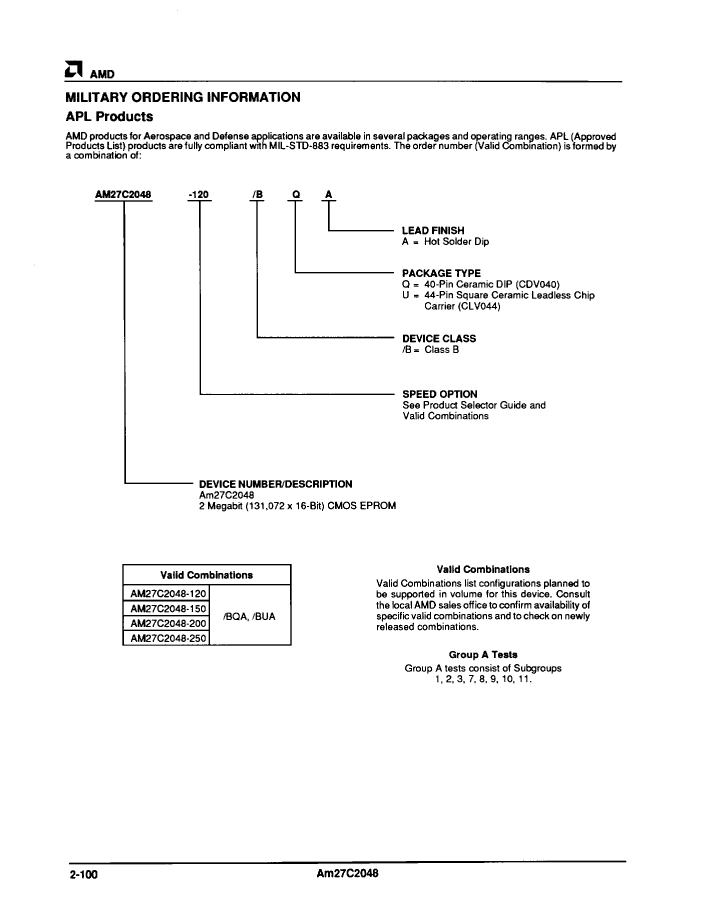

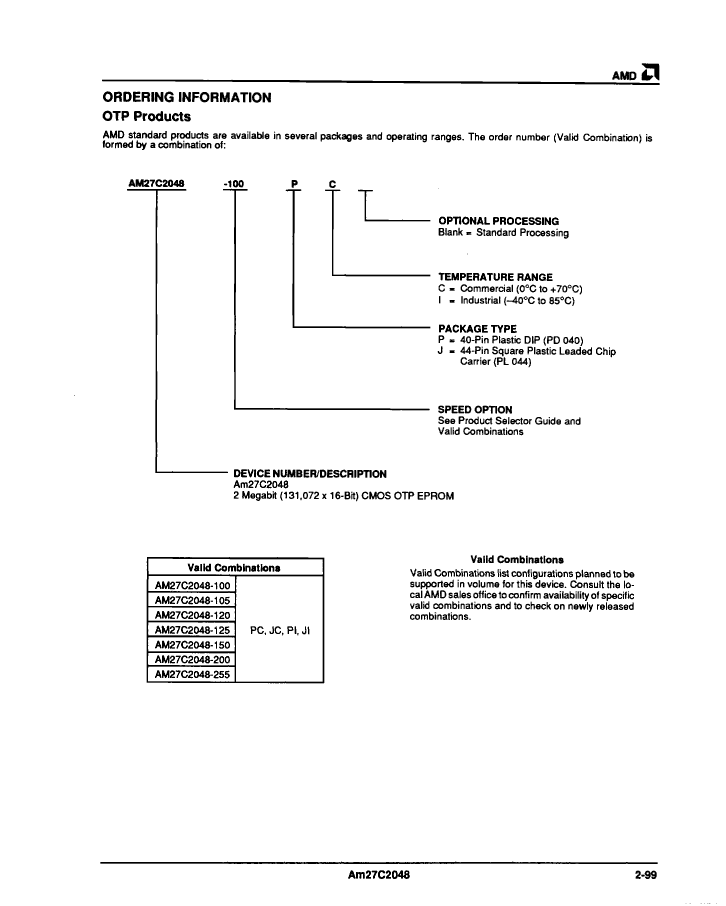

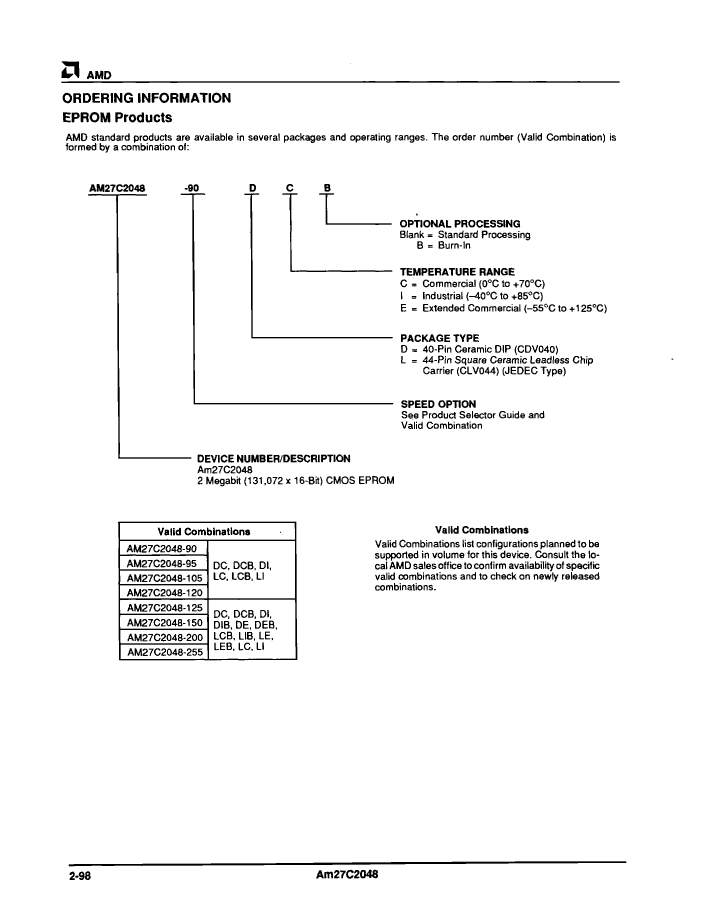

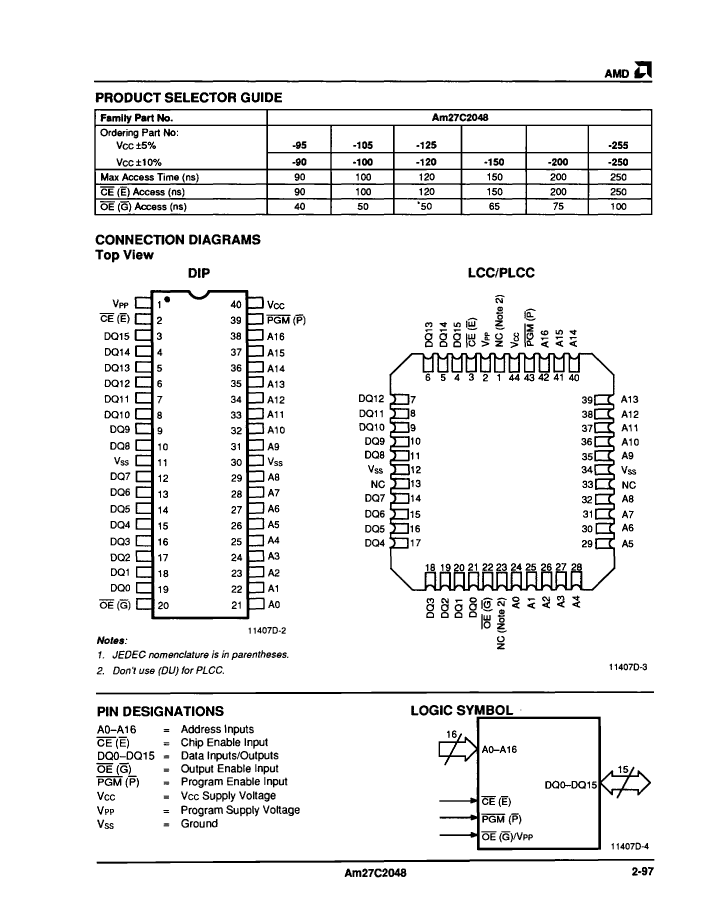

Preview

5962-9214002MXA: DescriptionUVPROM, 128KX16, 200ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44; Categorystorage; File Size321KB，13 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

5962-9214002MXA Overview

UVPROM, 128KX16, 200ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44

5962-9214002MXA Parametric

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	LCC
package instruction	WQCCN, LCC44,.65SQ
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	200 ns
I/O type	COMMON
JESD-30 code	S-CQCC-N44
JESD-609 code	e0
length	16.51 mm
memory density	2097152 bit
Memory IC Type	UVPROM
memory width	16
Number of functions	1
Number of terminals	44
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX16
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Encapsulate equivalent code	LCC44,.65SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	3.556 mm
Maximum standby current	0.00015 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9214002MXA Related Products

	5962-9214002MXA	5962-9214001MXA	5962-9214001MQA	PTN1010K2083DGW0	5962-9214003MQA	5962-9214003MXA
Description	UVPROM, 128KX16, 200ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UVPROM, 128KX16, 250ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UVPROM, 128KX16, 250ns, CMOS, CDIP40, WINDOWED, CERAMIC, DIP-40	Fixed Resistor, Thin Film, 0.5W, 208000ohm, 150V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 1010, CHIP	UVPROM, 128KX16, 150ns, CMOS, CDIP40, WINDOWED, CERAMIC, DIP-40	UVPROM, 128KX16, 150ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44
package instruction	WQCCN, LCC44,.65SQ	WQCCN, LCC44,.65SQ	WDIP, DIP40,.6	CHIP	WDIP, DIP40,.6	WQCCN, LCC44,.65SQ
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	44	44	40	2	40	44
Maximum operating temperature	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	IN-LINE, WINDOW	SMT	IN-LINE, WINDOW	CHIP CARRIER, WINDOW
surface mount	YES	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	THIN FILM	CMOS	CMOS
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Gold (Au) - with Nickel (Ni) barrier	TIN LEAD	TIN LEAD
Maker	AMD	AMD	AMD	-	AMD	AMD
Parts packaging code	LCC	LCC	DIP	-	DIP	LCC
Contacts	44	44	40	-	40	44
Maximum access time	200 ns	250 ns	250 ns	-	150 ns	150 ns
I/O type	COMMON	COMMON	COMMON	-	COMMON	COMMON
JESD-30 code	S-CQCC-N44	S-CQCC-N44	R-GDIP-T40	-	R-GDIP-T40	S-CQCC-N44
JESD-609 code	e0	e0	e0	-	e0	e0
length	16.51 mm	16.51 mm	52.2605 mm	-	52.2605 mm	16.51 mm
memory density	2097152 bit	2097152 bit	2097152 bit	-	2097152 bit	2097152 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	-	UVPROM	UVPROM
memory width	16	16	16	-	16	16
Number of functions	1	1	1	-	1	1
word count	131072 words	131072 words	131072 words	-	131072 words	131072 words
character code	128000	128000	128000	-	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS
organize	128KX16	128KX16	128KX16	-	128KX16	128KX16
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN	WQCCN	WDIP	-	WDIP	WQCCN
Encapsulate equivalent code	LCC44,.65SQ	LCC44,.65SQ	DIP40,.6	-	DIP40,.6	LCC44,.65SQ
Package shape	SQUARE	SQUARE	RECTANGULAR	-	RECTANGULAR	SQUARE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	-	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	-	MIL-STD-883	MIL-STD-883
Maximum seat height	3.556 mm	3.556 mm	5.588 mm	-	5.588 mm	3.556 mm
Maximum standby current	0.00015 A	0.00015 A	0.00015 A	-	0.00015 A	0.00015 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	-	0.06 mA	0.06 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	-	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	-	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	-	DUAL	QUAD
width	16.51 mm	16.51 mm	15.24 mm	-	15.24 mm	16.51 mm
Base Number Matches	1	1	1	-	1	-
