B064-0911-283-Z: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Receptacle; CategoryThe connector; File Size214KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B064-0911-283-Z Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Receptacle

B064-0911-283-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.335 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B064
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	10u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

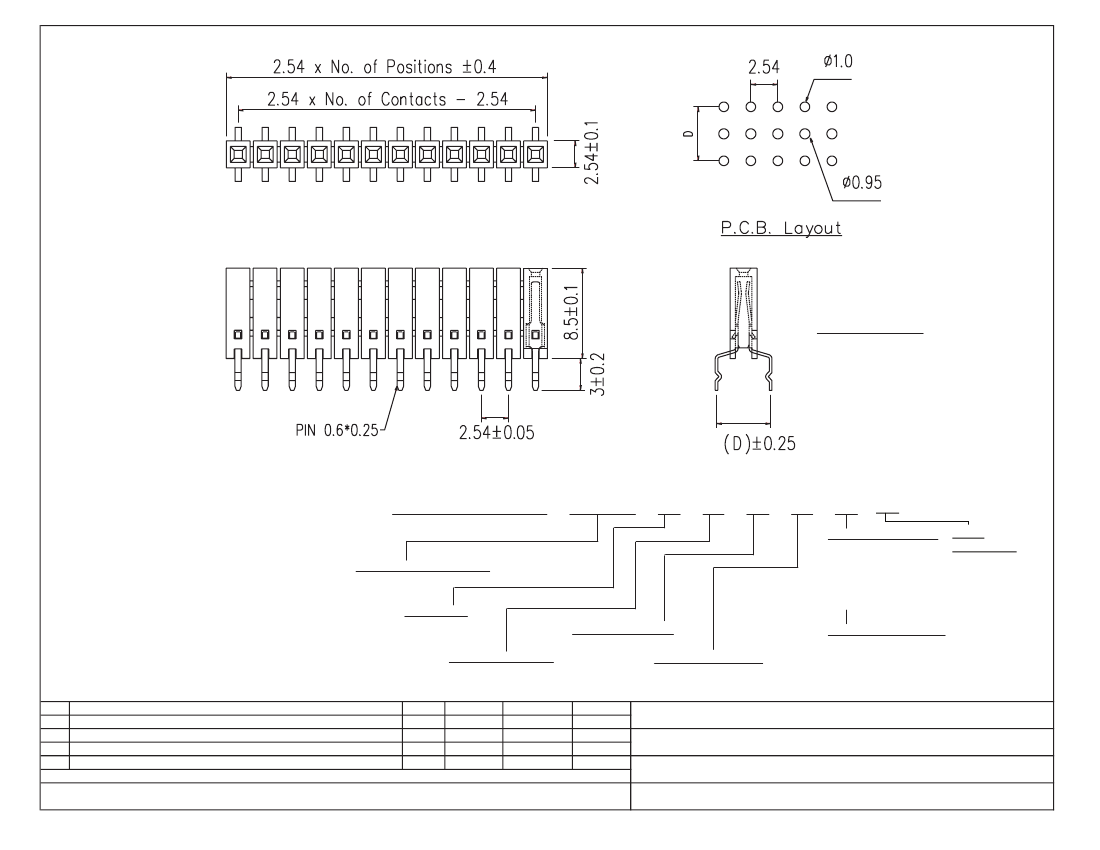

DIMENSION (D)

See Footprint Type

Option Below

HOW TO ORDER:

B

0

6

4

-

X

1

-

2

X

-

Z

RoHS

COMPLIANT

ELECTRICAL:

NUMBER OF CONTACTS:

CURRENT: 3A

02 thru 32

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DEFINITION:

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

1 - STRAIGHT

OPERATING TEMPERATURE: -40°C TO +105°C

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

HOUSING HEIGHT:

2 - 8.5mm

FOOTPRINT TYPE:

8 - D = 5.08mm (Single Row)

9 - D = 3.96mm (Single Row)

MATERIAL:

INSULATOR: POLYESTER (UL94V-0), STANDARD: P.B.T.

CONTACT: PHOSPHOR BRONZE

Rev

0

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

NUMBER OF ROWS:

1 - SINGLE ROW

Drawn Checked

A.M.

S.M.

B.S.

S.M.

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

Appproved

09/16/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.54mm Pitch, Bottom Entry, Single Row

8.5mm Height, 3.96mm and 5.08mm Footprint, Thru Hole

ANGLE +/-

UNIT: mm

P/N: B064-XX11-2XX-Z

Pg: 1
