BD63716AMWV-E2

Description
Stepper Motor Controller,
CategoryThe signal circuit
File Size2MB,28 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

BD63716AMWV-E2 Online Shopping

Suppliers Part Number Price MOQ In stock
BD63716AMWV-E2 - - View Buy Now

BD63716AMWV-E2 Overview

Stepper Motor Controller,

BD63716AMWV-E2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerROHM Semiconductor
package instructionHVQCCN, LCC40,.2SQ,16
Reach Compliance Codecompliant
Analog Integrated Circuits - Other TypesSTEPPER MOTOR CONTROLLER
JESD-30 codeS-XQCC-N40
length5 mm
Number of functions1
Number of terminals40
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum output current1.5 A
Package body materialUNSPECIFIED
encapsulated codeHVQCCN
Encapsulate equivalent codeLCC40,.2SQ,16
Package shapeSQUARE
Package formCHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height1 mm
Maximum supply current (Isup)5 mA
Maximum supply voltage (Vsup)28 V
Minimum supply voltage (Vsup)8 V
Nominal supply voltage (Vsup)24 V
surface mountYES
Temperature levelCOMMERCIAL EXTENDED
Terminal formNO LEAD
Terminal pitch0.4 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width5 mm
Base Number Matches1

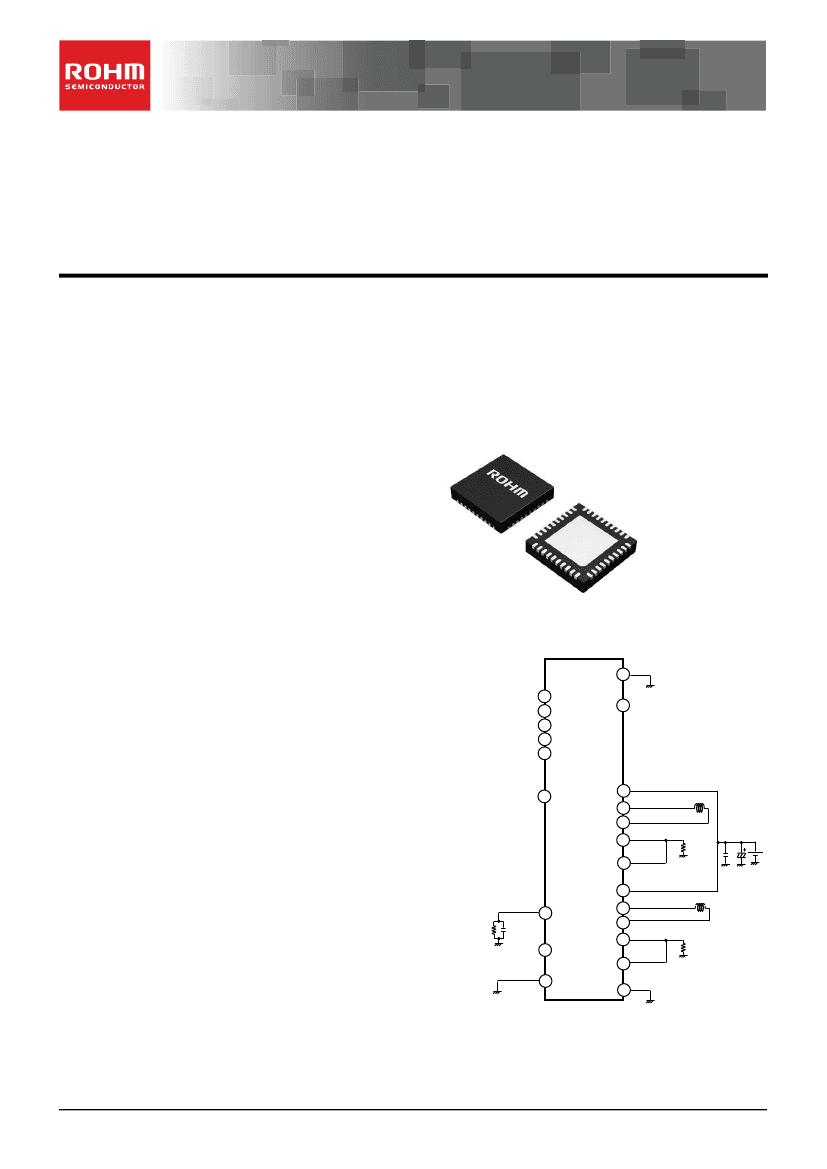

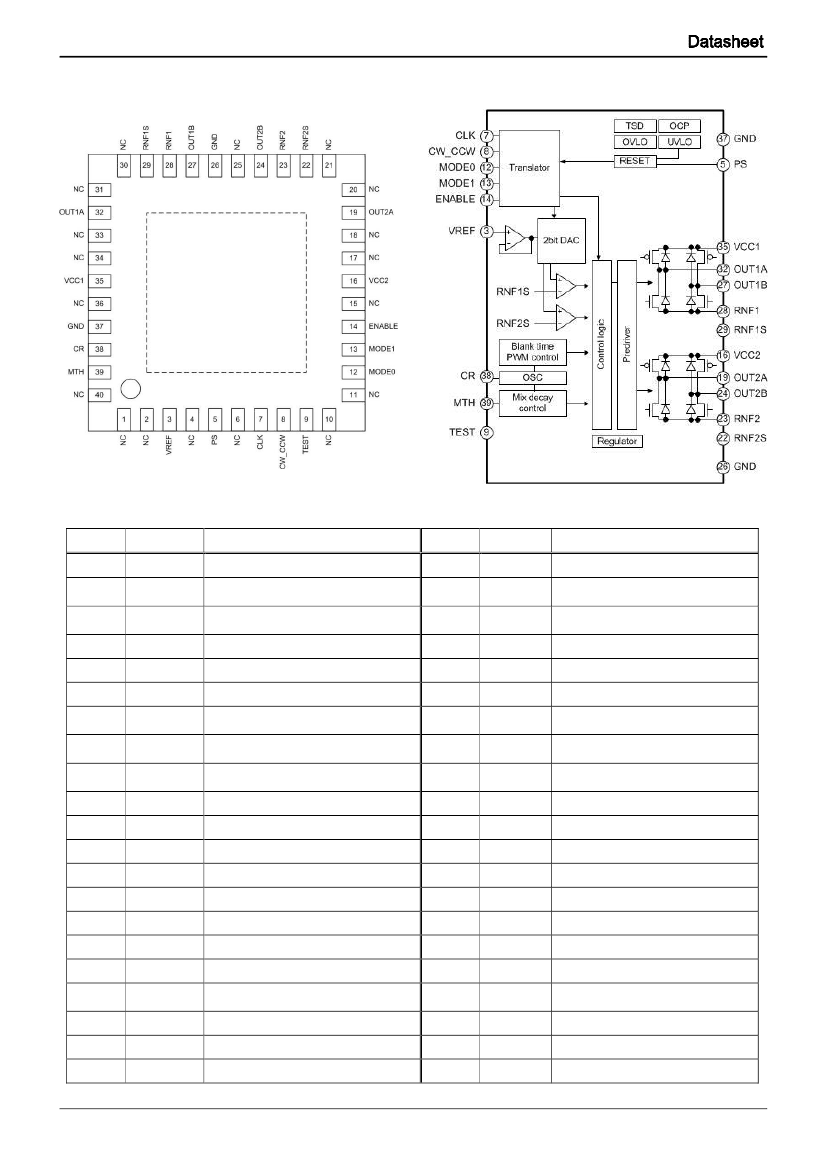

Datasheet
36 V High-performance,
High-reliability Withstand Voltage
Stepping Motor Driver
BD63716AMWV
General Description
BD63716AMWV is a bipolar low-consumption driver that
driven by PWM current. Rated power supply voltage of
the device is 36 V, and rated output current is 1.5 A. CLK-
IN driving mode is adopted for input interface, and
excitation mode is corresponding to FULL STEP mode,
HALF STEP mode (2 types) and QUARTER STEP mode
via a built-in DAC. In the method of current decay, the
FAST DECAY/SLOW DECAY ratio can set without any
limitation, and all available modes can be controlled in the
most appropriate way. In addition, the power supply can
be driven by one single system, which simplifies the
design.
Key Specifications
Range of Power Supply Voltage
8 V to 28 V
Rated Output Current (continuous)
1.5 A
Rated Output Current (peak value)
2.0 A
Range of Operating Temperature -25 °C to +85 °C
Output ON Resistance
0.85 Ω (Typ)
(total of upper and lower resistors)
W (Typ) x D (Typ) x H (Max)
5.0 mm x 5.0 mm x 1.0 mm
Package
UQFN040V5050
Features
Rated Output Current (DC)1.5 A
Low ON Resistance DMOS output
CLK-IN Drive Mode
PWM Constant Current (the other excitation method)
Built-in Spike Noise Blanking Function (external
noise filter is unnecessary)
Full-, Half (two kinds)-, Quarter-step Functionality
Free Timing Excitation Mode Switch
Current Decay Mode Switch Function
(linearly variable FAST/SLOW DECAY ratio)
Normal Rotation and Reverse Rotation Switching
Function
Power Save Function
Built-in Logic Input Pull-down Resistor
Power-on Reset Function
Thermal Shutdown Circuit (TSD)
Over-current Protection Circuit(OCP)
Under Voltage Lock Out Circuit (UVLO)
Over Voltage Lock Out Circuit (OVLO)
Ghost Supply Prevention (protects against
malfunction when power supply is disconnected)
Adjacent Pins Short Protection
Micro Miniature, Ultra-thin and High Heat-radiation
(exposed metal type) Package
Typical Application Circuit
GND
CLK
CW_CCW
MODE0
MODE1
ENABLE
VCC1
VREF
OUT1A
OUT1B
RNF1
RNF1S
VCC2
PS
Application
PPC, Multi-function Printer, Laser Beam Printer, Ink-
jet Printer, Monitoring Camera, WEB Camera,
Sewing Machine, Photo Printer, FAX, Scanner, Mini
Printer, Toy and Robot
CR
OUT2A
OUT2B
MTH
TEST
RNF2
RNF2S
GND
Figure 1. BD63716AMWV Application Circuit Diagram
〇Product
structure : Silicon integrated circuit
www.rohm.com
© 2019 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
〇This
product has no designed protection against radioactive rays
1/25
TSZ02201-0P1P0C702170-1-2
28.Jun.2019 Rev.001
