POWER PhotoMOS RELAYS
(Voltage Sensitive Type)
PhotoMOS
RELAYS
4. Both AC/DC dual types and DC-only
types are available
The AC/DC dual type is capable of bi-di-
rectional control, and unlike conventional
SSRs, does not have to be used different-
ly depending on the load. The DC-only
type is well suited for control of DC sole-
noids and DC motors.
5. High sensitivity, low ON resistance
A maximum 3.6 A load can be controlled
with the minimum input voltage of 4 V DC.
The ON resistance is also low at 0.09
Ω
(AQZ102D).
6. Small scale, slim type, 4-pin SIL
Length 21.0 mm
×
width 3.5 mm
×
height
12.5 mm. High precision mounting is pos-
sible because of the small 73.5mm
2
area
of the 4-pin SIL.
21±0.2
.827±.008
3.5±0.2
.138±.008
12.5±0.2
.492±.008
FEATURES
1. A voltage sensitive power Photo-
MOS relay
Conventional power PhotoMOS relays
are connected externally to an input limit-
ing resistor in order to obtain the appropri-
ate LED current. Adding an internal
constant-current element renders the in-
put limiting resistor unnecessary, making
it possible for the PhotoMOS relay to be
voltage driven.
2. Wide range of input voltages
Allows a wide range of input voltages from
4 to 30 V DC. The relay can be used in 5
V, 12 V or 24 V DC systems.
3. Large capacity PhotoMOS relay
Supports the various types of load con-
trol, from very small loads to a maximum
2.7 A for the AC/DC dual type, 3.6 A for
the DC-only type.
mm
inch
–
1
+
2
3
4
AC/DC type
–
1
+
2
–
3
+
4
DC type
TYPES
1. AC/DC type
Output rating
Load voltage
60 V
100 V
200 V
400 V
Load current
2.7 A
1.8 A
0.9 A
0.45 A
Part No.
AQZ202D
AQZ205D
AQZ207D
AQZ204D
Packing quantity
Inner carton
Outer carton
25 pcs.
500 pcs.
2. DC type
Output rating
Load voltage
60 V
100 V
200 V
400 V
Load current
3.6 A
2.3 A
1.1 A
0.6 A
Part No.
AQZ102D
AQZ105D
AQZ107D
AQZ104D
Packing quantity
Inner carton
Outer carton
25 pcs.
500 pcs.
Notes: Load voltage and current of AC/DC type: Peak AC/DC.
Load voltage and current of DC type: DC.
214
AQZ10
r
D, 20
r
D
RATING
1. AC/DC type
1) Absolute maximum ratings (Ambient temperature: 25
°
C
77
°
F)
Item
Input voltage
Input reverse voltage
Power dissipation
Load voltage (Peak AC)
Continuous load current (Peak AC)
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Operating
Storage
Item
Operate voltage
Input
Turn off voltage
Input current
On resistance
Output
Off state leakage current
Turn on time*
Switching
speed
Turn off time*
Transfer
characteristics
Maximum
I/O capacitance
Initial I/O isolation
resistance
Maximum operating
speed
Typical
Maximum
Minimum
Maximum
C
iso
R
iso
—
—
—
Maximum
Typical
T
off
3.0 ms
0.8 pF
1.5 pF
1,000 MΩ
0.5 cps
0.2 ms
Maximum
Maximum
Typical
T
on
10.0 ms
0.2 ms
0.1 ms
0.1 ms
I
leak
5.8 ms
4.2 ms
Typical
Maximum
Minimum
Typical
Typical
Typical
R
on
Symbol
V
IN
V
RIN
P
in
V
L
I
L
I
peak
P
out
P
T
V
iso
T
opr
T
stg
Symbol
V
Fon
V
Foff
I
IN
0.066
Ω
0.18
Ω
AQZ205D
AQZ207D
AQZ204D
30 V
3V
300 mW
60 V
100 V
200 V
400 V
2.7 A
1.8 A
0.9 A
0.45 A
9.0 A
6.0 A
3.0 A
1.5 A
1.6 W
1.6 W
2,500 V AC
–40
°
C to +85
°
C
–40
°
F to +185
°
F
(4 V
q
V
IN
q
6 V)
–40
°
C to +75
°
C
–40
°
F to +167
°
F
(6 V < V
IN
q
15 V)
–40
°
C to +60
°
C
–40
°
F to +140
°
F
(15 V < V
IN
q
30 V)
–40
°
C to +100
°
C
–40
°
F to +212
°
F
AQZ202D
AQZ205D
AQZ207D
1.4 V
4V
0.8 V
1.3 V
6.5 mA
0.180
Ω
0.34
Ω
10
µ
A
2.7 ms
2.3 ms
0.64
Ω
1.1
Ω
AQZ204D
AQZ202D
Remarks
Input
Output
100 ms (1 shot), V
L
= DC
Temperature
limits
Non-condensing at low
temperatures
2) Electrical characteristics (Ambient temperature: 25
°
C
77
°
F)
Remarks
I
L
= 100 mA
V
L
= 10 V
I
L
= 100 mA
V
L
= 10 V
V
IN
= 5 V
V
IN
= 5 V
I
L
= Max.
Within 1 s on time
V
IN
= 0
V
L
= Max.
V
IN
= 5 V
I
L
= 100 mA
V
L
= 10 V
V
IN
= 5 V
I
L
= 100 mA
V
L
= 10 V
f = 1 MHz
V
B
= 0
500 V DC
2.4
Ω
3.2
Ω
Vibration resistance
Minimum
Shock resistance
Minimum
Recommendable LED forward current I
F
= 5 to 10 mA.
*Turn on/off time
V
IN
= 5 V
Duty factor = 50%
I
L
×V
L
= 200 (VA)
10 to 55 Hz at double amplitude of 3 mm
2 hours for 3 axes
3 times for 3 axes
4,900 m/s
2
{500 G}1 ms
For type of connection, see page 35.
Input
90%
Output
Ton
Toff
10%
2. DC type
1) Absolute maximum ratings (Ambient temperature: 25
°
C
77
°
F)
Item
Input voltage
Input reverse voltage
Power dissipation
Load voltage (DC)
Continuous load current (DC)
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Operating
Storage
Symbol
V
IN
V
RIN
P
in
V
L
I
L
I
peak
P
out
P
T
V
iso
T
opr
T
stg
AQZ105D
AQZ107D
AQZ104D
30 V
3V
300 mW
60 V
100 V
200 V
400 V
3.6 A
2.3 A
1.1 A
0.6 A
9.0 A
6.0 A
3.0 A
1.5 A
1.35 W
1.35 W
2,500 V AC
–40
°
C to +85
°
C
–40
°
F to +185
°
F
(4 V
q
V
IN
q
6 V)
–40
°
C to +75
°
C
–40
°
F to +167
°
F
(6 V < V
IN
q
15 V)
–40
°
C to +60
°
C
–40
°
F to +140
°
F
(15 V < V
IN
q
30 V)
–40
°
C to +100
°
C
–40
°
F to +212
°
F
AQZ102D
Remarks
Input
Output
100 ms (1 shot), V
L
= DC
Temperature
limits
Non-condensing at low
temperatures
215
AQZ10rD, 20rD
2) Electrical characteristics (Ambient temperature: 25°C
77°F)
Item
Operate voltage
Input
Turn off voltage
Input current
On resistance
Output
Off state leakage current
Turn on time*
Switching
speed
Turn off time*
Maximum
Transfer
characteristics
I/O capacitance
Initial I/O isolation
resistance
Maximum operating
speed
Vibration resistance
Shock resistance
Typical
Maximum
Minimum
Maximum
Minimum
Minimum
C
iso
R
iso
—
—
—
Maximum
Typical
T
off
3.0 ms
0.8 pF
1.5 pF
1,000 MΩ
0.5 cps
10 to 55 Hz at double amplitude of 3 mm
4,900 m/s
2
{500 G}1 ms
0.2 ms
Maximum
Maximum
Typical
T
on
10.0 ms
0.2 ms
0.1 ms
0.1 ms
I
leak
3.3 ms
2.2 ms
Typical
Maximum
Minimum
Typical
Typical
Typical
R
on
Symbol
V
Fon
V
Foff
I
IN
0.033
Ω
0.09
Ω
AQZ102D
AQZ105D
AQZ107D
1.4 V
4V
0.8 V
1.3 V
6.5 mA
0.090
Ω
0.17
Ω
10
µA
1.5 ms
1.2 ms
0.33
Ω
0.55
Ω
1.23
Ω
1.6
Ω
AQZ104D
Remarks
I
L
= 100 mA
V
L
= 10 V
I
L
= 100 mA
V
L
= 10 V
V
IN
= 5 V
V
IN
= 5 V
I
L
= Max.
Within 1 s on time
V
IN
= 0
V
L
= Max.
V
IN
= 5 V
I
L
= 100 mA
V
L
= 10 V
V
IN
= 5 V
I
L
= 100 mA
V
L
= 10 V
f = 1 MHz
V
B
= 0
500 V DC
V
IN
= 5 V
Duty factor = 50%
I
L
×V
L
= 200 (VA)
2 hours for 3 axes
3 times for 3 axes
Recommendable LED forward current I
F
= 5 to 10 mA.
*Turn on/off time
For type of connection, see page 35.
Input
90%
Output
Ton
Toff
10%
s
For Dimensions, see Page 29.
s
For Schematic and Wiring Diagrams, see Page 35.
s
For Cautions for Use, see Page 40.

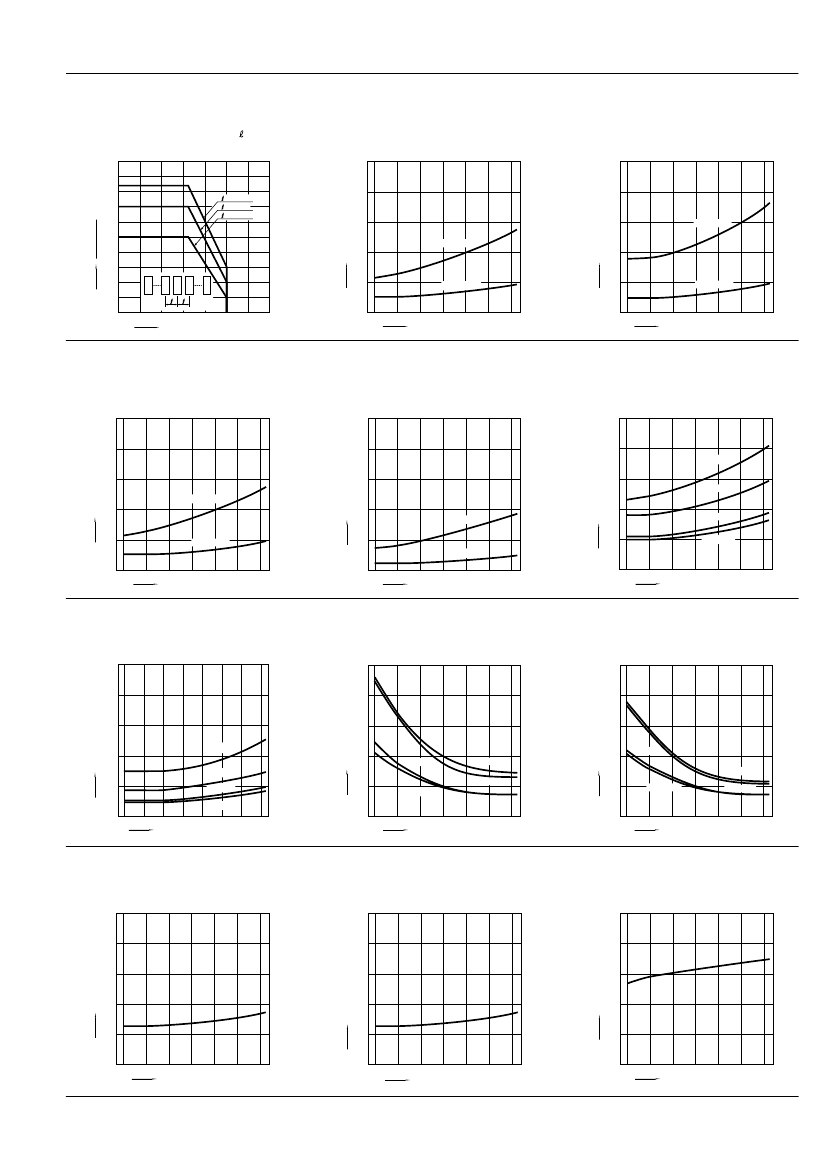

REFERENCE DATA
1. Load current vs. ambient temperature char-
acteristics
Allowable ambient temperature: –40°C to +85°C
–40°F to +185°F;
V
IN
: Input voltage; I
L
(derate):Load current (derate); I
L
:
Absolute maximum ratings of continuous load current
120
100
80
60
40
20
0
–40 –20
20
20
4V V
IN
6V
6V<V
IN
15V
15V<V
IN
30V
2.-(1) Load current vs. ambient temperature
characteristics in adjacent mounting
Input voltage: 4V
q
V
IN
q
6V;
I
L
(derate): Load current (derate); I
L
: Absolute maxi-
mum ratings of continuous load current; : Adjacent
mounting pitch
100
=20mm
=10mm
= 5mm
2.-(2) Load current vs. ambient temperature
characteristics in adjacent mounting
Input voltage: 6V < V
IN
q
15V;
I
L
(derate): Load current (derate); I
L
: Absolute maxi-
mum ratings of continuous load current; : Adjacent
mounting pitch
100
I
L
(derate)
×
100, %
I
L
=20mm
=10mm
= 5mm
I
L
(derate)
×
100, %
I
L
I
L
(derate)
×
100, %
I
L
80
80
60
60
40
40
0
20
40 60 80 85 100
Ambient temperature,
°C
0
–40 –20
0
20
40 60 80 85 100
Ambient temperature,
°C
0
–40 –20
0
20
40 60 7580 100
Ambient temperature,
°C
216
AQZ10rD, 20rD
2.-(3) Load current vs. ambient temperature
characteristics in adjacent mounting
Input voltage: 15V<V
IN
q
30V;
I
L
(derate): Load current (derate); I
L
: Absolute maxi-
mum ratings of continuous load current; : Adjacent
mounting pitch
100
I
L
(derate)
×
100, %
I
L
3.-(1) On resistance vs. ambient temperature
characteristics (AC/DC type)
Input voltage: 5 V;
Continuous load current: 2.7 A (DC) (AQZ202D)
1.8 A (DC) (AQZ205D)
0.5
3.-(2) On resistance vs. ambient temperature
characteristics (AC/DC type)
Input voltage: 5 V;
Continuous load current: 0.9 A (DC) (AQZ207D)
0.45 A (DC) (AQZ204D)
5.0
60
On resistance,
Ω
=20mm
=10mm
= 5mm
0.3
AQZ205D
0.2
On resistance,
Ω
80
0.4
4.0
3.0
AQZ204D
40
2.0
20
0.1
AQZ202D
1.0
AQZ207D
0
–40 –20
0
20
40 60 80 100
Ambient temperature,
°C
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
3.-(3) On resistance vs. ambient temperature
characteristics (DC type)
Input voltage: 5 V;
Continuous load current: 3.6 A (DC) (AQZ102D)
2.3 A (DC) (AQZ105D)
0.25
3.-(4) On resistance vs. ambient temperature
characteristics (DC type)
Input voltage: 5 V;
Continuous load current: 1.1 A (DC) (AQZ107D)
0.6 A (DC) (AQZ104D)
5.0
4.-(1) Turn on time vs. ambient temperature
characteristics (AC/DC type)
Input voltage: 5 V;
Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
10
On resistance,
Ω
0.20
On resistance,
Ω
4.0
Turn on time, ms
8
AQZ202D
6
AQZ205D
4
AQZ207D
2
AQZ107D
AQZ204D
0.15
AQZ105D
3.0
0.10
2.0
AQZ104D
1.0
0.05
AQZ102D
0
–40
–20
0
20
40
60 80 85
Ambient temperature,
°C
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
0
–40
–20
0
20
40
60 8085
Ambient temperature,
°C
4.-(2) Turn on time vs. ambient temperature
characteristics (DC type)
Input voltage: 5 V; Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
10
5.-(1) Turn off time vs. ambient temperature
characteristics (AC/DC type)
Input voltage: 5 V; Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
0.5
5.-(2) Turn off time vs. ambient temperature
characteristics (DC type)
Input voltage: 5 V; Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
0.5
8
Turn off time, ms
Turn on time, ms
0.4
Turn off time, ms
0.4
6
AQZ102D
AQZ105D
2
AQZ107D
AQZ104D
0
–40 –20
0
0
20 40 60 8085
Ambient temperature,
°C
0.3
0.3
AQZ107D
AQZ102D
0.1
AQZ104D
AQZ105D
4
0.2
AQZ204D
AQZ202D
AQZ205D
0.2
0.1
AQZ207D
0
–40
–20
0 20
40
60
80 85
Ambient temperature,
°C
0
–40
–20
0
20
40
60 8085
Ambient temperature,
°C
6. Operate voltage vs. ambient temperature
characteristics
Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
5.0
7. Turn off voltage vs. ambient temperature
characteristics
Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
5.0
8. Input current vs. ambient temperature char-
acteristics
Input voltage: 5 V
10
Operate voltage, V
4.0
Turn off voltage, ms
4.0
Input current, mA
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
8
3.0
3.0
6
2.0
2.0
4
1.0
1.0
2
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
0
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
217
AQZ10rD, 20rD

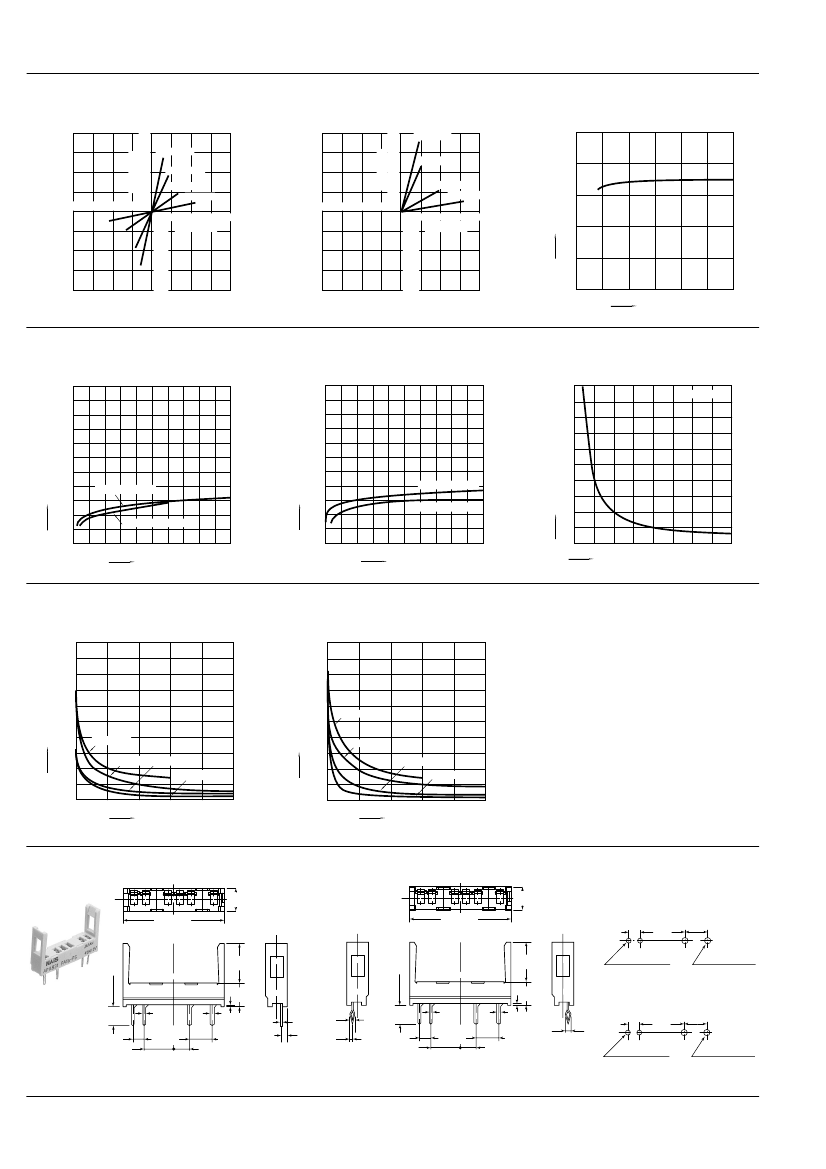

9.-(1) Voltage vs. current characteristics of out-
put at MOS portion (AC/DC type)
Ambient temperature: 25°C
77°F
4.0
Current, A
Current, A
3.0 AQZ202D
2.0
1.0
0
AQZ205D
AQZ207D
AQZ204D
0.5 1.0 1.5
–1.0 Voltage, V
–2.0
–3.0
–4.0
2.0
9.-(2) Voltage vs. current characteristics of out-
put at MOS portion (DC type)
Ambient temperature: 25°C
77°F
4.0
3.0
AQZ105D
2.0
1.0
0
0.2
AQZ107D
AQZ104D
0.4 0.6
Voltage, V
0.8
AQZ102D
10. Input voltage vs. input current characteris-
tics
Ambient temperature: 25°C
77°F
10
Input current, mA
8
6
–2.0 –1.5 –1.0 –0.5
–0.8 –0.6 –0.4 –0.2
–1.0
–2.0
4
2
–3.0
–4.0
0
0
5
10
15
20
25
Input voltage, V
30
11.-(1) Off state leakage current
Ambient temperature: 25°C
77°F
11.-(2) Off state leakage current
Ambient temperature: 25°C
77°F
12. Maximum operating speed vs. load voltage
×
load current characteristics
Input voltage: 5V; Ambient temperature: 25°C
77°F
10
Maximum operating speed, cps
duty=50%
Off state leakage current, A
Off state leakage current, A
10
–3
10
–3
9
8
7
6
5
4
3
2
1
10
–6
10
–6
10
–9
AQZ105D,205D
10
–9
AQZ104D,204D
AQZ107D,207D
10
–12
0
AQZ102D,202D
50
Load voltage, V
100
10
–12
0
50
Load voltage, V
100
0
0
25 50 75 100 125 150 175 200
Maximum voltage, V×Load current, A
13.-(1) Applied voltage vs. output capacitance
characteristics (AC/DC type)
Frequency: 1 MHz; Ambient temperature: 25°C
77°F
2000
Output capacitance, pF
1800
1600
1400
1200
1000
800
600
400
200
0
0
20
AQZ205D AQZ207D
AQZ204D
AQZ202D
13.-(2) Applied voltage vs. output capacitance
characteristics (DC type)
Frequency: 1 MHz; Ambient temperature: 25°C
77°F
2000
1800
Output capacitance, pF
1600
1400
1200
1000
800
600
400
200
AQZ107D
AQZ104D
AQZ102D
AQZ105D
40
60
80
Applied voltage, V
100
0
0
20
40
60
80
Applied voltage, V
100
ACCESSORY
Socket
1
2
3
4
5
6
5
+0.2
–0.6
.197
±.008
–.024
1
2
3
4
5
6
5
+0.2
–0.6
.197
±.008
–.024
2.54
.100
9
±0.6
.354
±.024
5.3
±0.6
.209
±.024
mm
inch
PC board pattern
(BOTTOM VIEW)
Standard type
10.16
.400
2-1 dia.
2-.039 dia.
5.08
.200
22.6
±0.6
.890
±.024
22.6
±0.6
.890
±.024
9
±0.6
.354
±.024
5.3
±0.6
.209
±.024
4
.157
0.5
.020
2.54
.100
6.35
.250
0.8
.031
(0.3)
(.012)
5.08
.200
0.25
.010
1.23
.048
3.9
1
±0.25
.154
±.010
.039
1.23
.048
0.5
.020
2.54
.100
6.35
.250
0.8
.031
2-1.2 dia.
2-.047 dia.
Self clinching type
2.54
.100
10.16
.400
2-0.8
±0.25
dia.
2-.031
±002
dia.
5.08
.200
3.81
.150
3.81
.150
(0.3)
(.012)
5.08
.200
1.3
±0.15
.051
±.006
2-1.2
±0.05
dia.
2-.047
±002
dia.
PA1a-PS
5/7/2001
218
PA1a-PS-H
Tolerance:
±0.1
±.004
All Rights Reserved, © Copyright Matsushita Electric Works, Ltd.
Go To Online Catalog
京公网安备 11010802033920号
EEWORLD
