PLED512 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PLED512

Preview

PLED512: DescriptionDUAL LINE 5 VOLT DIE; CategoryDiscrete semiconductor diode; File Size46KB，1 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/

Download Datasheet Parametric View All

PLED512 Overview

DUAL LINE 5 VOLT DIE

PLED512 Parametric

Parameter Name	Attribute value
Maker	ProTek Devices
Parts packaging code	DIE
package instruction	R-XUUC-N2
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Minimum breakdown voltage	6 V
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-XUUC-N2
Number of components	2
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	UNCASED CHIP
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	5 V
surface mount	YES
technology	AVALANCHE
Terminal form	NO LEAD
Terminal location	UPPER

Preview

Download Datasheet

View All

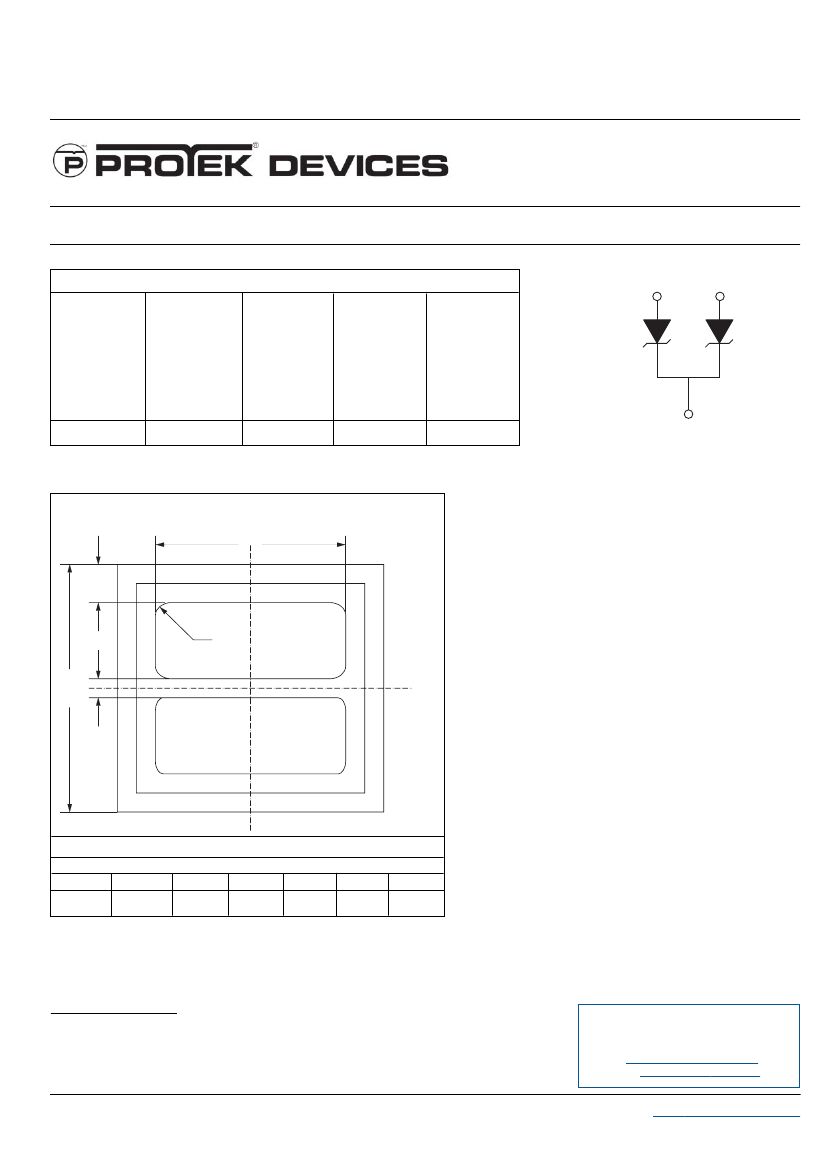

05198

PLED512

Only One Name Means ProT

ek’Tion™

DUAL LINE 5 VOL DIE

T

ELECTRICAL CHARACTERISTICS PER LINE

@ 25°C Unless Otherwise Specified

PART

NUMBER

RATED

STAND-OFF

VOLTAGE

MINIMUM

BREAKDOWN

VOLTAGE

MAXIMUM

FORWARD

VOLTAGE

MAXIMUM

LEAKAGE

CURRENT

PIN CONFIGURATION

V

WM

VOLTS

PLED512

5.0

@ 1mA

V

(BR)

VOLTS

6.0

@ 10mA

V

F

VOLTS

1.5

@V

WM

I

D

µA

10

MASK OUTLINE

B

C

D

R

A

E

DATUM

MASK DIMENSIONS

INCHES

A

0.012

B

0.009

C

0.0015

D

0.004

E

0.001

F

N/A

R

0.0015

Note 1: Chip thickness is 0.006”

SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical

characteristics described herein without notice (except JEDEC).

DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice, and that

the final judgement concerning selection and specifications is the buyer’s and that in furnishing

engineering and technical assistance, ProTek assumes no responsibility with respect to the

selection or specifications of such products.

ProTek Devices

2929 South Fair Lane, Tempe, AZ 85282

Tel: 602-431-8101 Fax: 602-431-2288

E-Mail:

sales@protekdevices.com

Web Site:

www.protekdevices.com

05198.R0 4/05

1

www.protekdevices.com
