4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
ITEM
1
2
3
4
C
COPYRIGHT
20
DESCRIPTION
HOUSING
FEMALE CONTACT
COUPLING NUT
OVER-MOLDING
CABLE
LABEL
MATERIAL
NYLON
COPPER ALLOY
COPPER ALLOY
POLYURETHANE
-
-
OTHERS
BLACK
-
-
-
BLUE
FLASH GOLD
A
INITIAL RELEASE
13APR2016
HW
XX
D
5
6
D
46 REF.
50 REF.
"L" # 0.05M
35
NOTE:
1 . STRIP AND RETAIN THE INSULATION
2 . CODE POSITION INDICATOR
3 . RECOMMENDED TORQUE 0.6 Nm
PIN 2-WHITE
PIN 1-BROWN
PIN 3-BLUE
PIN 4-BLACK
SW13
3
PIN 5-GRAY
6
1
4 . -**:CABLE LENGTH
-0.5:0.5M,
-1.0:1.0M,
-1.5:1.5M,
-3.0:3.0M,
-5.0:5.0M,
-7.0:7.0M,
-10.0:10.0M,
5. CABLE ASSEMBLY TO BE PACKAGED IN POLYBAGS
6 . LABEL CONTAINS: PN, DATE CODE...
C
T4
16
13
X0
00
2-
00
X
T4
16
13
X0
00
3-
00
X
T4
16
13
X0
00
4-
00
X
T4
16
13
X0
00
5-
00
X
C
TECHNICAL DATA
1
6
2
5
2
3
4
RATED VOLTAGE
RATED CURRENT
RATED IMPULSE VOLTAGE
POLLUTION DEGREE
MATERIAL GROUP
2500V
250V
4A
II
IP67
II
3
1500V
60V
OVERVOLTAGE CATEGORY
DEGREE OF PROTECTION
PIN ARRANGEMENT
A-CODE
T41613X0003-00X
4
3
5.
6
:
.
. CODE
.
0.6 Nm
. -**:
-0.5:0.5M,
-1.0:1.0M,
-1.5:1.5M,
-3.0:3.0M,
-5.0:5.0M,
-7.0:7.0M,
-10.0:10.0M,
.
:
,
...
B
B
T41613X0002-00X
T41613X0004-00X
1
2
FIXED:
-40 $ C~+80 $ C
WIRES: 0.34mm^2(22AWG)
WIRE COLOR: WH/BR/BK/BL/GR
OD: APPROX.5.0MM FOR 2P/3P
APPROX.5.5MM FOR 4P
APPROX.6.0MM FOR 5P
T41613X0005-00X
CABLE
CHARACTERISTIC
LENGTH "L"
-001:0.5M
-002:1.0M
-003:1.5M
-004:3.0M
-005:5.0M
-006:7.0M
-007:10.0M
FLXIBLE:
-25 $ C~+80 $ C
FIXED:
-10 $ C~+80 $ C
FLXIBLE:
-5 $ C~+80 $ C
TEMPERATURE
RANGE
RPC-M12-FS-5CON-PUR-**SH
GRAY
PUR
(UL)
RPC-M12-FS-4CON-PUR-**SH
RPC-M12-FS-3CON-PUR-**SH
RPC-M12-FS-2CON-PUR-**SH
RPC-M12-FS-5CON-PVC-**SH
BLACK
PVC
(UL)
RPC-M12-FS-4CON-PVC-**SH
RPC-M12-FS-3CON-PVC-**SH
RPC-M12-FS-2CON-PVC-**SH
JACKET
COLOR
JACKET
MATERIAL
DWN
CHK
4
4
4
4
4
4
4
4
5
4
3
2
5
4
3
2
POS.
T4161320005-00X
T4161320004-00X
T4161320003-00X
T4161320002-00X
T4161310005-00X
T4161310004-00X
T4161310003-00X
T4161310002-00X
TE PN
TYPE
13APR2016
13APR2016
13APR2016
NAME
THIS DRAWING IS A CONTROLLED DOCUMENT.
A
HAO WANG
KOBBY ZHAO
TE Connectivity
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
XIANG XU
APPLICATION SPEC
108-106140
-
SIZE

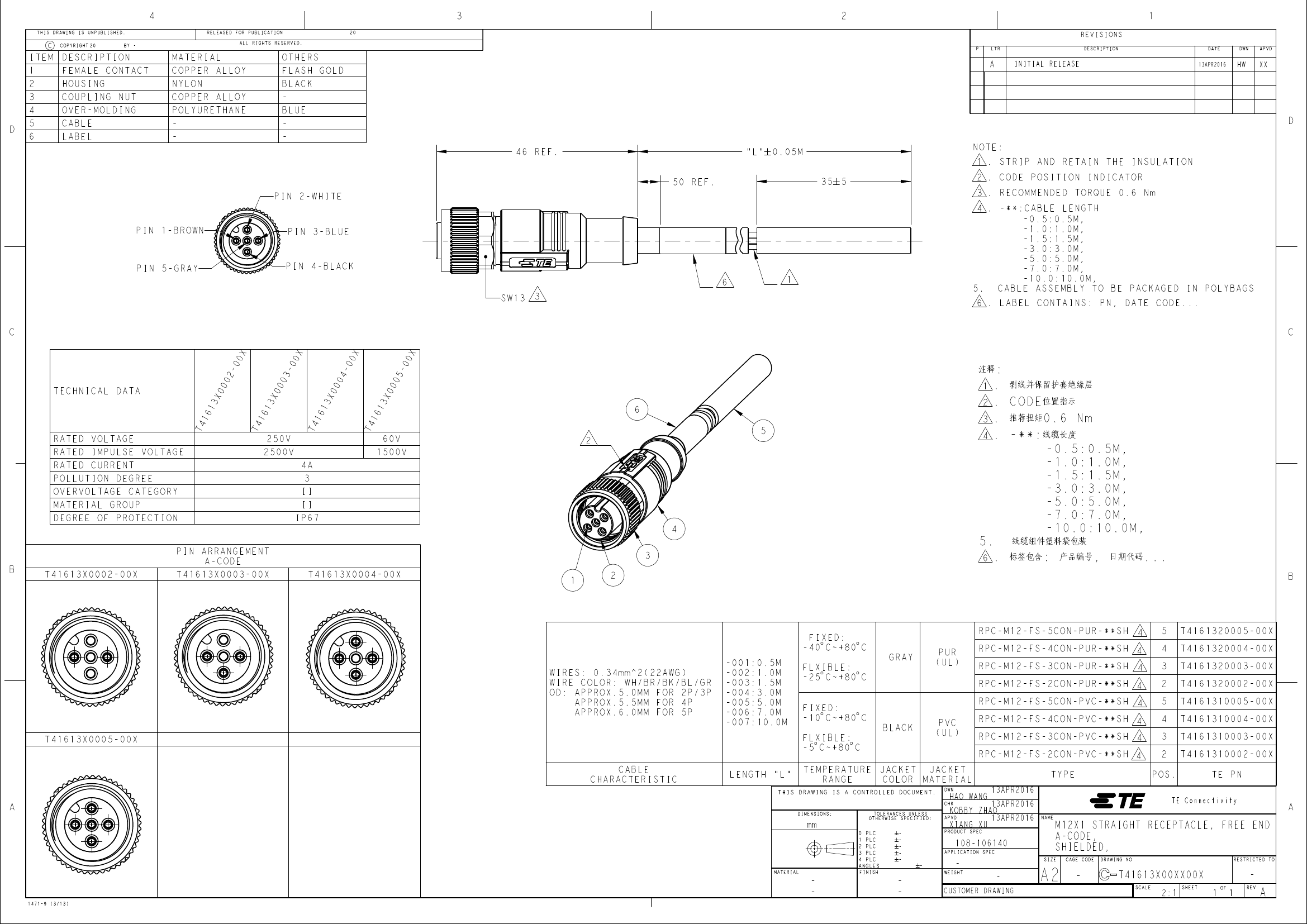

M12X1 STRAIGHT RECEPTACLE, FREE END
A-CODE,
SHIELDED,
CAGE CODE
DRAWING NO
-
-
-
1471-9 (3/13)
-
-
WEIGHT
-
CUSTOMER DRAWING
A2
RESTRICTED TO
-
T41613X00XX00X
SCALE
2:1
SHEET
1
OF
1
REV
-
A
