74LV03DB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> 74LV03DB

Preview

74LV03DB: DescriptionIC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate; Categorylogic; File Size144KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

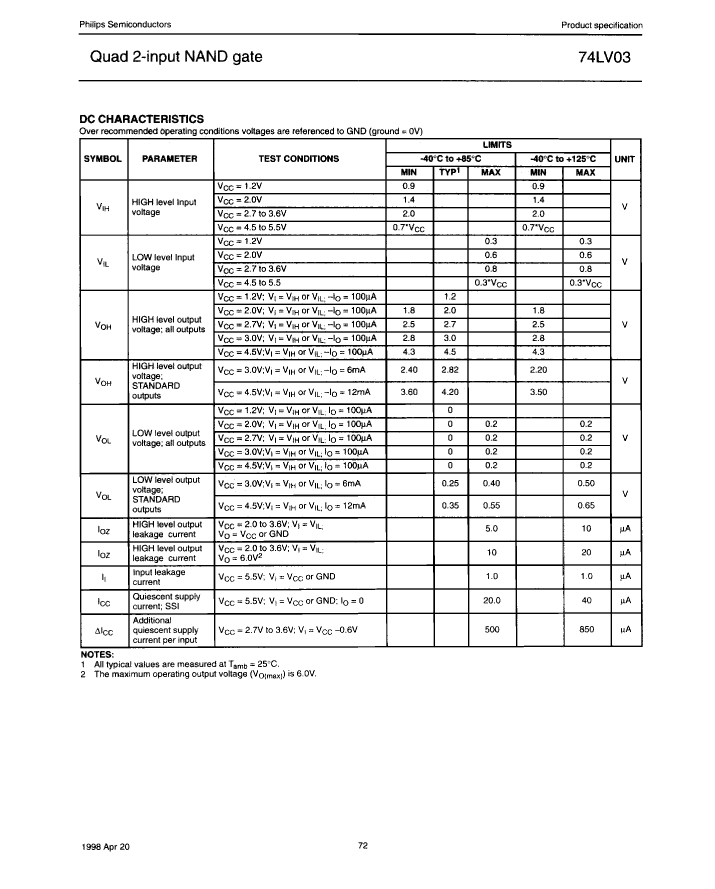

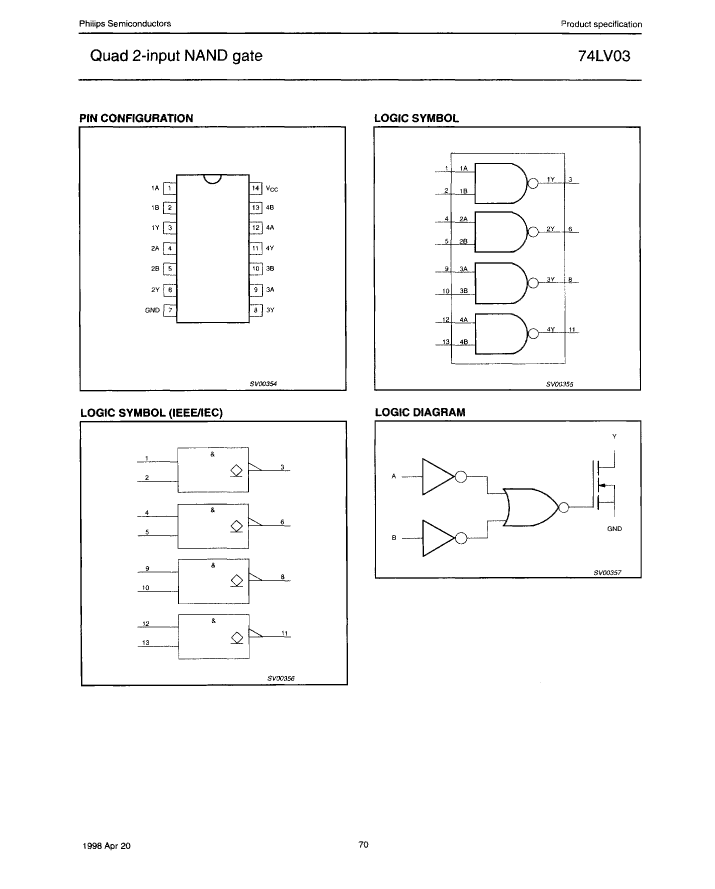

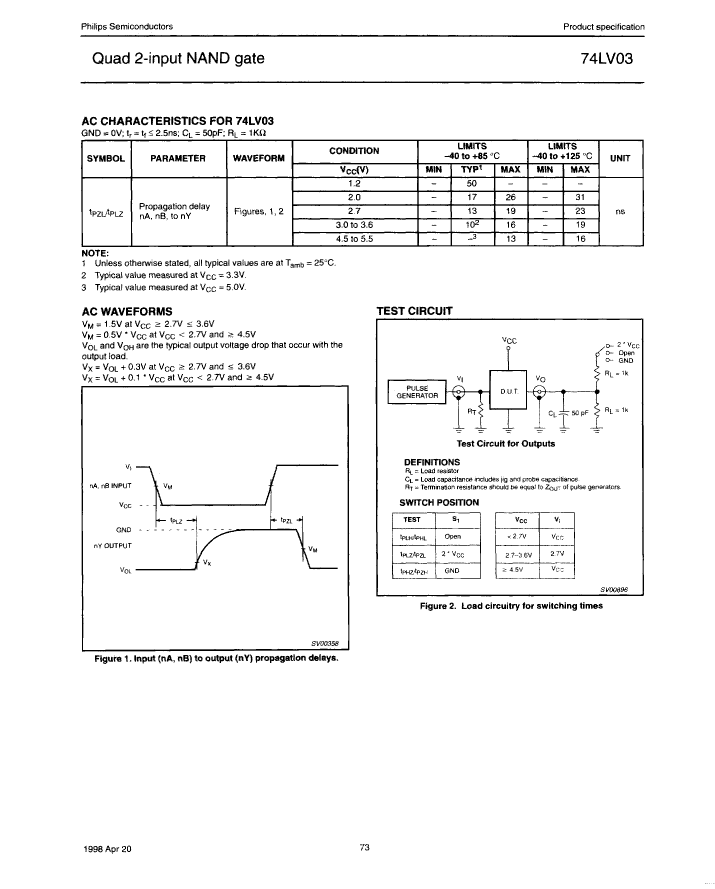

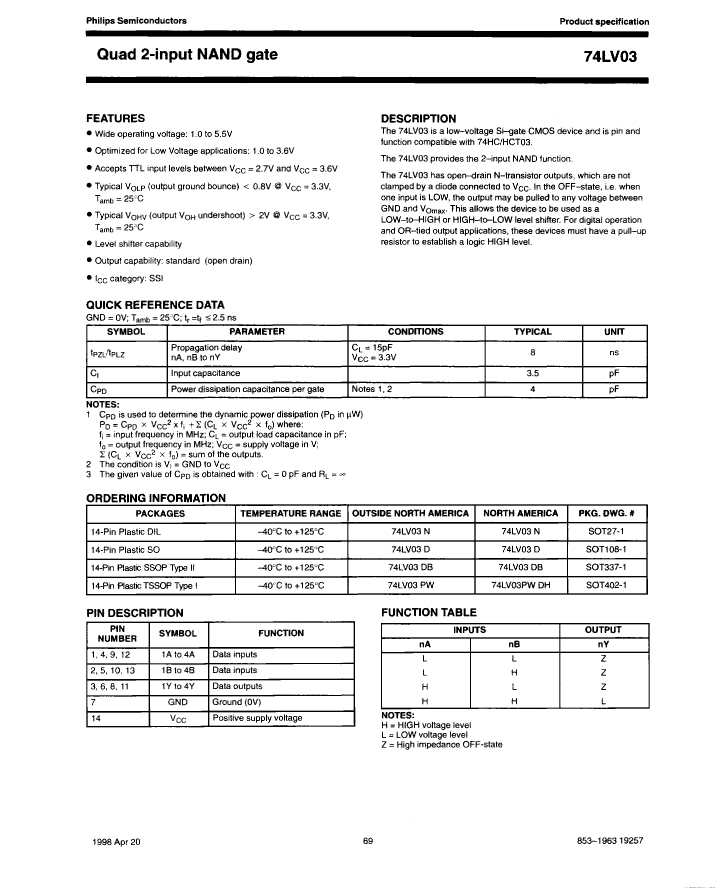

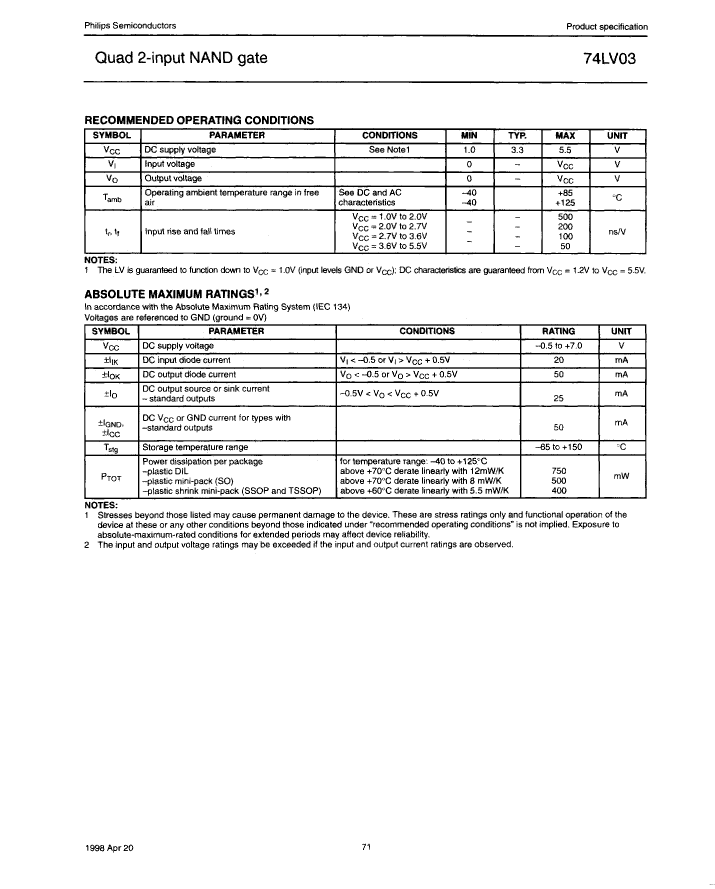

Download Datasheet Parametric Compare View All

74LV03DB Overview

IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate

74LV03DB Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14
length	6.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	31 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74LV03DB Related Products

	74LV03DB	74LV03PWDH-T	74LV03PW	74LV03PWDH	74LV03DB-T	74LV03PW-T
Description	IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, QUAD 2-INPUT NAND GATE, PDSO14, PLASTIC, TSSOP1-14, Gate
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SSOP,	TSSOP,	TSSOP,	TSSOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	6.2 mm	5 mm	5 mm	5 mm	6.2 mm	5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	TSSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	31 ns	31 ns	31 ns	31 ns	31 ns	31 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.1 mm	1.1 mm	1.1 mm	2 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1 V	1 V	1 V	1 V	1 V	1 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	4.4 mm	4.4 mm	4.4 mm	5.3 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1
