74LVC02APWDH datasheet, PDF - EEWORLD Datasheet

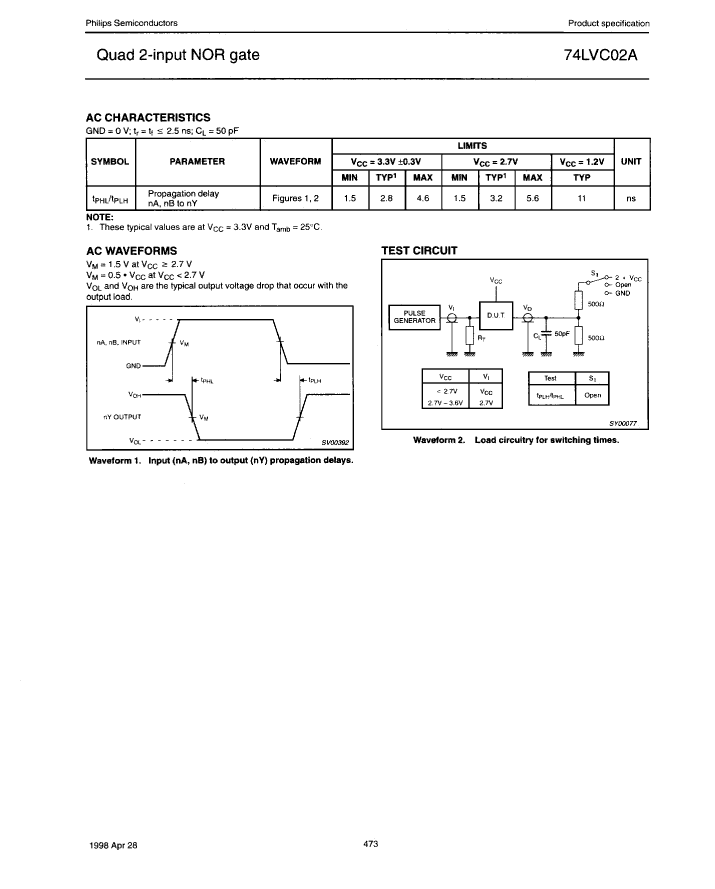

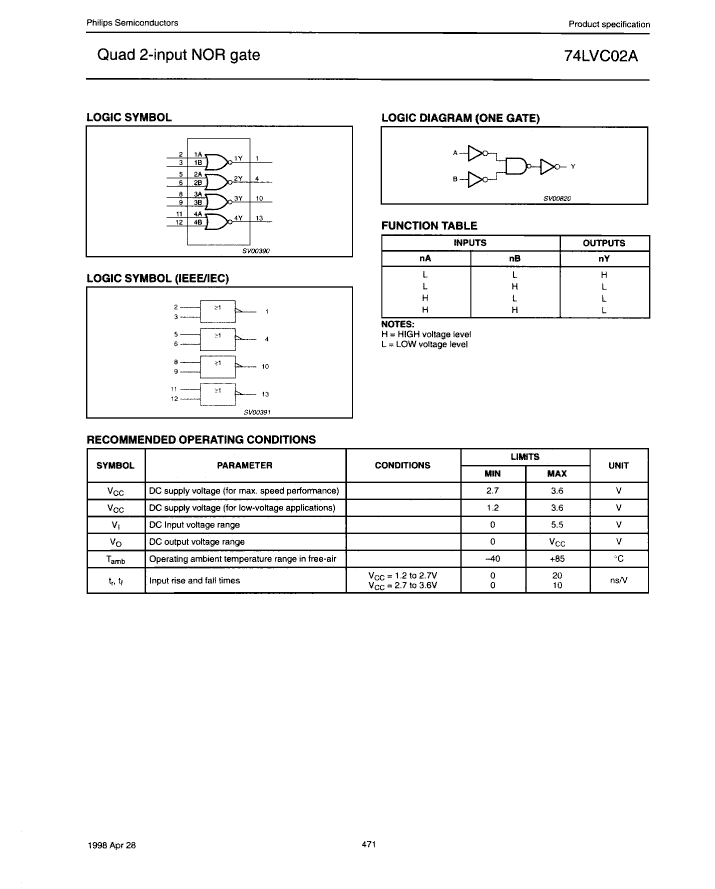

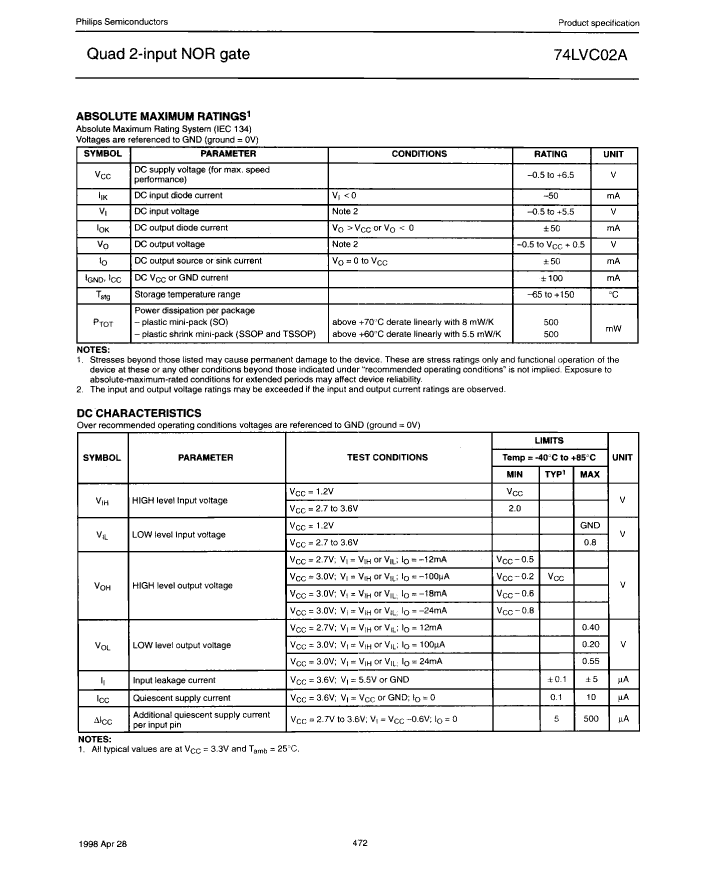

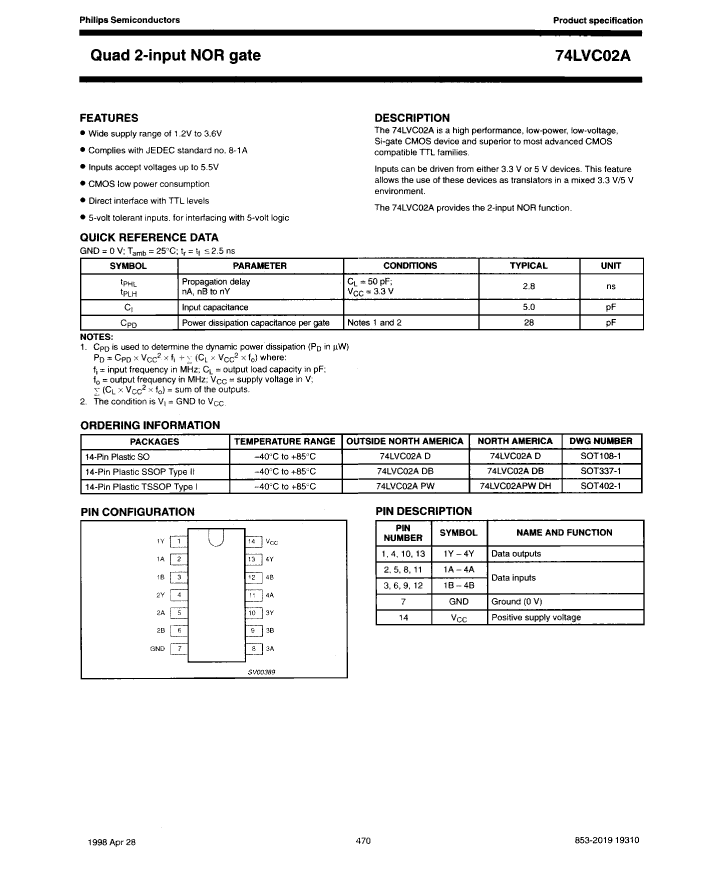

74LVC02APWDH: DescriptionLVC/LCX/Z SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, TSSOP-14; Categorylogic; File Size103KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74LVC02APWDH Overview

LVC/LCX/Z SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, TSSOP-14

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	14
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.6 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

	74LVC02APWDH	74LVC02APWDH-T
Description	LVC/LCX/Z SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, TSSOP-14	IC LVC/LCX/Z SERIES, QUAD 2-INPUT NOR GATE, PDSO14, Gate
Maker	NXP	NXP
package instruction	TSSOP,	TSSOP,
Reach Compliance Code	unknown	unknown
series	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	5 mm	5 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NOR GATE	NOR GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.6 ns	5.6 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
width	4.4 mm	4.4 mm
Base Number Matches	1	1
