82910080: DescriptionRocker Switch, DPST, On-off, Vertical, Wire Terminal, Rocker Actuator; Categoryswitch Become warped plate switch; File Size23KB，1 Pages; ManufacturerInterpower Corporation; Environmental Compliance

Download Datasheet Parametric View All

82910080 Overview

Rocker Switch, DPST, On-off, Vertical, Wire Terminal, Rocker Actuator

82910080 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Interpower Corporation
Reach Compliance Code	compliant
Actuator angle
Actuator color	BLACK
Actuator type	ROCKER
Other features	APPROVAL : UL, CSA, VDE
body width	24.9936 mm
Body color	BLACK
body height	32.9946 mm
Body length or diameter	54.0004 mm
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Contact function	ON-OFF
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	2000VAC V
Electrical life	25000 Cycle(s)
Insulation resistance	100000000 Ω
Manufacturer's serial number	8291
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
Switch action	VERTICAL
switch function	DPST
Switch type	ROCKER SWITCH
Terminal length	0.394 inch
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

PCC Specifications for 82910080

Call & Fax (International)

Phone: 641-673-5000

Fax: 641-673-5100

Call & Fax Toll Free (US, Can, PR, VI)

Phone: 800-662-2290

Fax: 800-645-5360

Page 1 of 1

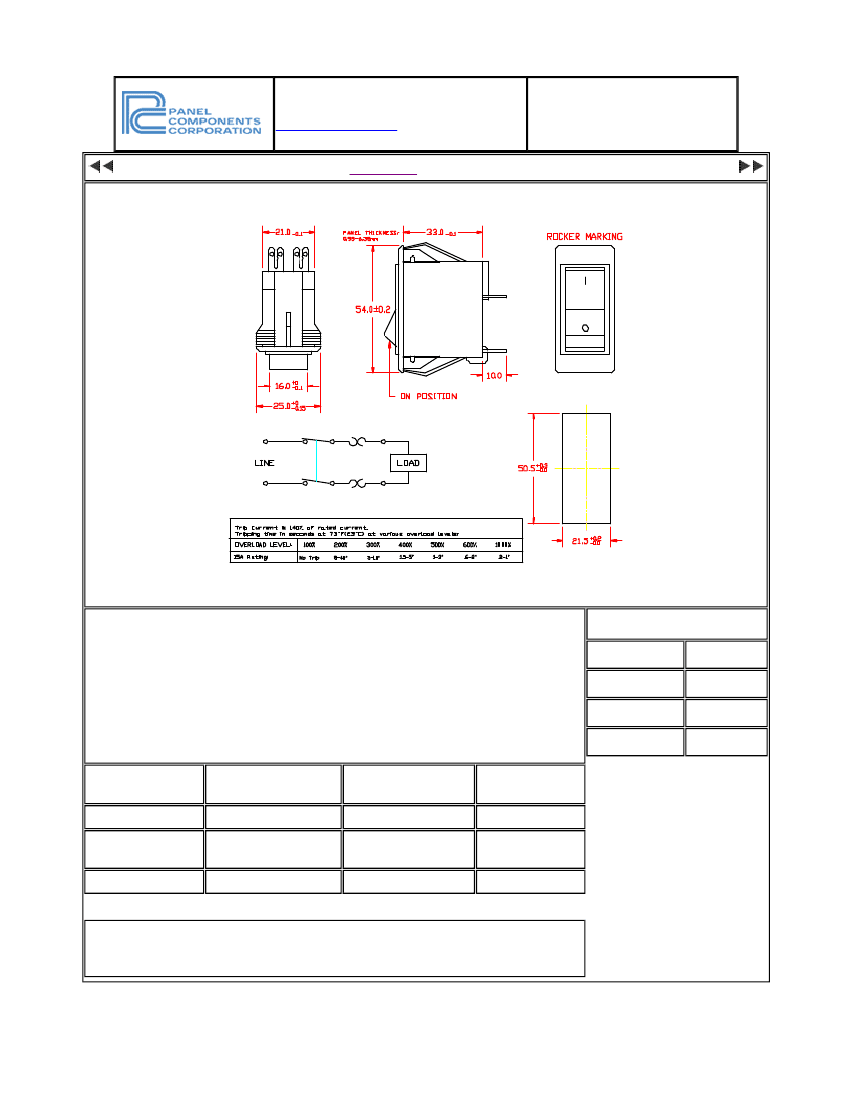

Panel Components Corporation

P.O. Box 115, Oskaloosa, IA 52577 (U.S.A)E -mail:

info@panelcomponents.com

Part:

82910080

- Circuit Breaker

Specifications:

(Note: dimensions in mm)

Contact Style:

6.3mm QD's

Shock Resistance:

30G

Vibration Resistance:

8G

Humidity:

95% at 40°C

Operating Temperature:

-30°C to 60°C

Electrical Life:

25000 cycles

Product Test Specifications:

Current Rating

15A

Dielectric

Strength

2000VAC

Internal Resistance

<.04 Ohms

Horsepower

------

Insulation

Resistance

100 Mega-Ohms

Terminal Style

6.3mm QD's

Interrupt Cap.

300A

Num. of Terms

4

Agency Approvals

Canada

Germany

Sweden

United States

CSA

VDE

SEMKO

UL

Description:

Circuit Breaker

Last Modification:

10/25/00 | 15:51:45 | jcaligiu

* Specifications Subject to Change without Notice

http://www.panelcomponents.com/scripts/wsisa.dll/p27spec.p?w_part=82910080&viewer=whip&printable=yes

... 02/18/2002
