364734 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 364734

364734: DescriptionBoard Connector Adapter, 80 Contacts(Side1), 80 Contacts(Side2), Male-Male, Board Mount,; CategoryThe connector; File Size50KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

364734 Overview

Board Connector Adapter, 80 Contacts(Side1), 80 Contacts(Side2), Male-Male, Board Mount,

364734 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
触点数量:侧 1	80
触点数量:侧 2	80
Number of rows loaded	2
Options	GENERAL PURPOSE
direct connection	YES
Base Number Matches	1

Preview

Download Datasheet

View All

39 x 1,27 = 49,53

1,27

51,75

52,75

53,55

4,2

1,8

3,25

ohne Verriegelung

without interlocking

25,5

7,35

mit Verriegelung

with interlocking

-tray packaging

Verpackt in Tray

Verpackungseinheit 24 Stück

-packaging unit 24

342 max.

Einzelheit X (M 2:1)

detail X

256 max.

85,75

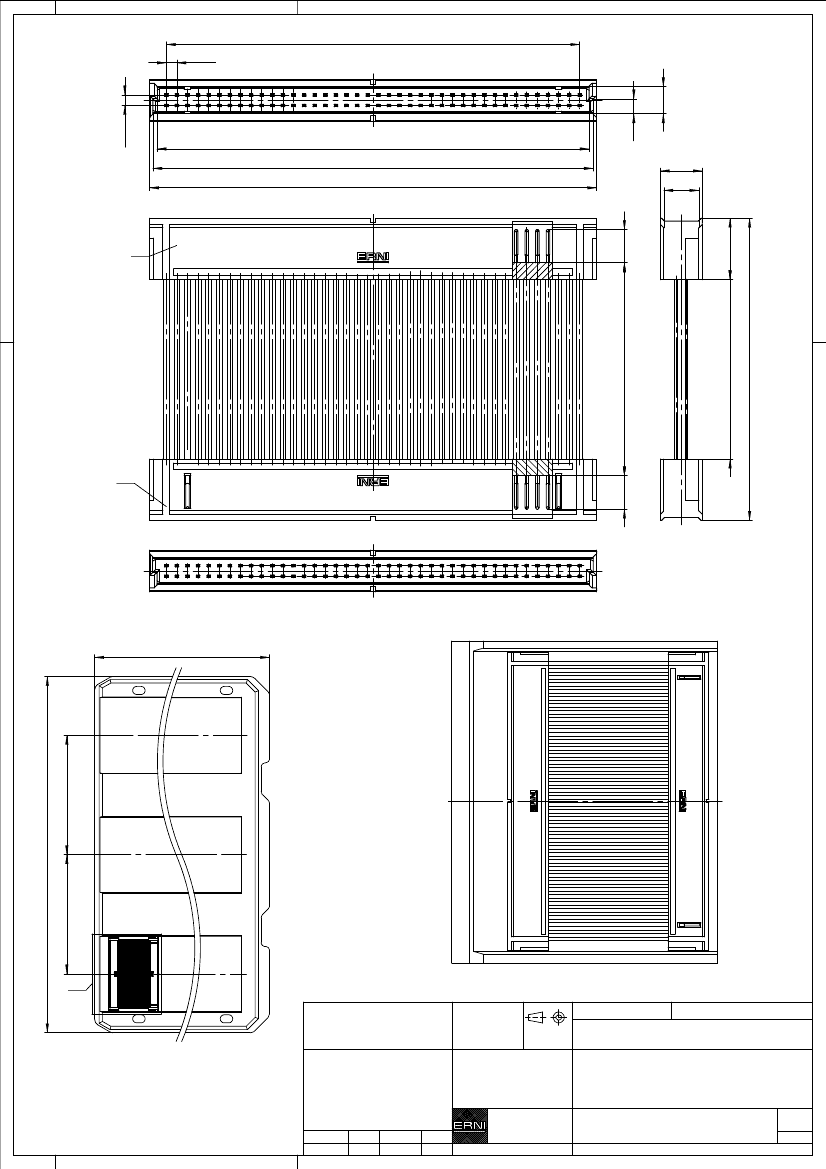

Adapterstück für board-to-board Abstand von 38mm (beidseitig verbaut mit Federleiste: 154809, Low Profile)

Proprietary notice pursuant to ISO 16016 to be observed.

Adapter for board-to-board height 38mm (in combination with two female connectors: 154809, low profile)

Information:

Tolerances

All Dimensions

in mm

Scale

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

E01

Index

26.11.2008

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

1,27 DRC Adapterstück BTB 38mm

3:1

80-polig

www.ERNI.com

Class

364734

DRCBTB

36,2

21,5
