87031-0433 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87031-0433

87031-0433: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Straight, Crimp Terminal, Plug; CategoryThe connector; File Size122KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87031-0433 Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Crimp Terminal, Plug

87031-0433 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DOUBLE STRAIN RELIEF
subject depth	0.561 inch
body length	0.3 inch
Body/casing type	PLUG
Cable type	FLAT
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	POLYCARBONATE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYCARBONATE
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

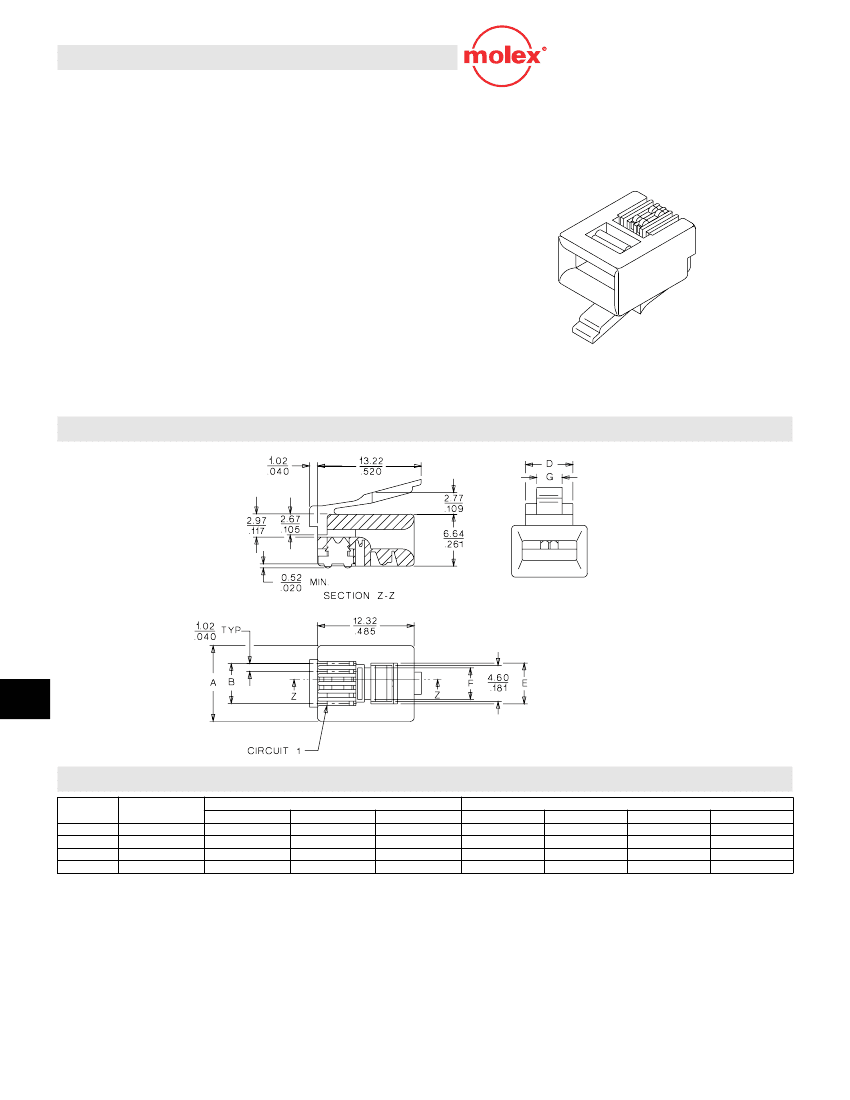

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Double strain relief construction

To terminate ﬂat oval telephone cord to REA

Bulletin 345-80, PE 75

Reference Information

Product Speciﬁcation: PS-87031

Packaging: Bag

UL File No.: E107635(N)

Mates With: FCC 68 jacks

Designed In: Inches

Electrical

Voltage: 125V

Current: 1.5A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V AC rms

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: Natural polycarbonate, UL 94V-2

Contact: Phosphor Bronze

Plating: See Table

Operating Temperature: -40 to +60˚C

Modular Plug

87031

FCC 68

6 and 4 Position

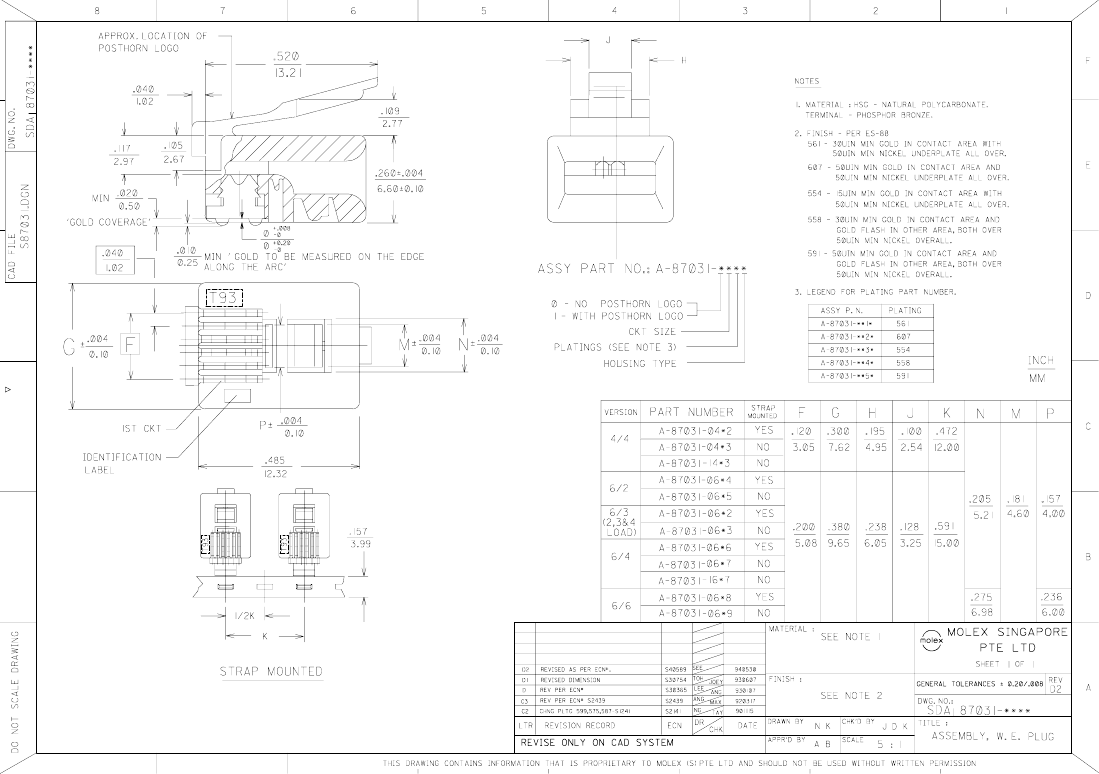

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Loaded

Contacts

Plating No. 1

87031-0413

87031-0615

87031-0617

87031-0619

Order No.

Plating No. 2

87031-0423

87031-0625

87031-0627

87031-0629

Dimension

Plating No. 3

87031-0433

87031-0635

87031-0637

87031-0639

7.62

9.65

(.300)

(.380)

3.05

5.08

(.120)

(.200)

5.21

6.98

(.205)

(.275)

4.60

(.181)

Modular Plugs and Jacks

Plating No. 1: 0.76

m (30

") min. Gold in contact area, 1.27

m (50

") min. Tin/Lead in pierce area both over Nickel

Plating No. 2: 1.27

m (50

") min. Gold in contact area, 1.27

m (50

") min. Tin/Lead in pierce area both over Nickel

Plating No. 3: 0.38

m (15

") min. Gold in contact area, 1.27

m (50

") min. Tin/Lead in pierce area both over Nickel

O-2

MX01
