4662.SMBA.1N10.001 datasheet, PDF

Datasheet> All Categories > The connector> 4662.SMBA.1N10.001

4662.SMBA.1N10.001: DescriptionRF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug; CategoryThe connector; File Size855KB，3 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

4662.SMBA.1N10.001 Overview

RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug

4662.SMBA.1N10.001 Parametric

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.339 inch
subject depth	0.445 inch
body length	0.339 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact resistance	5 mΩ
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Dielectric withstand voltage	750VDC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	24.9088 N
Insertion loss	0.1 dB
Insulation resistance	1000000000 Ω
insulator material	SPS
MIL compliance	NO
Manufacturer's serial number	4662.SMBA
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	1 A
Terminal length	0.125 inch
Termination type	SURFACE MOUNT
Total number of contacts	1
Evacuation force-minimum value	2.0016 N
Base Number Matches	1

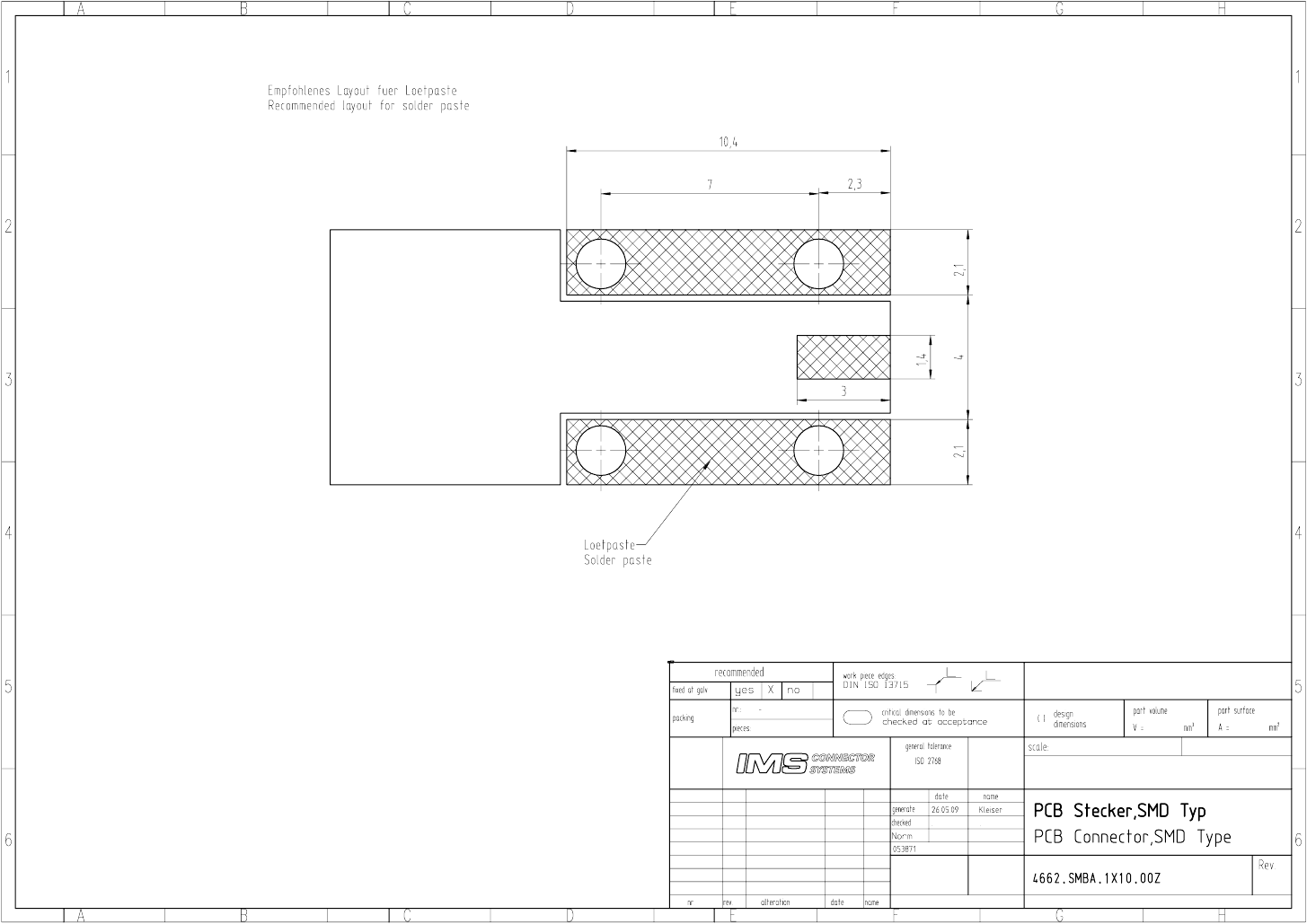

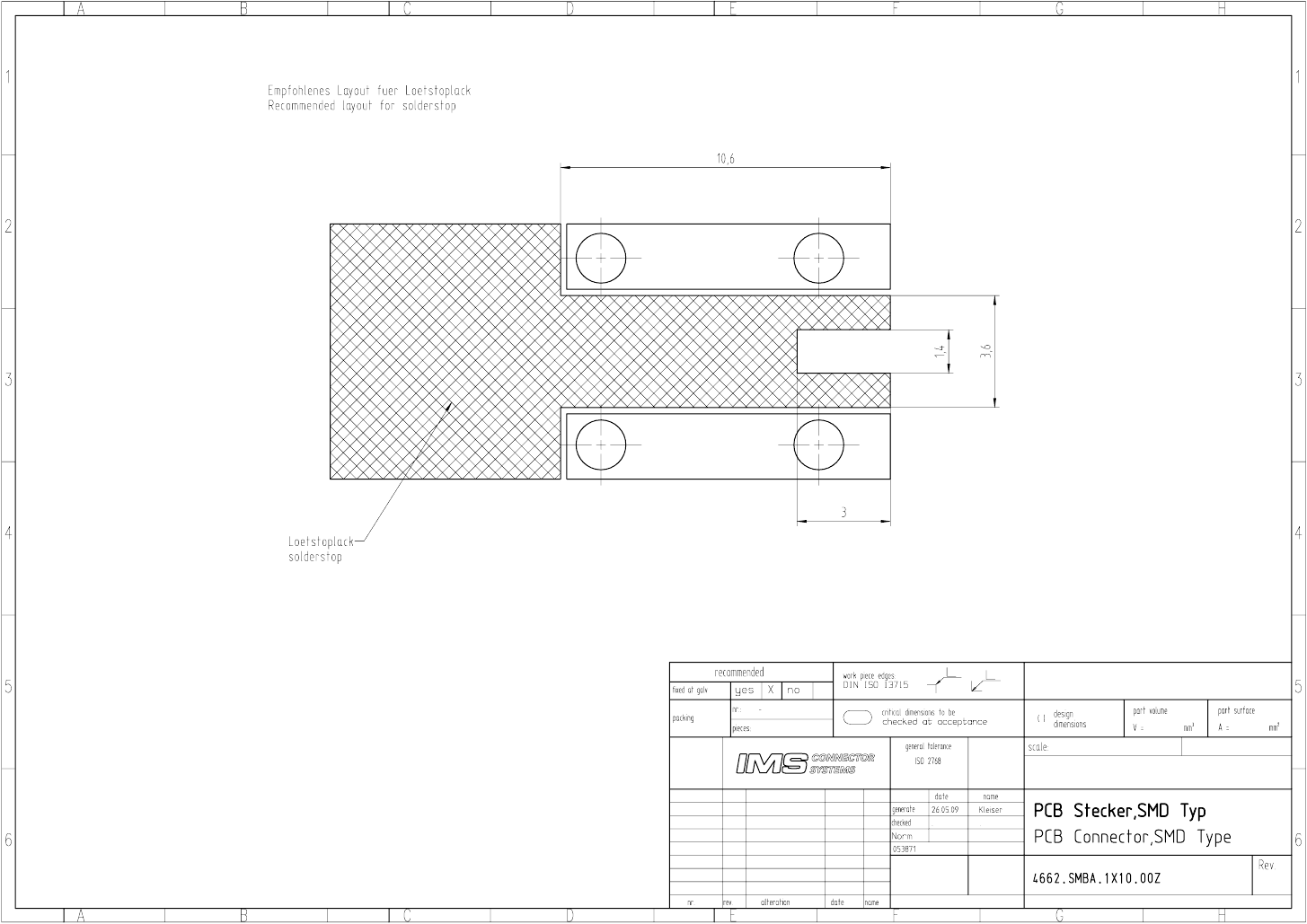

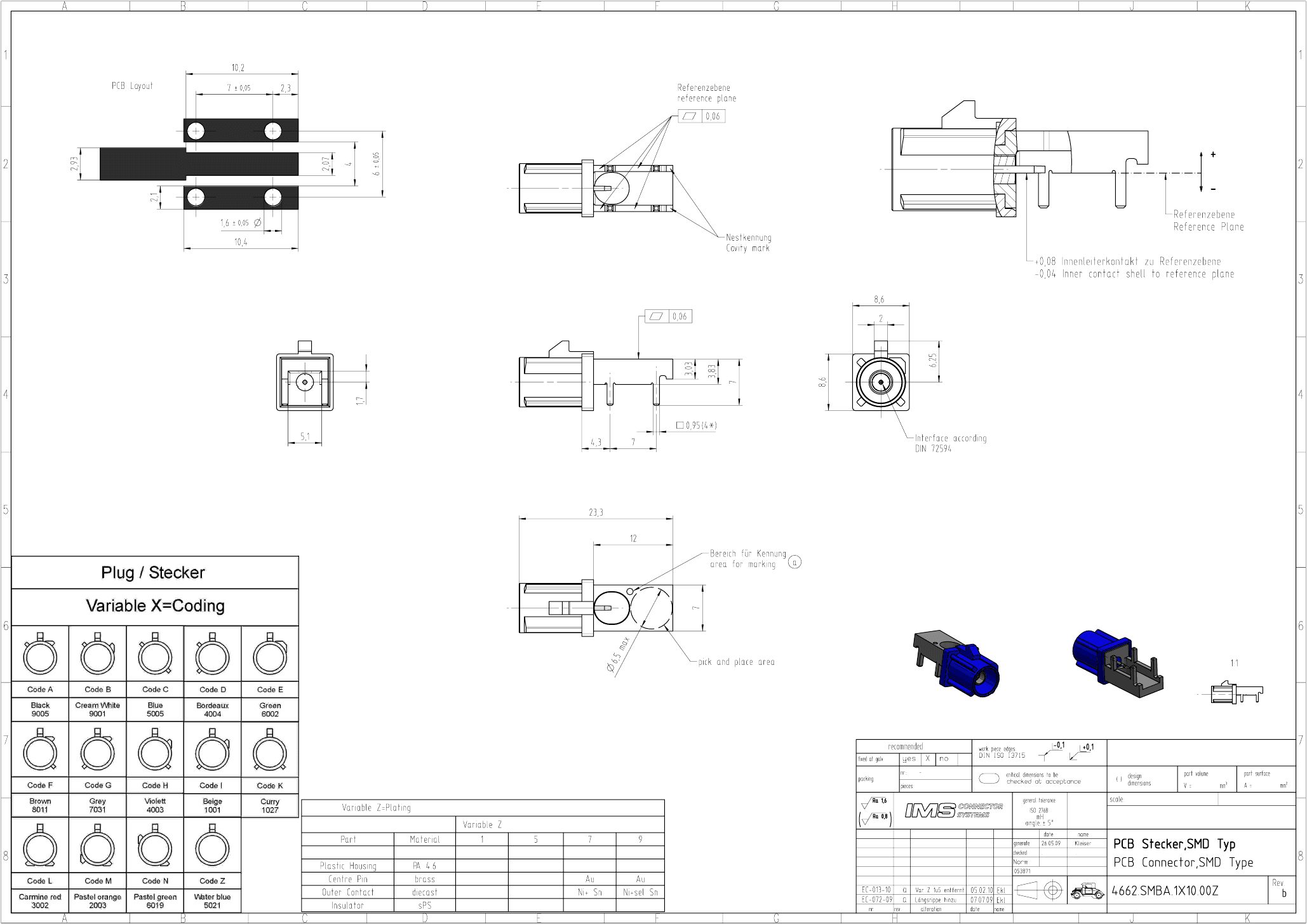

Preview

Download Datasheet

View All

4662.SMBA.1N10.001 Related Products

	4662.SMBA.1N10.001	4662.SMBA.1B10.001	4662.SMBA.1A10.001	4662.SMBA.1Z10.001	4662.SMBA.1M10.001
Description	RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug
Maker	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch
subject depth	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch
body length	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	COAX	COAX	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	750VDC V	750VDC V	750VDC V	750VDC V	750VDC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	24.9088 N	24.9088 N	24.9088 N	24.9088 N	24.9088 N
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	SPS	SPS	SPS	SPS	SPS
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	4662.SMBA	4662.SMBA	4662.SMBA	4662.SMBA	4662.SMBA
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	1	1	1	1	1
Evacuation force-minimum value	2.0016 N	2.0016 N	2.0016 N	2.0016 N	2.0016 N
Base Number Matches	1	1	1	1	1
