74F166N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> Shift register> 74F166N

74F166N: DescriptionParallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDIP16; Categorylogic Shift register; File Size158KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74F166N Overview

Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDIP16

74F166N Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	CLOCK INHIBIT
Counting direction	RIGHT
series	F/FAST
JESD-30 code	R-PDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	70 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
minfmax	110 MHz
Base Number Matches	1

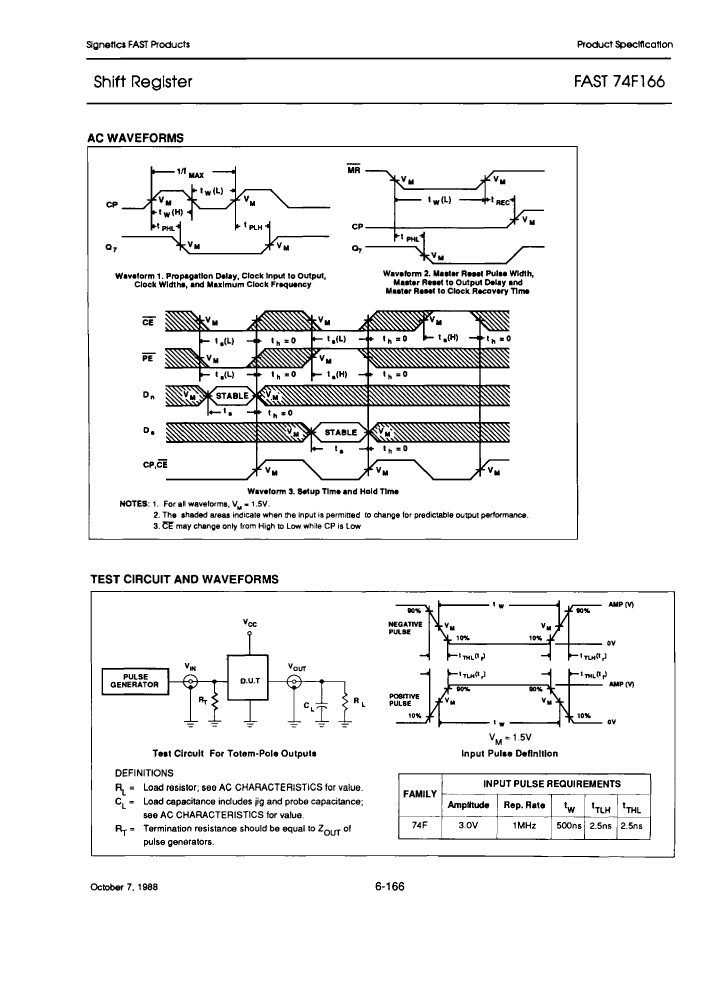

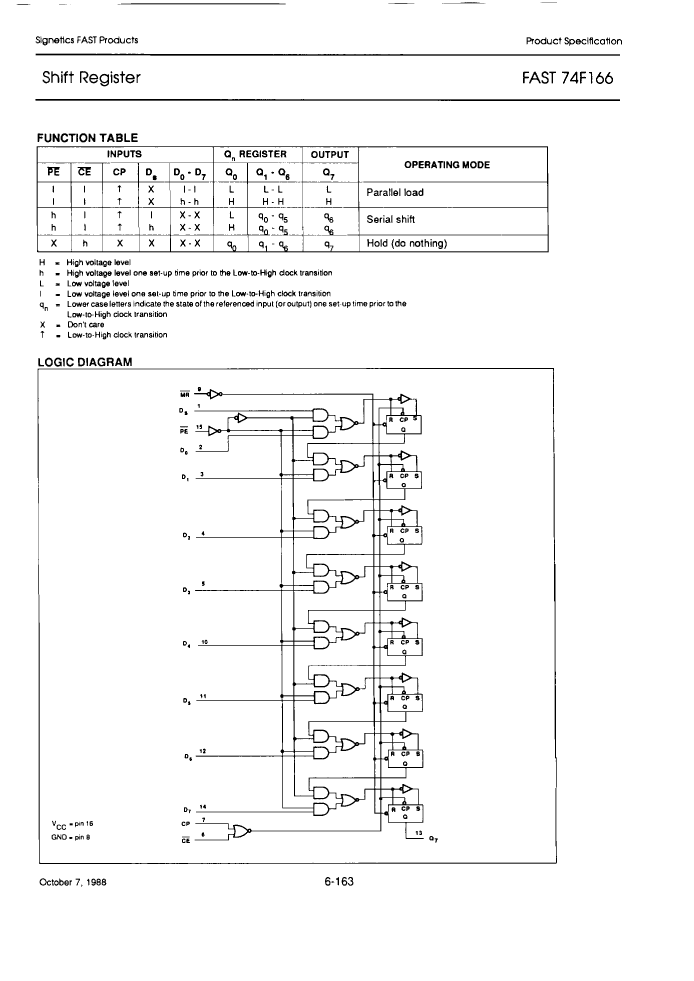

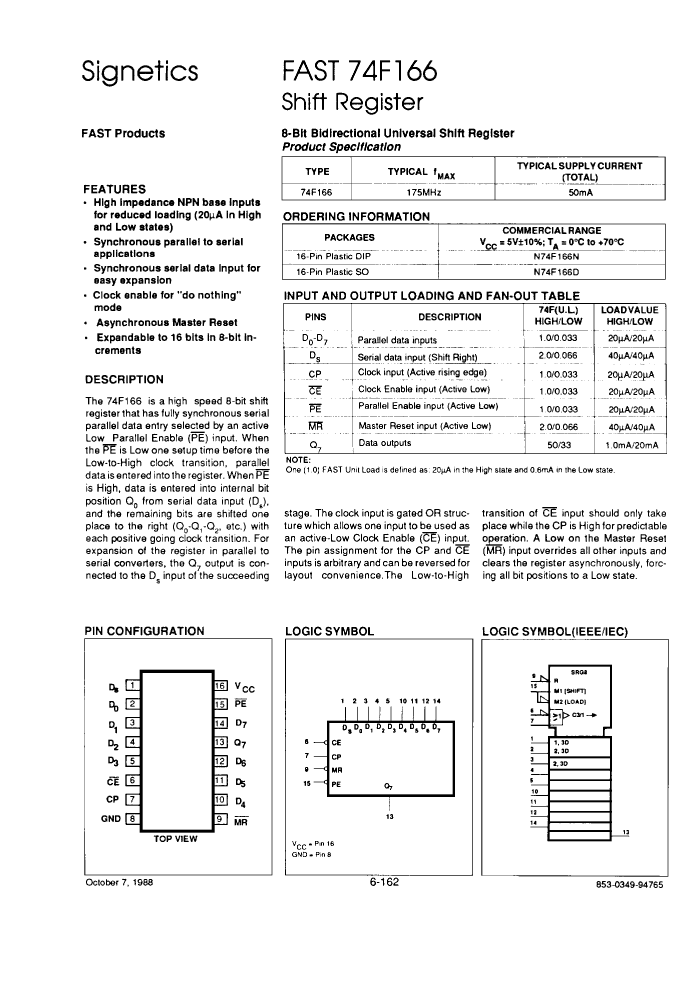

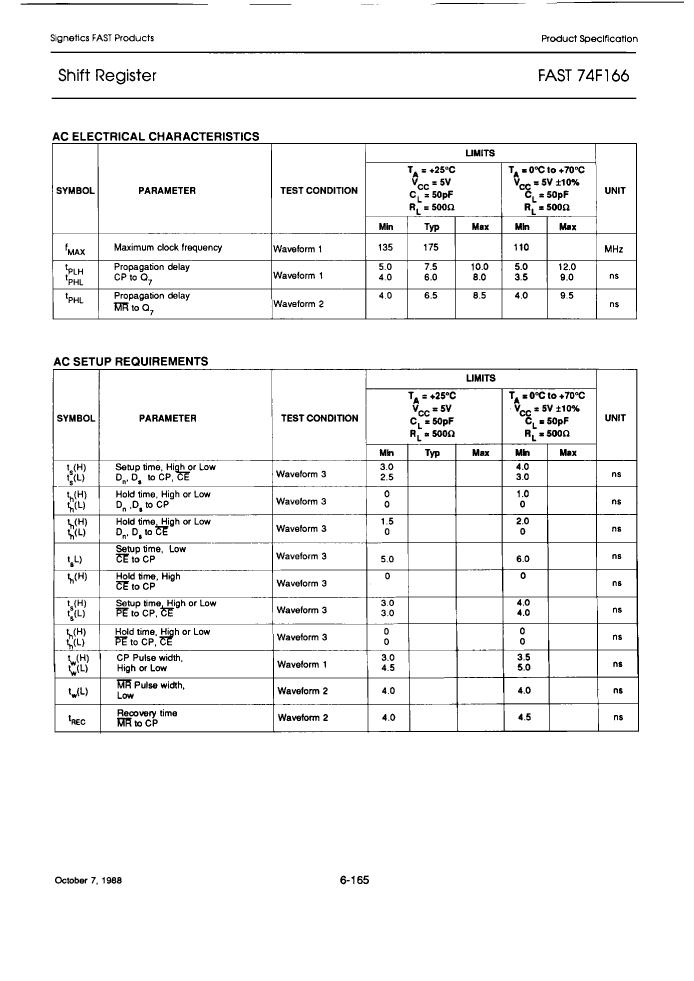

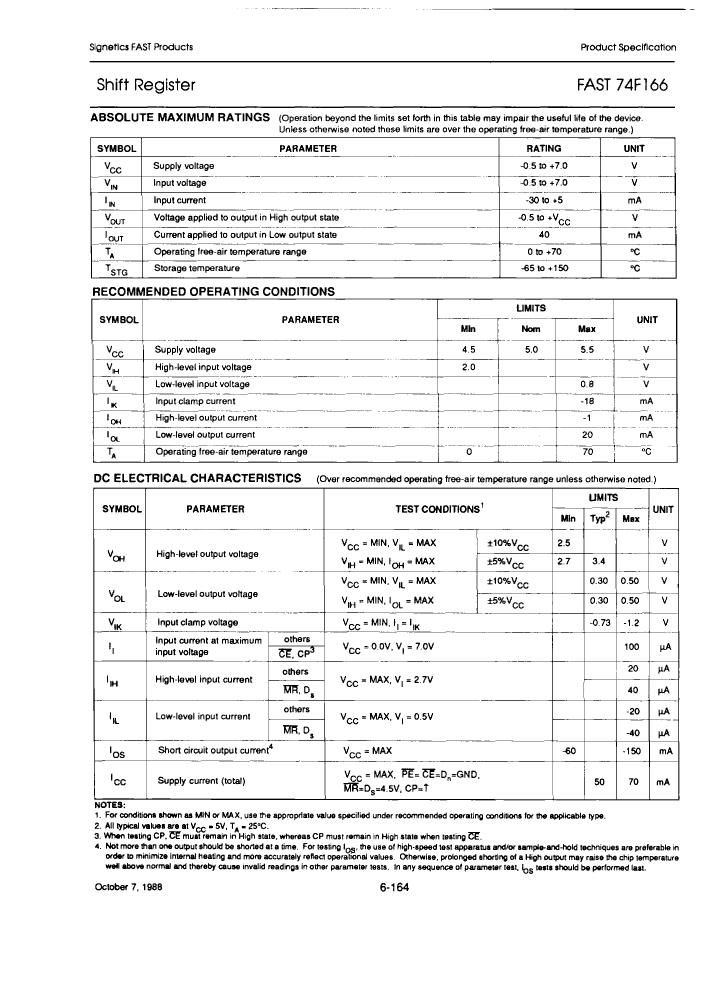

Preview

Download Datasheet

View All

74F166N Related Products

	74F166N	N74F166D	74F166D	74F166D-T	N74F166N	N74F166D-T
Description	Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDIP16	Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDSO16	Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDSO16	Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDSO16	Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDIP16	Parallel In Serial Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, PDSO16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	70 mA	70 mA	70 mA	70 mA	70 mA	70 mA
propagation delay (tpd)	9 ns	9 ns	9 ns	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
minfmax	110 MHz	110 MHz	110 MHz	110 MHz	110 MHz	110 MHz
Base Number Matches	1	1	1	1	1	1
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	-
