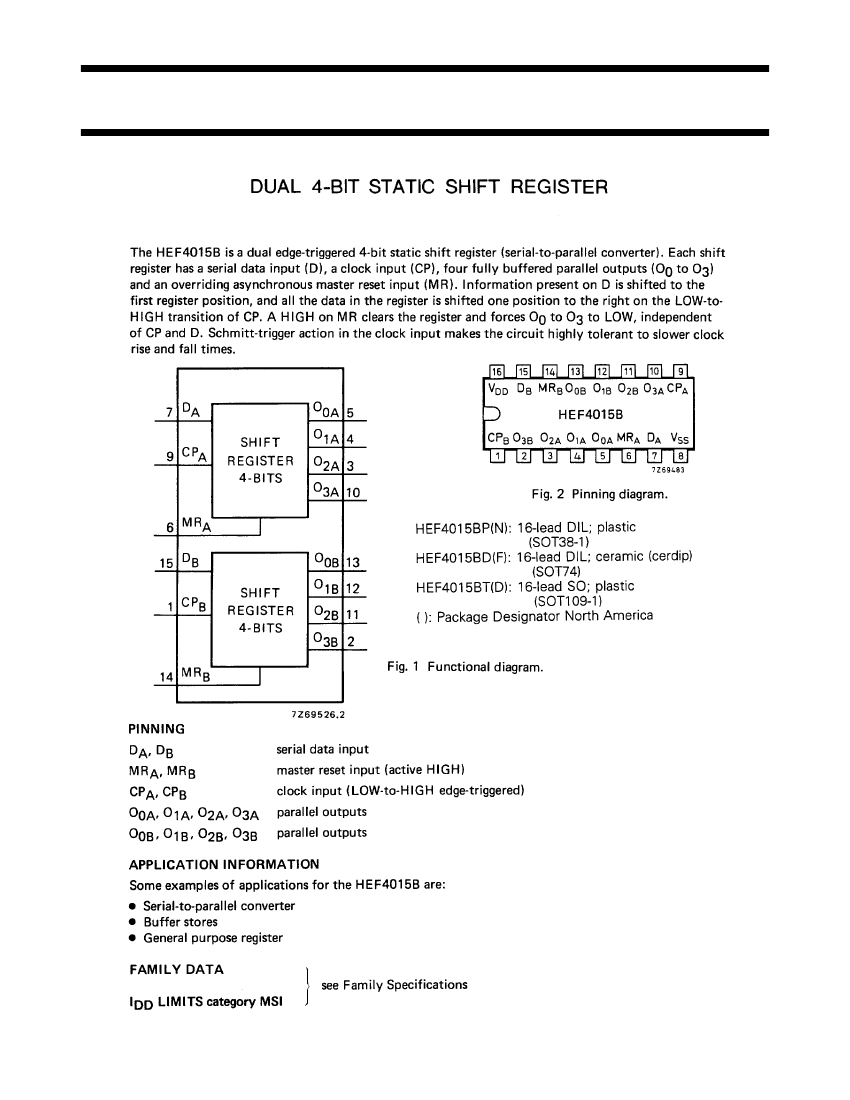

4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP16, PLASTIC, DIP-16

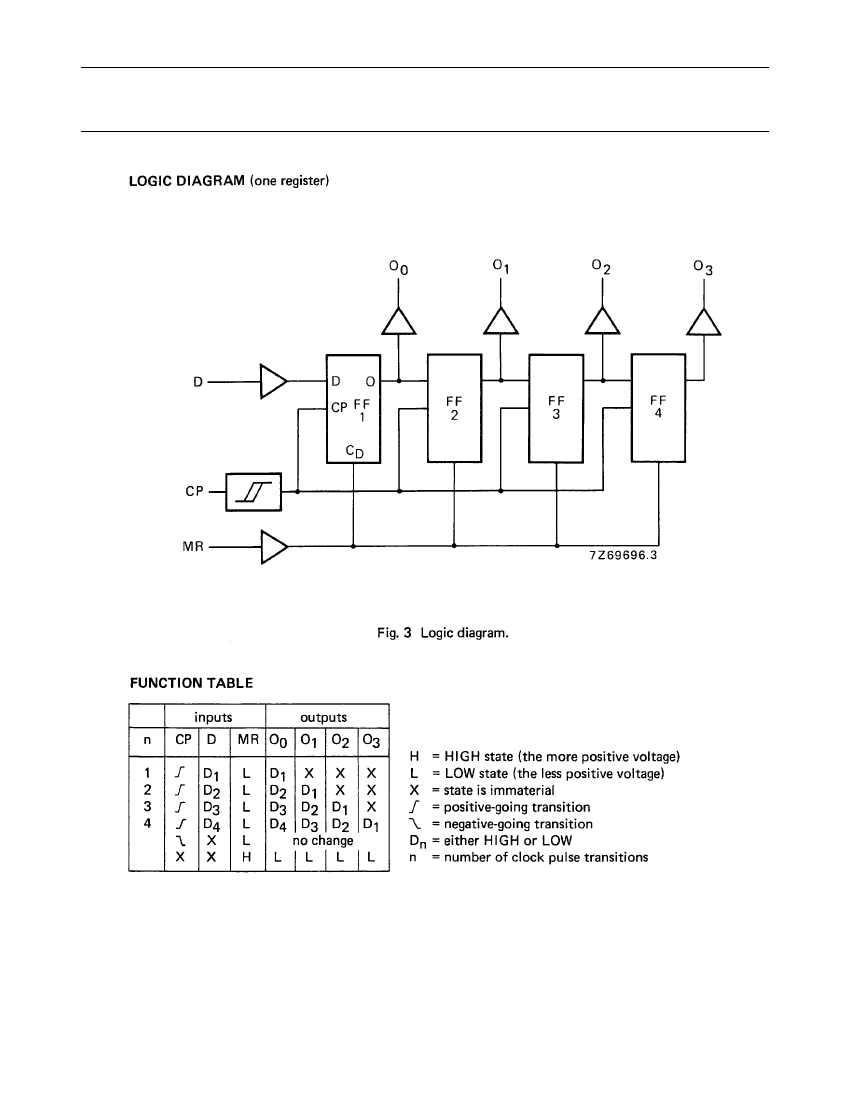

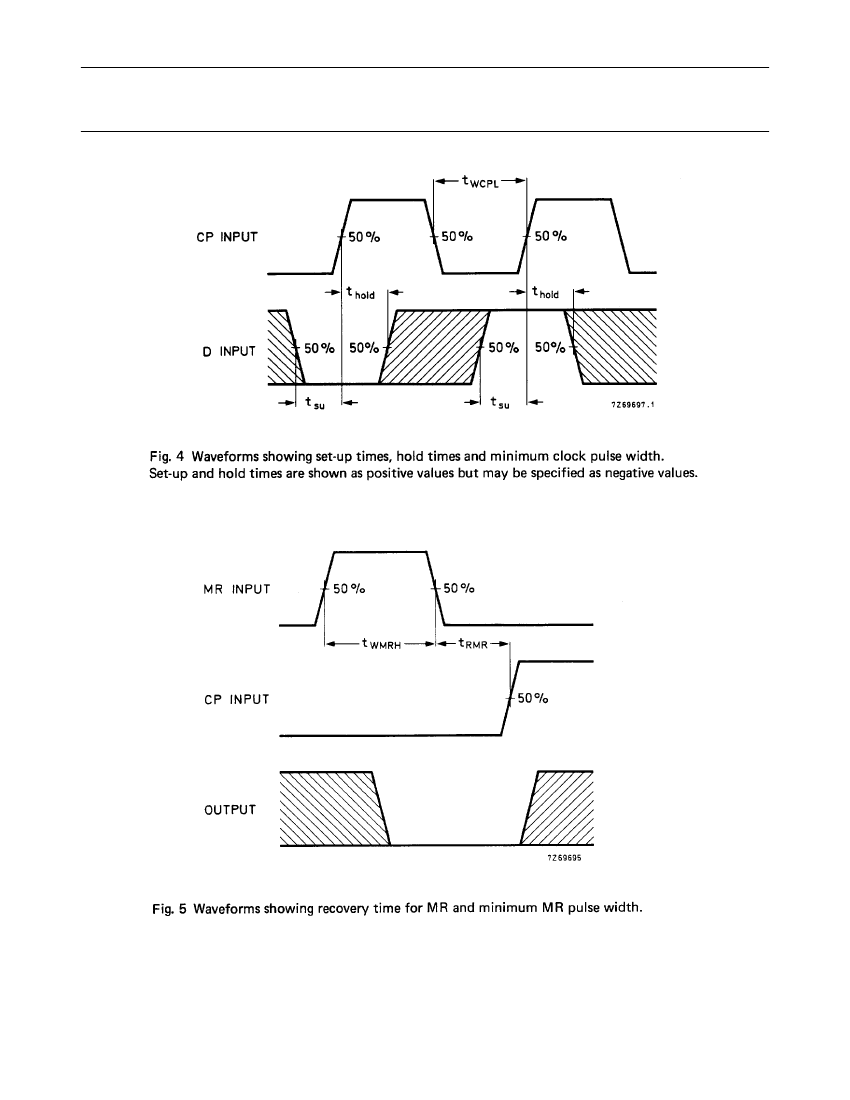

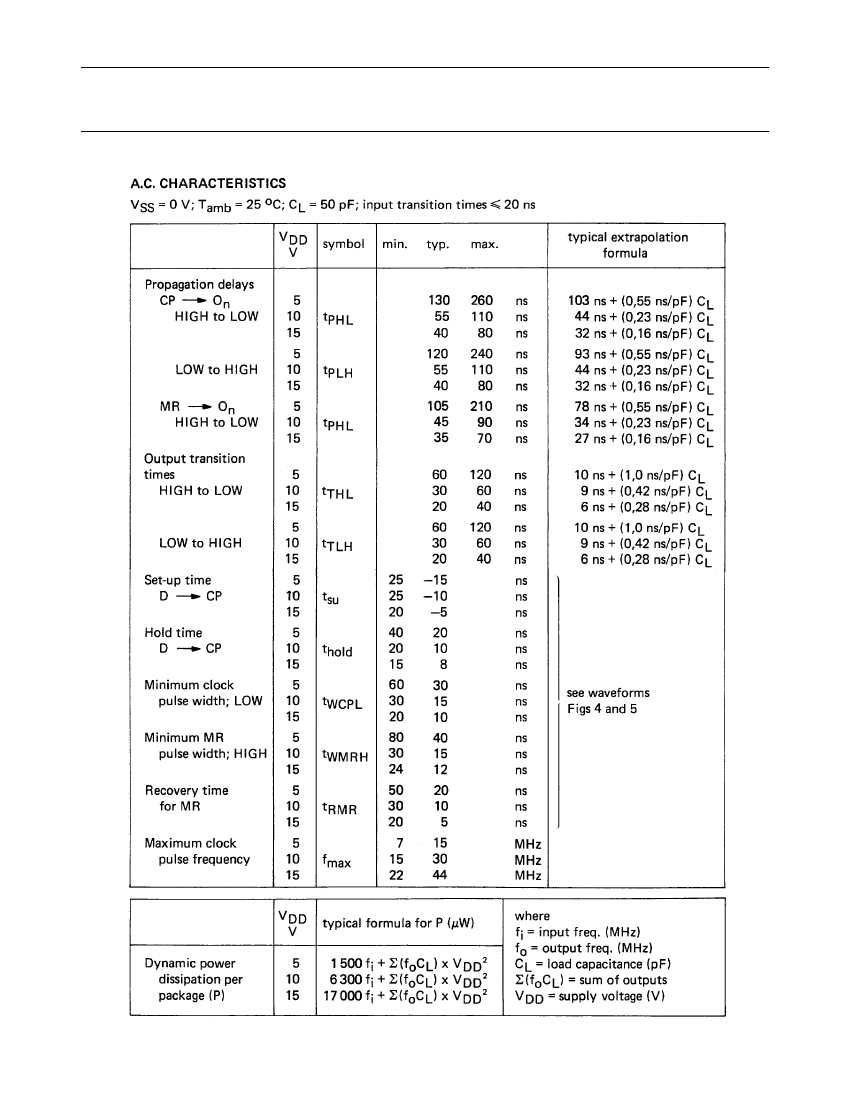

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | NXP |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Counting direction | RIGHT |
| series | 4000/14000/40000 |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e4 |
| Logic integrated circuit type | SERIAL IN PARALLEL OUT |
| Number of digits | 4 |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT APPLICABLE |
| propagation delay (tpd) | 260 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 15 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | NICKEL PALLADIUM GOLD |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT APPLICABLE |
| Trigger type | POSITIVE EDGE |
| minfmax | 22 MHz |
| Base Number Matches | 1 |
| 933282400652 | 933372680562 | 933372680652 | HEF4015BU | 933372680653 | 933373620005 | |
|---|---|---|---|---|---|---|
| Description | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP16, PLASTIC, DIP-16 | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SO-16, Shift Register | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SOT-109-1, SO-16, Shift Register | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, UUC, DIE, Shift Register | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SO-16, Shift Register | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, UUC, DIE, Shift Register |
| Parts packaging code | DIP | SOIC | SOIC | DIE | SOIC | DIE |
| package instruction | DIP, | SOP, | PLASTIC, SOT-109-1, SO-16 | , | PLASTIC, SO-16 | , |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown | unknown |
| Counting direction | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT |
| series | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G16 | R-PDSO-G16 | X-XUUC-N | R-PDSO-G16 | X-XUUC-N |
| Logic integrated circuit type | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | UNSPECIFIED | RECTANGULAR | UNSPECIFIED |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | UNCASED CHIP | SMALL OUTLINE | UNCASED CHIP |
| propagation delay (tpd) | 260 ns | 260 ns | 260 ns | 260 ns | 260 ns | 260 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| Minimum supply voltage (Vsup) | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | NO LEAD | GULL WING | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | UPPER | DUAL | UPPER |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| minfmax | 22 MHz | 22 MHz | 22 MHz | 22 MHz | 22 MHz | 22 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Contacts | 16 | 16 | 16 | - | 16 | - |
| Number of terminals | 16 | 16 | 16 | - | 16 | - |
| encapsulated code | DIP | SOP | SOP | - | SOP | - |
