935360441557 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 935360441557

935360441557: DescriptionInterface Circuit; CategoryWireless rf/communication Telecom circuit; File Size995KB，19 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

935360441557 Overview

Interface Circuit

935360441557 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Telecom integrated circuit types	INTERFACE CIRCUIT
Base Number Matches	1

Preview

Download Datasheet

View All

35FS4500, 35FS6500

Rev. 1.0 — 15 December 2017

Grade 0 safety power system basis chip with CAN flexible

data transceiver

Short data sheet: advance information

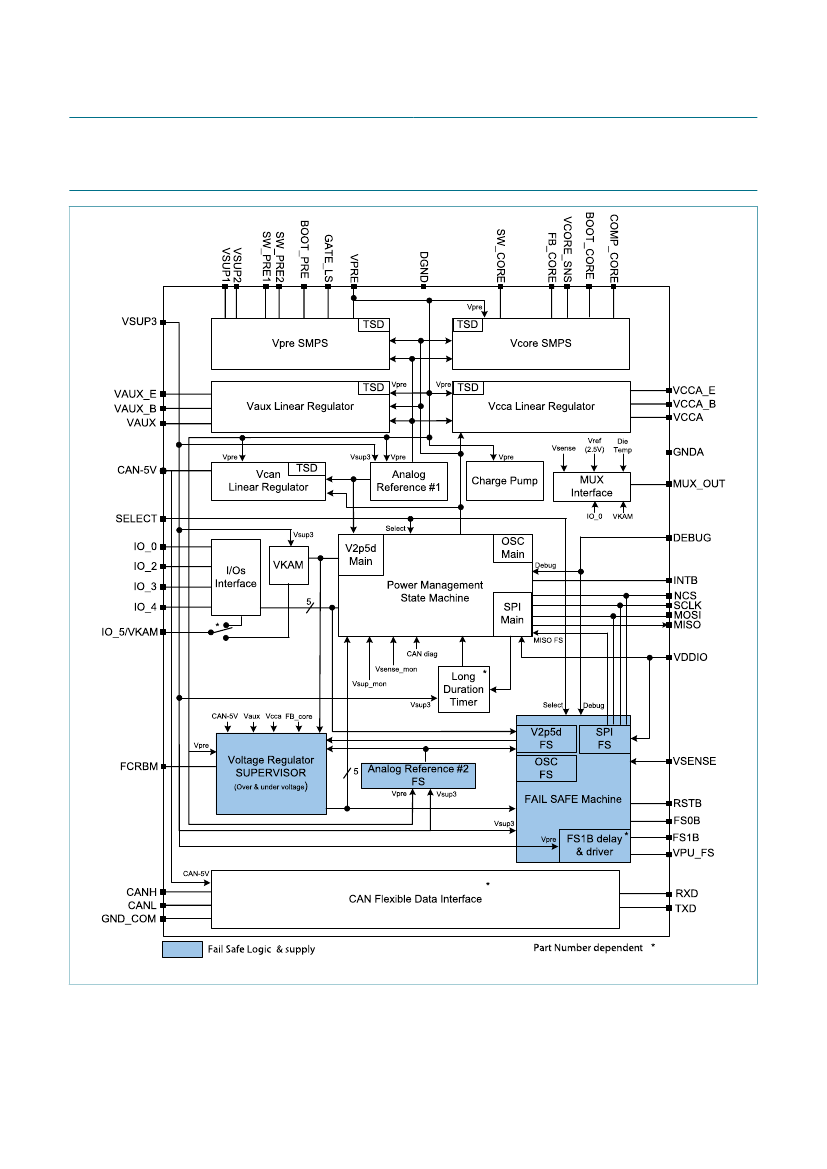

General description

The 35FS4500/35FS6500 SMARTMOS devices are a multi-output, power supply,

integrated circuit, including CAN Flexible Data (FD) transceiver, dedicated to harsh

automotive and transportation markets requiring high reliability (Grade 0) and high

functional safety (fit for ASIL D) performance.

Multiple switching and linear voltage regulators, including low-power mode (32 μA) are

available with various wake-up capabilities. An advanced power management scheme

is implemented to maintain high efficiency over a wide range of input voltages (down to

2.7 V) and output current ranges (up to 1.5 A).

The 35FS4500/35FS6500 includes configurable fail-safe/fail silent safety behavior and

features, with two fail-safe outputs, becoming a full part of a safety oriented system

partitioning, to reach a high integrity safety level (up to ASIL D).

The built-in CAN FD interface fulfills the ISO 11898-2 and -5 standards.

High temperature capability up to T

= 150 °C and T

= 175 °C, compliant with AEC-

Q100 Grade 0 automotive qualification.

Features

•

Battery voltage sensing and MUX output pin

•

Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost

and standard buck

•

36 V maximum input operating voltage

•

Family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A or 1.5 A)

or LDO (0.5 A)

•

Linear voltage regulator dedicated to auxiliary functions, or to sensor supply (V

CCA

tracker or independent), 5.0 V or 3.3 V

•

Linear voltage regulator dedicated to MCU A/D reference voltage or I/Os supply (V

CCA

5.0 V or 3.3 V

•

3.3 V keep alive memory supply available in low-power mode

•

Long duration timer, counting up to 6 months with 1.0 s resolution

•

Multiple wake-up sources in low-power mode: CAN, IOs, LDT

•

Five configurable I/Os

Applications

•

up to 150 °C and T

up to 175 °C

Drive train electrification (BMS, hybrid EV and HEV, inverter, DCDC, alterno starter)

Drive train - chassis and safety (active suspension, steering, safety domain gateway)

Power train (EMS, TCU, gear box)
