JAN
CONNECTOR
0.4mm
(.016") pitch
Emboss Tape
Board-to-board connectors
Features ––––––––––––––––––––––––
• Locking mechanism of contact
Because of the locking mechanism of the contacts which is
made use of the spring performance, after repetition of mating
and unmating, lock strength and a feeling of a click are very
good.
• Wiping contact structure
Concentrated stable electrical performance is realized by
mating combination of bellows contact roll side on plug and
fracture surface side on receptacle.
• Reinforcement tabs
Signal contacts are protected from any external force after
mounting on PC board, by soldered reinforcement tabs situated
out side of wafer.
• Solder entry prevention

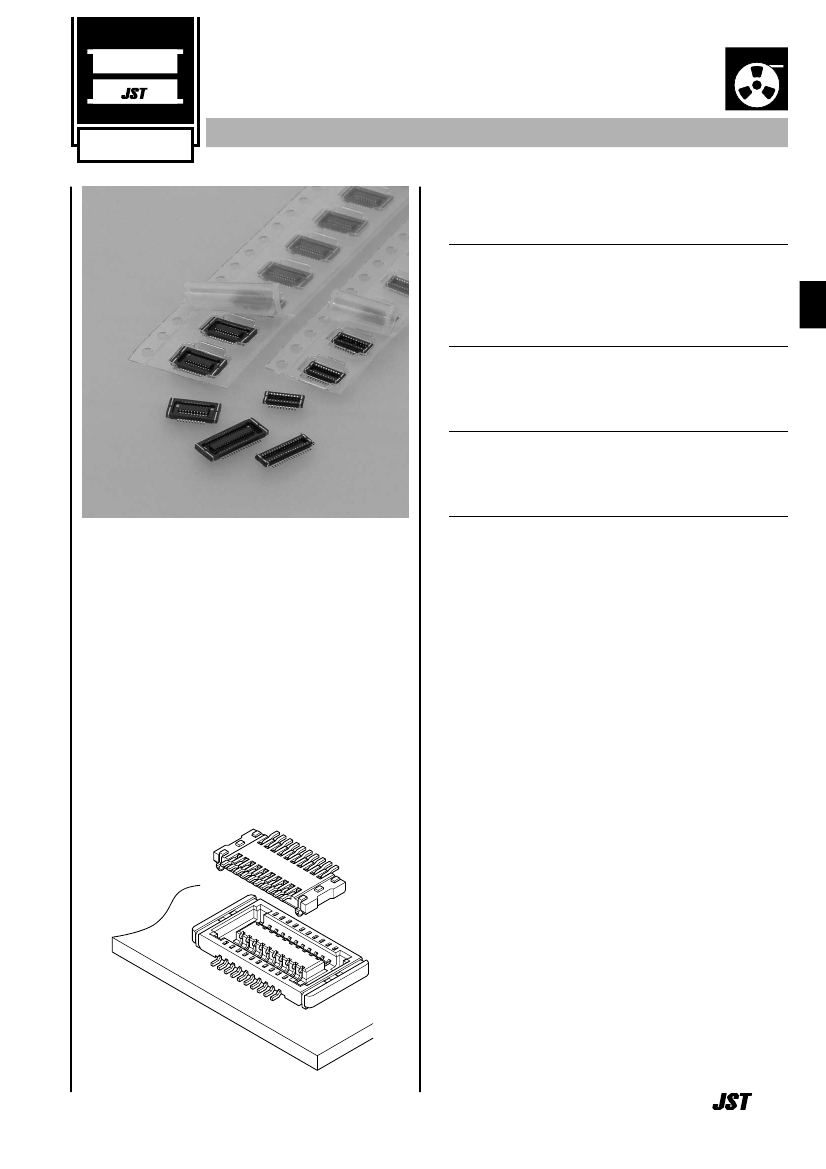

This JAN connector is a board-to-board
connector with stacking height 1.0mm
(.039") and 0.4mm (.016") pitch, which is
the lowest-profile connector in the [electro
mechanical component] industry.
In consideration of operability at user side,
although it is 1.0mm (.039") low profile,
when mating receptacle with plug, the
connector structure, where the large
amount of guiding connector can be taken,
is adopted, and differentiates JAN
connector with added value.
The gold-plated contacts (nickel-stripe) are also available which
prevent solder from rising under high-activity reflow condition.
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 30V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/70m
Ω
max.
After environmental testing/140m
Ω
max.
• Insulation resistance:
50M
Ω
min.
• Withstanding voltage: 100V AC/minute
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
1
Certified LR20812
371
JAN
CONNECTOR
Plug ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
20
24
34
40
60
Model No.
20P-JANK-GS-TF
24P-JANK-GS-TF
34P-JANK-GS-TF
40P-JANK-GS-TF
60P-JANK-GS-TF
Dimensions mm(in.)
A
53.6(.142)
54.4(.173)
56.4(.252)
57.6(.299)
11.6(.457)
B
55.6(.220)
56.4(.252)
58.4(.331)
59.6(.378)
13.6(.535)
Q'ty /
reel
4,000
4,000
4,000
4,000
4,000
Material and Finish
Contact: Phosphor bronze, nickel-undercoated, gold-plated
Housing: LCP, UL94V-0
Solder tab: Brass, copper-undercoated, tin-plated
B
2.7(.106)
0.4(.016)
A
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
20
24
34
40
60
0.9
(.035)
Note:
1. The products listed above are supplied on embossed-tape.
2. Nickel-stripe product: “GSAN” instead of “GS”
Model No.
20R-JANK-GS-TF
24R-JANK-GS-TF
34R-JANK-GS-TF
40R-JANK-GS-TF
60R-JANK-GS-TF
Dimensions mm(in.)
A
53.6(.142)
54.4(.173)
56.4(.252)
57.6(.299)
11.6(.457)
B
57.2(.283)
58.0(.315)
10.0(.394)
11.2(.441)
15.2(.598)
Q'ty /
reel
4,000
4,000
4,000
4,000
4,000
Material and Finish
Contact: Phosphor bronze, nickel-undercoated, gold-plated
Housing: LCP, UL94V-0
Solder tab: Brass, copper-undercoated, tin-plated
B
3.7(.146)
0.4(.016)
A
372
0.8
(.031)
Note:
1. The products listed above are supplied on embossed-tape.
2. Nickel-stripe product: “GSAN” instead of “GS”
JAN
CONNECTOR

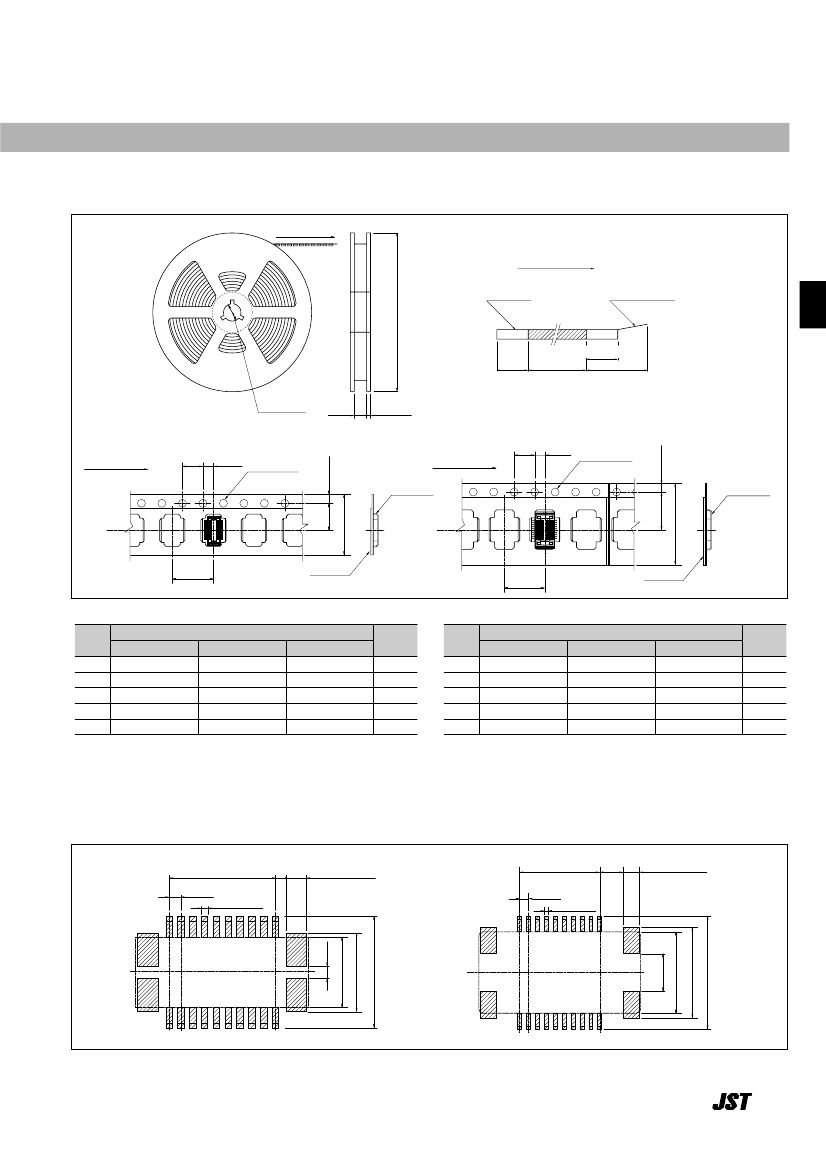

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Feeding direction
330
±2.0(12.992±.079)dia.
Carrier tape
Cover tape leader
Leader part
100(3.937)min.
The end part Connector
160(6.299)min. mounting part 400(15.748)min.
13(.512)dia.
W1
+2.5
-1.0
(
+.098
)
-.039
2.0
±0.5
(.079±.020)
Plug
1.75(.069)
Feeding direction
4.0
±0.1
(.157±.004)
2.0
±0.1
(.079±.004)
1.55
±0.05
(.061±.002)dia.
Receptacle
Feeding direction
Carrier tape
F±0.1
(.004)
1.75(.069)
4.0
±0.1
(.157±.004)
2.0
±0.1
(.079±.004)
1.55
±0.05
(.061±.002)dia.
Carrier tape
F±0.1
(.004)
8.0
±0.1
(.315±.004)
Cover tape
W
8.0
±0.1
(.315±.004)
Cover tape
Plug
Cir-
cuits
20
24
34
40
60
Receptacle
Dimensions mm(in.)
F
55.5(.217)
57.5(.295)
57.5(.295)
57.5(.295)
11.5(.453)
W
12.0(.472)
16.0(.630)
16.0(.630)
16.0(.630)
24.0(.945)
W1
13.5(1.531)
17.5(1.689)
17.5(1.689)
17.5(1.689)
25.5(1.004)
Q'ty /
reel
4,000
4,000
4,000
4,000
4,000
Cir-
cuits
20
24
34
40
60
Dimensions mm(in.)
F
57.5(.295)
57.5(.295)
11.5(.453)
11.5(.453)
11.5(.453)
W
W
16.0(.630)
24.0(.945)
24.0(.945)
24.0(.945)
24.0(.945)
W1
17.5(1.689)
17.5(1.689)
25.5(1.004)
25.5(1.004)
25.5(1.004)
Q'ty /
reel
4,000
4,000
4,000
4,000
4,000
Note:
1. Specifications conform to JIS C 0806. The tape width, connector loading recess square hole dimensions, etc. are determined by the number of circuits and
external shape of the connector to be loaded.
2. Specifications are subject to change without prior notice.
PC board layout
(viewed from component side)
––––––––––––––––––––––––––––––––––––
0.35
±0.1
(.014±.004)
0.7
±0.1(.028±.004)
A±0.05(.002)
0.4±0.03
(.016±.001)
0.2
+0.05
(.008
+.002
)
0
0
1.05
±0.1
(.041±.004)
0.7
±0.1(.028±.004)
A±0.05(.002)
0.4±0.03
(.016±.001)
0.2
+0.05
(.008
+.002
)
0
0
3.7±0.1(.146±.004)
4.1±0.1(.161±.004)
2.4±0.1(.094±.004)
2.7±0.1(.106±.004)
3.8±0.1(.150±.004)
Note:
1. Tolerances are non-cumulative:
±
0.03mm (
±
.001") for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
5.1±0.1(.201±.004)
0.5
±0.1
(.020±.004)
1.8
±0.1
(.071±.004)
373
