5962-9206203MYC datasheet, PDF

5962-9206203MYC: DescriptionUV PLD, 75ns, 192-Cell, CMOS, CPGA84, WINDOWED, CERAMIC, PGA-84; CategoryProgrammable logic Programmable logic devices; File Size76KB，1 Pages; ManufacturerCypress Semiconductor

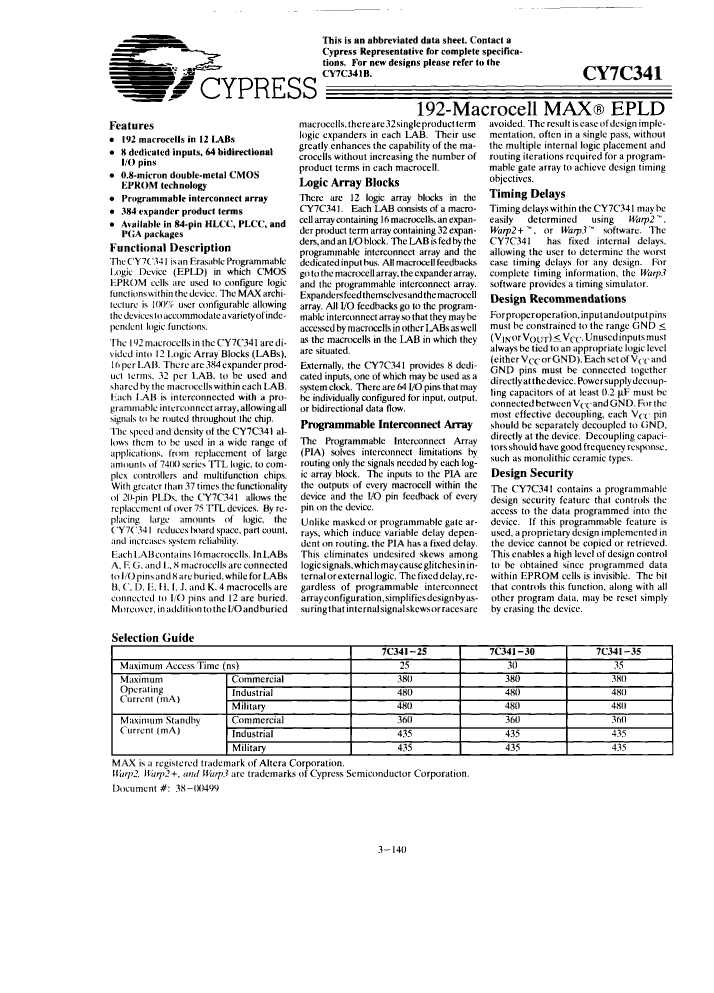

Download Datasheet Parametric View All

5962-9206203MYC Overview

UV PLD, 75ns, 192-Cell, CMOS, CPGA84, WINDOWED, CERAMIC, PGA-84

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	PGA
package instruction	WPGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	LABS INTERCONNECTED BY PIA; 12 LABS; 192 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	22.2 MHz
In-system programmable	NO
JESD-30 code	S-CPGA-P84
JESD-609 code	e4
JTAG BST	NO
length	27.94 mm
Dedicated input times	7
Number of I/O lines	64
Number of macro cells	192
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	7 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WPGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY, WINDOW
power supply	5 V
Programmable logic type	UV PLD
propagation delay	75 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.953 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	27.94 mm
Base Number Matches	1
