33433-D203UB

Description
HEADER CONNECTOR,PCB MNT,50+50 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING,BLACK
CategoryThe connector
File Size656KB,3 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric View All

33433-D203UB Overview

HEADER CONNECTOR,PCB MNT,50+50 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING,BLACK

33433-D203UB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Maker3M
Reach Compliance Codeunknown
body width0.61 inch
subject depth0.9 inch
body length3.26 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage1400VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee0
Manufacturer's serial number3000
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2+2
Number of rows loaded2+2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.155 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts100
Base Number Matches1
8
7
6
5
4
3
2
NOTES
1
1. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE
REGULATORY INFORMATION
APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION
OF WWW.3MCONNECTORS.COM FOR
COMPLIANCE INFORMATION.
2 IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES PRECEDENT.
3
NOTCHES A & C WILL ACCOMODATE
3M POLARIZING KEY: N3518.
3M
TM

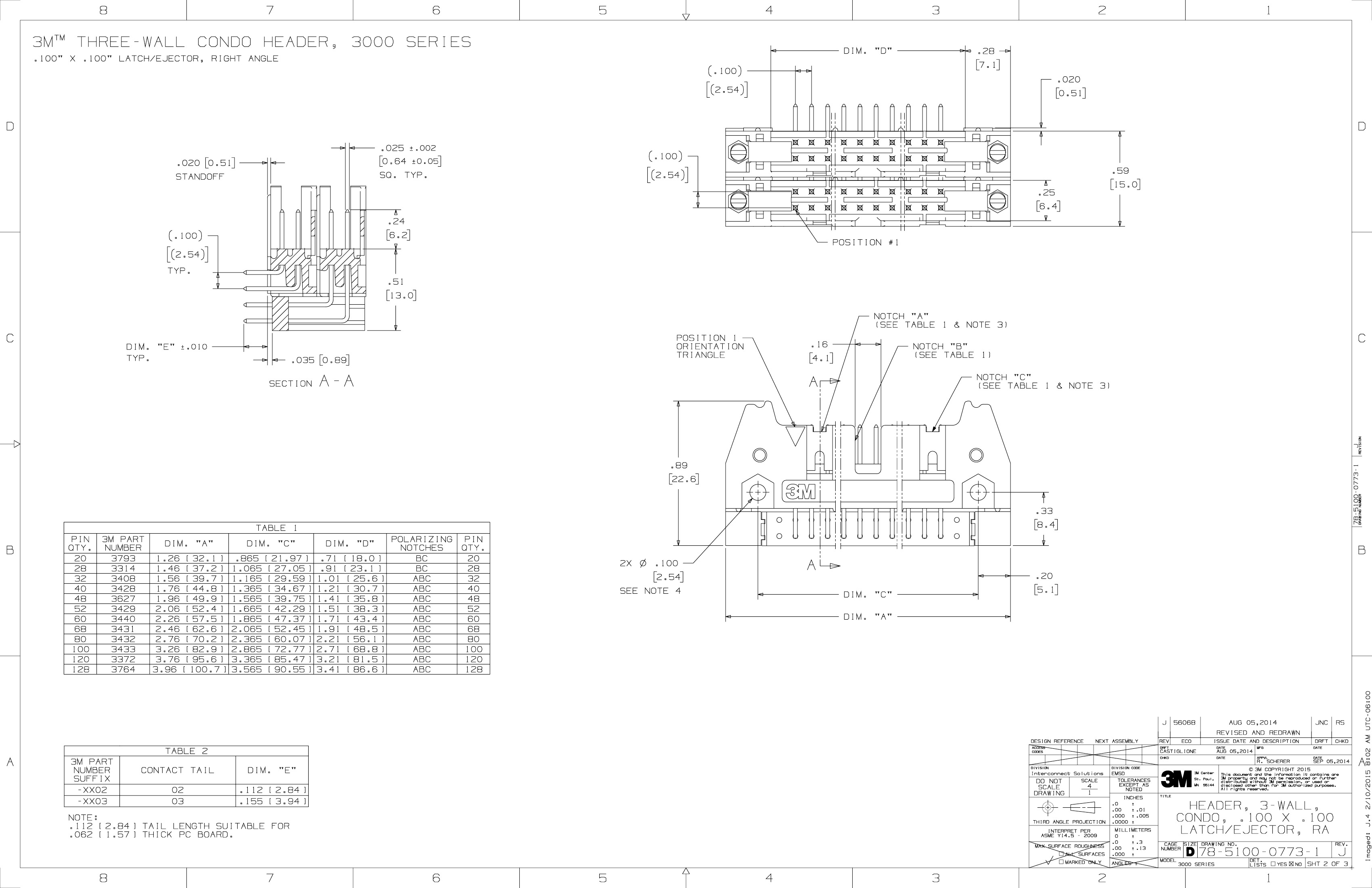

THREE-WALL CONDO HEADER, 3000 SERIES
DIM. "A"
.100" X .100" LATCH/EJECTOR, RIGHT ANGLE
D
.90
22.7
* STACKED PINS CONSERVE SPACE ON THE CIRCUIT BOARD
ALLOWING HIGHER DENSITY PACKAGING.
* PIN QUANTITY TO 128 GIVES DESIGN FLEXIBILITY WITH
LATCHING.
* "HDI" ALTERNATIVE.
* THREE-WALL FITS IN VME BOARD STACKING CRITERIA.
* ACCEPTS STANDARD IDC SOCKETS.
* MATES WITH STANDARD FLAT CABLE HARNESSES.
* HIGH TERMERATURE INSULATOR SUITABLE FOR "NO LEAD"
SOLDERING OPERATIONS.
* SUITABLE FOR REFLOW SOLDERING USING "PASTE IN HOLE"
TECHNIQUES.
D
-D00X
HEADER WITHOUT LATCH EJECTOR
2
PHYSICAL:
INSULATOR:
MATERIAL:
FLAMMABILITY:
COLOR:
CONTACT:
MATERIAL:
PLATING:
UNDER PLATING:
WIPING AREA:
SOLDER TAILS:
MARKINGS:
GLASS FILLED POLYESTER (PCT)
UL94V-0
BLACK
COPPER ALLOY
100 " [2.54 m] NICKEL-OVERALL
30 " [0.76 m] AVG. GOLD
200 " [5.08 m] TIN LEAD OR MATTE TIN (SEE ORDERING INFORMATION)
3M LOGO, PART IDENTIFICATION NUMBER AND ORIENTATION TRIANGLE

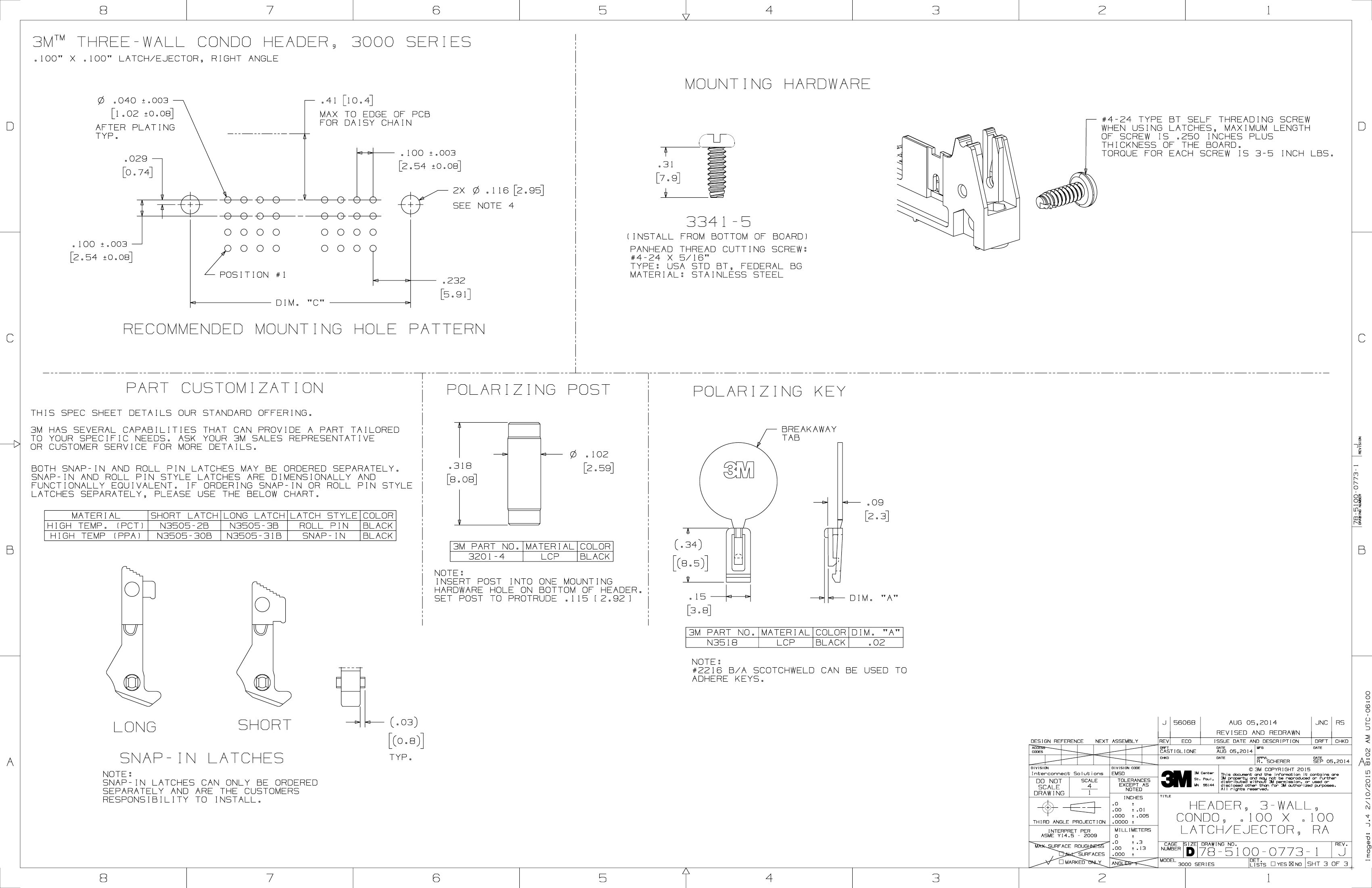

4 MOUNTING HARDWARE:
FROM SOLDER SIDE OF PC BOARD
USE #4-24 THREAD CUTTING SCREW
(3M PART #3341-5) WITH
.116 [2.95] MOUNTING HOLE.
.424
10.77
.010
0.25
.08
2.0
1.18
30.1
2
ELECTRICAL:
C
C
.37
9.5
CURRENT RATING: 1A (EIA 364-70)
INSULATION RESISTANCE: >1 X 10
9
AT 500 V
DC
WITHSTANDING VOLTAGE: 1,000V
RMS
AT SEA LEVEL
-D20X
HEADER WITH SHORT LATCH EJECTOR
FOR 3M SOCKETS WITHOUT STRAIN RELIEF
2
ENVIRONMENTAL:
TEMPERATURE RATING: -55 C TO 105 C
PROCESS RATING: 260 C, PER J-STD-020C, SINGLE PASS
MOISTURE SENSITIVITY LEVEL: 1 (PER J-STD-020C)
REVISION
DRAWING NUMBER
.573
14.55
.010
0.25
.08
2.0
1.28
32.5
B
.46
11.7
-D30X
HEADER WITH LONG LATCH EJECTOR
FOR 3M SOCKETS WITH STRAIN RELIEF
ORDERING INFORMATION
X3XXXX-DXXXXX
N= HIGH TEMP BLACK (PCT)/(RB PLATING REQ'D)
BLANK= (UB PLATING)
3M PART NUMBER:
(SEE TABLE 1)
PLATING:
RB = 30 " [0.76 m] GOLD AND 200 " [5.08 m] MATTE TIN
(APP. E1 & C1 APPLY)
UB = 30 " [0.76 m] GOLD AND 200 " [5.08 m]
TIN LEAD (APP. E3 & C2 APPLY)
TAIL:
02 = FOR .062 [1.57] THICK BOARD
03 = FOR .094 TO .125 [2.39 TO 3.18] THICK BOARD
DIMENSIONS: INCHES [MM]
[MM] IS REF. ONLY
DESIGN REFERENCE
ACCESS
CODES
78-5100-0773-1
J
REV
DRFT
J
56068
ECO
B
AUG 05,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
A
LATCH/EJECTOR SYSTEM:
0 = NO LATCH/EJECTOR INSTALLED
2 = SHORT ROLL PIN LATCH/EJECTORS
3 = LONG ROLL PIN LATCH/EJECTORS
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
2
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
R
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 3-WALL,
CONDO, .100 X .100
LATCH/EJECTOR, RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0773-1
DET.
LISTS
YES
NO
J
3000 SERIES
SHT 1 OF 3
8
7
6
5
4
3
2
1
Imaged: J.4 2/10/2015 8:02 AM UTC-06:00
