97-FRA50-470 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 97-FRA50-470

97-FRA50-470: DescriptionRectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,; CategoryThe connector; File Size96KB，2 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

97-FRA50-470 Overview

Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,

97-FRA50-470 Parametric

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FILTER ADPTR--470pF
body width	0.6 inch
body length	3.32 inch
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact completed and terminated	GOLD (16) OVER NICKEL
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	300VDC V
empty shell	NO
Filter function	YES
IEC compliance	NO
maximum insertion force	2.8356 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.085 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	PANEL
触点数量:侧 1	50
触点数量:侧 2	50
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	0.2 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYESTER
direct connection	YES
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.6116 N
Base Number Matches	1

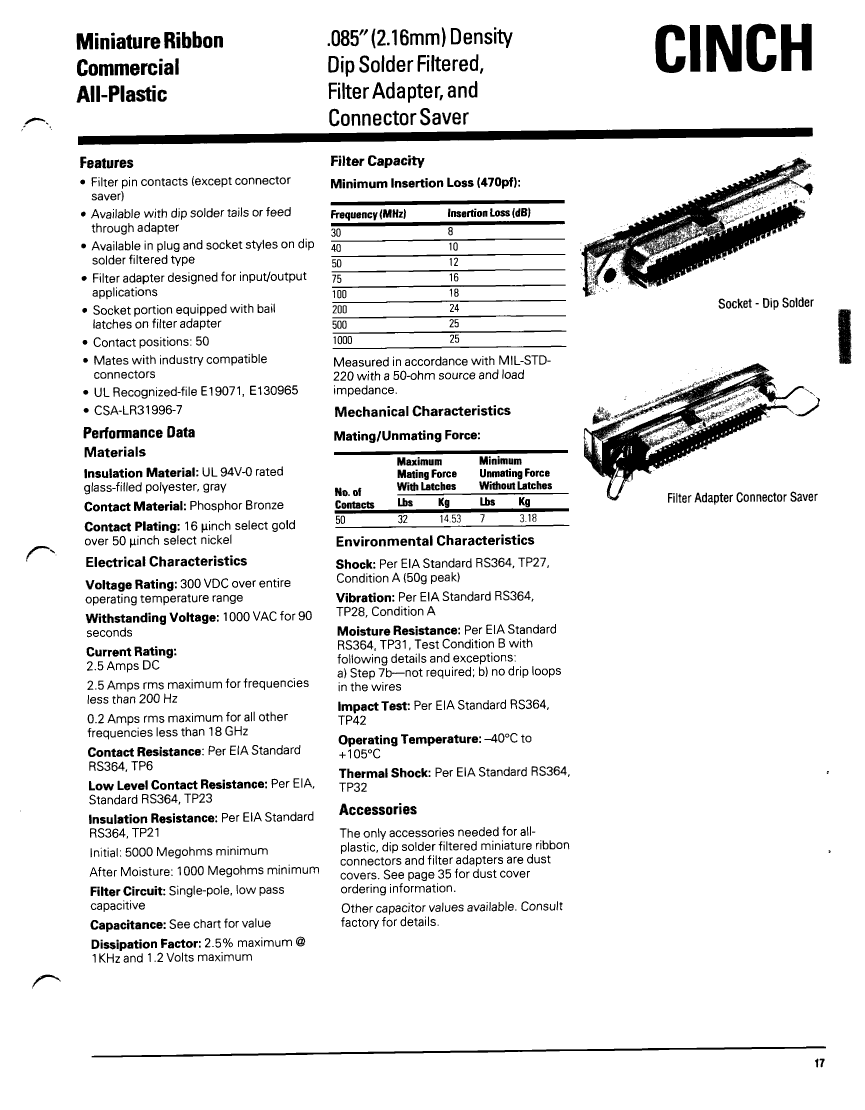

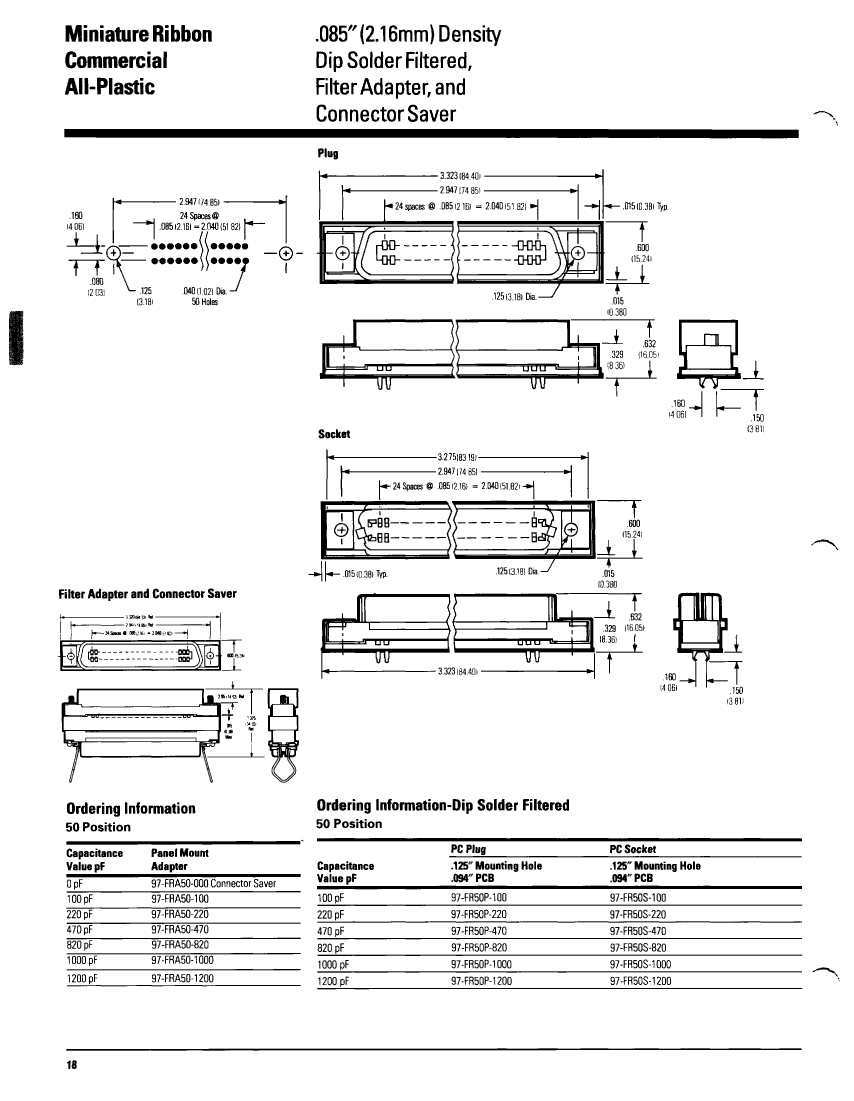

Preview

Download Datasheet

View All

97-FRA50-470 Related Products

	97-FRA50-470	97-FR50P-100	97-FRA50-000	97-FRA50-1000	97-FRA50-100	97-FRA50-1200	97-FRA50-220	97-FRA50-820
Description	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,	Telecom and Datacom Connector, 50 Contact(s), Male, Straight, Solder Terminal, Hole .125-.137, Plug,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount,
Maker	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	FILTER ADPTR--470pF	MAX CONTACTS (SERIES)=50	CONNECTOR SAVER	FILTER ADPTR--1000pF	FILTER ADPTR--100pF	FILTER ADPTR--1200pF	FILTER ADPTR--270pF	FILTER ADPTR--820pF
body width	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch
body length	3.32 inch	3.323 inch	3.32 inch	3.32 inch	3.32 inch	3.32 inch	3.32 inch	3.32 inch
Connector type	RECTANGULAR CONNECTOR ADAPTER	TELECOM AND DATACOM CONNECTOR	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER
Contact completed and terminated	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	DUAL PRONG	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	300VDC V	300VDC V	300VDC V	300VDC V	300VDC V	300VDC V	300VDC V	300VDC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	YES	YES	NO	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	2.8356 N	2.8356 N	2.8356 N	2.8356 N	2.8356 N	2.8356 N	2.8356 N	2.8356 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	BOARD	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	POLYESTER	THERMOPLASTIC	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Total number of contacts	50	50	50	50	50	50	50	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.6116 N	.6116 N	.6116 N	.6116 N	.6116 N	.6116 N	.6116 N	.6116 N
Base Number Matches	1	1	1	1	1	1	1	1
ECCN code	EAR99	-	EAR99	-	EAR99	EAR99	-	EAR99
触点数量:侧 1	50	-	50	50	50	50	50	50
触点数量:侧 2	50	-	50	50	50	50	50	50
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
direct connection	YES	-	YES	YES	YES	YES	YES	YES
