2376-2-09-1: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking; CategoryThe connector; File Size101KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

2376-2-09-1 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking

2376-2-09-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.252 inch
subject depth	0.346 inch
body length	0.984 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2376
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

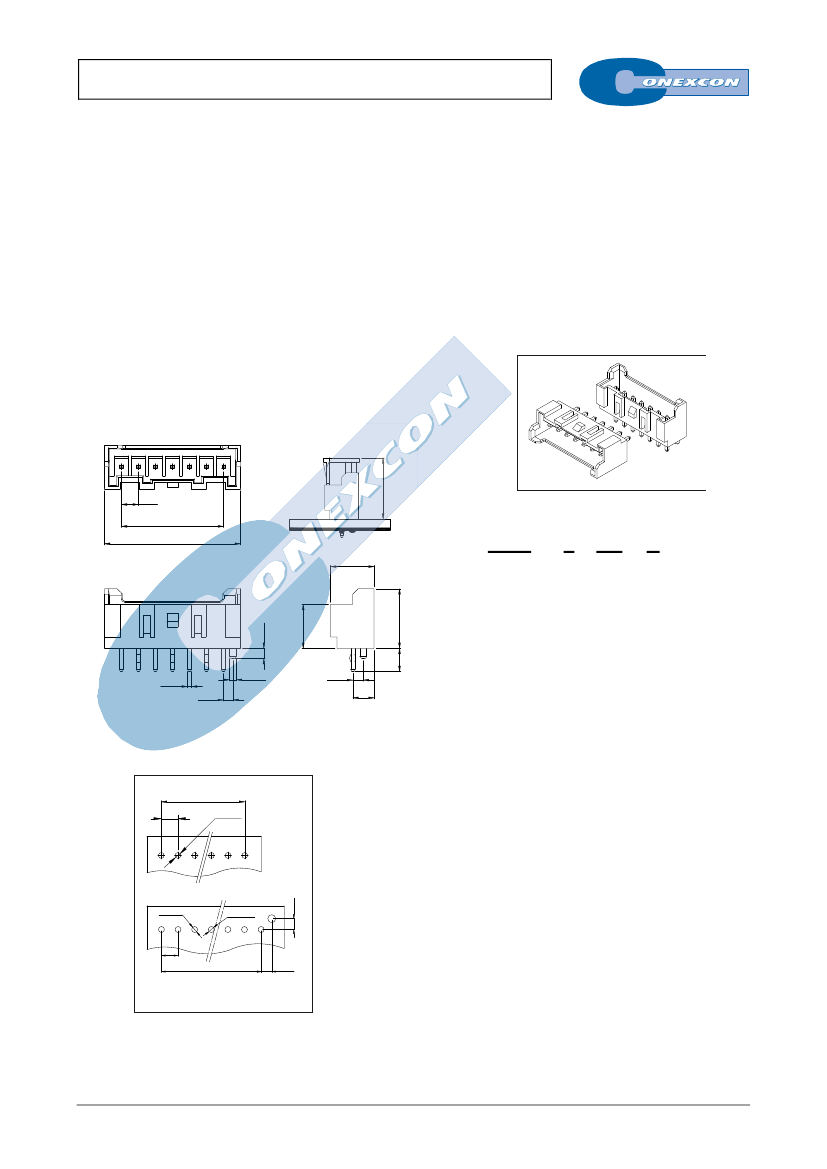

SINGLE ROW TOP ENTRY HEADER

2376 SERIES.

2.50 mm. (0.098”) Pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with 2.50 mm. pitch crimp housing 2375 series

Tin plated 0.64 mm. square pin

Fully shrouded with polarized slot



Voltage Rating: < 250 V

Current Rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 6/6 UL 94 V-0

Terminal: Tin plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimensional Information

Recommended tickness PCB:

1.0 to 1.6 mm.

2.50

.098

A

B

6.4

.252

11.30

.445

2376 -

1

2- XX- P

2

3

4

.059

1.5

.256

6.5

346

8.8

1. Connector Serie

3. (XX) Number of circuits

134

3.4



Available in 2 through 20 circuits

0.64

.025

ø1.0

ø.039

1.6

.063

1.6

.063

3.2

.126

4. (P) Fixing Post

P =

1.

Without fixing post

P =

2.

With fixing post

W/O Fixing post

A

2.50

.098

ø0.9±0.1

ø.040

ø1.2

ø.047

ø0.9±0.1

ø.035

1.6

.063

With Fixing post

Dimensions:

(in mm.)

A

= 2.50 x (XX*-1)

B

= 2.50 x (XX*)+2.50

2.5

.098

A

1.6

.063

*XX (Number of circuits)

RECOMMENDED HOLE PATTERN

A

D-XX

FULL LINE CATALOGUE

2376-2-09-1 Related Products

	2376-2-09-1	2376-2-18-2	2376-2-10-1	2376-2-18-1	2376-2-02-1	2376-2-05-1
Description	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch
subject depth	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch
body length	0.984 inch	1.87 inch	1.083 inch	1.87 inch	0.295 inch	0.591 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	2376	2376	2376	2376	2376	2376
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	18	10	18	2	5
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	-
