2.5 VOLT HIGH-SPEED TeraSync™ DDR/SDR FIFO 40-BIT CONFIGURATION
16,384 x 40, 32,768 x 40,
65,536 x 40, 131,072 x 40
IDT72T4088, IDT72T4098
IDT72T40108, IDT72T40118
•
•
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
Choose among the following memory organizations:
IDT72T4088
16,384 x 40
IDT72T4098
32,768 x 40
IDT72T40108
65,536 x 40
IDT72T40118
131,072 x 40
Up to 250MHz operating frequency or 10Gbps throughput in SDR mode
Up to 110MHz operating frequency or 10Gbps throughput in DDR mode
Users selectable input port to output port data rates, 500Mb/s
Data Rate
-DDR to DDR
-DDR to SDR
-SDR to DDR
-SDR to SDR
User selectable HSTL or LVTTL I/Os
Read Enable & Read Clock Echo outputs aid high speed operation
2.5V LVTTL or 1.8V, 1.5V HSTL Port Selectable Input/Ouput voltage
3.3V Input tolerant
Mark & Retransmit, resets read pointer to user marked position
Write Chip Select (WCS) input enables/disables Write
Operations
Read Chip Select (RCS) synchronous to RCLK
Programmable Almost-Empty and Almost-Full flags, each flag
•
•
•
•
•
•
•
•
•
•
•
•
can default to one of four preselected offsets
Dedicated serial clock input for serial programming of flag offsets
User selectable input and output port bus sizing
-x40 in to x40 out
-x40 in to x20 out
-x40 in to x10 out
-x20 in to x40 out
-x10 in to x40 out
Auto power down minimizes standby power consumption
Master Reset clears entire FIFO
Partial Reset clears data, but retains programmable settings
Empty and Full flags signal FIFO status
Select IDT Standard timing (using
EF
and
FF
flags) or First
Word Fall Through timing (using
OR
and
IR
flags)
Output enable puts data outputs into High-Impedance state
JTAG port, provided for Boundary Scan function

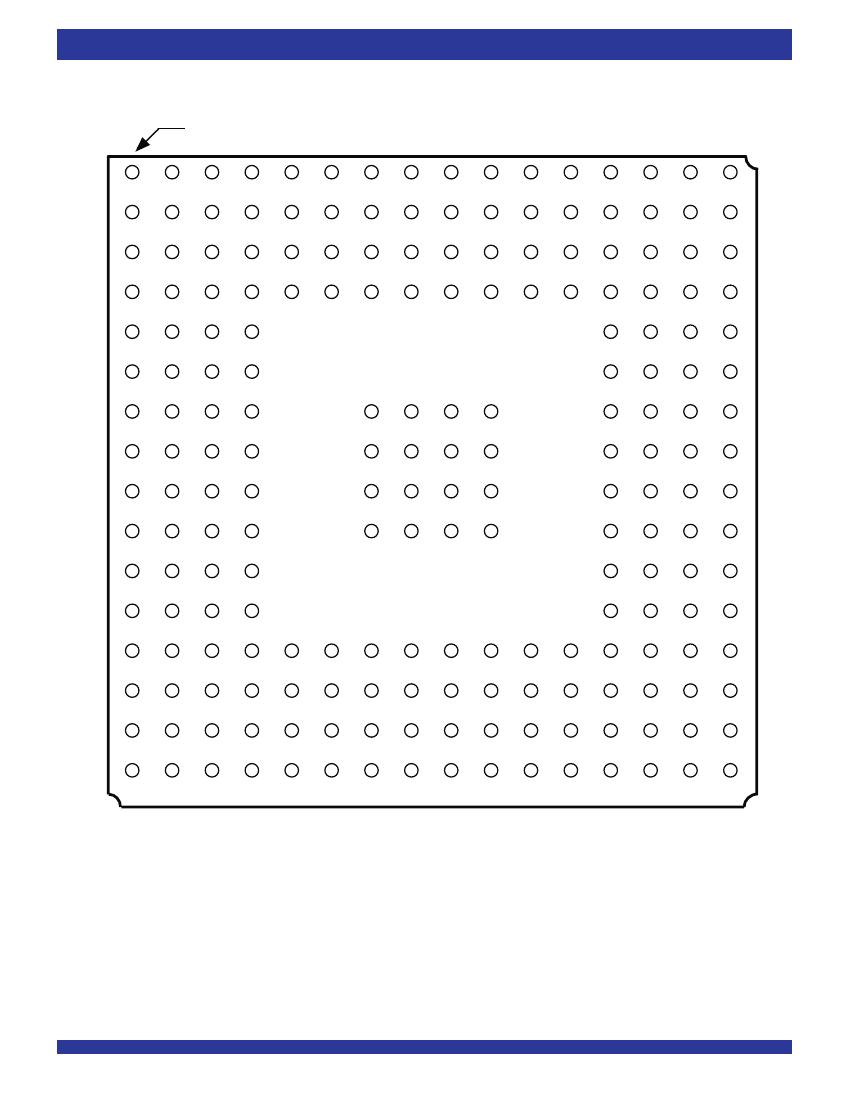

208 Ball Grid array (PBGA), 17mm x 17mm, 1mm pitch
Easily expandable in depth and width
Independent Read and Write Clocks (permit reading and writing
simultaneously)
High-performance submicron CMOS technology
Industrial temperature range (-40°C to +85°C) is available
°
°
FUNCTIONAL BLOCK DIAGRAM
D
0
-D
n
(x40, x20, x10)
WEN
WCS
WCLK
SREN SEN
SCLK
WSDR
INPUT REGISTER
OFFSET REGISTER
SI
SO
FF/IR
PAF
EF/OR
PAE
FWFT
FSEL0
FSEL1
WRITE CONTROL
LOGIC
RAM ARRAY
16,384 x 40,
32,768 x 40
65,536 x 40
131,072 x 40
FLAG
LOGIC
WRITE POINTER
READ POINTER
BM
IW
OW
MRS
PRS
TCK
TRST
TMS
TDO
TDI
Vref
HSTL
BUS
CONFIGURATION
RESET
LOGIC
OUTPUT REGISTER
READ
CONTROL
LOGIC
RT
MARK
RSDR
JTAG CONTROL
(BOUNDARY SCAN)
RCLK
REN
RCS
HSTL I/0
CONTROL
OE
EREN
5995 drw01
Q
0
-Q
n
(x40, x20, x10)
IDT and the IDT logo are trademarks of Integrated Device Technology, Inc. The TeraSync is a trademark of Integrated Device Technology, Inc.
ERCLK
COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES
1
2004 Integrated Device Technology, Inc. All rights reserved. Product specifications subject to change without notice.
SEPTEMBER 2004
DSC-5995/10
IDT72T4088/98/108/118 2.5V HIGH-SPEED TeraSync™ DDR/SDR FIFO 40-BIT
CONFIGURATION 16,384 x 40, 32,768 x 40, 65,536 x 40 and 131,072 x 40
COMMERCIAL AND INDUSTRIAL
TEMPERATURE RANGES
DESCRIPTION
The IDT72T4088/72T4098/72T40108/72T40118 are exceptionally deep,
extremely high speed, CMOS First-In-First-Out (FIFO) memories with the ability
to read and write data on both rising and falling edges of clock. The device has
a flexible x40/x20/x10 Bus-Matching mode and the option to select single or
double data rates for input and output ports. These FIFOs offer several key user
benefits:
•
Flexible x40/x20/x10 Bus-Matching on both read and write ports
•
Ability to read and write on both rising and falling edges of a clock
•
User selectable Single or Double Data Rate of input and output ports
•
A user selectable MARK location for retransmit
•
User selectable I/O structure for HSTL or LVTTL
•
The first word data latency period, from the time the first word is written to
an empty FIFO to the time it can be read, is fixed and short.
•
High density offerings up to 5Mbit
•
10Gbps throughput
Bus-Matching Double Data Rate FIFOs are particularly appropriate for
network, video, telecommunications, data communications and other applica-
tions that require fast data transfer on both rising and falling edges of the clock.
This is a great alternative to increasing data rate without extending the width of
the bus or the speed of the device. They are also effective in applications that
need to buffer large amounts of data and match buses of unequal sizes.
Each FIFO has a data input port (Dn) and a data output port (Qn), both of
which can assume either a 40-bit, 20-bit, or a 10-bit width as determined by the
state of external control pins Input Width (IW), Output Width (OW), and Bus-
Matching (BM) pin during the Master Reset cycle.
The input port is controlled by a Write Clock (WCLK) input and a Write Enable
(WEN) input. Data present on the Dn data inputs can be written into the FIFO
on every rising and falling edge of WCLK when
WEN
is asserted and Write
Single Data Rate (WSDR) pin held HIGH. Data can be selected to write only
on the rising edges of WCLK if
WSDR
is asserted. To guarantee functionality
of the device,
WEN
must be a controlled signal and not tied to ground. This is
important because
WEN
must be HIGH during the time when the Master Reset
(MRS) pulse is LOW. In addition, the
WSDR
pin must be tied HIGH or LOW.
It is not a controlled signal and cannot be changed during FIFO operation.
Write operations can be selected for either Single or Double Data Rate mode.
For Single Data Rate operation, writing into the FIFO requires the Write Single
Data Rate (WSDR) pin to be asserted. Data will be written into the FIFO on the
rising edge of WCLK when the Write Enable (WEN) is asserted. For Double
Data Rate operations, writing into the FIFO requires
WSDR
to be deasserted.
Data will be written into the FIFO on both rising and falling edge of WCLK when
WEN
is asserted.
The output port is controlled by a Read Clock (RCLK) input and a Read
Enable (REN) input. Data is read from the FIFO on every rising and falling edge
of RCLK when
REN
is asserted and Read Single Data Rate (RSDR) pin held
HIGH. Data can be selected to read only on the rising edges of RCLK if
RSDR
is asserted. To guarantee functionality of the device,
REN
must be a controlled
signal and not tied to ground. This is important because
REN
must be HIGH
during the time when the Master Reset (MRS) pulse is LOW. In addition, the
RSDR
pin must be tied HIGH or LOW. It is not a controlled signal and cannot
be changed during FIFO operation.
Read operations can be selected for either Single or Double Data Rate mode.
Similar to the write operations, reading from the FIFO in single data rate requires
the Read Single Data Rate (RSDR) pin to be asserted. Data will be read from
the FIFO on the rising edge of RCLK when the Read Enable (REN) is asserted.
For Double Data Rate operations, reading into the FIFO requires
RSDR
to be
deasserted. Data will be read out of the FIFO on both rising and falling edge
of RCLK when and
REN
is asserted.
Both the input and output port can be selected for either 2.5V LVTTL or HSTL
operation. This can be achieved by tying the HSTL signal LOW for LVTTL or
HIGH for HSTL voltage operation. When the read port is setup for HSTL mode,
the Read Chip Select (RCS) input also has the benefit of disabling the read port
inputs, providing additional power savings.
There is the option of selecting different data rates on the input and output ports
of the device. There are a total of four combinations to choose from, Double Data
Rate to Double Data Rate (DDR to DDR), DDR to Single Data Rate (DDR to
SDR), SDR to DDR, and SDR to SDR. The rates can be set up using the
WSDR
and
RSDR
pins. For example, to set up the input to output combination of DDR
to SDR,
WSDR
will be HIGH and
RSDR
will be LOW. Read and write operations
are initiated on the rising edge of RCLK and WCLK respectively, never on the
falling edge. If
REN
or
WEN
is asserted after a rising edge of clock, no read or
write operations will be possible on the falling edge of that same pulse.
An Output Enable (OE) input is provided for high-impedance control of the
outputs. A read Chip Select (RCS) input is also provided for synchronous
enable/disable of the read port control input,
REN.
The
RCS
input is synchro-
nized to the read clock, and also provides high-impedance controls to the Qn
data outputs. When
RCS
is disabled,
REN
will be disabled internally and the
data outputs will be in High-Impedance. Unlike the Read Chip Select signal
however,
OE
is not synchronous to RCLK. Outputs are high-impedanced
shortly after a delay time when the
OE
transitions from LOW to HIGH.
The Echo Read Enable (EREN) and Echo Read Clock (ERCLK) outputs
are used to provide tighter synchronization between the data being transmitted
from the Qn outputs and the data being received by the input device. These
output signals from the read port are required for high-speed data communi-
cations. Data read from the read port is available on the output bus with respect
to
EREN
and ERCLK, which is useful when data is being read at high-speed
operations where synchronization is important.
The frequencies of both the RCLK and WCLK signals may vary from 0 to fMAX
with complete independence. There are no restrictions on the frequency of one
clock input with respect to another.
There are two possible timing modes of operation with these devices: IDT
Standard mode and First Word Fall Through (FWFT) mode.
In IDT
Standard mode,
the first word written to an empty FIFO will not appear
on the data output lines unless a specific read operation is performed. A read
operation, which consists of activating
REN
and enabling a rising RCLK edge,
will shift the word from internal memory to the data output lines. Be aware that
in Double Data Rate (DDR) mode only the IDT
Standard mode
is available.
In
FWFT mode,
the first word written to an empty FIFO is clocked directly to
the data output lines after three transitions of RCLK. A read operation does not
have to be performed to access the first word written to the FIFO. However,
subsequent words written to the FIFO do require a LOW on
REN
for access.
The state of the FWFT input during Master Reset determines the timing mode
in use.
For applications requiring more data storage capacity than a single FIFO can
provide, the FWFT timing mode permits depth expansion by chaining FIFOs
in series (i.e. the data outputs of one FIFO are connected to the corresponding
data inputs of the next). No external logic is required.
These FIFOs have four flag pins,
EF/OR
(Empty Flag or Output Ready),
FF/
IR
(Full Flag or Input Ready),
PAE
(Programmable Almost-Empty flag), and
PAF
(Programmable Almost-Full flag). The
EF
and
FF
functions are selected
in IDT Standard mode. The
IR
and
OR
functions are selected in FWFT mode.
PAE
and
PAF
are always available for use, irrespective of timing mode.
3
SEPTEMBER 21, 2004
IDT72T4088/98/108/118 2.5V HIGH-SPEED TeraSync™ DDR/SDR FIFO 40-BIT
CONFIGURATION 16,384 x 40, 32,768 x 40, 65,536 x 40 and 131,072 x 40
COMMERCIAL AND INDUSTRIAL
TEMPERATURE RANGES
DESCRIPTION (CONTINUED)
PAE
and
PAF
flags can be programmed independently to switch at any point
in memory. Programmable offsets mark the location within the internal memory
that activates the
PAE
and
PAF
flags and can only be programmed serially. To
program the offsets, set
SEN
active and data can be loaded via the Serial Input
(SI) pin at the rising edge of SCLK. To read out the offset registers serially, set
SREN
active and data can be read out via the Serial Output (SO) pin at the rising
edge of SCLK. Four default offset settings are also provided, so that
PAE
can
be marked at a predefined number of locations from the empty boundary and
the
PAF
threshold can also be marked at similar predefined values from the full
boundary. The default offset values are set during Master Reset by the state
of the FSEL0 and FSEL1 pins.
During Master Reset (MRS), the following events occur: the read and write
pointers are set to the first location of the internal FIFO memory, the FWFT pin
selects IDT Standard mode or FWFT mode, the bus width configuration of the
read and write port is determined by the state of IW and OW, and the default offset
values for the programmable flags are set.
The Partial Reset (PRS) also sets the read and write pointers to the first
location of the memory. However, the timing mode and the values stored in the
programmable offset registers before Partial Reset remain unchanged. The
flags are updated according to the timing mode and offsets in effect.
PRS
is useful
for resetting a device in mid-operation, when reprogramming programmable
flags would be undesirable.
The timing of the
PAE
and
PAF
flags are synchronous to RCLK and WCLK,
respectively. The
PAE
flag is asserted upon the rising edge of RCLK only and
not WCLK. Similarly the
PAF
is asserted and updated on the rising edge of
WCLK only and not RCLK.
This device includes a Retransmit from Mark feature that utilizes two control
inputs, MARK and
RT
(Retransmit). If the MARK input is enabled with respect
to the RCLK, the memory location being read at the point will be marked. Any
subsequent retransmit operation (when
RT
goes LOW), will reset the read
pointer to this “marked” location.
The device can be configured with different input and output bus widths as
previously stated. These rates are: x40 to x40, x40 to x20,x40 to x10, x20 to
x40, and x10 to x40.
If, at any time, the FIFO is not actively performing an operation, the chip will
automatically power down. Once in the power down state, the standby supply
current consumption is minimized. Initiating any operation (by activating control
inputs) will immediately take the device out of the power down state.
A JTAG test port is provided, here the FIFO has fully functional boundary
Scan feature, compliant with IEEE 1449.1 Standard Test Access Port and
Boundary Scan Architecture.
The Double Data Rate FIFO has the capability of operating in either LVTTL
or HSTL mode. HSTL mode can be selected by enabling the HSTL pin. Both
input and output ports will operate in either HSTL or LVTTL mode, but cannot
be selected independent of one another.
The IDT72T4088/72T4098/72T40108/72T40118 are fabricated using
IDT’s high-speed submicron CMOS technology.
4
SEPTEMBER 21, 2004
京公网安备 11010802033920号
EEWORLD
