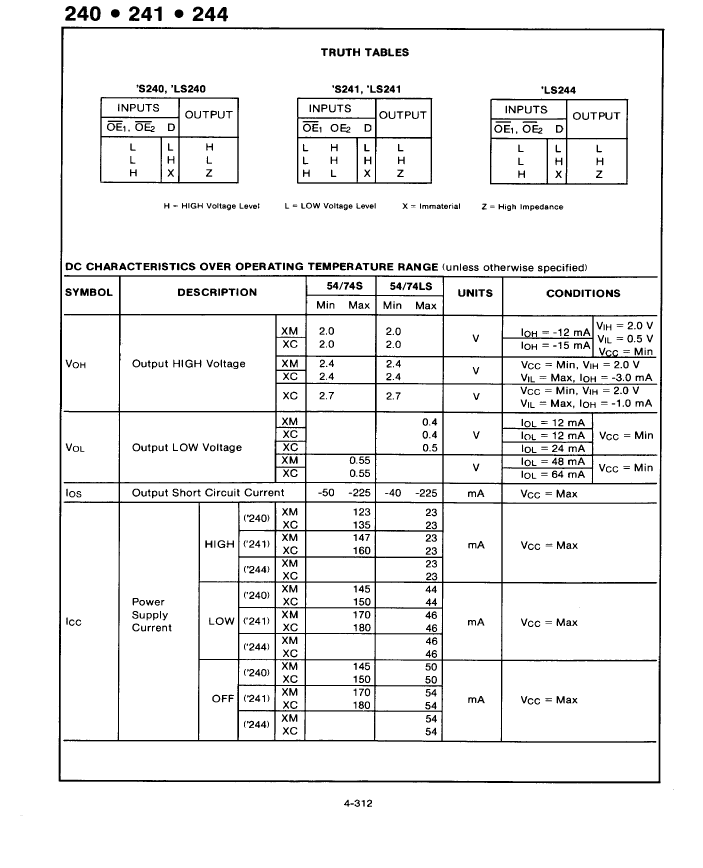

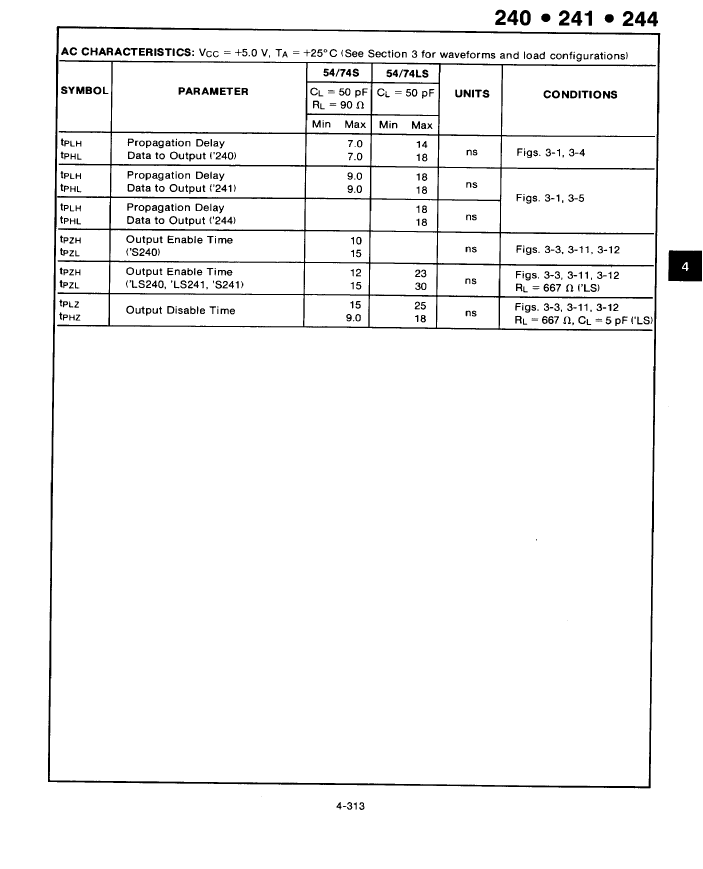

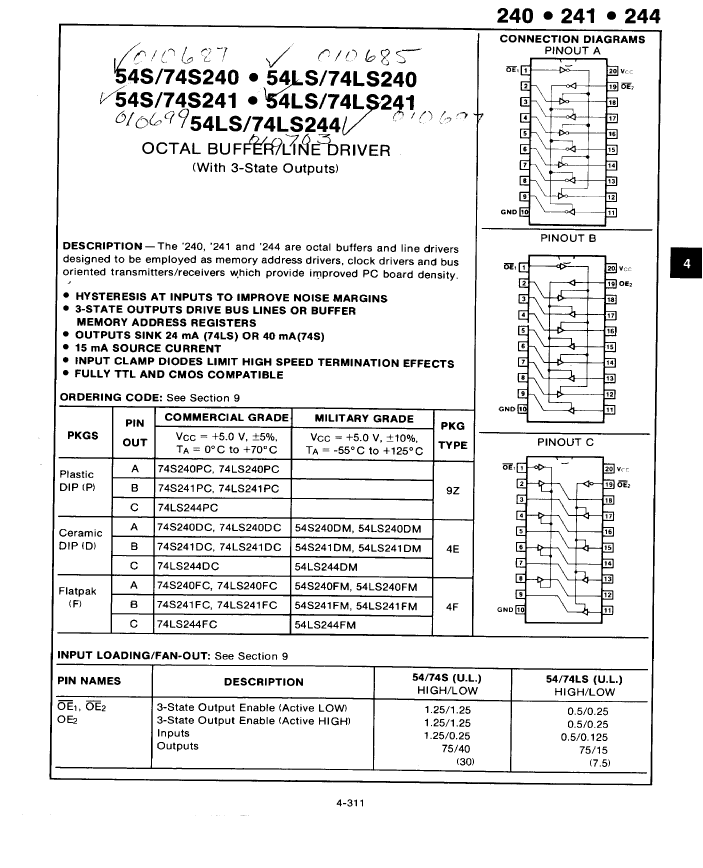

Bus Driver, 2-Func, 4-Bit, True Output, TTL, PDIP20,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DIP, DIP20,.3 |
| Reach Compliance Code | compliant |
| Control type | ENABLE LOW/HIGH |
| JESD-30 code | R-PDIP-T20 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.064 A |
| Number of digits | 4 |
| Number of functions | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 180 mA |
| Prop。Delay @ Nom-Sup | 9 ns |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| 74S241PC | 54LS241DM | 54LS244FM | 74LS241DC | 74S240DC | 74S240FC | 74S240PC | 74S241DC | 74S241FC | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Bus Driver, 2-Func, 4-Bit, True Output, TTL, PDIP20, | Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20, | Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20, | Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20, | Bus Driver, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20, | Bus Driver, 2-Func, 4-Bit, Inverted Output, TTL, CDFP20, | Bus Driver, 2-Func, 4-Bit, Inverted Output, TTL, PDIP20, | Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20, | Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild |
| package instruction | DIP, DIP20,.3 | DIP, DIP20,.3 | DFP, FL20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 | DFP, FL20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 | DFP, FL20,.3 |
| Reach Compliance Code | compliant | unknown | compliant | compliant | compliant | compliant | unknown | compliant | compliant |
| Control type | ENABLE LOW/HIGH | ENABLE LOW/HIGH | ENABLE LOW | ENABLE LOW/HIGH | ENABLE LOW | ENABLE LOW | ENABLE LOW | ENABLE LOW/HIGH | ENABLE LOW/HIGH |
| JESD-30 code | R-PDIP-T20 | R-XDIP-T20 | R-XDFP-F20 | R-XDIP-T20 | R-XDIP-T20 | R-XDFP-F20 | R-PDIP-T20 | R-XDIP-T20 | R-XDFP-F20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | INVERTED | INVERTED | INVERTED | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | CERAMIC | CERAMIC |
| encapsulated code | DIP | DIP | DFP | DIP | DIP | DFP | DIP | DIP | DFP |
| Encapsulate equivalent code | DIP20,.3 | DIP20,.3 | FL20,.3 | DIP20,.3 | DIP20,.3 | FL20,.3 | DIP20,.3 | DIP20,.3 | FL20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | IN-LINE | IN-LINE | FLATPACK | IN-LINE | IN-LINE | FLATPACK |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | NO | NO | YES | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | THROUGH-HOLE | THROUGH-HOLE | FLAT | THROUGH-HOLE | THROUGH-HOLE | FLAT |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it lead-free? | Contains lead | - | - | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| MaximumI(ol) | 0.064 A | - | - | - | 0.064 A | 0.064 A | 0.064 A | 0.064 A | 0.064 A |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum supply current (ICC) | 180 mA | - | - | - | 150 mA | 150 mA | 150 mA | 180 mA | 180 mA |
| Prop。Delay @ Nom-Sup | 9 ns | - | - | - | 7 ns | 7 ns | 7 ns | 9 ns | 9 ns |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
