82S131A/BFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 82S131A/BFA

82S131A/BFA: DescriptionIC 512 X 4 OTPROM, 35 ns, CDFP16, CERAMIC, FP-16, Programmable ROM; Categorystorage; File Size69KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

82S131A/BFA Overview

IC 512 X 4 OTPROM, 35 ns, CDFP16, CERAMIC, FP-16, Programmable ROM

82S131A/BFA Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	35 ns
JESD-30 code	R-CDFP-F16
memory density	2048 bit
Memory IC Type	OTP ROM
memory width	4
Number of functions	1
Number of terminals	16
word count	512 words
character code	512
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512X4
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.731 mm
Base Number Matches	1

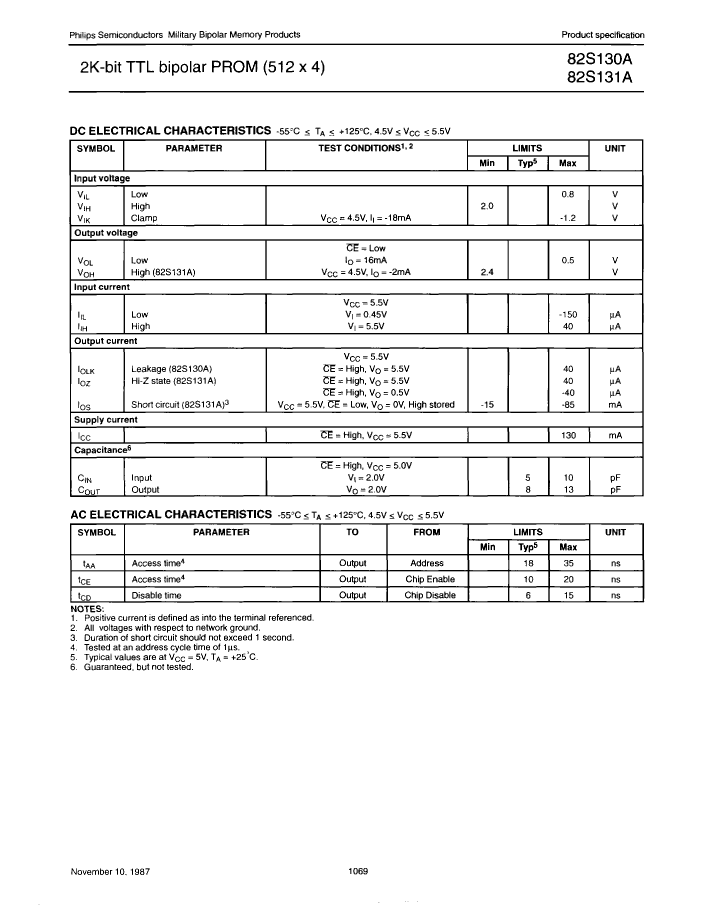

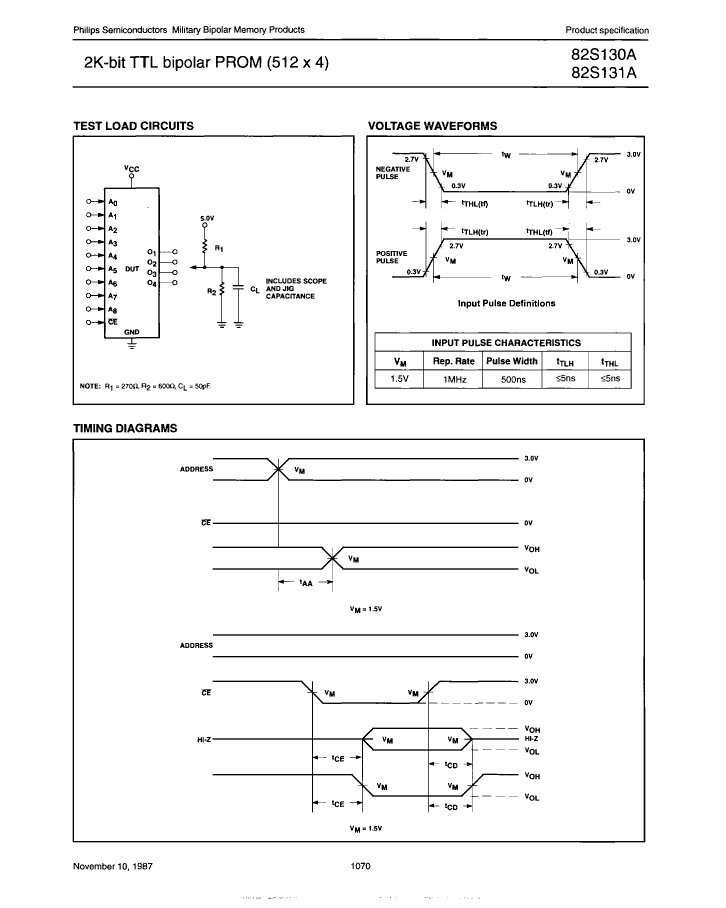

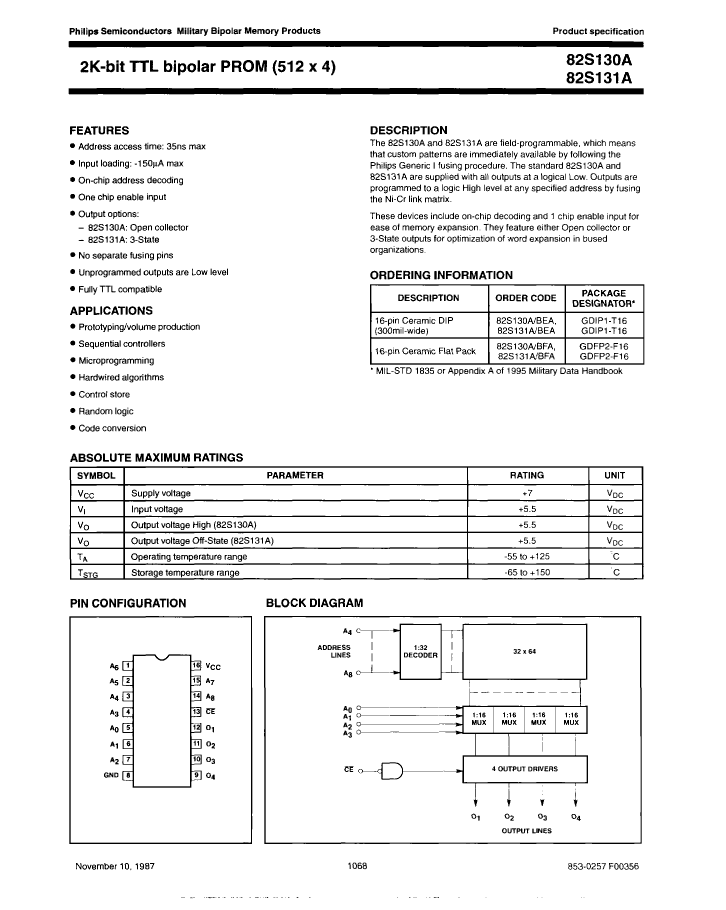

Preview

Download Datasheet

View All

82S131A/BFA Related Products

	82S131A/BFA	82S130A/BFA	82S130A/BEA	82S131A/BEA
Description	IC 512 X 4 OTPROM, 35 ns, CDFP16, CERAMIC, FP-16, Programmable ROM	IC 512 X 4 OTPROM, 35 ns, CDFP16, CERAMIC, FP-16, Programmable ROM	IC 512 X 4 OTPROM, 35 ns, CDIP16, 0.300 INCH, CERAMIC, DIP-16, Programmable ROM	IC 512 X 4 OTPROM, 35 ns, CDIP16, 0.300 INCH, CERAMIC, DIP-16, Programmable ROM
Maker	NXP	NXP	NXP	NXP
Parts packaging code	DFP	DFP	DIP	DIP
package instruction	DFP,	DFP,	DIP,	DIP,
Contacts	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	35 ns	35 ns	35 ns	35 ns
JESD-30 code	R-CDFP-F16	R-CDFP-F16	R-GDIP-T16	R-GDIP-T16
memory density	2048 bit	2048 bit	2048 bit	2048 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
word count	512 words	512 words	512 words	512 words
character code	512	512	512	512
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	512X4	512X4	512X4	512X4
Output characteristics	3-STATE	OPEN-COLLECTOR	OPEN-COLLECTOR	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.159 mm	2.159 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	6.731 mm	6.731 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	-
