DS1836C-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply circuit> DS1836C-10

DS1836C-10: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, +2.88VV, CMOS, PDIP8, 0.300 INCH, DIP-8; CategoryThe power supply circuit; File Size119KB，9 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

DS1836C-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS1836C-10	-	-	View	Buy Now

DS1836C-10 Overview

Power Supply Support Circuit, Fixed, 1 Channel, +2.88VV, CMOS, PDIP8, 0.300 INCH, DIP-8

DS1836C-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
package instruction	0.300 INCH, DIP-8
Reach Compliance Code	unknown
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	0.055 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Threshold voltage nominal	+2.88V
Base Number Matches	1

Preview

Download Datasheet

View All

DS1836/A/B/C/D

3.3V/5V MicroManager

www.dalsemi.com

FEATURES

5-volt or 3.3-volt power-on reset

True 3-volt operation power switch

Switches to battery at 3.8 volts (2.6 volts for

3.3-volt versions)

Excellent for systems designed to operate

with dual power supplies

Asserts resets during power transients

Maintains reset for 350 ms after V

returns

to an in-tolerance condition

Reduces need for discrete components

Precision temperature-compensated voltage

reference and voltage sensor

8-pin DIP or space saving 8-pin SOIC surface

mount available

CMOS reset output for low current operation

Operating temperature of -40°C to +85°C

Perfect for PIC microprocessor applications

PIN ASSIGNMENT

BAT

OUT

RST(*RST)

NMI

GND

8-Pin DIP (300-mil)

BAT

OUT

RST(*RST)

NMI

GND

8-Pin SOIC (150-mil)

DS1836A/C (*DS1836B/D)

PIN DESCRIPTION

BAT

OUT

GND

NMI

RST

(*RST)

- Power Supply Input

- Battery Supply Input

- No Connect

- Power Supply Output

- Ground

- Sense Input

- Non-maskable Interrupt

- Reset Output

DESCRIPTION

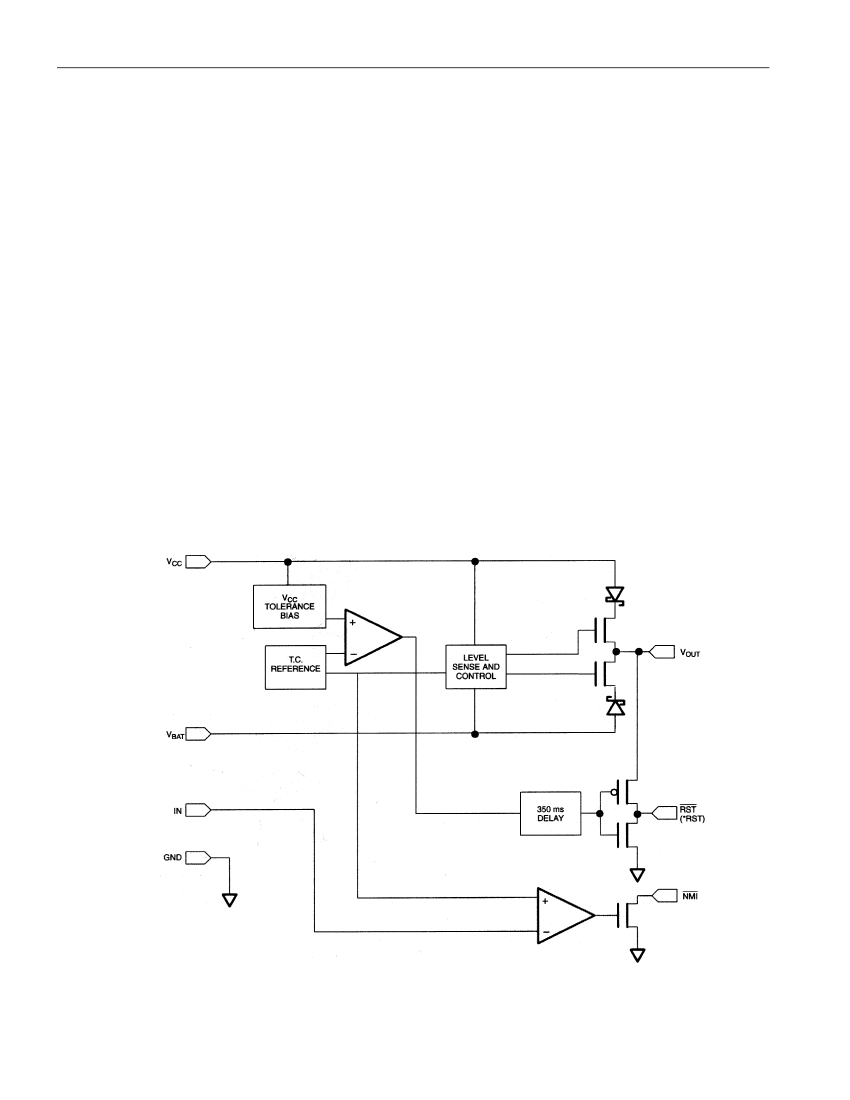

The DS1836 MicroManager performs three vital system functions. First a precision temperature-

compensated reference and comparator circuit monitor the status of the voltage on V

and when an out-

of-tolerance condition is detected, an internal power-fail signal is generated which forces the reset active.

If V

continues to degrade it switches to the battery supply when V

drops below 3.8 volts (2.6 volts

for 3.3-volt versions). When V

exceeds 3.9 volts (2.8 volts for 3.3-volt versions); V

OUT

will again be

supplied from V

. Reset will remain active for 350 ms after V

returns to an in-tolerance condition.

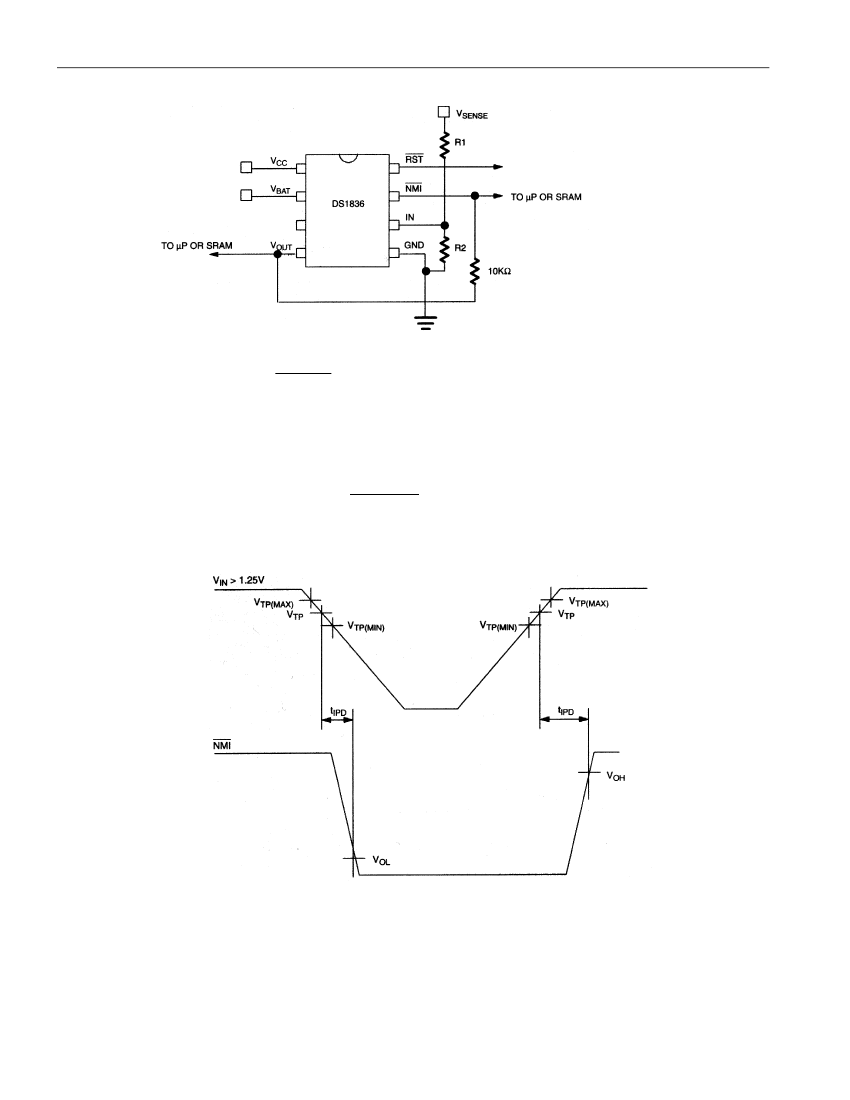

Lastly, the DS1836 supports a sense input that sends a non-maskable interrupt whenever the sense input

drops below 1.25 volts.

1 of 9

112099
