381-66430-3008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 381-66430-3008

381-66430-3008: DescriptionBoard Euro Connector, 64 Contact(s), 4 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle; CategoryThe connector; File Size68KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

381-66430-3008 Overview

Board Euro Connector, 64 Contact(s), 4 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle

381-66430-3008 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.78 inch
subject depth	0.87 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VDC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	38
Plug contact pitch	0.2 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	Z,B,D,F
PCB row number	3
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

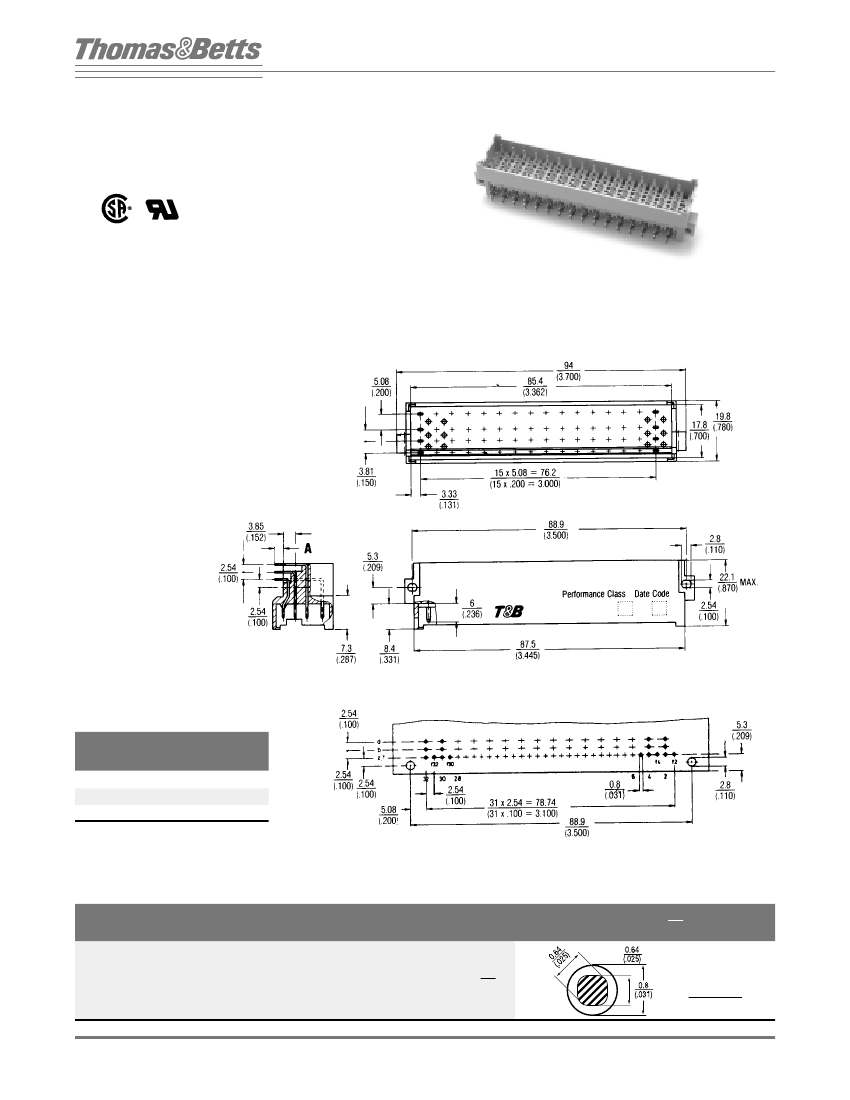

Two–Piece Connectors

Heavy Duty Power DIN

TYPE G

MALE CONNECTOR

SERIES 38

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Gray

ONTACTS

Copper alloy, nickel plate overall,

gold finish in contact zone. Tin/lead on solder

tails, tin/lead or gold on posts.

LECTRICAL

ROPERTIES

URRENT

ATING

5.5 Amps per pin

NSULATION

ESISTANCE

>1 x 10

0hms

IELECTRIC

TRENGTH

> 500 VDC at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

Extended length contacts available.

Consult factory for details.

Recommended Printed Circuit Board Layout

PERFORMANCE LEVEL

level 1 - 500 mating cycles

level 2 - 400 mating cycles

level 3 - 50 mating cycles

Ordering Information

NO. OF CONTACTS

CONTACT LOADING

CATALOG NO.

SPECIFY X

TERMINATION STYLE

(INCHES)

z, b, d, f

2, 4, 6 –32

381-66430-300X

A = 2.9

(.114)

Solder Post

0.64 x 0.64

(.025 x .025)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

262
