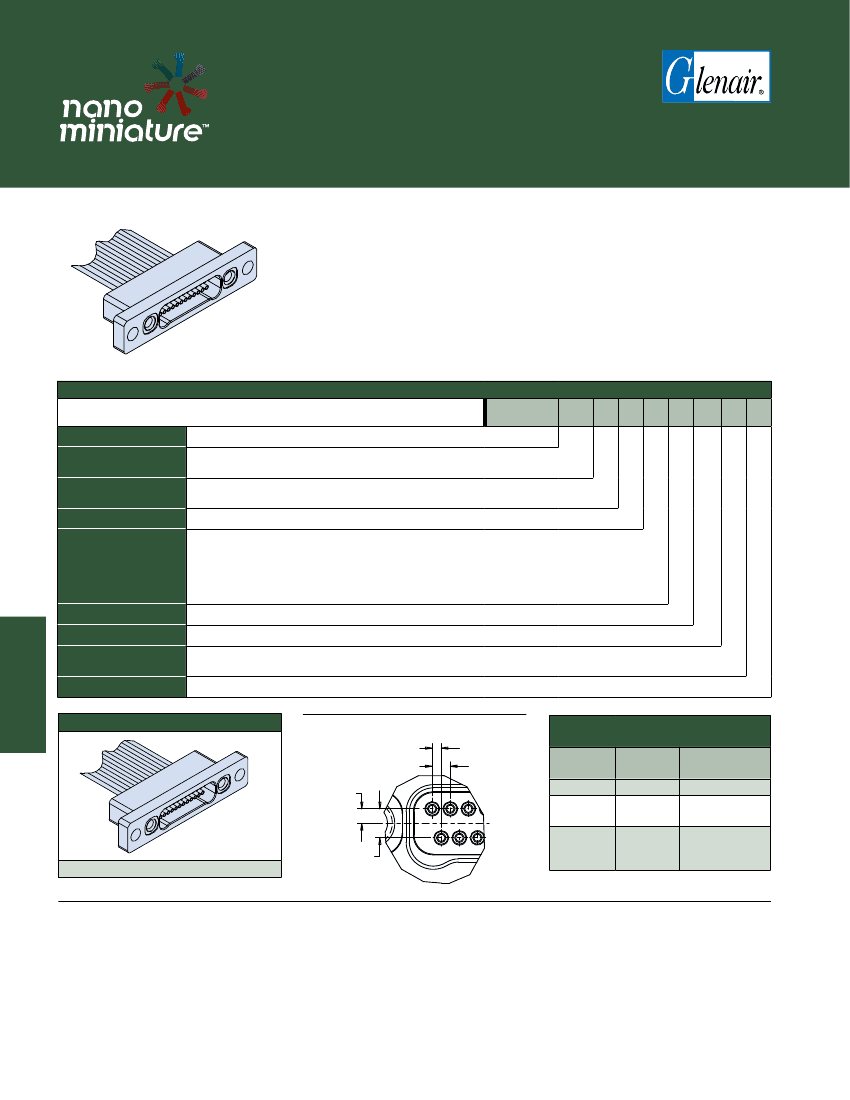

SERIES 89
Dual Row Connectors
Front Panel Mount Receptacle with Insulated Wire
How to Order
Nano Front Panel Mount Receptacles
with Insulated Wire
feature gold alloy
TwistPin contacts. Contacts are precision-
crimped to insulated, stranded wire.
These nanominiature connectors offer
premium performance and reliability
for demanding applications. Contact
spacing is .025 inches. 1 amp current
rating, DWV rating 250 volts AC.
How to Order
Sample Part Number
Series
Insert Arrangement/
Contact Type
Shell Material
and Finish
Wire Gage
891-050
= Receptacle
9S, 15S, 21S, 25S, 31S, 37S, 41S, 51S, 65S, 69S, 85S
A1
= Aluminum Shell Cadmium Plating
A2
= Aluminum Shell, Electroless Nickel Plating
0
= #30 AWG
2
= #32 AWG (Wire Type “B” only)
S
= Stainless Steel Shell, Passivated
T
= Titanium Shell, Unplated
TwistPin Contact System
assures
premium performance in demanding
environments. The gold/platinum alloy
contacts will stand up to years of exposure
without corrosion.
Typical Applications
include
UAV's, satellites, missile systems and
geophysical instruments.
891-050
-25S A2 -0
B
7
-12
T
C
A
= Ultra Lightweight XLETFE Insulation, Silver Coated Ultra High Strength Copper. (Not available in
#32 AWG)
Wire Type
B
= Extruded PTFE Insulation, Silver Coated Copper NEMA HP3-ETX (MIL-W-16878/6)
C
= Cross Linked Modified ETFE Insulation, Silver Coated High Strength Copper. MIL-W-22759/33 (Not
available in #32 AWG)
1
= White
2
= Yellow
7
= 10 Color Repeating (Wire Type A is striped, Types B & C are solid colors)
12
= 12.00 + 1.00 inches; as required in one inch increments.
T
= Female Threads (#0-80 for size 9-69, #2-56 for size 85)
Passivated 303 stainless steel inserts installed in aluminum shells, stainless steel and titanium are tapped directly into shell
C
= Clearance Hole
T
= Female Thread
Wire Color Code
Wire Length
D
Hardware Option
Mounting Hole Option
Receptacle (Socket)
891-050 DETAIL A
.0125 (3.18) TYP
.025 (.64) TYP
.020 (.51)
TYP
Front Panel Mount
Connetor Mounting Matrix
Connector
Holes
Tapped
Clearance
Clearance
Panel
Holes
Clearance
Tapped
Clearance
Mounting
Location
Rear Panel Mount
Front Panel
Mount
Front or Rear
Panel Mount with
screw and nut
T - Female Thread
.040 (1.02)
TYP
NOTES
1. Inspect and test IAW MIL-DTL-32139
2. Interface receptacle dimensions per MIL-DTL-32139/4
3. Panel cutout sized to allow lobe up or lobe down mounting
orientation
4. Connector may be mounted to front or back of panel
depending on selected mounting hole option
5. Recommended panel thickness .100 (2.54) max
D-19
6.
•
•
•
•
•
Material and Finish
Shell: see part number break down
Insulator: LCP/N/A
Contacts: Gold alloy per ASTM B477 and ASTM B541
Wire: See part number break down
Jacking hardware: See part number break down
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • Series 89 Nanominiature Catalog
U.S. CAGE code 06324/0CA77 • Dimensions in Inches (millimeters) are subject to change without notice.
