819D-0.750MHZ-DE0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 819D-0.750MHZ-DE0

819D-0.750MHZ-DE0: DescriptionHCMOS Output Clock Oscillator, 0.75MHz Nom, ROHS AND REACH COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size662KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

819D-0.750MHZ-DE0 Overview

HCMOS Output Clock Oscillator, 0.75MHz Nom, ROHS AND REACH COMPLIANT PACKAGE-4

819D-0.750MHZ-DE0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS AND REACH COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDBY; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	0.75 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	2.6mm x 2.1mm x 1.0mm
longest rise time	10 ns
Maximum slew rate	2.5 mA
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

HCMOS 2.5x2mm 1.8V Oscillator

Page 1 of 2

Model: F210 SERIES

RoHS & REACH Compliant

http://www.foxonline.com/need_a_sample.htm

Rev. 9/17/2012

FEATURES

• Standby Function

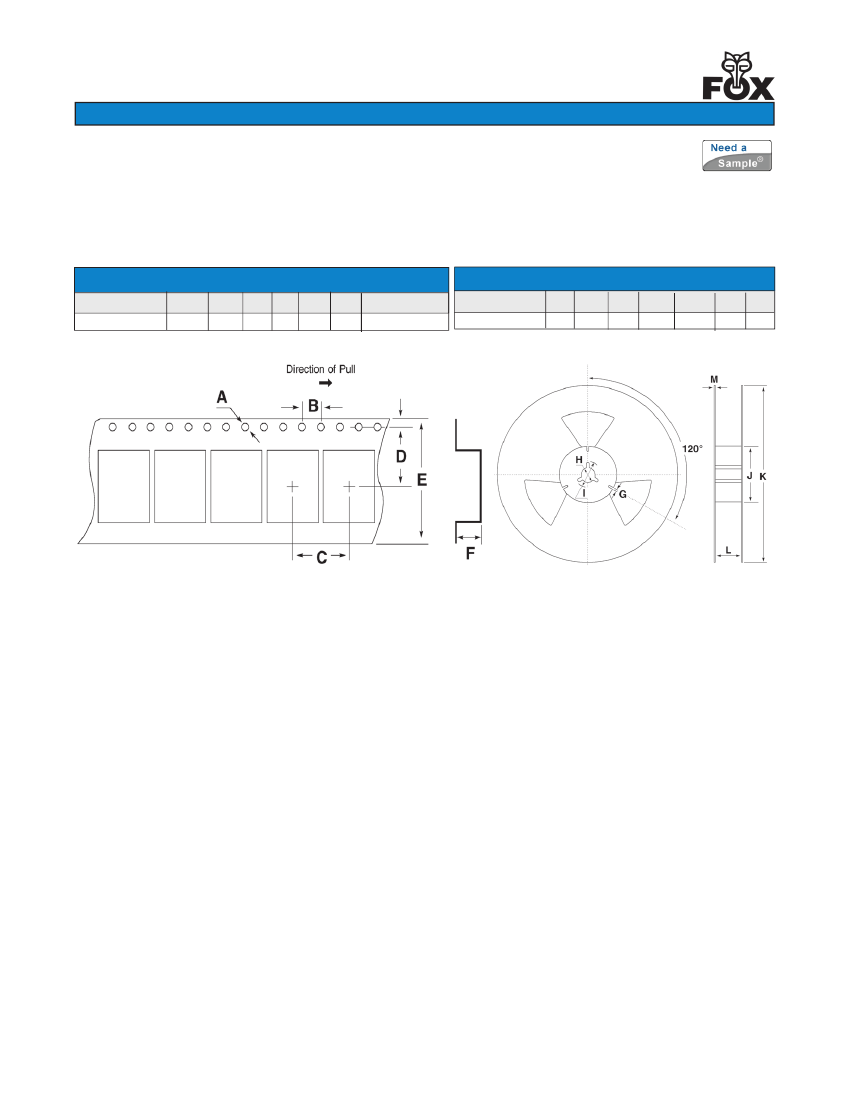

• Tape and Reel

(3,000 pcs. STD)

• PART NUMBER SELECTION

Part Number

819-Frequency-xxxxx

819A-Frequency-xxxxx

819B-Frequency-xxxxx

819C-Frequency-xxxxx

819D-Frequency-xxxxx

819E-Frequency-xxxxx

Model Frequency

Operating

Number Stability

Temperature (ºC)

±100PPM

-10 ~ +70

F210

-40 ~ +85

F210R

±100PPM

±50PPM

-10 ~ +70

F215

±50PPM

-40 ~ +85

F215R

±25PPM

-10 ~ +70

F216

-40 ~ +85

F216R

±25PPM*

Frequency

Range (MHz)

0.750 ~ 50.000

1.800 ~ 50.000

2.6 Ma x

T op

V ie w

Dot de note s

p in 1 .

2.1 m a x

• ELECTRICAL CHARACTERISTICS

Frequency Range (F

)

Storage Temperature Range (T

STG

)

Supply Voltage

)

Input Current

)

0.750 ~ 10.000 MHz

10.000+ ~ 20.000 MHz

20.000+ ~ 30.000 MHz

30.000+ ~ 40.000 MHz

40.000+ ~ 50.000 MHz

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

)

Fall Time (90% ~ 10% V

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Reflow Soldering Temp

Moisture Sensitivity Level (MSL)

Termination Finish

PARAMETERS

MAX

(unless otherwise noted)

0.750 ~ 50.000 MHz

-55ºC ~ +100ºC

1.8V ± 5%

2.5mA

3.5mA

4.0mA

4.5mA

5.0mA

45% ~ 55%

10nS

10% V

90% V

Min

2mA Min

-2mA Min

15pF

10µA

10mS

10uS

10mS

260ºC / 10 Seconds

1.0 Ma x

0.78

B ottom

V ie w

0.68

0.65

0.95

R e c om m e nde d

S o ld e r P a d L a y o u t

0.95

0.8

0.65

0.9

All dimensions are in millimeters.

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, reflow,

and one year aging

Excludes Shock/Vibration.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: A 0.01µF capacitor should be placed between V

(Pin 4) and GND (Pin2) to minimize

power supply noise.

Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. All specifications subject to change without notice.

P in C o n n e c t io n s

# 1 E /D

#2 GND

# 3 O u t pu t

# 4 V

• ENABLE / DISABLE FUNCTION

Pin 1

OUTPUT (Pin 3)

OPEN

ACTIVE

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

www.foxonline.com

819D-0.750MHZ-DE0 Related Products

	819D-0.750MHZ-DE0	819-50.000MHZ-AE0	819C-50.000MHZ-BM0
Description	HCMOS Output Clock Oscillator, 0.75MHz Nom, ROHS AND REACH COMPLIANT PACKAGE-4	HCMOS Output Clock Oscillator, 50MHz Nom, ROHS AND REACH COMPLIANT PACKAGE-4	HCMOS Output Clock Oscillator, 50MHz Nom, ROHS AND REACH COMPLIANT PACKAGE-4
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDBY; ENABLE/DISABLE FUNCTION	STANDBY; ENABLE/DISABLE FUNCTION	STANDBY; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns	10 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO	NO
frequency stability	25%	100%	50%
JESD-609 code	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4
Nominal operating frequency	0.75 MHz	50 MHz	50 MHz
Maximum operating temperature	70 °C	70 °C	85 °C
Minimum operating temperature	-10 °C	-10 °C	-40 °C
Oscillator type	HCMOS	HCMOS	HCMOS
Output load	15 pF	15 pF	15 pF
physical size	2.6mm x 2.1mm x 1.0mm	2.6mm x 2.1mm x 1.0mm	2.6mm x 2.1mm x 1.0mm
longest rise time	10 ns	10 ns	10 ns
Maximum slew rate	2.5 mA	5 mA	5 mA
Maximum supply voltage	1.89 V	1.89 V	1.89 V
Minimum supply voltage	1.71 V	1.71 V	1.71 V
Nominal supply voltage	1.8 V	1.8 V	1.8 V
surface mount	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)
Base Number Matches	1	1	1
package instruction	ROHS AND REACH COMPLIANT PACKAGE-4	-	ROHS AND REACH COMPLIANT PACKAGE-4
