lV-PEcl 7x5mm 3.3V oscillator
FEatuREs
•
•
•
•
Page 1 of 2
F4600 sERiEs
RoHs compliant / Pb Free
oPtions
•
http://www.foxonline.com/need_a_sample.htm
Rev. 10/30/2013
•
3.3V Operation
LV-PECL Output
Complementary Outputs
Standby Function
Tape and Reel
(2,000 pcs. STD)
Model
Number
F4600
F4600R
F4605
F4605R
F4606
F4606R
F4608
2.5V Version - XpressO
®
Equivalent FXO-PC72
• Pin 2 E/D (A Series)
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!
XpressO
®
Equivalent
FXO-PC73
• PaRt nuMbER sElEction
Part Number
535-Frequency-xxxxx
536-Frequency-xxxxx
537-Frequency-xxxxx
538-Frequency-xxxxx
539-Frequency-xxxxx
540-Frequency-xxxxx
541-Frequency-xxxxx
Operating
Frequency
Stability
1
Temperature (ºC)
-10 ~ +70
±100PPM
-40 ~ +85
±100PPM
-10 ~ +70
±50PPM
-40 ~ +85
±50PPM
-10 ~ +70
±25PPM*
-40 ~ +85
±25PPM*
-10 ~ +70
±20PPM*
Frequency
Range (MHz)
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 170.000
40.000 ~ 170.000
• ElEctRical cHaRactERistics
PARAMETERS
MAX
(unless otherwise noted)
40.000 ~ 280.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
88mA
45% ~ 55%
40% ~ 60%
1nS
1nS
1.7V
2.2V Min
30µA
See Recommended Circuit
10mS
200nS
10mS
0.3pS Typ.
2.5pS Typ.
20pS Typ.
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Output Symmetry (50% Vp-p Level)
40.000 MHz ~ 170.000 MHz
170.000* Mhz ~ 280.000 MHz
Rise Time (T
r
) (20% ~ 80% Vp-p)
Fall Time (T
f
)(80% ~ 20% Vp-p)
Output Voltage
(V
ol
)
(V
oh
)
Standby Current
Output Load
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Jitter
12kHz ~ 20MHz
RMS Period
Cycle-to-Cycle
1
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. (*Excludes shock and vibration)
2
An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between
V
dd
(Pin 6) and GND (Pin 3) to
minimize power supply line noise.

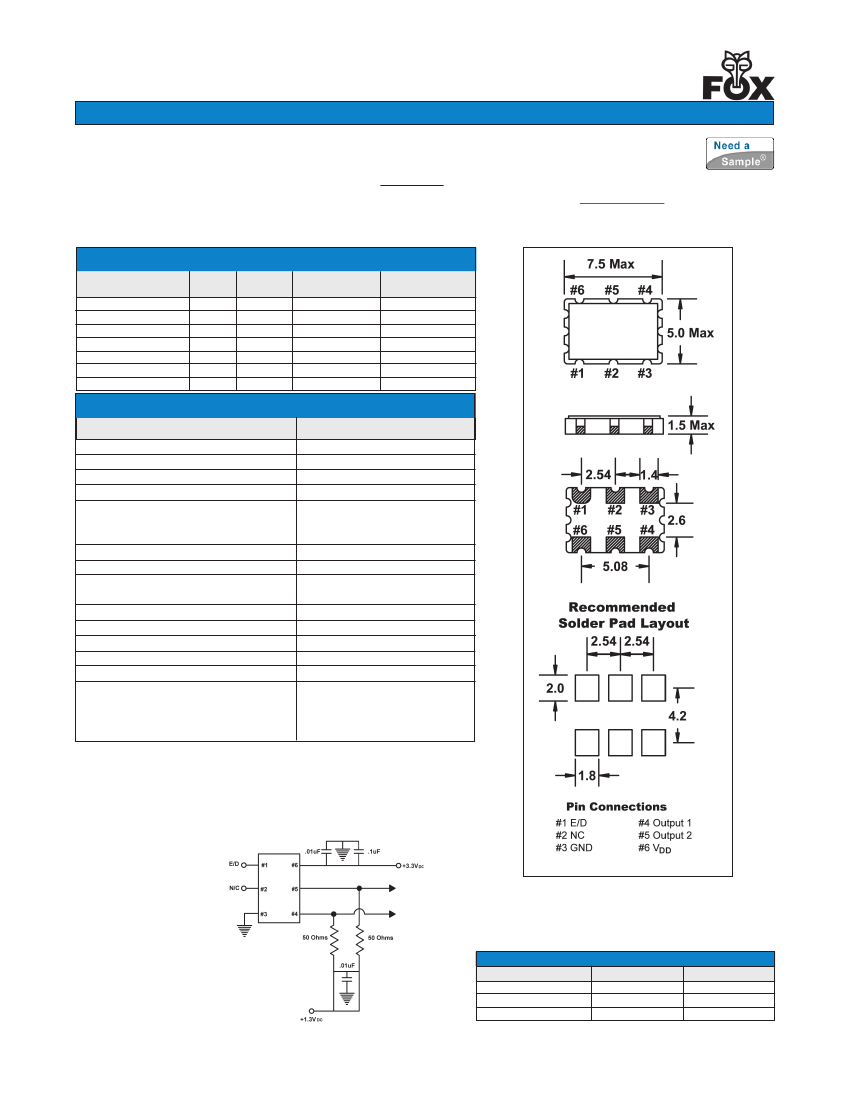

Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.
All specifications subject to change without notice.
All dimensions are in millimeters.
• EnablE / DisablE Function
3
OUTPUT (Pin 4)
(Pin 1)
ACTIVE
OPEN
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
OUTPUT (Pin 5)
ACTIVE
ACTIVE
High Z
FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 www.foxonline.com
EMEA Tel: +44 .1283.568153 | Canada +1.888.438.2369 | Japan Tel: +81.3.3374.2079 | Singapore Tel: +65.68447989
© 2013 FOX ELECTRONICS | An Integrated Device Technology, Inc. company | ISO9001:2008 Certified
lV-PEcl 7x5mm 3.3V oscillator
F4600 sERiEs
RoHs compliant / Pb Free
Page 2 of 2
http://www.foxonline.com/need_a_sample.htm
Rev. 10/30/2013

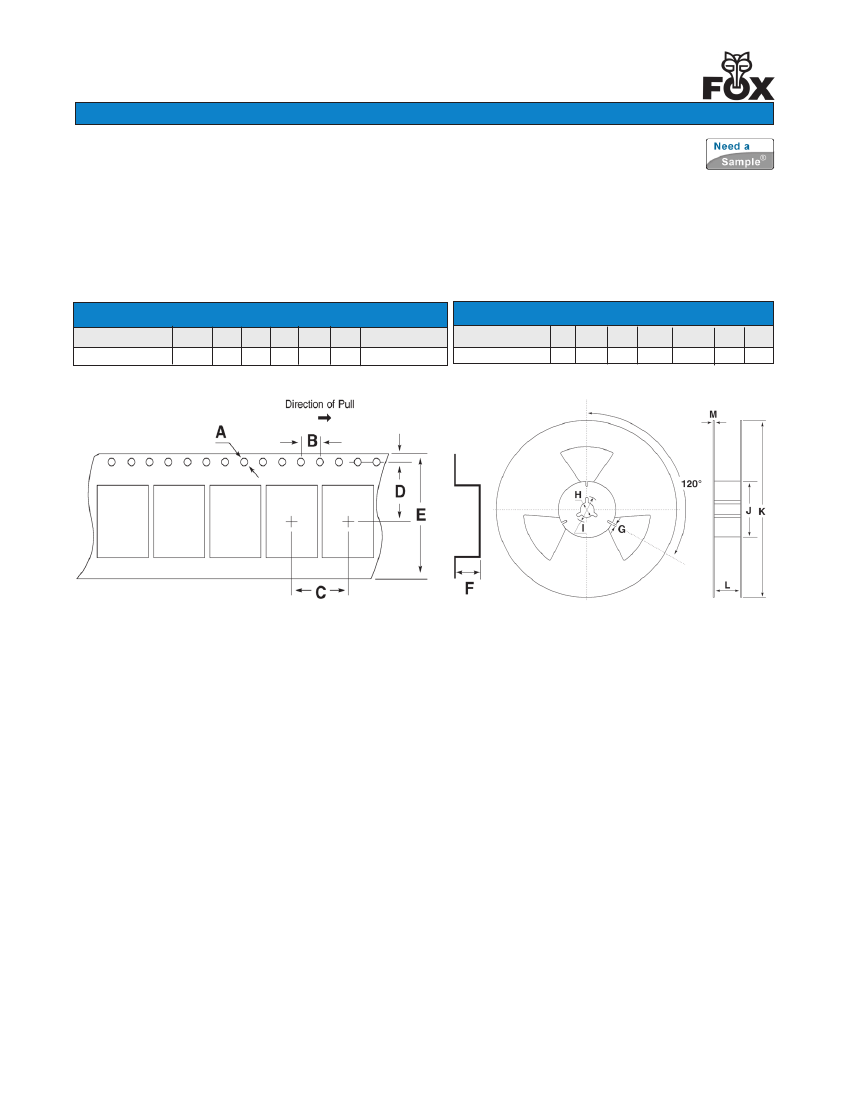

• taPE sPEciFications
