54176J/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54176J/B

54176J/B: DescriptionDecade Counter,; Categorylogic; File Size968KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54176J/B Overview

Decade Counter,

54176J/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	DECADE COUNTER
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

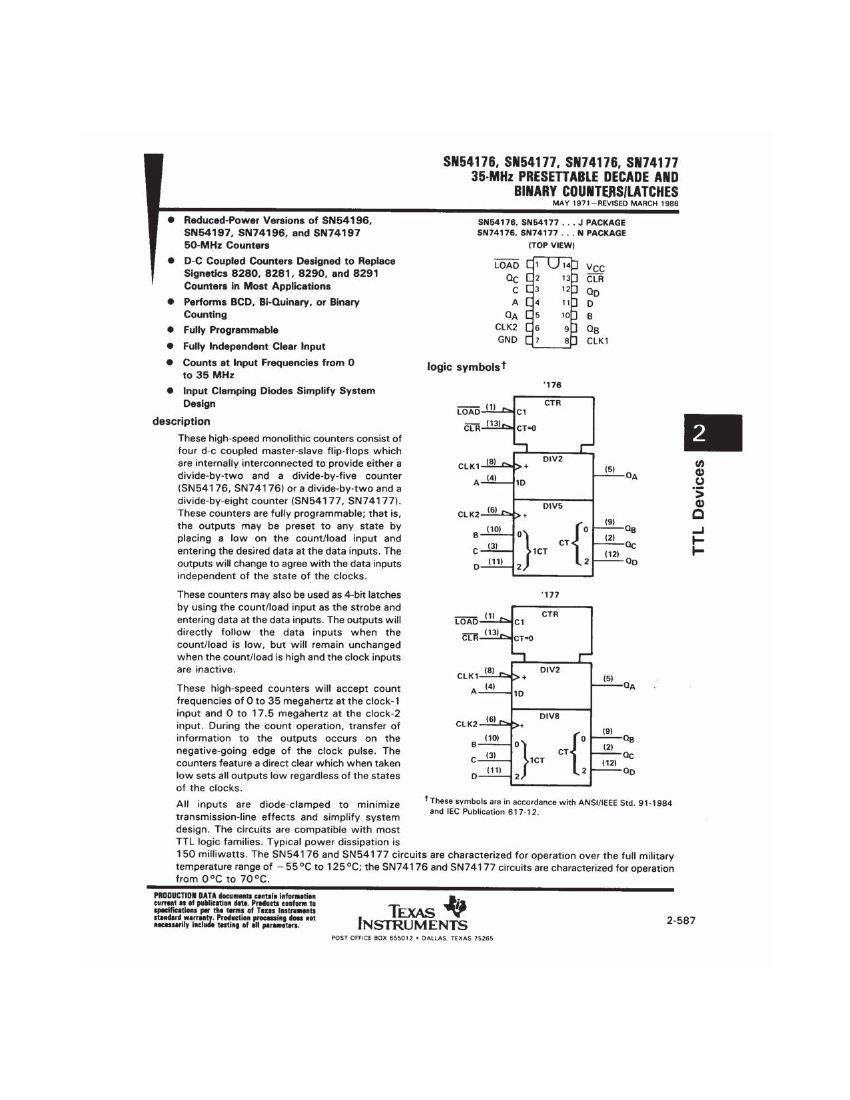

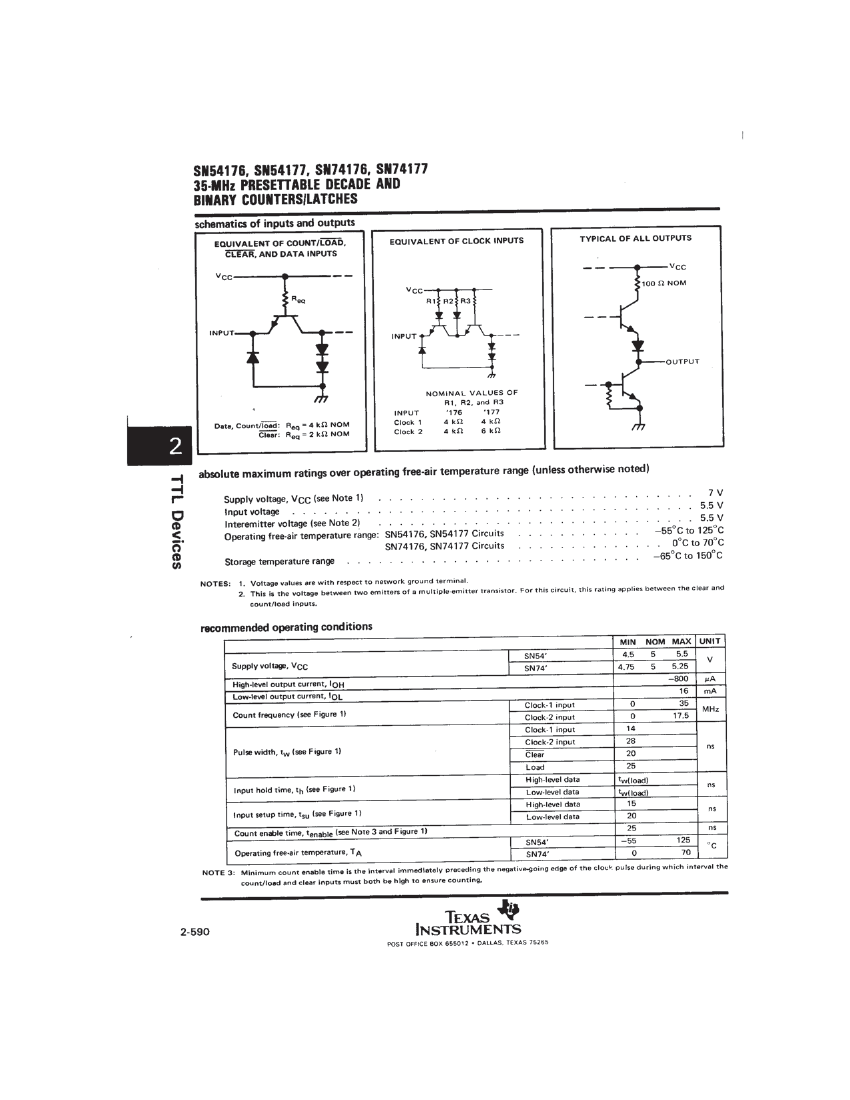

SN54176, SN54177, SN74176, SN74177

35-MHz Presettable Decade And Binary Counters/Latches

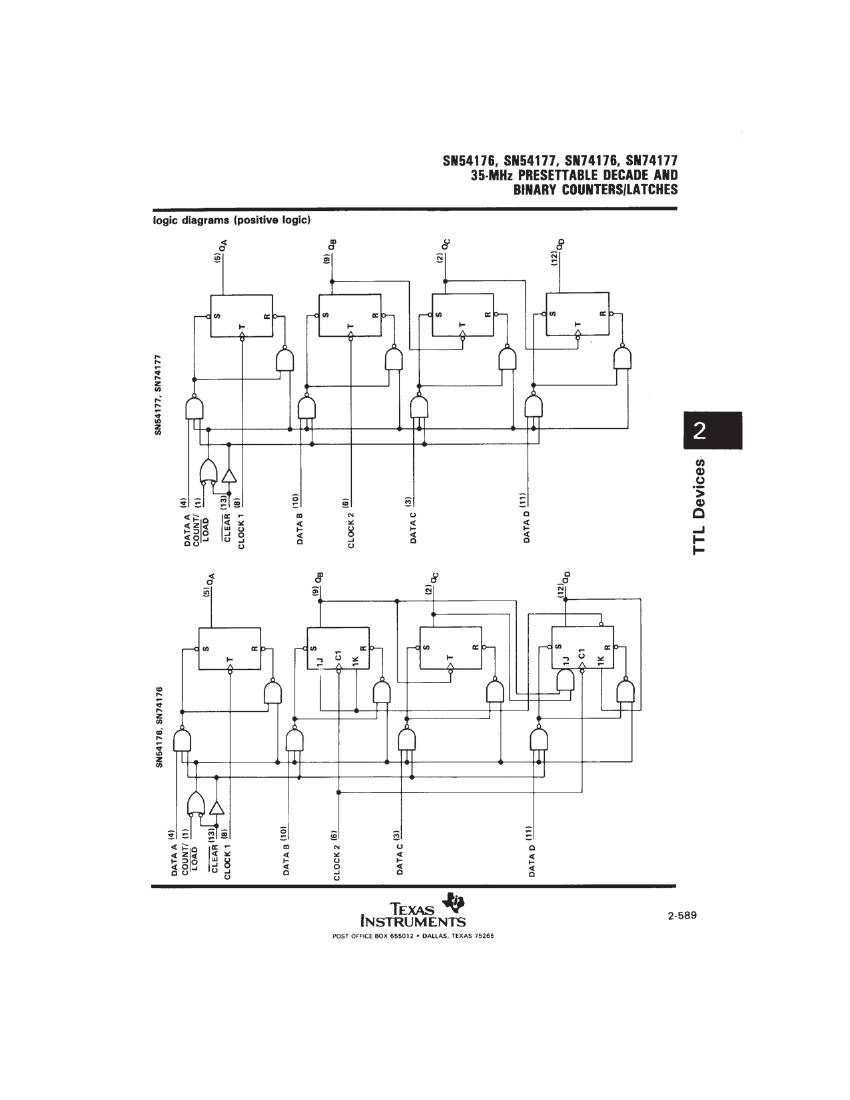

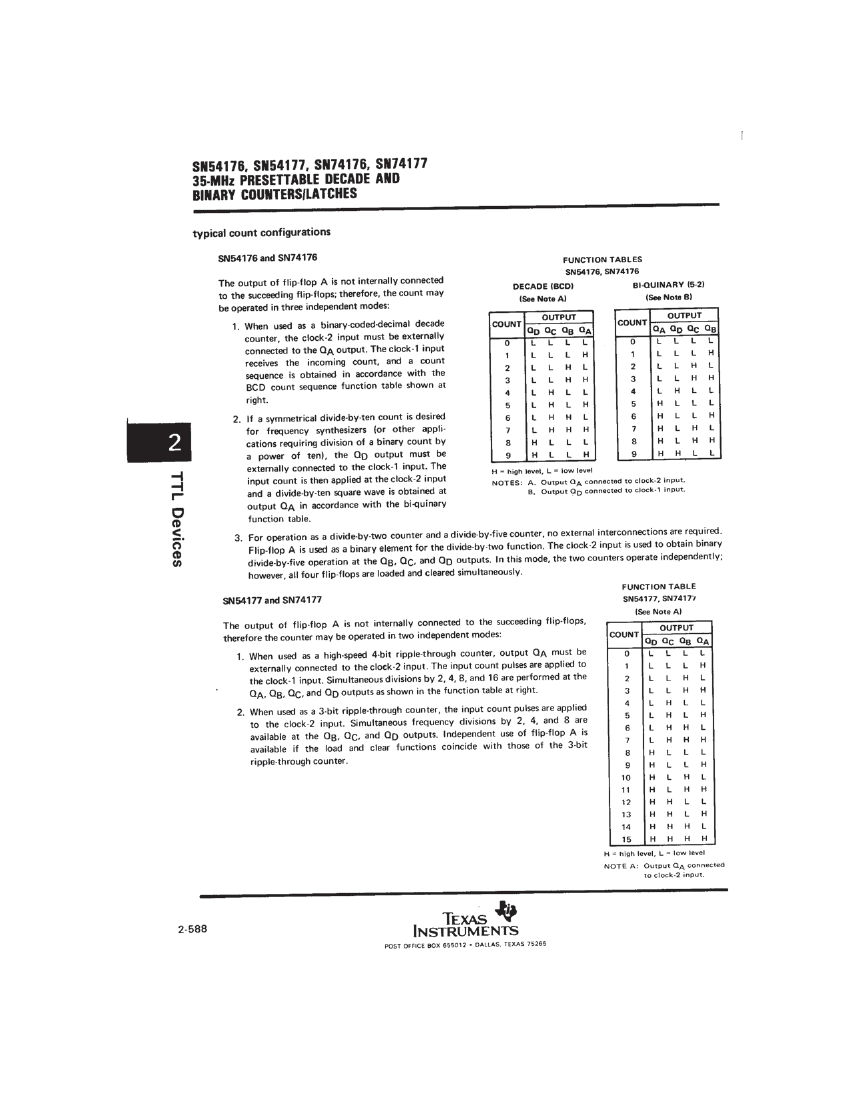

These high-speed monolithic counters consist of four d-c coupled master-slave flip-flops which are

internally interconnected to provide either a divide-by-two and a divide-by-five counter (SN54176,

SN74176) or a divide-by-two and a divide-by-eight counter (SN54177, SN74177). These counters

are fully programmable; that is, the outputs may be preset to any state by placing a low on the count/

load input and entering the desired data at the data inputs. The outputs will change to agree with the

data inputs independent of the state of the clocks.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

54176J/B Related Products

	54176J/B	74176N	SN74176N	SN74177N	SN54176W	SN54177W	SN74176J
Description	Decade Counter,	Decade Counter,	Decade Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDIP14, PLASTIC, DIP-14	Binary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDIP14, PLASTIC, MS-001AA, DIP-14	Decade Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDFP14, DFP-14	Binary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDFP14, DFP-14	Decade Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDIP14, DIP-14
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	,	,	DIP,	DIP,	DFP,	DFP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER
Base Number Matches	1	1	1	1	-	-	-
Other features	-	-	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS
Counting direction	-	-	UP	UP	UP	UP	UP
series	-	-	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L
JESD-30 code	-	-	R-PDIP-T14	R-PDIP-T14	R-GDFP-F14	R-GDFP-F14	R-GDIP-T14
JESD-609 code	-	-	e0	e0	e0	e0	e0
length	-	-	19.305 mm	19.305 mm	9.21 mm	9.21 mm	19.56 mm
Load/preset input	-	-	YES	YES	YES	YES	YES
Operating mode	-	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	-	-	3	3	3	3	3
Number of functions	-	-	2	2	2	2	2
Number of terminals	-	-	14	14	14	14	14
Maximum operating temperature	-	-	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	-	-	DIP	DIP	DFP	DFP	DIP
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE
propagation delay (tpd)	-	-	51 ns	75 ns	51 ns	75 ns	51 ns
Maximum seat height	-	-	5.08 mm	5.08 mm	2.03 mm	2.03 mm	5.08 mm
Maximum supply voltage (Vsup)	-	-	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	-	-	4.75 V	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	-	-	5 V	5 V	5 V	5 V	5 V
surface mount	-	-	NO	NO	YES	YES	NO
technology	-	-	TTL	TTL	TTL	TTL	TTL
Temperature level	-	-	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	-	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	-	-	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	-	-	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	-	-	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	-	-	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	-	-	7.62 mm	7.62 mm	6.29 mm	6.29 mm	7.62 mm
minfmax	-	-	35 MHz	35 MHz	35 MHz	35 MHz	35 MHz
